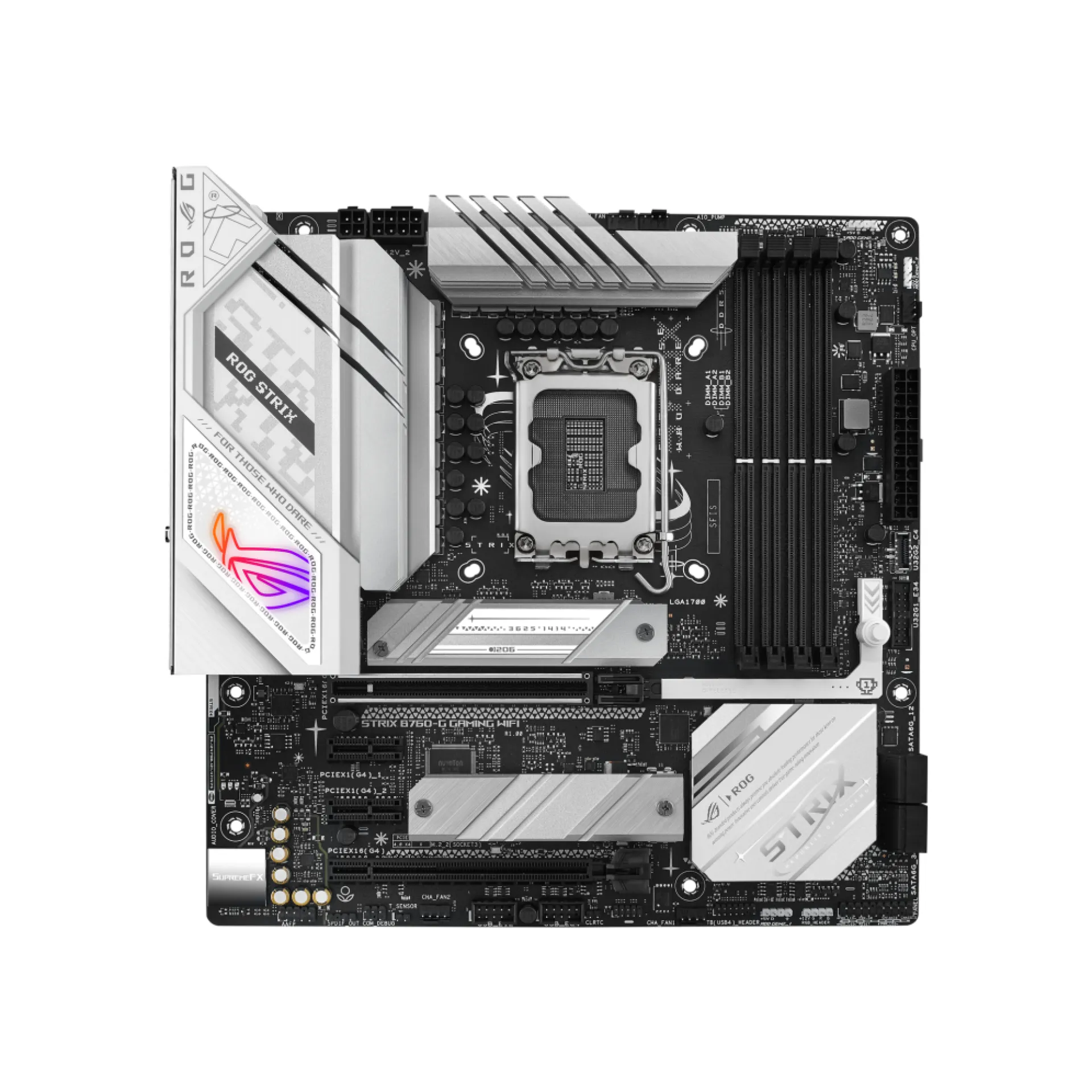

90MB1FS0-M0EAY0 ASUS ATX Single V (LGA 1700) 4 DIMM Slots Mainboard

*Picture may not be exactly the same as the product

Product line:

ROG

See other ASUS products

This product is currently not priced. Request a personalized quote now.

Out of stock

Not available

Happyware Article Number:

SH5M5393-539088

Manufacturer Number:

90MB1FS0-M0EAY0

Brand:

ASUS

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

90MB1FS0-M0EAY0

High-Performance ATX Intel Z790 Motherboard featuring PCIe 5.0 expansion and DDR5 tuning with the 90MB1FS0-M0EAY0

The 90MB1FS0-M0EAY0 is an ASUS ATX motherboard for the Intel LGA1700 desktop platform, designed to anchor workstation-class builds where CPU throughput, memory bandwidth, and storage latency must be engineered as a single system. Built on the Intel Z790 chipset, it targets modern Intel Core platforms while maintaining compatibility for mixed-use environments that may still deploy Pentium Gold or Celeron for lab or edge development nodes.

Architecturally, 90MB1FS0-M0EAY0 combines dual-channel DDR5 with 4 DIMM slots for up to 192GB, enabling high-frequency tuning headroom for compilation, content pipelines, and general compute without the cost overhead of ECC. Expansion is optimized for accelerator density: 2 PCIe 5.0 x16 full-height slots support next-generation GPUs or PCIe Gen5 add-in cards, while an additional PCIe 4.0 x4 slot covers high-speed NICs or capture devices. Storage design is NVMe-forward with 1 PCIe Gen5 M.2 slot for OS/scratch and 4 PCIe Gen4 M.2 slots for parallel project datasets, complemented by 4 SATA III ports with RAID support for bulk capacity tiers.

Why Choose the 90MB1FS0-M0EAY0?

The 90MB1FS0-M0EAY0 offers a practical density-to-performance profile for teams needing both multi-device PCIe Gen5 growth and sustained high I/O without moving to a server platform. It supports scalable builds through balanced lane utilization, robust high-speed connectivity, and enterprise-relevant reliability for repeatable workstation deployments where service continuity depends on predictable component interoperability.

ASUS engineering focuses on signal integrity, power delivery stability, and validated interfaces aligned with contemporary data centre and studio standards, making the platform suitable for controlled rollouts where consistency and lifecycle management are priorities even without integrated IPMI/BMC.

Key Applications:

Content creation workstations
Software development and CI build nodes
Multi-GPU compute and rendering
High-speed NVMe scratch and dataset storage
Thunderbolt 4 peripheral and capture workflows

At Happyware - Server Hardware you benefit from non-binding offers tailored to 90MB1FS0-M0EAY0 deployment quantities and configuration goals, plus extended warranty options up to 6 years to protect long lifecycle workstation and lab investments.

Technical details of 90MB1FS0-M0EAY0

CPU Socket: V (LGA 1700)

Onboard Memory: No

RAID Support: Yes

CPU Manufacturer: Intel

CPU Supported Type: Pentium Gold, Celeron, Core

Form Factor: ATX

Chipset: Intel Z790

RAM Maximum Capacity: 192GB

Max RAM Frequency : 8000MHz

RAM Slots: 4 DIMM DDR5

RAM Channels: Dual-Channel

PCIe Slots: 1 PCIe 4.0 x4, 2 PCIe 5.0 x16

M.2 Slots: 1 PCIe 3.0 M.2 2230 E-Key, 1 PCIe 5.0 M.2 2260, M.2 2280, M.2 2242, M.2 22110 M-Key, 2 PCIe 4.0 M.2 2280, M.2 2260, M.2 2242 M-Key, 2 PCIe 4.0 M.2 2280 M-Key

Network Ports: 1 RJ45 2.5 Gbps

ECC Support: Non-ECC

Onboard Network: Ethernet

Onboard CPU: No

RAID Support: Yes

Onboard Graphic: No

Video Output: 1x HDMI 2.1, 2x Thunderbolt 4

USB Ports: 1x USB 3.2 Gen 2 Type-C, 1x USB 3.2 Gen 2x2 Type-C, 2x USB 2.0 header, 2x USB 3.2 Gen 1 Header, 4x USB 3.2 Gen 1 Type-A, 5x USB 3.2 Gen 2 Type-A

Other Ports: 1x RJ-45 (2.5GBase-T, Intel I226-V), 1x Toslink S/PDIF Out, 2x Antennenanschluss Quick Connect, 5x 3.5mm Klinke (Realtek ALC4082)

BIOS: AMI UEFI

Wi-Fi Support: Wi-Fi 7

Bluetooth integrated: 5.4

Onboard Audio Chipset: Realtek ALC4082

Embedded: No

Card Reader: No

How long is the Warranty and how you can get technical support for 90MB1FS0-M0EAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
