90MB19B0-M0EAYC

Micro-ATX Intel B660 Business Desktop Motherboard featuring DDR4 and PCIe 4.0 NVMe with the 90MB19B0-M0EAYC

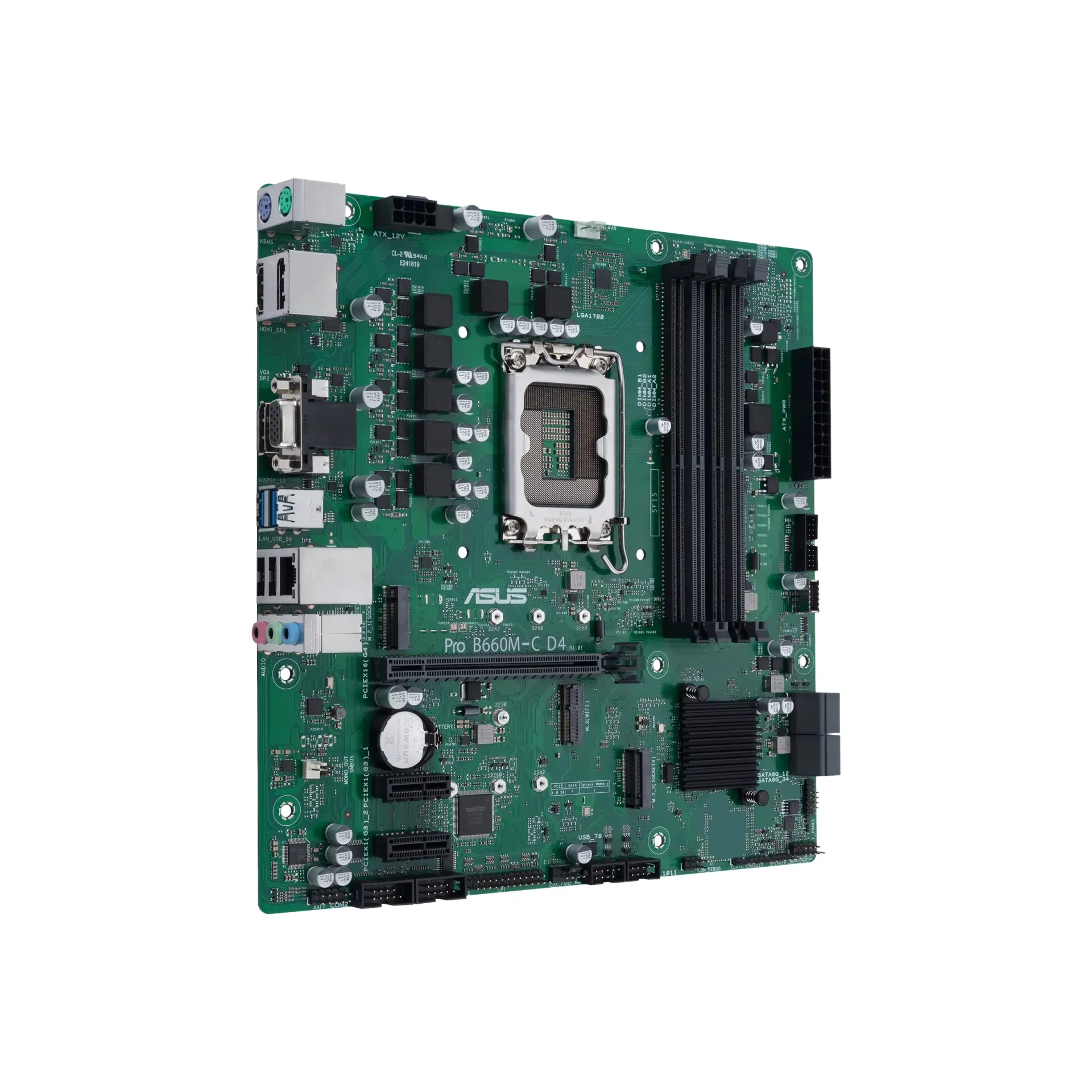

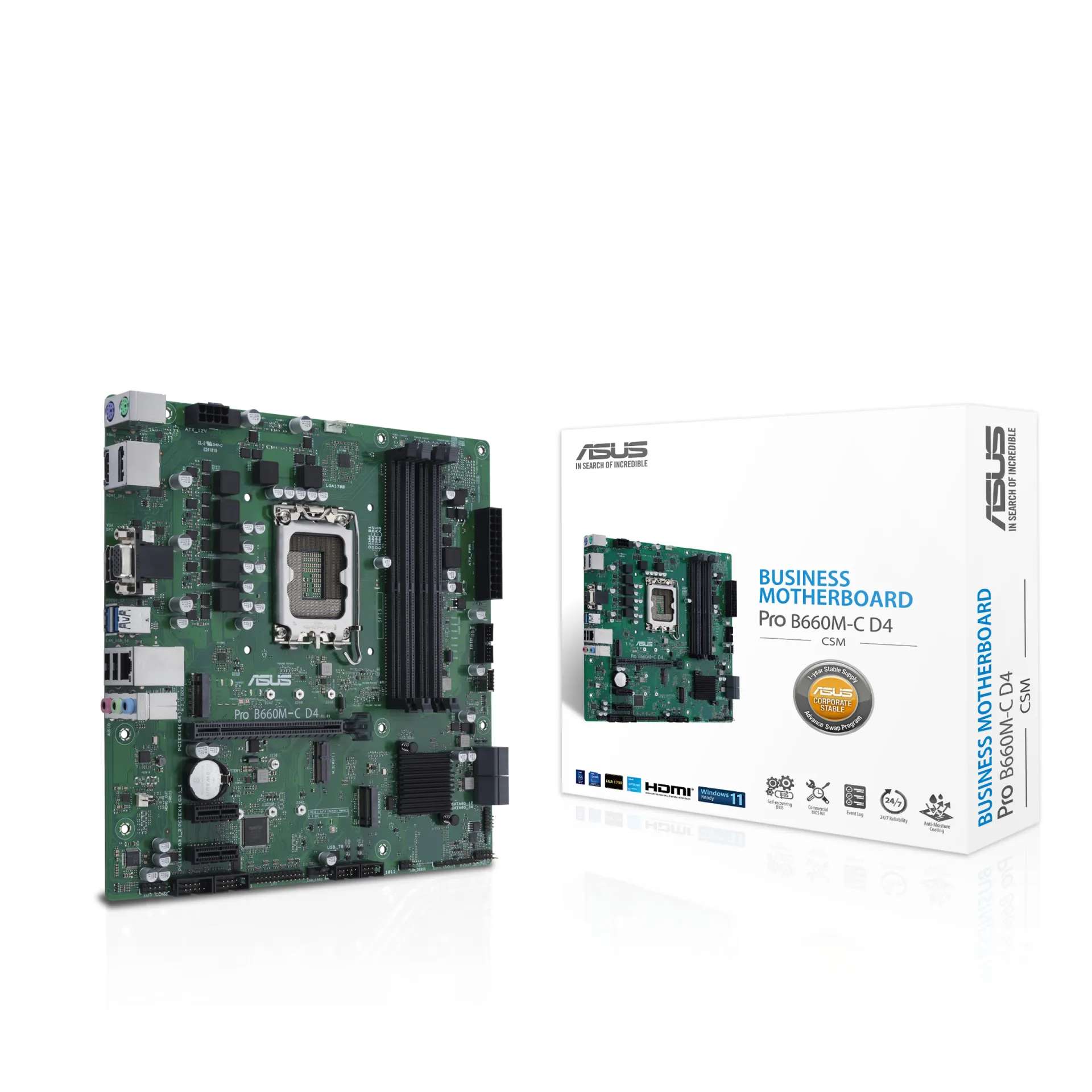

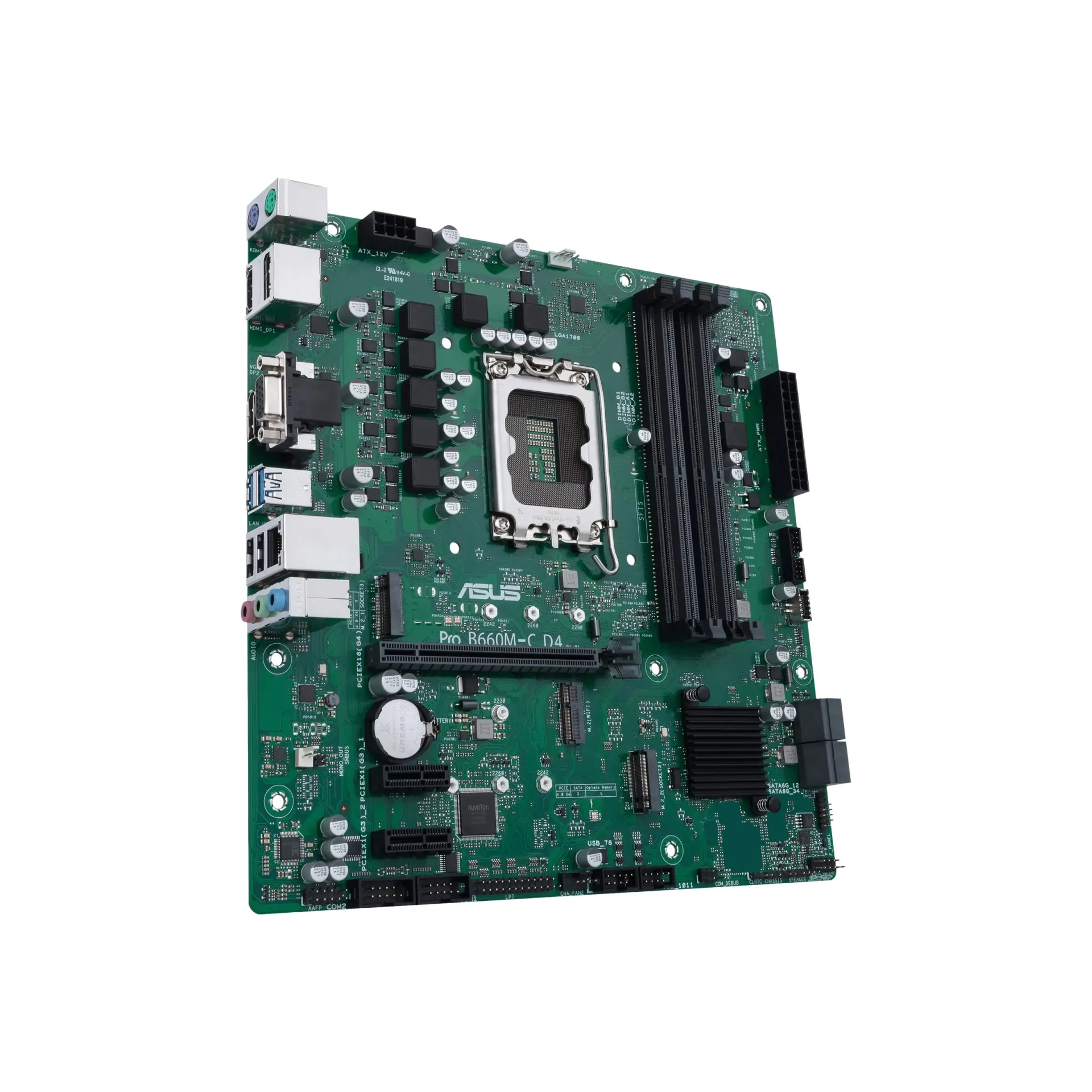

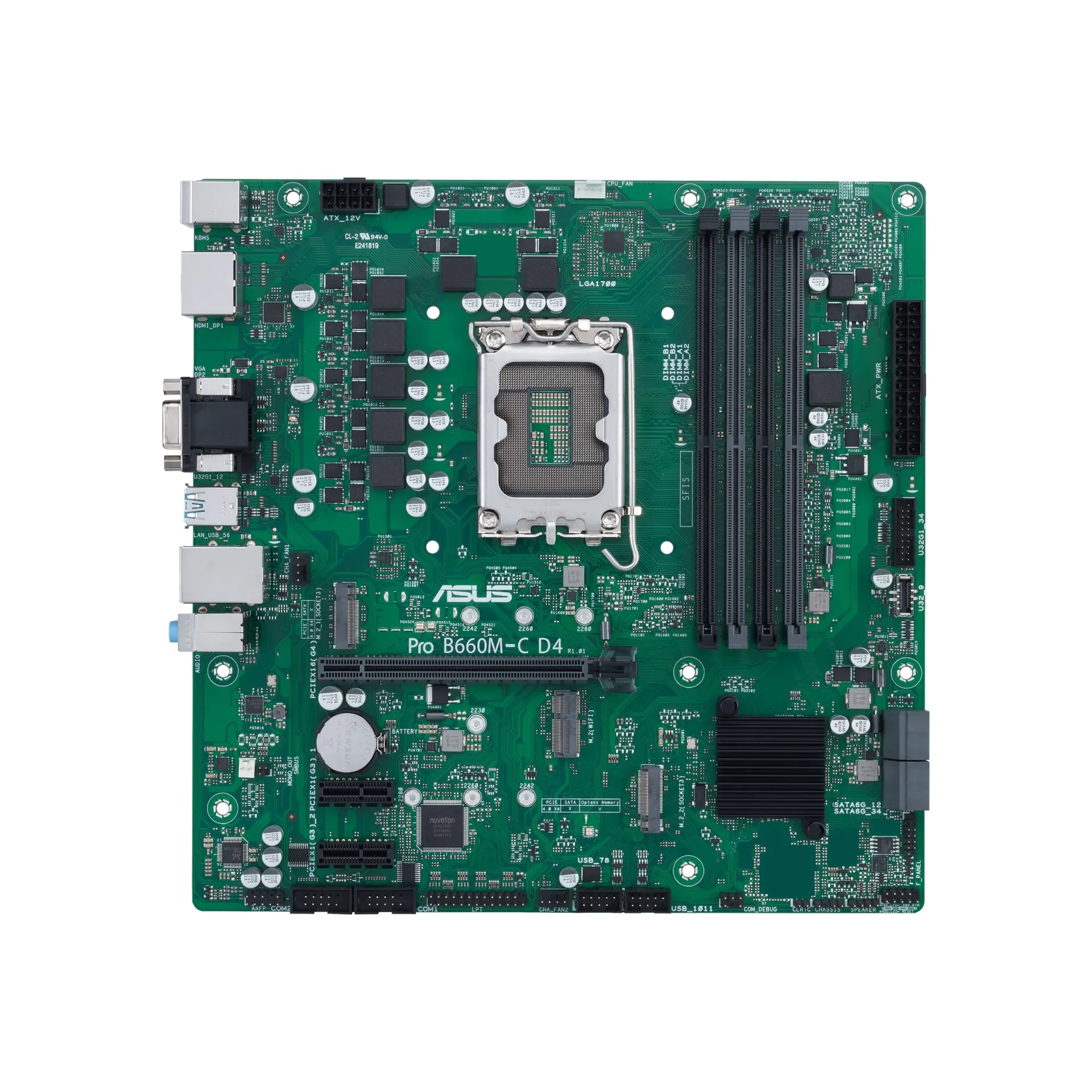

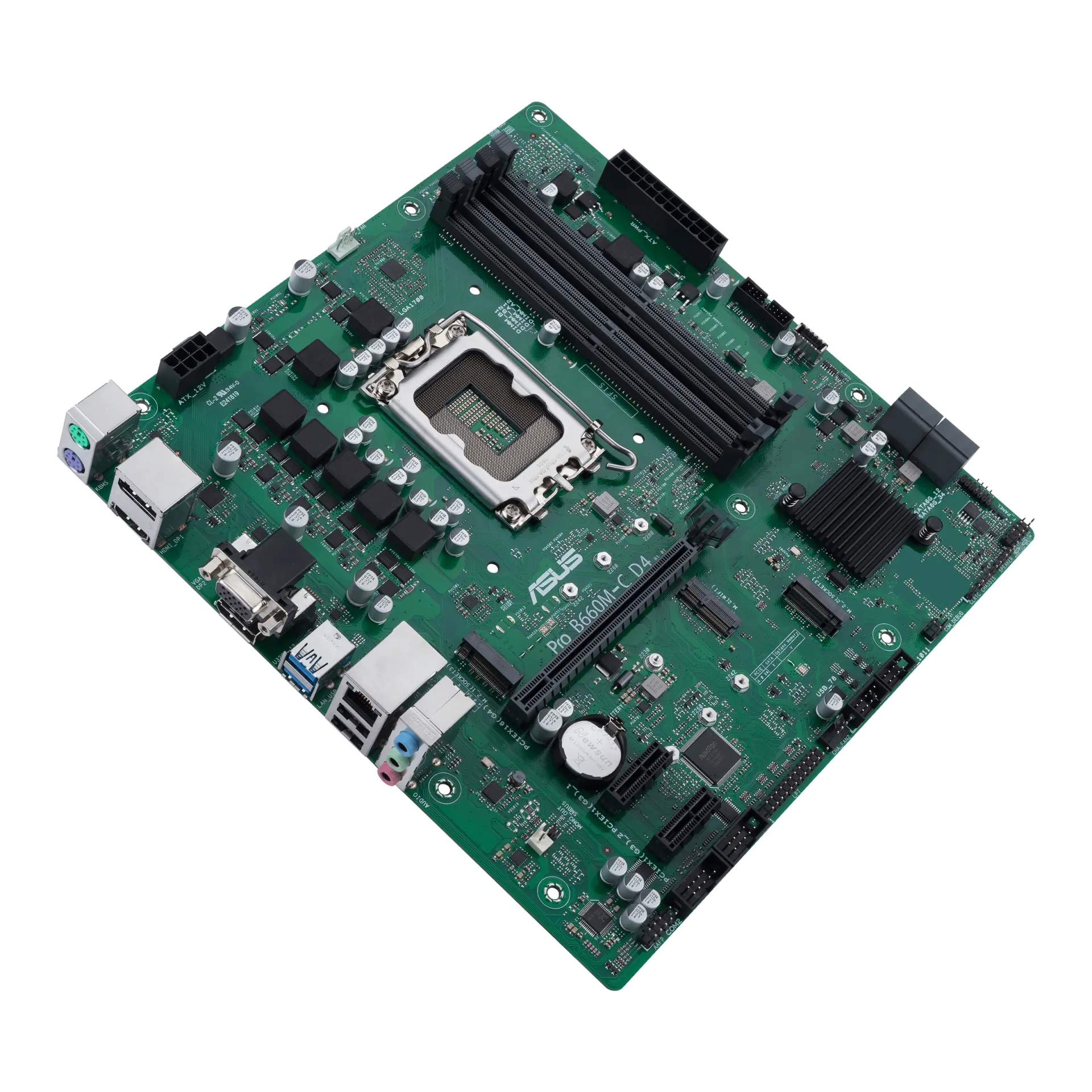

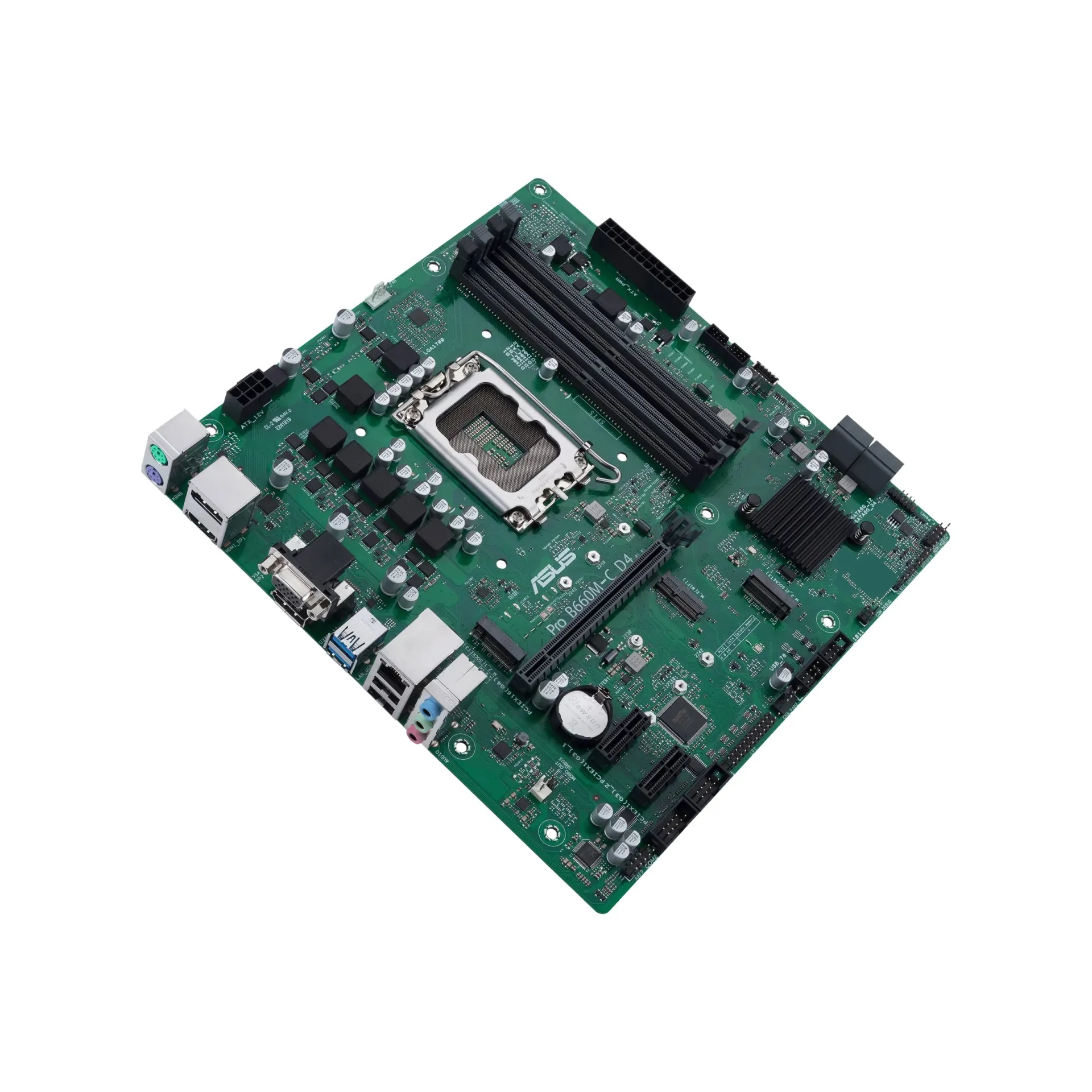

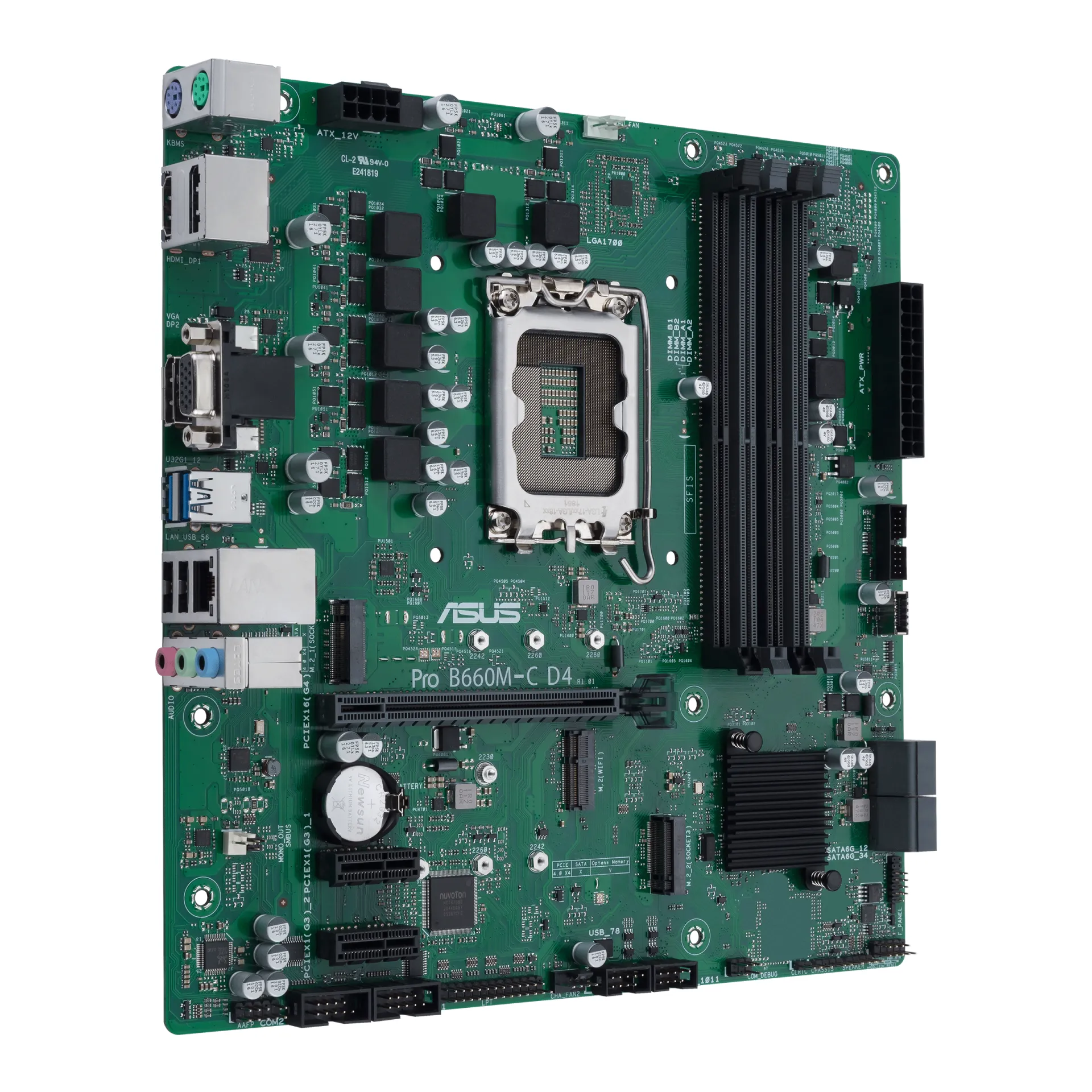

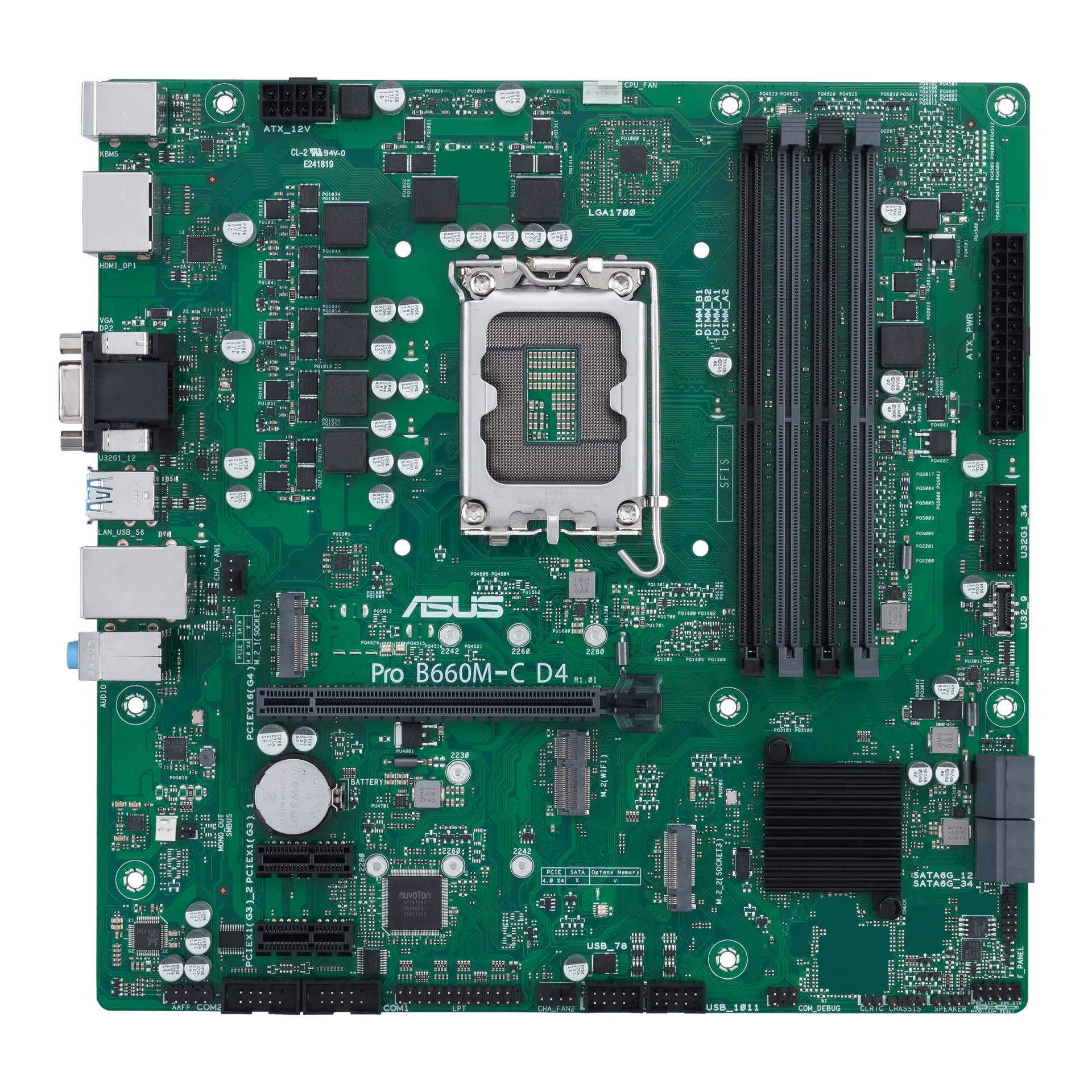

The 90MB19B0-M0EAYC is an ASUS Micro-ATX motherboard built on the Intel B660 chipset with an LGA1700 socket, enabling efficient Alder Lake-class deployments where standardized desktops and compact edge nodes must remain serviceable and cost-controlled. The platform supports Intel Core, Pentium Gold, and Celeron processors, aligning well with mixed fleet environments that prioritize predictable thermals, stable firmware behavior, and controlled peripheral expansion.

For memory, the 90MB19B0-M0EAYC uses dual-channel DDR4 across 4 DIMM slots up to 128GB, supporting balanced capacity planning for endpoint virtualization, large spreadsheet workloads, and light engineering tools without migrating to a new DDR5 ecosystem. Storage is optimized around 2 PCIe 4.0 x4 M.2 NVMe sockets plus 4 SATA ports, enabling a fast boot/app volume with a separate high-IO scratch or logging device, or a RAID-capable SATA tier for retention. Expansion is straightforward: a primary PCIe 4.0 x16 slot for a single add-in GPU or high-bandwidth NIC, complemented by 2 PCIe 3.0 x1 slots for capture, serial, or specialty I/O. Wired connectivity is delivered via Intel I219-V 1GbE, and integrated display outputs support deployment flexibility where iGPU-based consoles are sufficient.

Why Choose the 90MB19B0-M0EAYC?

The 90MB19B0-M0EAYC provides a pragmatic density-to-performance profile for managed desktops and compact workstations, combining PCIe 4.0 NVMe throughput with controlled expansion in a Micro-ATX footprint. It is well-suited to standardized builds that need TPM-enabled security posture, repeatable imaging, and scalable lifecycle maintenance without the operational overhead of server-class BMC requirements.

ASUS engineers this platform for long-run business stability, focusing on component validation, firmware consistency, and compatibility with modern deployment standards such as UEFI boot workflows, TPM-supported policies, and deterministic peripheral mapping for enterprise images.

Key Applications:

Business desktop builds and endpoint management
TPM-enabled corporate rollouts
Entry workstation for light CAD/EDA with 1 GPU
Lab or edge node with NVMe logging
Compact RAID-capable SATA storage tiers

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your 90MB19B0-M0EAYC deployment plan and an extended warranty of up to 6 years to protect long-lived desktop and edge build standards.

Technical details of 90MB19B0-M0EAYC

CPU Socket: V (LGA 1700)

Onboard Memory: No

RAID Support: Yes

CPU Manufacturer: Intel

CPU Supported Type: Pentium, Celeron, Core

Form Factor: Micro-ATX

Chipset: Intel B660

RAM Maximum Capacity: 128GB

Max RAM Frequency : 3200MHz

RAM Slots: 4 DIMM DDR4

RAM Channels: Dual-Channel

PCIe Slots: 1 PCIe 4.0 x16, 2 PCIe 3.0 x1

M.2 Slots: 1 PCIe/CNVi M.2 2230 M-Key, 2 NVME/PCIe 4.0 x4 M.2 2242, M.2 2260, M.2 2280 M-Key

Network Ports: 1 RJ45 1 Gbps

ECC Support: Non-ECC

Onboard Network: Ethernet

Suitability: Workstation, Desktop

Onboard CPU: No

RAID Support: Yes

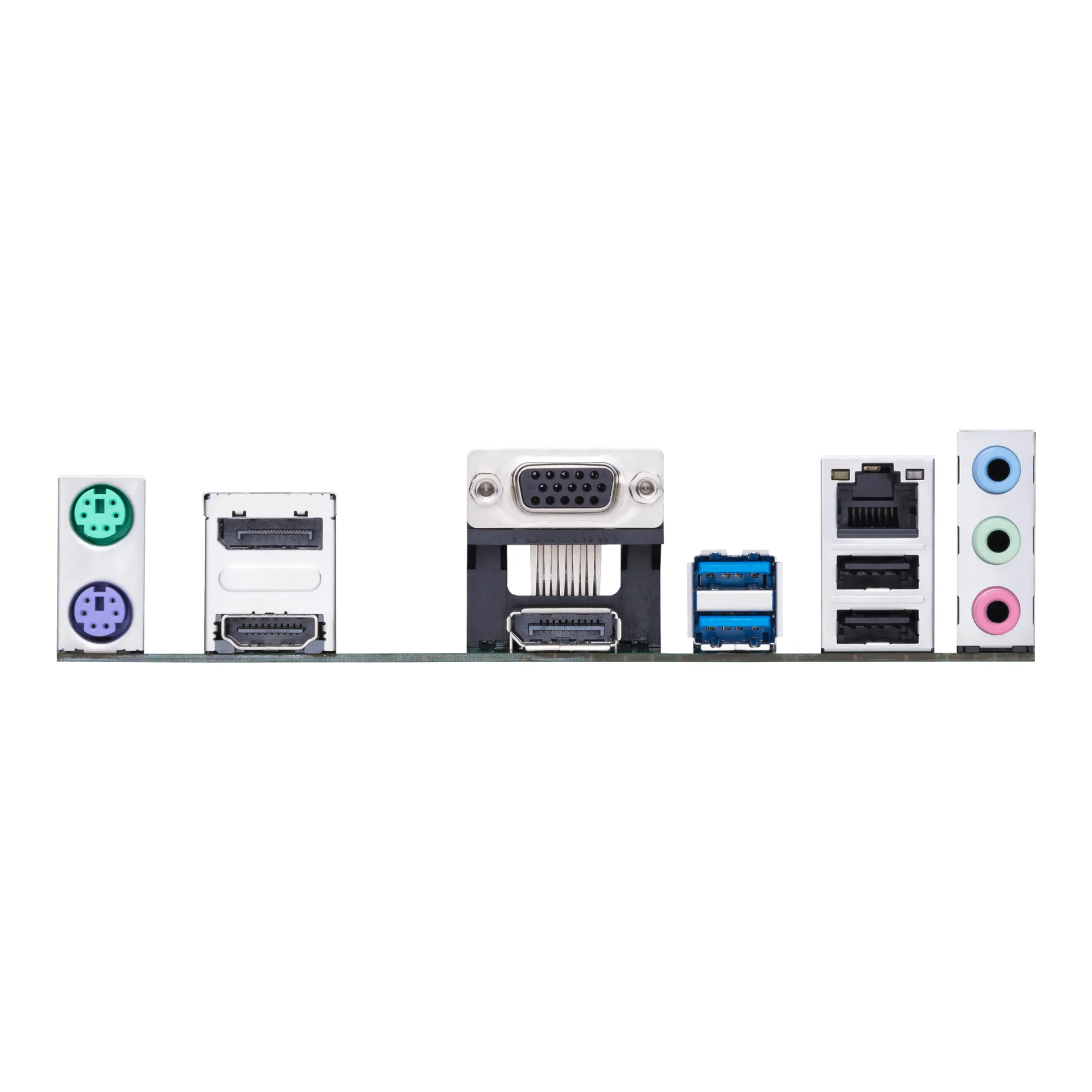

Video Output: 1x HDMI, 1x VGA, 2x DisplayPort

USB Ports: 1x USB 3.2 Gen 1 Type-C, 2x USB 2.0 Type-A, 2x USB 3.2 Gen 1, 2x USB 3.2 Gen 1 Type-A, 4x USB 2.0

Other Ports: 1x PS/2 keyboard Port, 1x PS/2 mouse Port, 3x Audio Port

Trusted Platform Module (TPM): Yes

BIOS: 128Mb SPI Flash ROM

Wi-Fi Support: None

Bluetooth integrated: None

Onboard Audio Chipset: Realtek ALC897

Embedded: No

Card Reader: No

How long is the Warranty and how you can get technical support for 90MB19B0-M0EAYC

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
