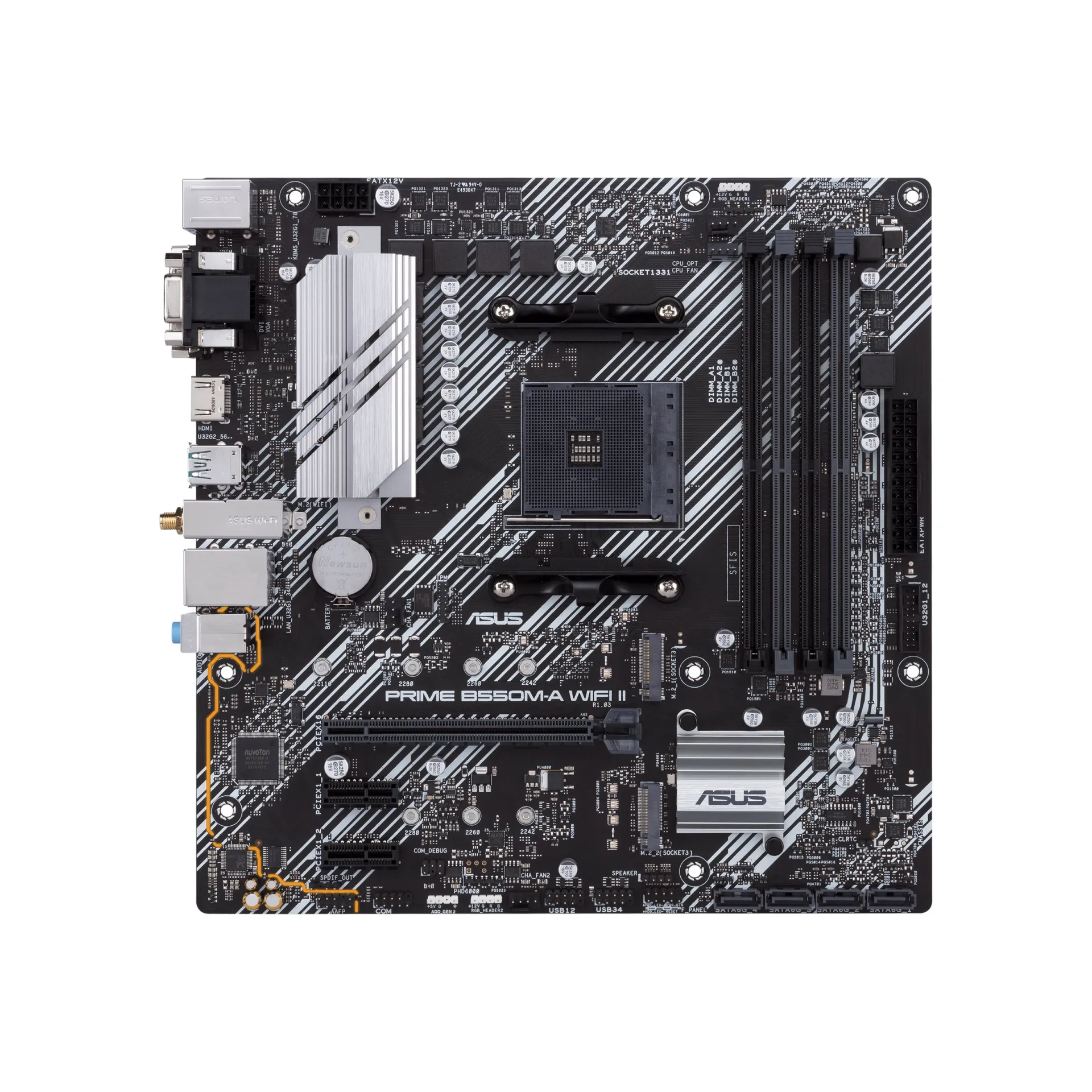

90MB1H60-M0EAY0 ASUS Micro-ATX Single AM4 2 DIMM Slots Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for 90MB1H60-M0EAY0 and save cash:

Quantity	Unit price
To 19	€106.00
To 49	€97.60 €106.00 (7.92% saved)
To 99	€90.10 €106.00 (15% saved)
From 100	€84.80 €106.00 (20% saved)

Product line:

Prime

See all Server Motherboards

See other ASUS products

€106.00

In stock

Happyware Article Number:

SH3M4222-717487

Manufacturer Number:

90MB1H60-M0EAY0

Brand:

ASUS

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

90MB1H60-M0EAY0

High-Performance Micro-ATX Motherboard platform featuring AMD AM4 efficiency with the 90MB1H60-M0EAY0

The 90MB1H60-M0EAY0 is a Micro-ATX ASUS motherboard built on the AMD A520 chipset to support AMD Ryzen AM4 processors in cost-controlled workstation and edge desktop builds. It balances compute capability and platform stability by pairing the AM4 CPU ecosystem with dual-channel DDR4 memory and a lean I/O topology suited to compact chassis deployments.

For expansion, the 90MB1H60-M0EAY0 provides PCIe Gen3 connectivity through a full-height x16 slot for discrete GPUs or accelerator-adjacent adapters, plus a dedicated Gen3 x1 slot for NICs, capture, or control cards. Storage architecture is split between an M.2 M-Key slot supporting PCIe 3.0 x4 NVMe or SATA and 4x SATA 6Gb/s ports, enabling a practical OS-on-NVMe plus local dataset or RAID-like SATA layouts. A 1GbE RJ45 interface and AMI UEFI BIOS with EZ Flash 3 streamline standardised provisioning, while TPM support enables modern boot integrity policies where a BMC is not required.

Why Choose the 90MB1H60-M0EAY0?

The 90MB1H60-M0EAY0 is engineered for high density-to-performance in small form factor environments where predictable AM4 compatibility and straightforward PCIe Gen3 expansion matter more than out-of-band management. It scales cleanly across fleet deployments by standardising DDR4, NVMe/SATA storage paths, and a stable UEFI firmware workflow, supporting repeatable build recipes for branch, lab, and light workstation nodes.

ASUS applies an enterprise-minded engineering approach focused on electrical stability, validated firmware, and component integration aligned with modern data centre and edge standards, helping integrators maintain consistent platform behaviour across lifecycle refreshes using the 90MB1H60-M0EAY0 as a baseline.

Key Applications:

Entry workstation desktops
Edge compute nodes
Small form factor virtualisation labs
GPU-enabled inference staging
General-purpose file and cache servers

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your 90MB1H60-M0EAY0 deployment quantities and configuration targets, and you can extend the warranty up to 6 years to secure long-term platform availability for standardised rollouts.

Technical details of 90MB1H60-M0EAY0

CPU Socket:

AM4

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

AMD

CPU Supported Type:

Ryzen

Form Factor:

Micro-ATX

Chipset:

AMD A520

RAM Maximum Capacity:

64GB

Max RAM Frequency :

5100MHz

RAM Slots:

2 DIMM DDR4

RAM Channels:

Dual-Channel

PCIe Slots:

1 PCIe 3.0 x1 1 PCIe 3.0 x16

M.2 Slots:

1 PCIe 3.0/SATA M.2 2280/2260/2242 M-Key

Network Ports:

1 RJ45 1 Gbps

ECC Support:

ECC Non-ECC

Onboard Network:

Ethernet

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

1x HDMI

USB Ports:

2x USB 3.2 Gen 1 Header 4x USB 3.2 Gen 1 Type-A 4x USB 2.0 header 2x USB 2.0 Type-A

Other Ports:

1x PS/2 keyboard 1x PS/2 mouse

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Wi-Fi Support:

None

Onboard Audio Chipset:

Realtek ALC887

Embedded:

GPIO Pins:

Card Reader:

How long is the Warranty and how you can get technical support for 90MB1H60-M0EAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
