90MB17C0-M0EAY0 ASUS Micro-ATX Single H5 (LGA 1200) 2 DIMM Slots Mainboard

Product line:

Prime

See other ASUS products

This product is currently not priced. Request a personalized quote now.

Out of stock

Not available

Happyware Article Number:

SH3M6850-458774

Manufacturer Number:

90MB17C0-M0EAY0

Brand:

ASUS

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

90MB17C0-M0EAY0

Micro-ATX Intel LGA1200 Motherboard platform for compact compute nodes with the 90MB17C0-M0EAY0

The 90MB17C0-M0EAY0 is a Micro-ATX ASUS PRIME H510M-A motherboard designed for cost-controlled enterprise endpoints and small-footprint systems that still require a validated Intel LGA1200 desktop CPU platform. It supports 10th/11th Gen class Intel Core, Pentium, and Celeron processors, aligning well with office/SMB desktops, basic services at the edge, and light virtualization where predictable thermals and straightforward management matter.

For memory architecture, the 90MB17C0-M0EAY0 provides dual-channel DDR4 via 2 DIMM slots up to 64GB, enabling balanced bandwidth for mixed productivity and entry server-like workloads without overprovisioning. Expansion is anchored by a PCIe 4.0 x16 slot (CPU/platform dependent) for a single GPU or accelerator, plus 2 PCIe 3.0 x1 slots for NICs or I/O cards. Storage design combines an M.2 M-Key slot supporting PCIe 3.0 x4 or SATA with 4 SATA 6Gb/s ports, allowing a pragmatic split between fast boot/cache and bulk capacity. Integrated 1GbE via Intel I219-V targets reliable branch connectivity, while HDMI/DisplayPort/VGA outputs support iGPU-based deployments.

Why Choose the 90MB17C0-M0EAY0?

The 90MB17C0-M0EAY0 fits organizations standardizing compact systems where density-to-performance and lifecycle stability outweigh feature sprawl. It delivers a clean scalability profile for incremental upgrades (CPU, memory, GPU, storage) and supports enterprise deployment logic through UEFI BIOS, TPM support, and familiar LGA1200 serviceability.

ASUS engineering emphasizes platform consistency, component validation, and firmware maturity, aligning the 90MB17C0-M0EAY0 with modern data centre and branch standards where controlled configurations and predictable interoperability reduce operational risk.

Key Applications:

Office and SMB desktop fleets
Edge and branch monitoring nodes
Light virtualization hosts
Baseline workstation builds
Single-GPU compute endpoints

At Happyware - Server Hardware you benefit from non-binding offers tailored to your rollout requirements for the 90MB17C0-M0EAY0, enabling fast procurement alignment across standardized builds, and you can extend the warranty up to 6 years to secure long-term operational continuity.

Technical details of 90MB17C0-M0EAY0

CPU Socket: H5 (LGA 1200)

Onboard Memory: No

RAID Support: No

CPU Manufacturer: Intel

CPU Supported Type: Core i9, Core i7, Core i5, Core i3, Pentium, Celeron

Form Factor: Micro-ATX

Chipset: Intel H510

RAM Maximum Capacity: 64GB

Max RAM Frequency : 3200MHz

RAM Slots: 2 DIMM DDR4

RAM Channels: Dual-Channel

PCIe Slots: 1 PCIe 4.0 x16, 2 PCIe 3.0 x1

M.2 Slots: 1 PCIe 3.0 x4/SATA M.2 2280, M.2 2260, M.2 2242 M-Key

Network Ports: 1 RJ45 1 Gbps

ECC Support: Non-ECC

Onboard Network: Ethernet

Onboard CPU: No

RAID Support: No

Onboard Graphic: Yes

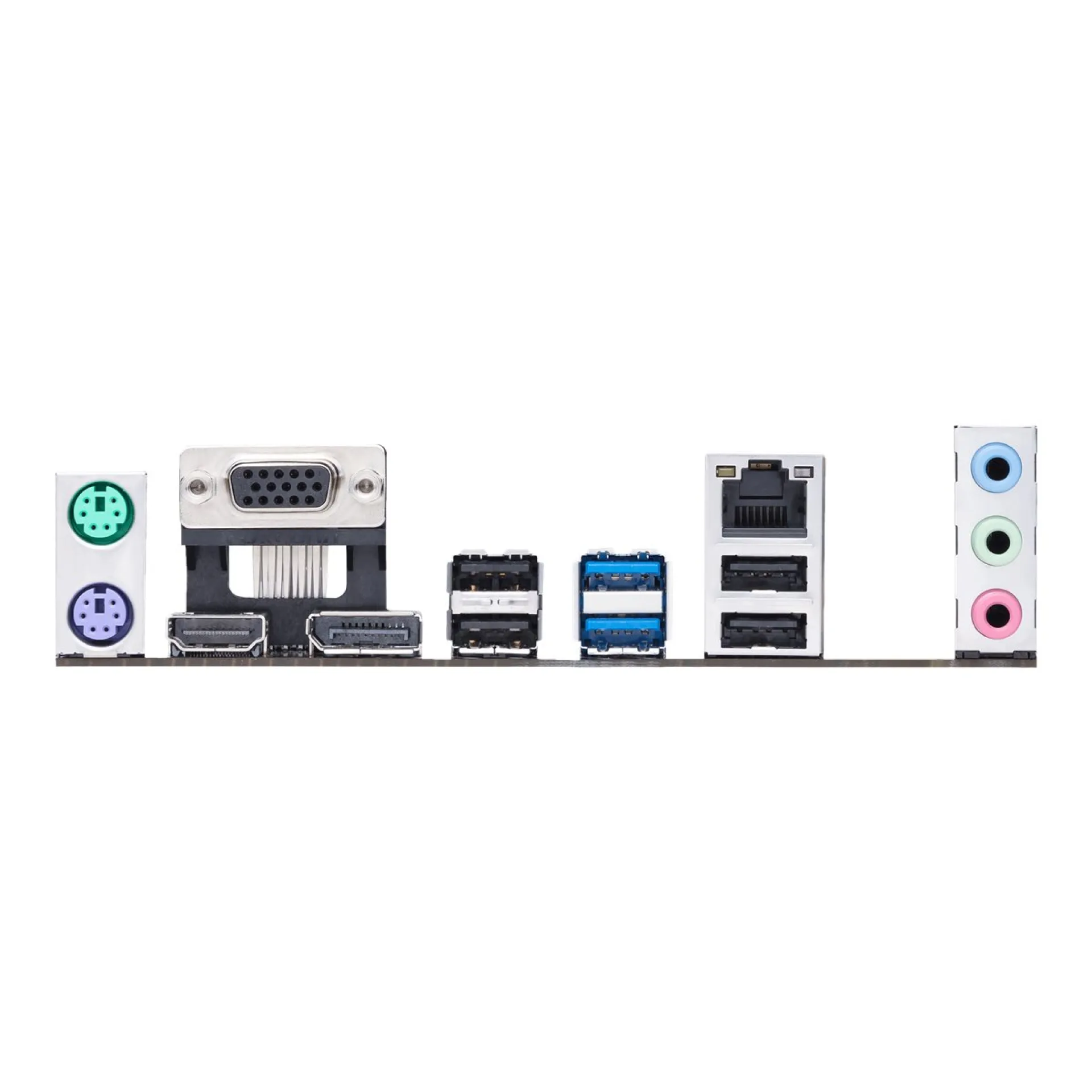

Video Output: 1x DisplayPort, 1x HDMI, 1x VGA

USB Ports: 2x USB 3.2 Gen 1 Header, 2x USB 3.2 Gen 1 Type-A, 4x USB 2.0 header, 4x USB 2.0 Type-A

Trusted Platform Module (TPM): Yes

BIOS: AMI UEFI

Wi-Fi Support: None

Onboard Audio Chipset: Realtek ALC887/ALC897

Embedded: No

How long is the Warranty and how you can get technical support for 90MB17C0-M0EAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
