90MB1F20-M0EAY0 ASUS ATX Single V (LGA 1700) 4 DIMM Slots Mainboard

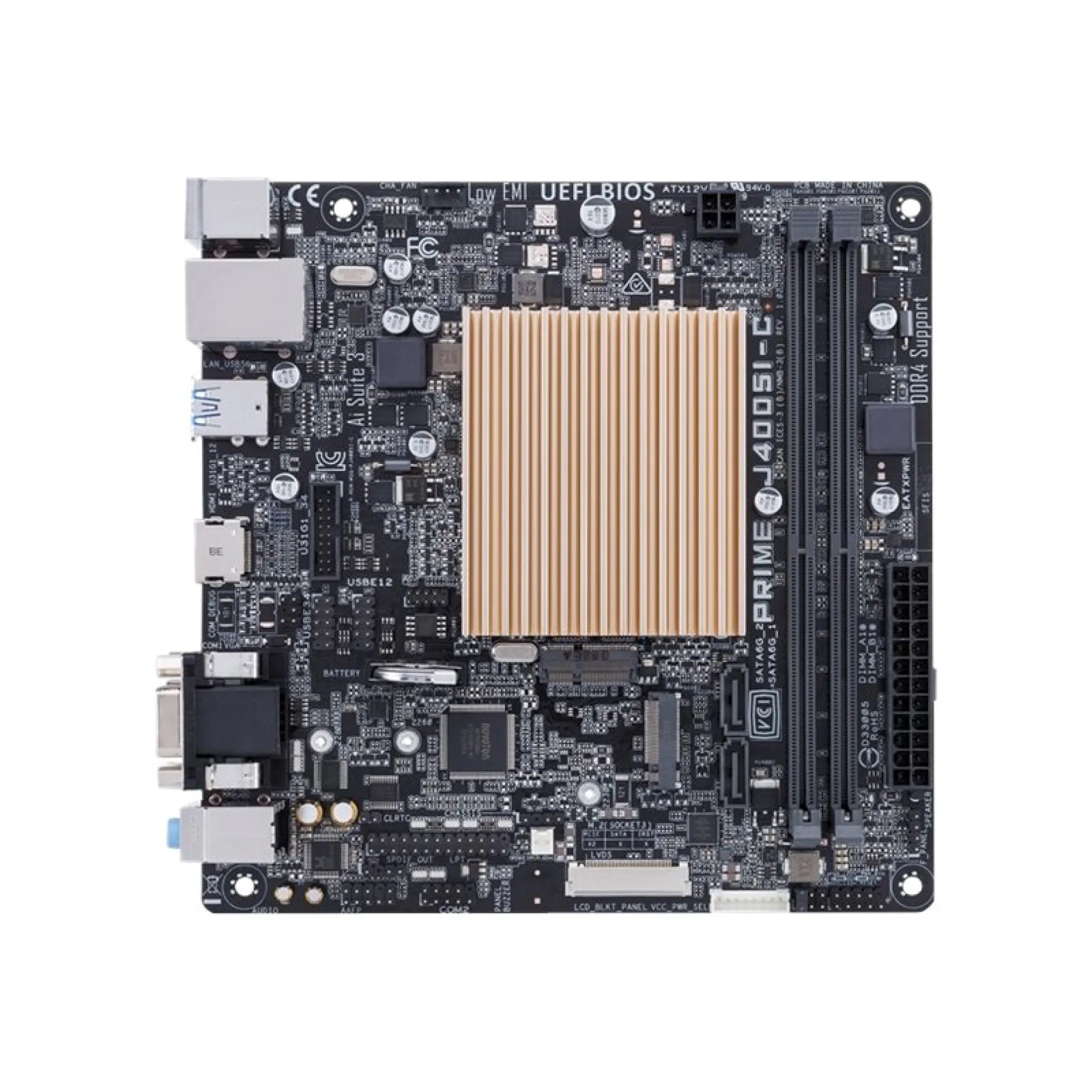

*Picture may not be exactly the same as the product

Get extra volume discount for 90MB1F20-M0EAY0 and save cash:

Quantity	Unit price
To 9	€270.00
To 19	€257.00 €270.00 (4.81% saved)
To 49	€252.00 €270.00 (6.67% saved)
From 50	€243.00 €270.00 (10% saved)

Product line:

ProArt

See other ASUS products

€270.00

Out of stock

Not available

Happyware Article Number:

SH0M2913-550923

Manufacturer Number:

90MB1F20-M0EAY0

Brand:

ASUS

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

90MB1F20-M0EAY0

High-Performance ATX Creator Motherboard featuring PCIe 5.0 GPU expansion with the 90MB1F20-M0EAY0

The 90MB1F20-M0EAY0 is an ASUS ProArt ATX workstation/desktop motherboard built on the Intel B760 chipset and LGA1700 socket, enabling a stable platform for 12th and 13th Gen Intel Core-class processors where predictable boost behavior and sustained throughput matter. Dual-channel DDR5 across 4 DIMM slots supports up to 128GB, aligning well with memory-intensive creative timelines, CAD assemblies, and multi-application productivity where bandwidth and capacity balance are critical.

For expansion, the 90MB1F20-M0EAY0 provides a PCIe 5.0 x16 slot for discrete GPUs plus additional PCIe slots for capture cards, HBAs, or low-latency I/O. Storage architecture is optimized for mixed scratch and project data: 3 PCIe Gen4 M.2 NVMe sockets for high-IOPS boot/cache/workspace tiers and 4 SATA 6Gb/s ports for multi-drive arrays, making it suitable for NAS-style home labs or creator workstations that need both NVMe speed and SATA volume. Dual Ethernet (1GbE and 2.5GbE) supports segmented workflows and faster local asset transfer without requiring add-in NICs.

Why Choose the 90MB1F20-M0EAY0?

The 90MB1F20-M0EAY0 targets high utilization creator and engineering desktops by combining PCIe 5.0 GPU readiness, Gen4 NVMe density, and practical I/O into an ATX footprint that scales from SMB productivity builds to dedicated editing and visualization systems. The platform’s slot layout and storage mix help maintain a strong density-to-performance ratio while preserving serviceability and clear upgrade paths across CPU, memory, and storage generations supported by LGA1700.

ASUS designs the ProArt series with an engineering-first approach focused on signal integrity, validated component selection, and firmware maturity, aligning with modern data centre and studio standards for reliability, predictable configuration, and long-term deployment consistency.

Key Applications:

Content creation workstations (Adobe, DaVinci)
CAD and light 3D visualization with discrete GPU
SMB office and collaboration desktops
Home lab and NAS builds with NVMe cache and SATA capacity

At Happyware - Server Hardware you benefit from non-binding offers tailored to your 90MB1F20-M0EAY0 deployment plan and extended warranty options up to 6 years, supporting predictable lifecycle management for professional workstation fleets.

Technical details of 90MB1F20-M0EAY0

CPU Socket: V (LGA 1700)

Onboard Memory: No

RAID Support: Yes

CPU Manufacturer: Intel

CPU Supported Type: Pentium, Celeron, Core

Form Factor: ATX

Chipset: Intel B760

RAM Maximum Capacity: 128GB

Max RAM Frequency : 4800MHz

RAM Slots: 4 DIMM DDR5

RAM Channels: Dual-Channel

PCIe Slots: 1 PCIe 3.0 x1, 1 PCIe 4.0 x16, 1 PCIe 5.0 x16

M.2 Slots: 1 CNVi M.2 2230 E-Key, 3 PCIe 4.0 M.2 2242, M.2 2260, M.2 2280, M.2 22110 M-Key

Network Ports: 1 RJ45 1 Gbps, 1 RJ45 2.5 Gbps

ECC Support: Non-ECC

Onboard Network: Ethernet

Onboard CPU: No

RAID Support: Yes

Onboard Graphic: Yes

Video Output: 1x DisplayPort, 1x HDMI

USB Ports: 1x USB 3.2 Gen 2 Type-C, 1x USB 3.2 Gen 2x2 Type-C, 4x USB 2.0/1.1 ports, 4x USB 3.2 Gen 1 ports

Other Ports: 1x audio jacks, 1x RJ-45 LAN Port, 1x SPDIF-Header

Trusted Platform Module (TPM): Optional

BIOS: AMI UEFI

Wi-Fi Support: None

Embedded: No

GPIO Pins: 0

Card Reader: No

How long is the Warranty and how you can get technical support for 90MB1F20-M0EAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
