90MB1A30-M0EAYC ASUS Micro-ATX Single V (LGA 1700) 2 DIMM Slots Mainboard

Get extra volume discount for 90MB1A30-M0EAYC and save cash:

Quantity	Unit price
To 19	€147.00
To 49	€136.00 €147.00 (7.48% saved)
To 99	€125.00 €147.00 (14.97% saved)
From 100	€118.00 €147.00 (19.73% saved)

Product line:

PRO

See other ASUS products

€147.00

In stock

Happyware Article Number:

SH5M6267-224015

Manufacturer Number:

90MB1A30-M0EAYC

Brand:

ASUS

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

90MB1A30-M0EAYC

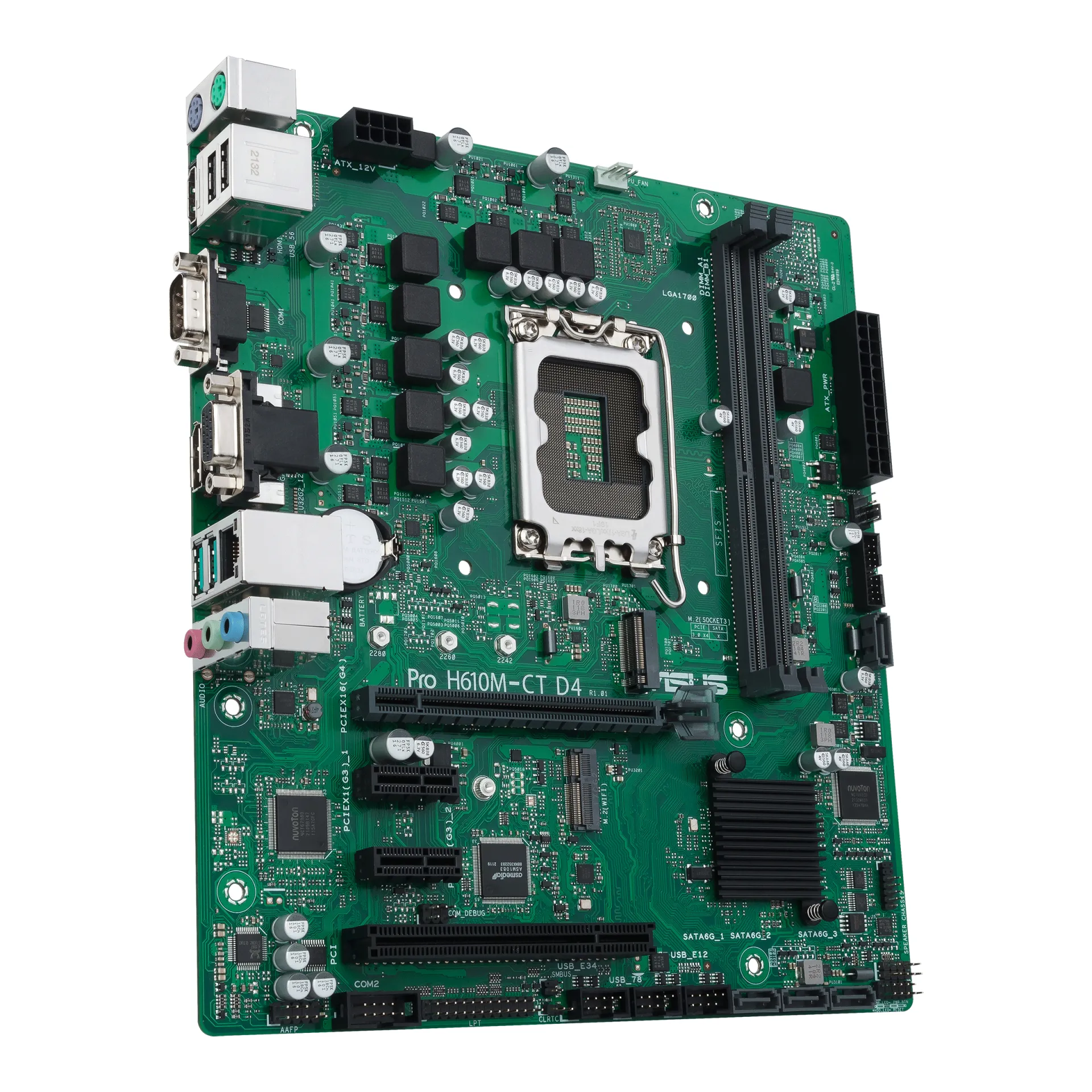

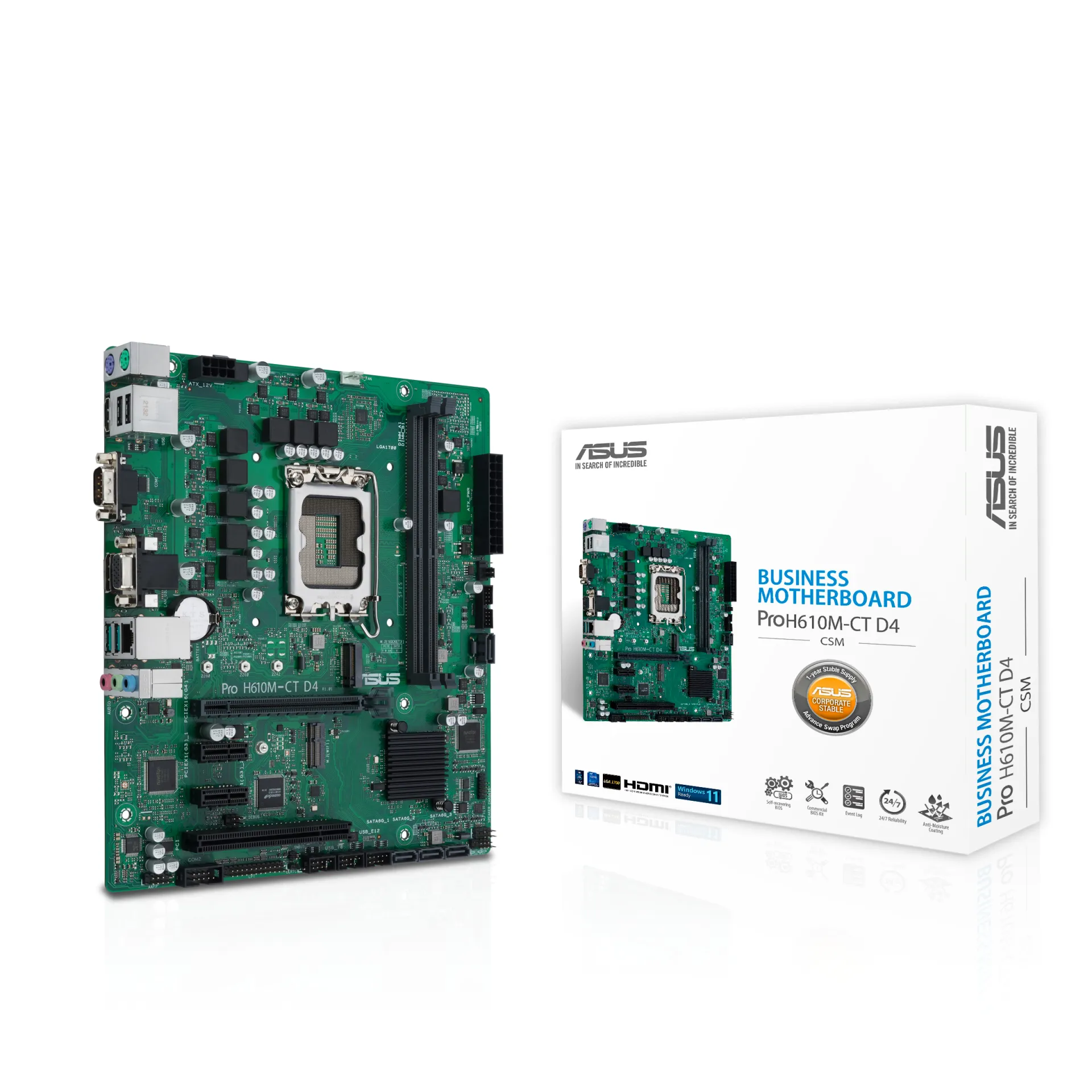

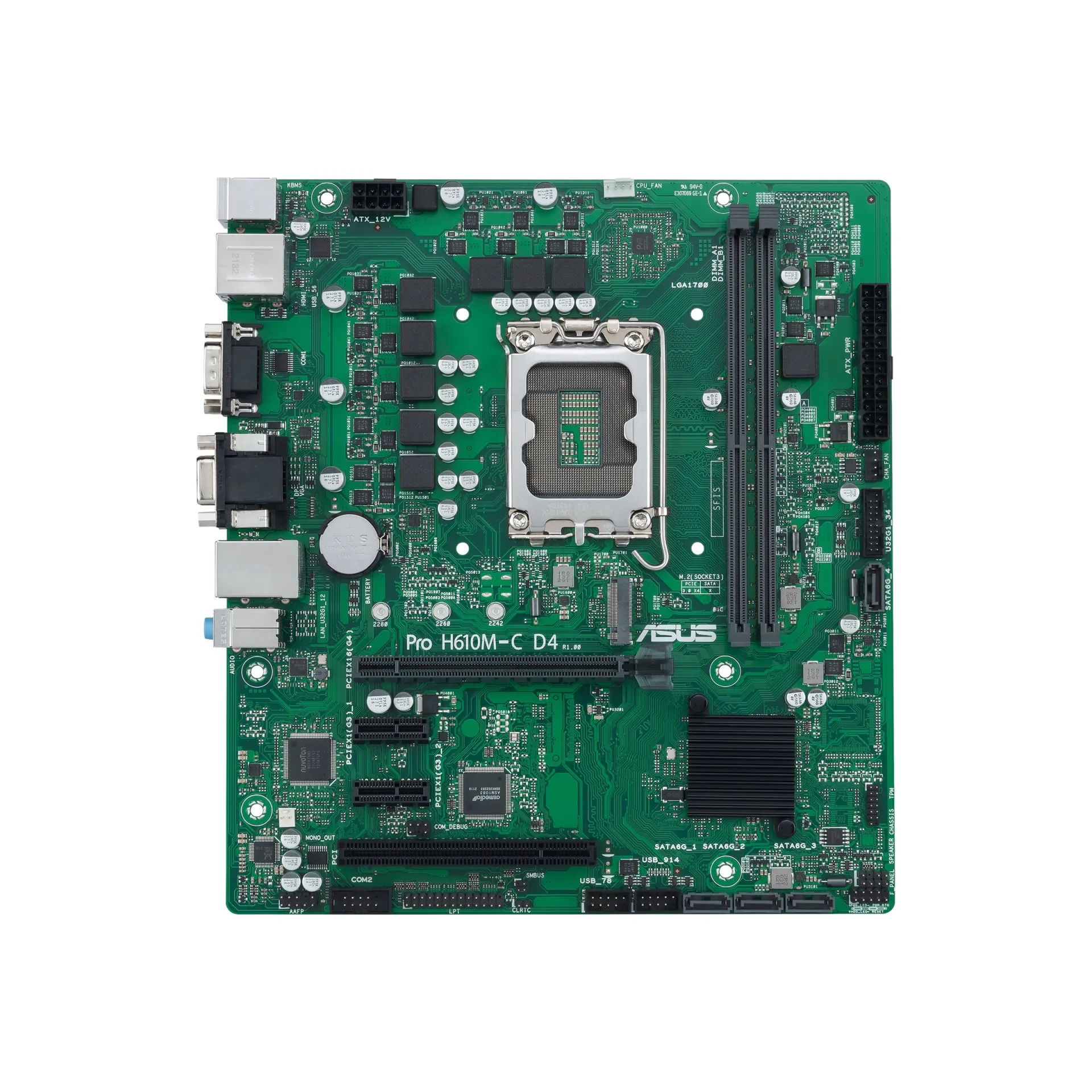

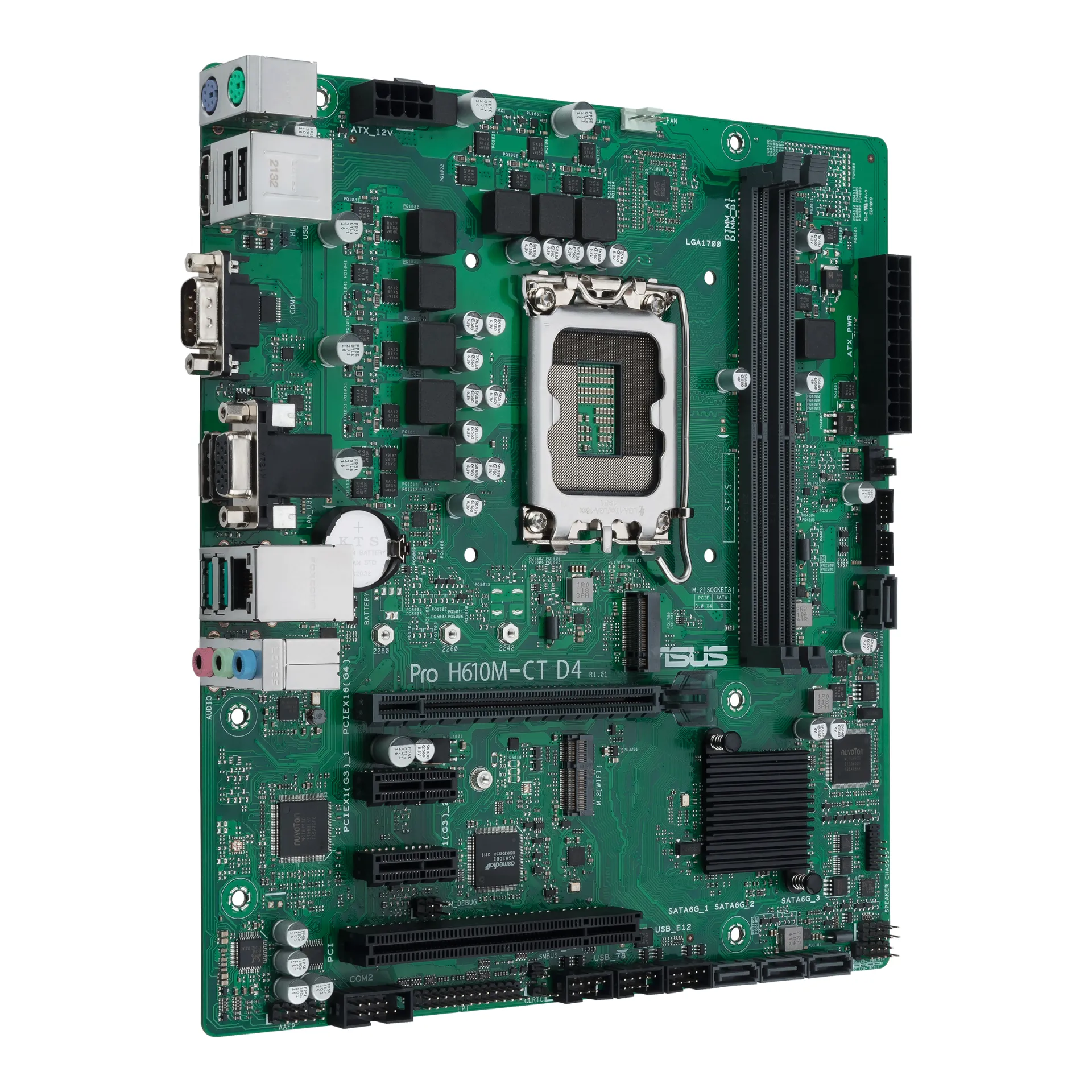

Business-Class Micro-ATX Intel LGA1700 Motherboard architecture with the 90MB1A30-M0EAYC

The 90MB1A30-M0EAYC is a compact ASUS Micro-ATX platform built on the Intel H610 chipset for LGA1700 CPUs, targeting controlled, repeatable desktop and edge deployments where stability, validated component compatibility, and predictable I/O matter. It supports Intel Core/Pentium Gold/Celeron processors (12th/13th Gen class depending on CPU support) and a dual-channel DDR4 memory architecture across 2 UDIMM slots, enabling up to 64GB for multi-app office loads, kiosk systems, and lightweight workstation tasks without introducing ECC complexity.

For expansion planning, the 90MB1A30-M0EAYC provides a PCIe 4.0 x16 slot to accommodate a discrete GPU, capture card, or high-bandwidth accelerator in entry workstation configurations, while 2 PCIe 3.0 x1 slots cover NIC, USB, or legacy controller add-ins. Storage design combines an M.2 PCIe 3.0 x4 socket for NVMe boot/app responsiveness with 4 SATA 6Gb/s ports for capacity-oriented SSD/HDD arrays. Integrated Intel I219-V 1GbE supports enterprise imaging and domain provisioning, and display options via HDMI 2.1, DisplayPort 1.4, and VGA align the 90MB1A30-M0EAYC with mixed monitor fleets and iGPU-based endpoints.

Why Choose the 90MB1A30-M0EAYC?

The 90MB1A30-M0EAYC balances density and serviceability by delivering a full-featured LGA1700/DDR4 foundation in Micro-ATX form factor, simplifying chassis standardization across departments or sites. It is engineered for scalable rollouts where PCIe lane allocation, SATA port availability, and predictable chipset behavior reduce integration risk, while TPM header support enables policy-driven security baselines for managed endpoints.

ASUS designs the 90MB1A30-M0EAYC with an enterprise reliability mindset, focusing on validated firmware maturity, long-term component sourcing programs, and adherence to modern platform standards needed for consistent imaging, lifecycle management, and operational continuity.

Key Applications:

SMB office productivity desktops
POS and kiosk endpoints
Industrial control PCs with legacy display needs
Entry workstation builds with optional discrete GPU
Training rooms and shared computing labs

At Happyware - Server Hardware you benefit from non-binding offers tailored to standardized rollouts of the 90MB1A30-M0EAYC across multiple sites, and an extended warranty of up to 6 years to secure long lifecycle desktop and edge deployments.

Technical details of 90MB1A30-M0EAYC

CPU Socket: V (LGA 1700)

Onboard Memory: No

RAID Support: No

CPU Manufacturer: Intel

CPU Supported Type: Pentium Gold, Celeron, Core

Form Factor: Micro-ATX

Chipset: Intel H610

RAM Maximum Capacity: 64GB

Max RAM Frequency : 3200MHz

RAM Slots: 2 DIMM DDR4

RAM Channels: Dual-Channel

PCIe Slots: 1 PCIe 4.0 x16, 2 PCIe 3.0 x1

M.2 Slots: 1 PCIe 3.0 x4 M.2 2280, M.2 2260, M.2 2242 M-Key

Network Ports: 1 RJ45 1 Gbps

ECC Support: Non-ECC

Onboard Network: Ethernet

Onboard CPU: No

RAID Support: No

Onboard Graphic: Yes

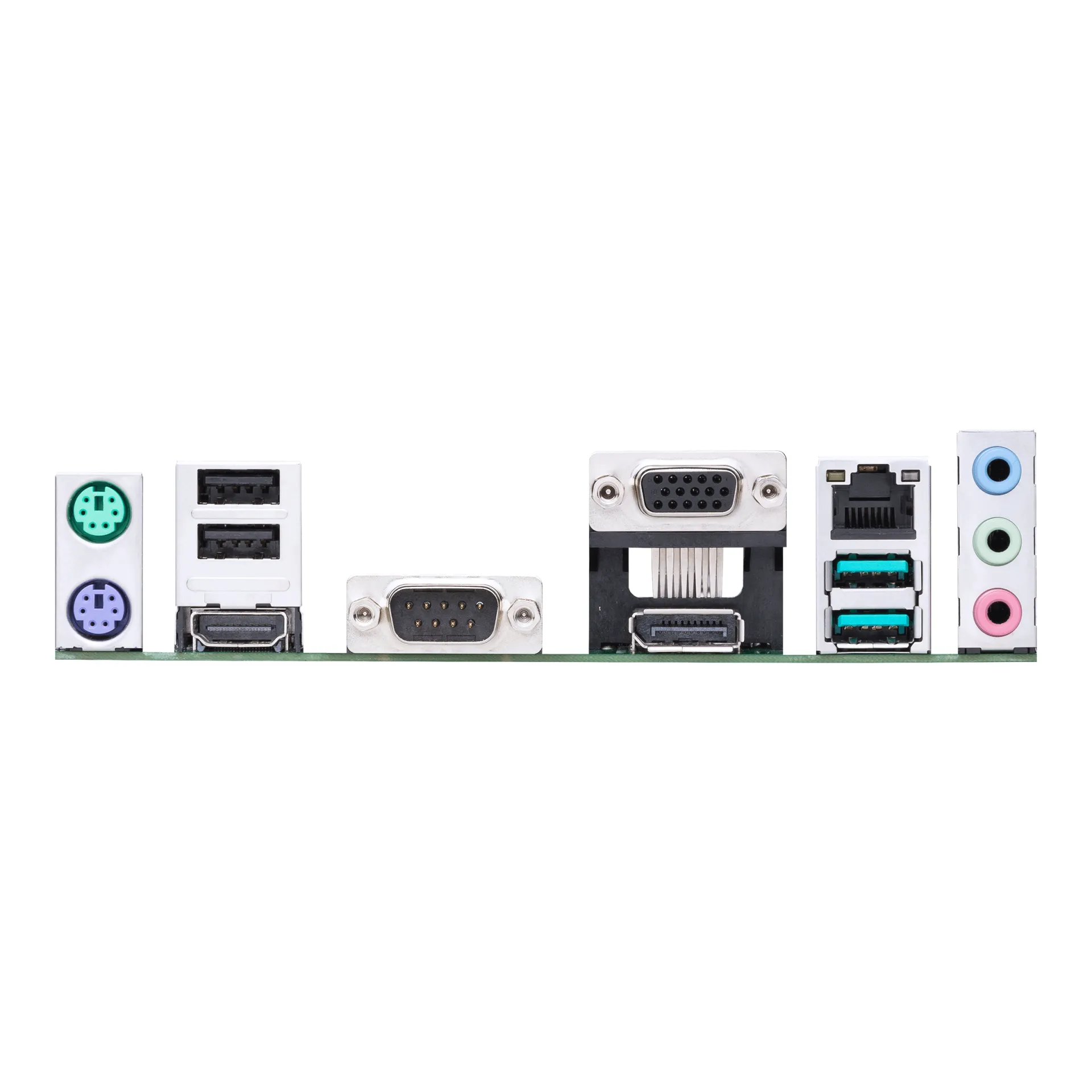

Video Output: 1x DisplayPort 1.4, 1x HDMI 2.1, 1x VGA

USB Ports: 2x USB 2.0/1.1 ports, 2x USB 3.2 Gen 1 Header, 2x USB 3.2 Gen 1 ports, 4x USB 2.0 header

Other Ports: 1x 3W Mono-Out Speaker Header, 1x audio - header, 1x Chassis Intrusion Header, 1x COM Debug-Header, 1x parallel Header, 1x PS/2 keyboard, 1x PS/2 mouse, 1x RJ-45 LAN Port, 1x serial - header, 1x Serial Port, 1x SMBus Header, 1x Speaker-Header, 1x speaker out header, 1x TPM Header, 3x 3.5mm Klinke (Realtek ALC897)

Trusted Platform Module (TPM): Optional

BIOS: AMI UEFI

Wi-Fi Support: None

Bluetooth integrated: None

Onboard Audio Chipset: Realtek ALC897

Embedded: No

Card Reader: No

How long is the Warranty and how you can get technical support for 90MB1A30-M0EAYC

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
