90MB1CX0-M0EAY0

Micro-ATX Intel B760 DDR4 Platform Motherboard for Business Desktops and Edge PCs with the 90MB1CX0-M0EAY0

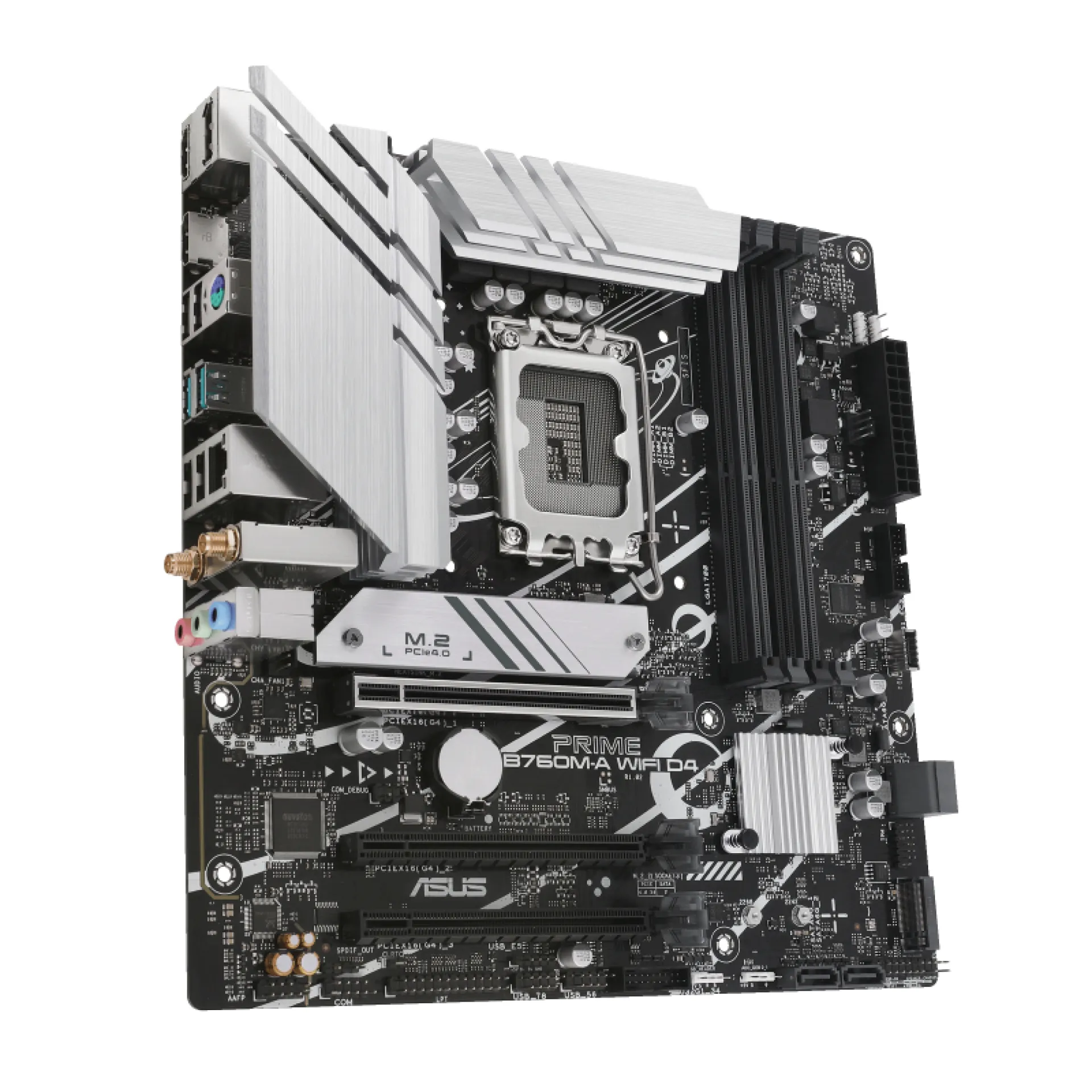

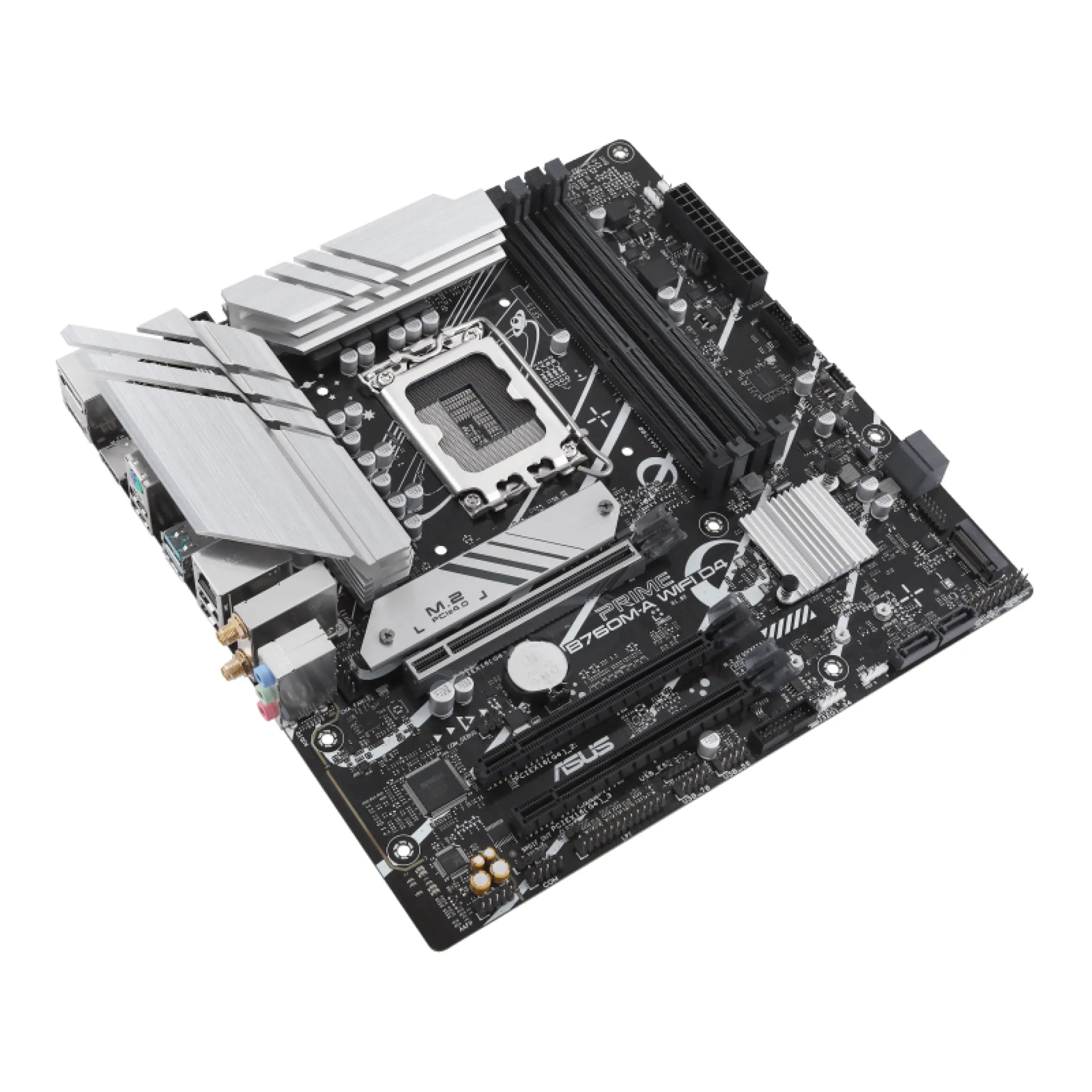

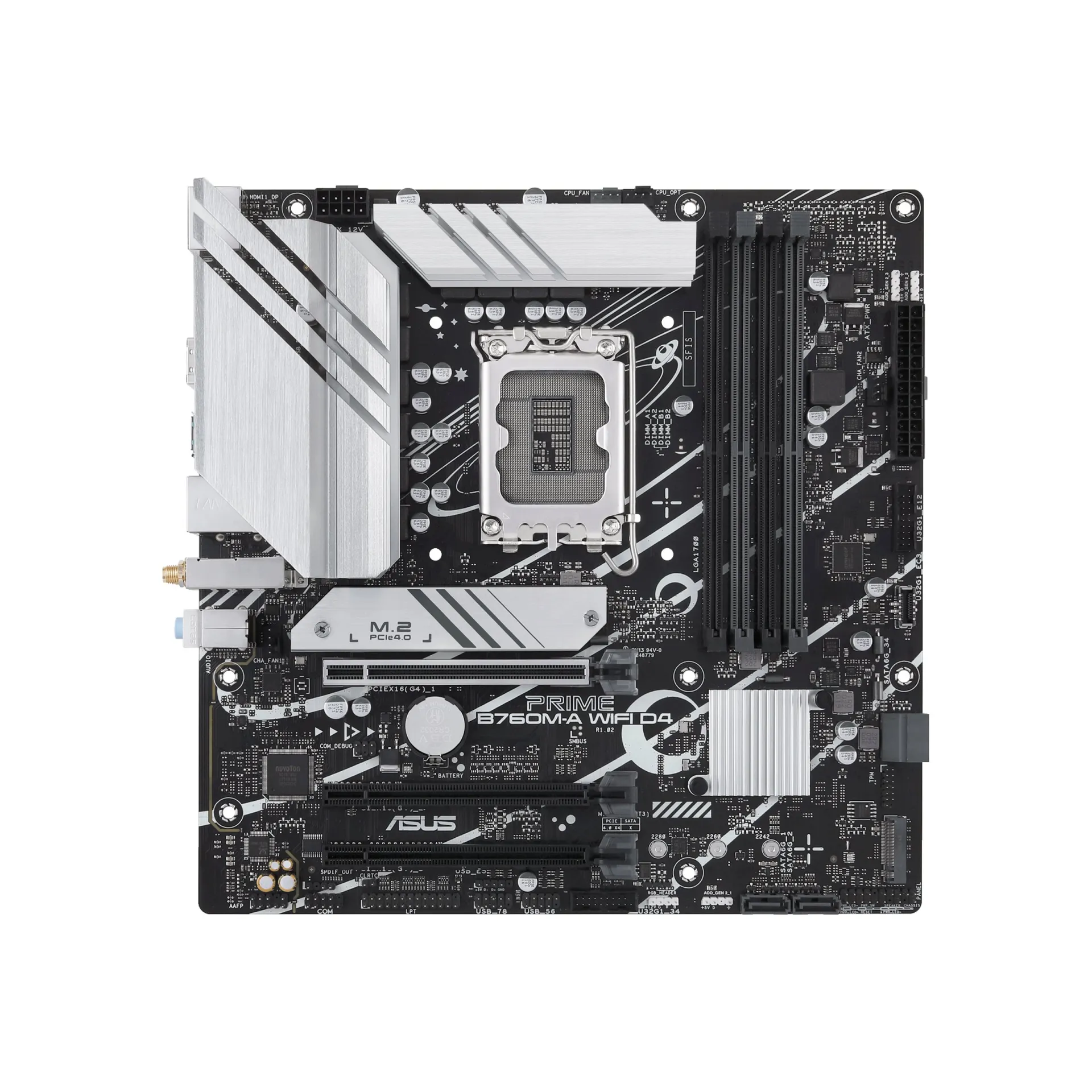

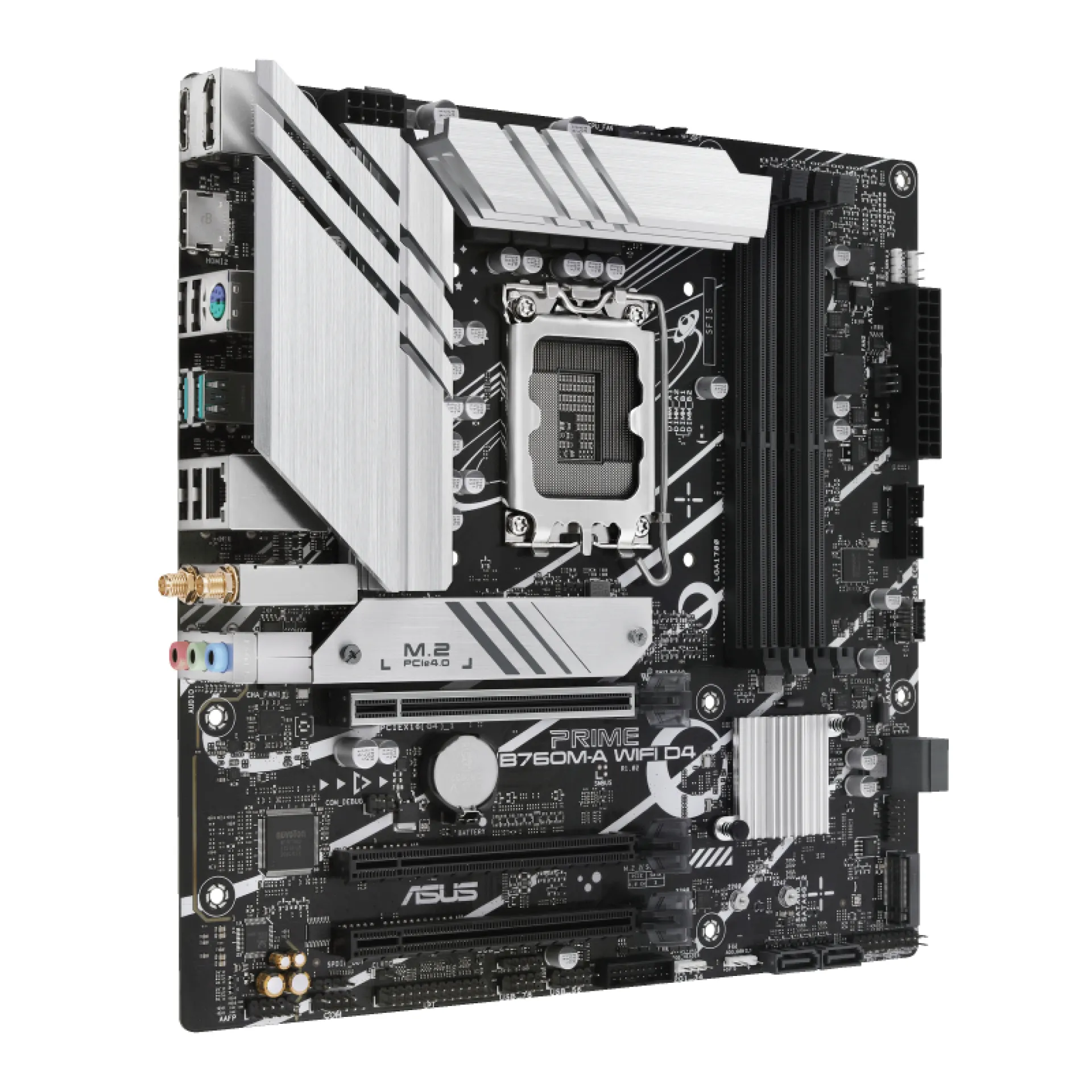

The 90MB1CX0-M0EAY0 is a Micro-ATX ASUS motherboard built on the Intel B760 chipset for LGA1700 processors, targeting standardised business desktops, branch deployments, and entry-level workstations that need predictable platform behaviour with modern I/O. By pairing 12th/13th Gen Intel Core compatibility with mature DDR4 memory, the design prioritises cost-controlled fleet rollouts while retaining headroom for mixed office and light creator workloads.

For memory architecture, 4 DIMM slots enable dual-channel DDR4 capacity scaling up to 128GB, supporting higher-frequency profiles for responsiveness in multi-tasking and content pipelines. PCIe Gen4 connectivity is used to align expansion bandwidth with current discrete GPUs and NVMe storage: dual M.2 (M-Key) PCIe Gen4 slots support high-throughput boot and application volumes, while 4x SATA 6Gb/s ports provide straightforward retention for existing SSD/HDD assets. The expansion layout includes a primary PCIe 4.0 x16 slot plus additional full-height mechanical x16 slots wired for x4 and x1, enabling practical combinations of GPU, capture, NIC, or storage controllers depending on site requirements.

Why Choose the 90MB1CX0-M0EAY0?

The 90MB1CX0-M0EAY0 delivers a balanced density-to-performance profile for enterprise desktop and edge builds, combining PCIe Gen4 storage and expansion with integrated 2.5GbE and Wi-Fi 6 to reduce add-in complexity. This platform supports scalable configurations across departments, maintains consistent firmware and security features such as UEFI BIOS and TPM support, and enables repeatable imaging and deployment workflows without introducing server-class management overhead.

ASUS engineering focuses on stable power delivery, validated component interoperability, and firmware maturity aligned with modern Windows and Linux enterprise standards. The 90MB1CX0-M0EAY0 integrates RAID capability and broad connectivity for long lifecycle operation in controlled office, lab, and branch environments.

Key Applications:

Office productivity and fleet standardisation
Entry-level content creation with discrete GPU
Edge/branch services with 2.5GbE and Wi-Fi 6
NVMe-accelerated desktop virtualisation clients

At Happyware - Server Hardware you benefit from non-binding offers tailored to your roll-out plan for the 90MB1CX0-M0EAY0, and from an extended warranty up to 6 years to protect long-lived desktop and edge deployments.

Technical details of 90MB1CX0-M0EAY0

CPU Socket:

V (LGA 1700)

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Core i9 Core i7 Core i5 Core i3 Pentium Gold Celeron

Form Factor:

Micro-ATX

Chipset:

Intel B760

RAM Maximum Capacity:

128GB

Max RAM Frequency :

5333MHz

RAM Slots:

4 DIMM DDR4

RAM Channels:

Dual-Channel

PCIe Slots:

1 PCIe 4.0 x16

M.2 Slots:

2 PCIe Gen 4 M.2 2242/2260/2280 M-Key

Network Ports:

1 RJ45 2.5 Gbps

ECC Support:

Non-ECC

Onboard Network:

Ethernet

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

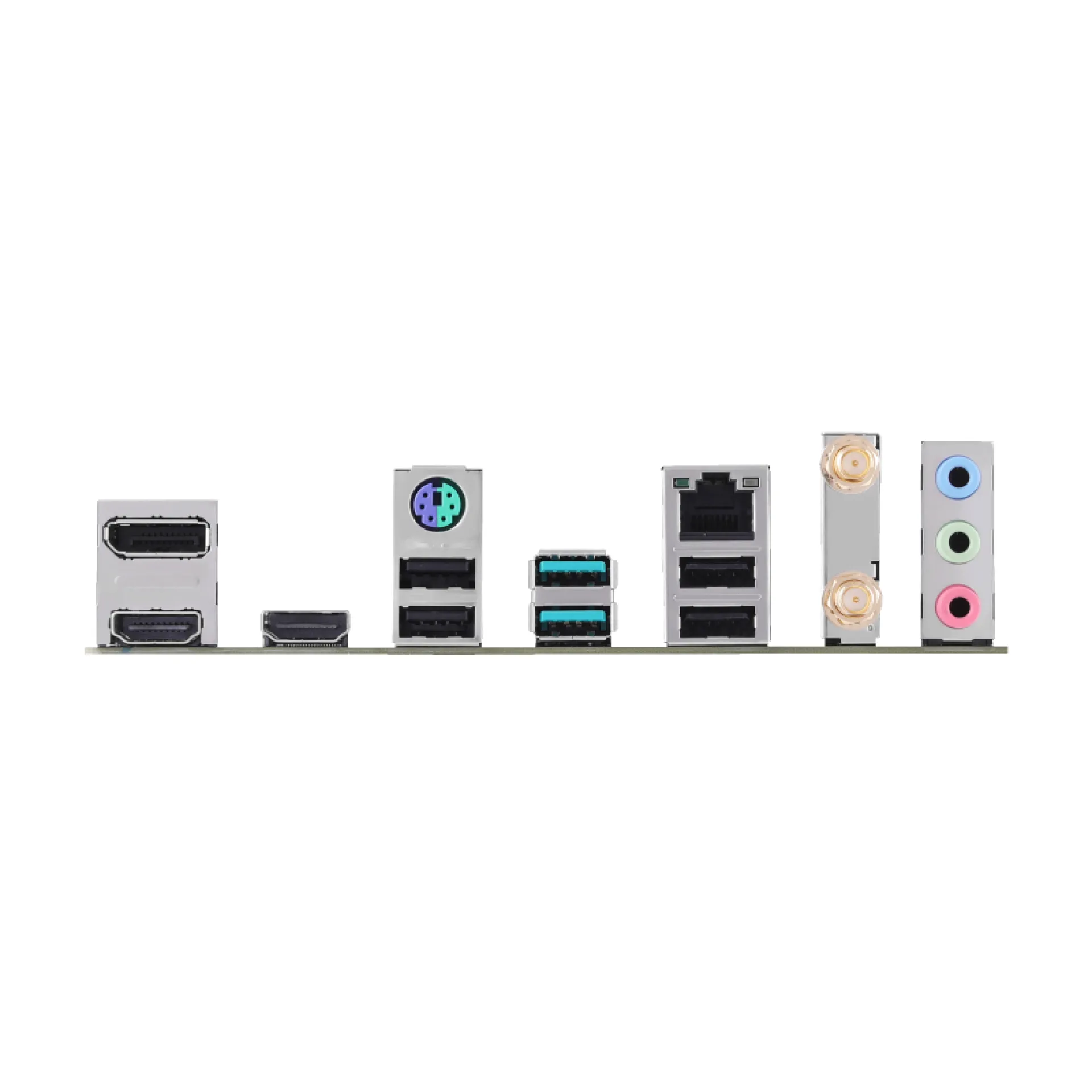

1x DisplayPort 2x HDMI

USB Ports:

4x USB 3.2 Gen 1 Header 4x USB 2.0 Type-A 2x USB 3.2 Gen 2 Type-A 3x USB 3.2 Gen 1 Type-A 5x USB 2.0 header 1x USB-C 3.2 Gen 1 Header

Other Ports:

1x PS/2 keyboard/mouse port 1x S/PDIF-Header 1x audio - header 1x COM Port 1x parallel Header

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Wi-Fi Support:

Wi-Fi 6 (802.11ax)

Bluetooth integrated:

5.2

How long is the Warranty and how you can get technical support for 90MB1CX0-M0EAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
