90SW00E0-M0EAY0

Micro-ATX Intel C246 Server/Workstation Motherboard enabling reliable edge compute with the 90SW00E0-M0EAY0

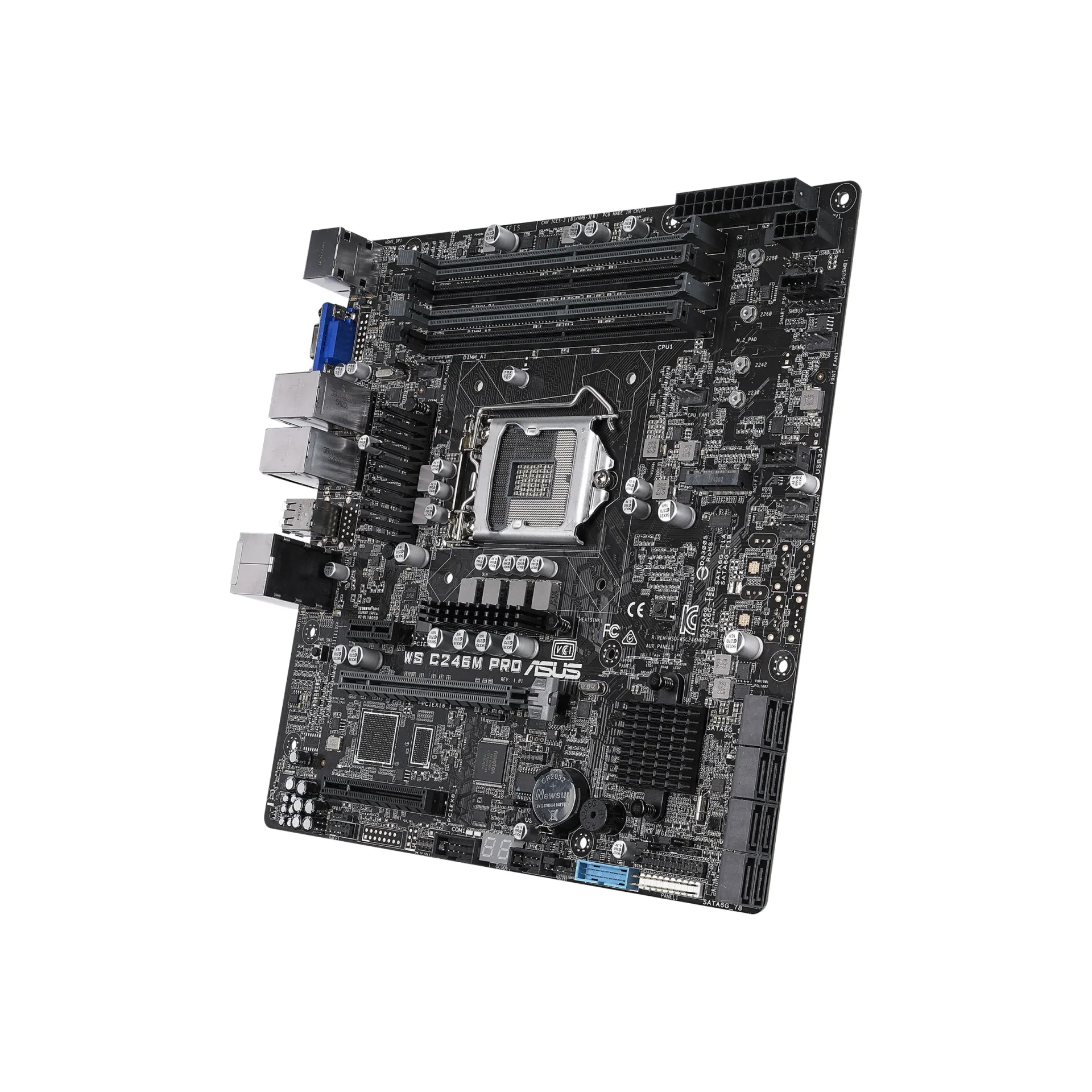

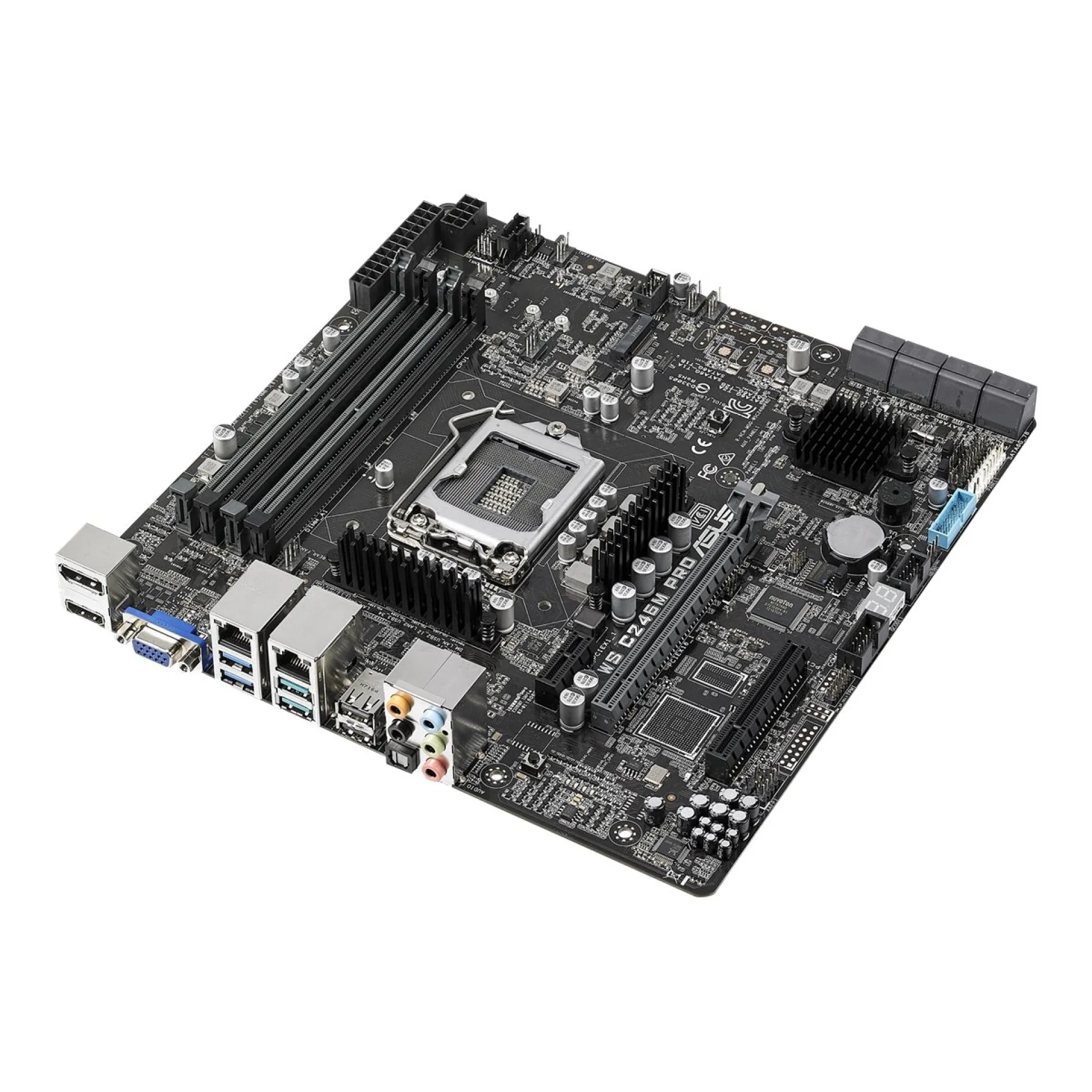

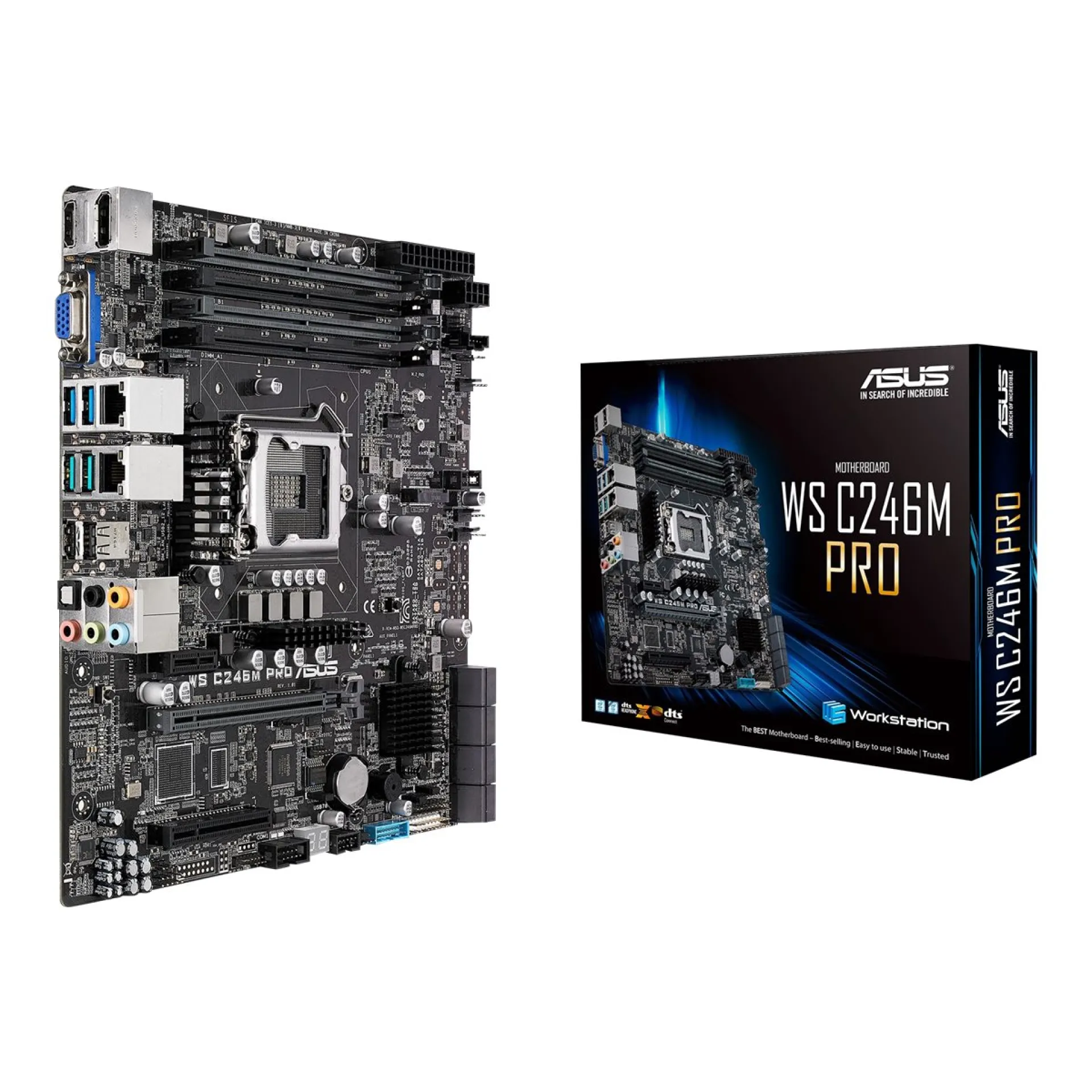

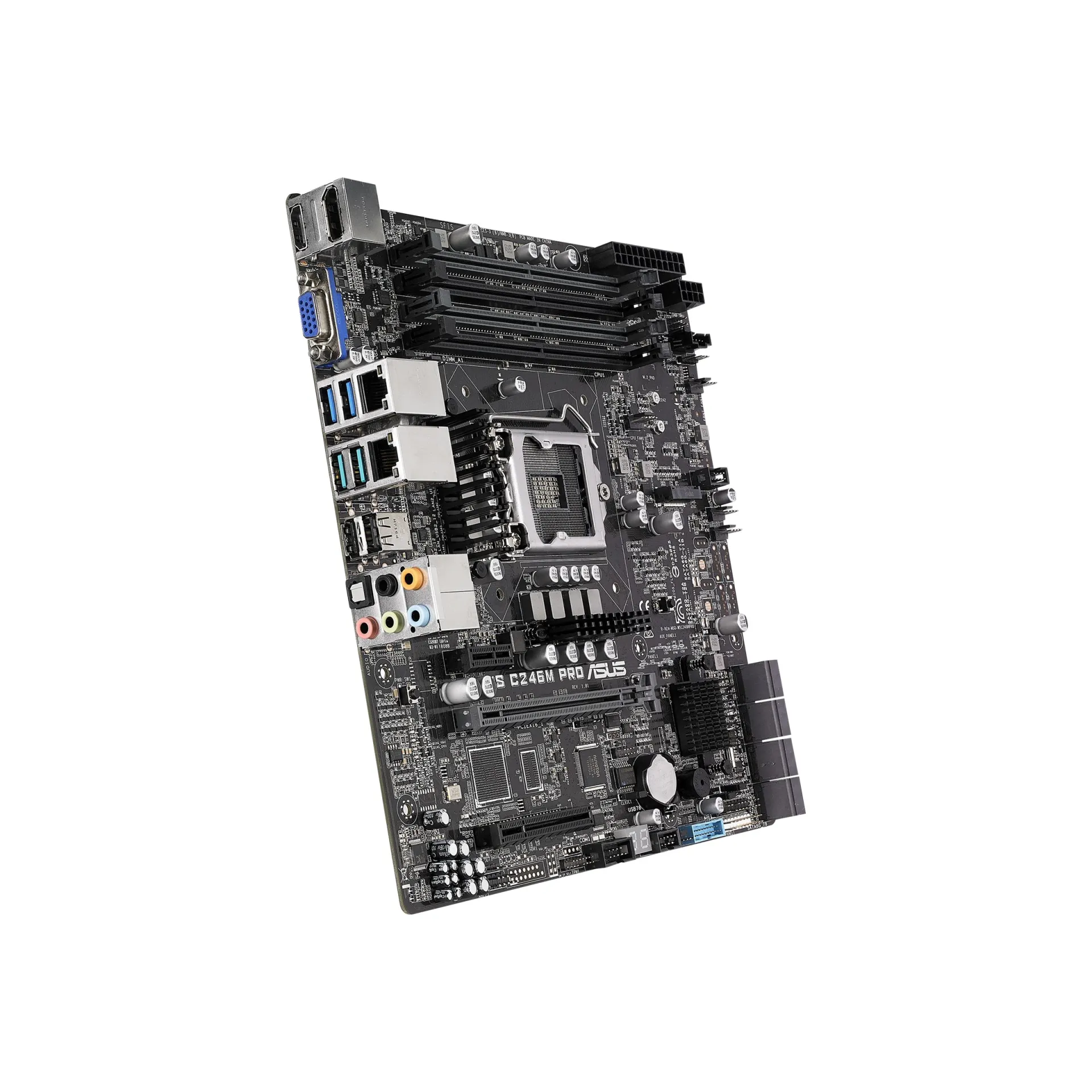

The 90SW00E0-M0EAY0 is an ASUS WS C246M PRO Micro-ATX motherboard built on the Intel C246 platform for LGA1151, aligning compact chassis deployments with Xeon E3 or Intel Core/Pentium/Celeron processors. This CPU compatibility supports balanced core counts and clock profiles for branch services, while the chipset enables platform-level RAID features and business-class I/O integration for controlled, repeatable rollouts.

For memory, the 90SW00E0-M0EAY0 provides 4x DDR4 DIMM slots in dual-channel topology up to 64GB, with ECC and non-ECC support to match workload criticality and validation requirements. Expansion is oriented to mixed-use edge nodes: PCIe 3.0 x16 plus an additional PCIe 3.0 slot (x4 electrical) and a PCIe 2.0 x1 slot for NICs, HBAs, or accelerator-adjacent adapters. Storage architecture combines 8x SATA 6Gb/s for dense HDD/SSD arrays with an M.2 (PCIe 3.0 x4/SATA) path suitable for NVMe boot or cache tiers, enabling clear separation of OS, metadata, and capacity volumes. Dual Intel 1GbE controllers provide predictable driver support and segmentation options in SMB and industrial networks.

Why Choose the 90SW00E0-M0EAY0?

The 90SW00E0-M0EAY0 prioritizes a practical density-to-performance profile for edge and branch server builds where uptime and serviceability matter more than maximum socket count. Its Micro-ATX footprint supports scalable replication across sites, while ECC capability, TPM support, and UEFI tooling help standardize secure provisioning and lifecycle maintenance without introducing dedicated BMC complexity.

ASUS engineering emphasizes electrical stability, validated component selection, and firmware maturity aligned to modern data centre deployment practices. The platform integrates enterprise-oriented networking controllers, robust storage connectivity, and predictable BIOS management to support long maintenance windows and controlled change management.

Key Applications:

Edge and branch file/print services
Directory services and DHCP/DNS
Lightweight virtualization hosts
SMB NAS and backup nodes
Industrial integration with legacy COM workflows

At Happyware - Server Hardware you benefit from Non-Binding Offers tailored to your deployment bill of materials for the 90SW00E0-M0EAY0, and an Extended Warranty up to 6 years to secure long-term operation across distributed sites.

Technical details of 90SW00E0-M0EAY0

CPU Socket:

H4 (LGA 1151)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Core i7 Core i5 Core i3 Pentium Celeron Xeon E3

Form Factor:

Micro-ATX

Chipset:

Intel C246

RAM Maximum Capacity:

64GB

Max RAM Frequency :

2666MHz

RAM Slots:

4 DIMM DDR4

RAM Channels:

Dual-Channel

PCIe Slots:

1 PCIe 2.0 x1 1 PCIe 3.0 x8 1 PCIe 3.0 x16

M.2 Slots:

1 PCIe 3.0 x4/SATA M.2 2280/2260/2242/2230 M-Key

Network Ports:

1 RJ45 1 Gbps

ECC Support:

ECC Non-ECC

Onboard Network:

Ethernet

Suitability:

Server

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

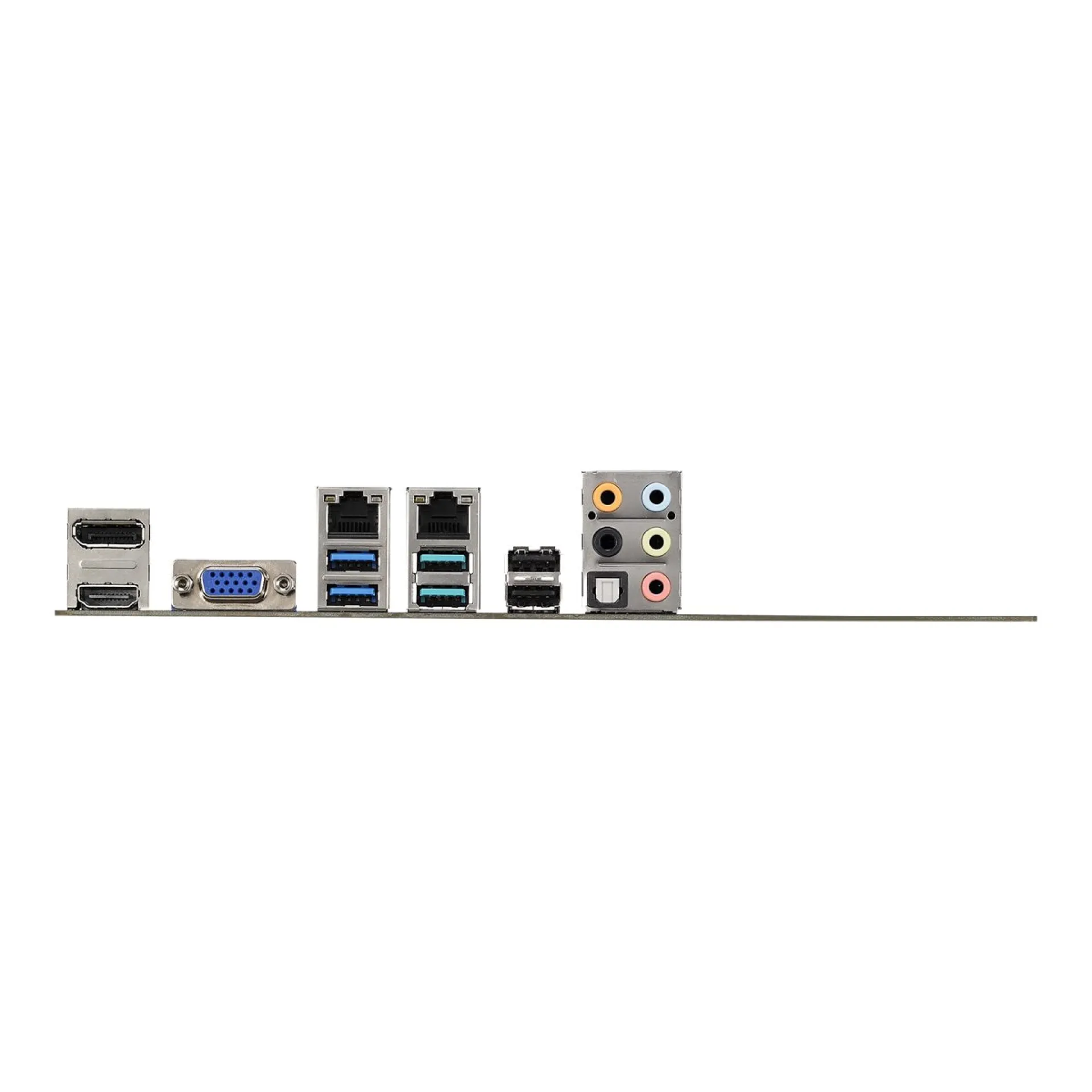

1x HDMI 1.4 1x DisplayPort 1.2 1x VGA

USB Ports:

1x USB 3.0 Header 20-Pin (5Gb/s) 2x USB-A 3.1 (10Gb/s) 4x USB 2.0 - header 2x USB 2.0 2x USB 3.2 Gen 1 - header 2x USB 3.2 Gen 1 2x USB-A 3.0 (5Gb/s) 2x USB 3.1 Gen 2 2x USB-A 2.0 (480Mb/s) 2x USB 2.0 Header 9-Pin (480Mb/s)

Other Ports:

1x S/PDIF-Header 1x audio - header 1x COM Port 1x TPM Header

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Wi-Fi Support:

None

Onboard Audio Chipset:

Realtek ALC887

Embedded:

GPIO Pins:

Card Reader:

How long is the Warranty and how you can get technical support for 90SW00E0-M0EAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
