E3C256D4ID-2T ASRock Mini-ITX Single H5 (LGA 1200) 4 DIMM Slots Server Mainboard

See all Mini ITX Motherboard

See other ASRock products

This product is currently not priced. Request a personalized quote now.

Out of stock

Not available

Happyware Article Number:

SH0M6044-122294

Manufacturer Number:

E3C256D4ID-2T

Brand:

ASRock

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

E3C256D4ID-2T

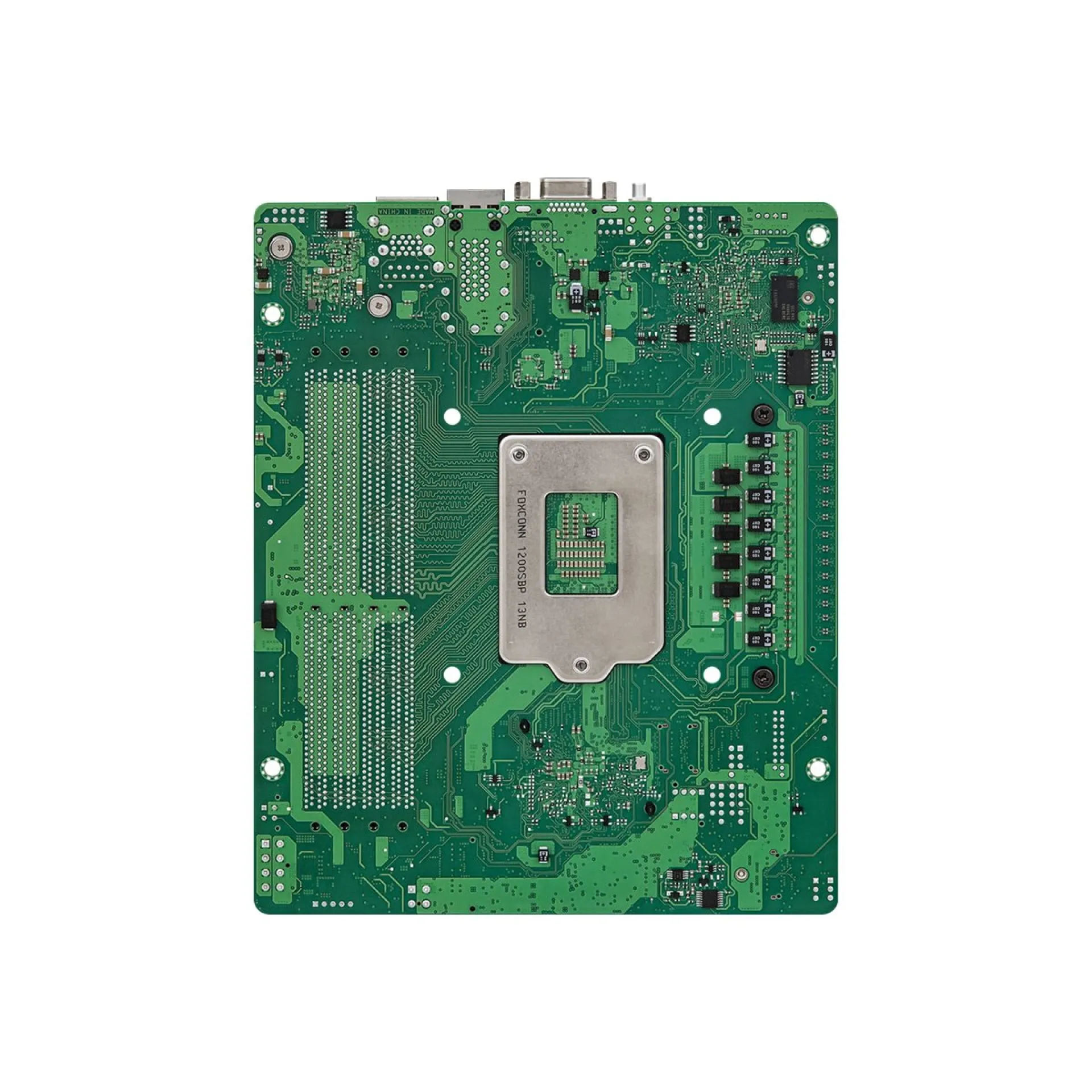

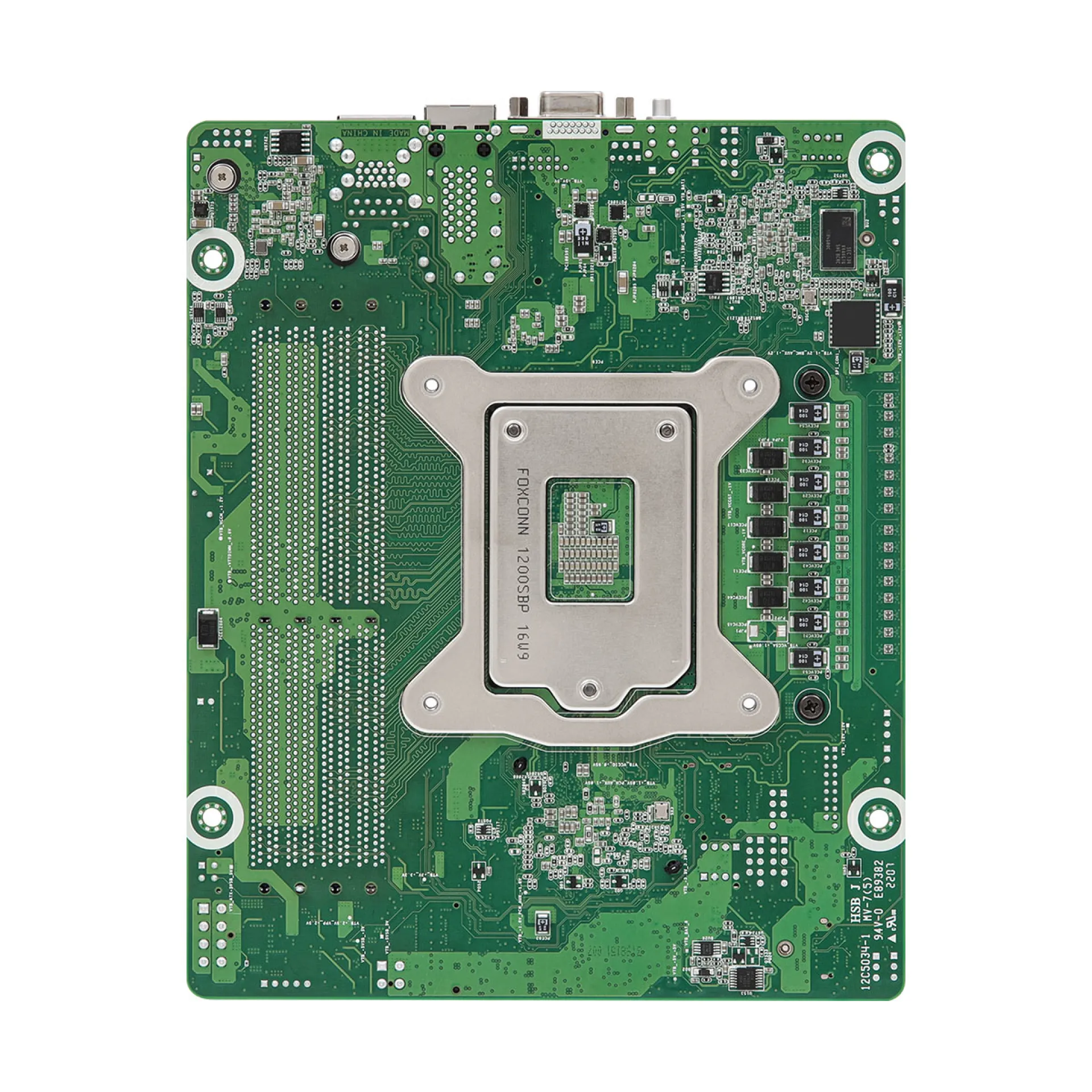

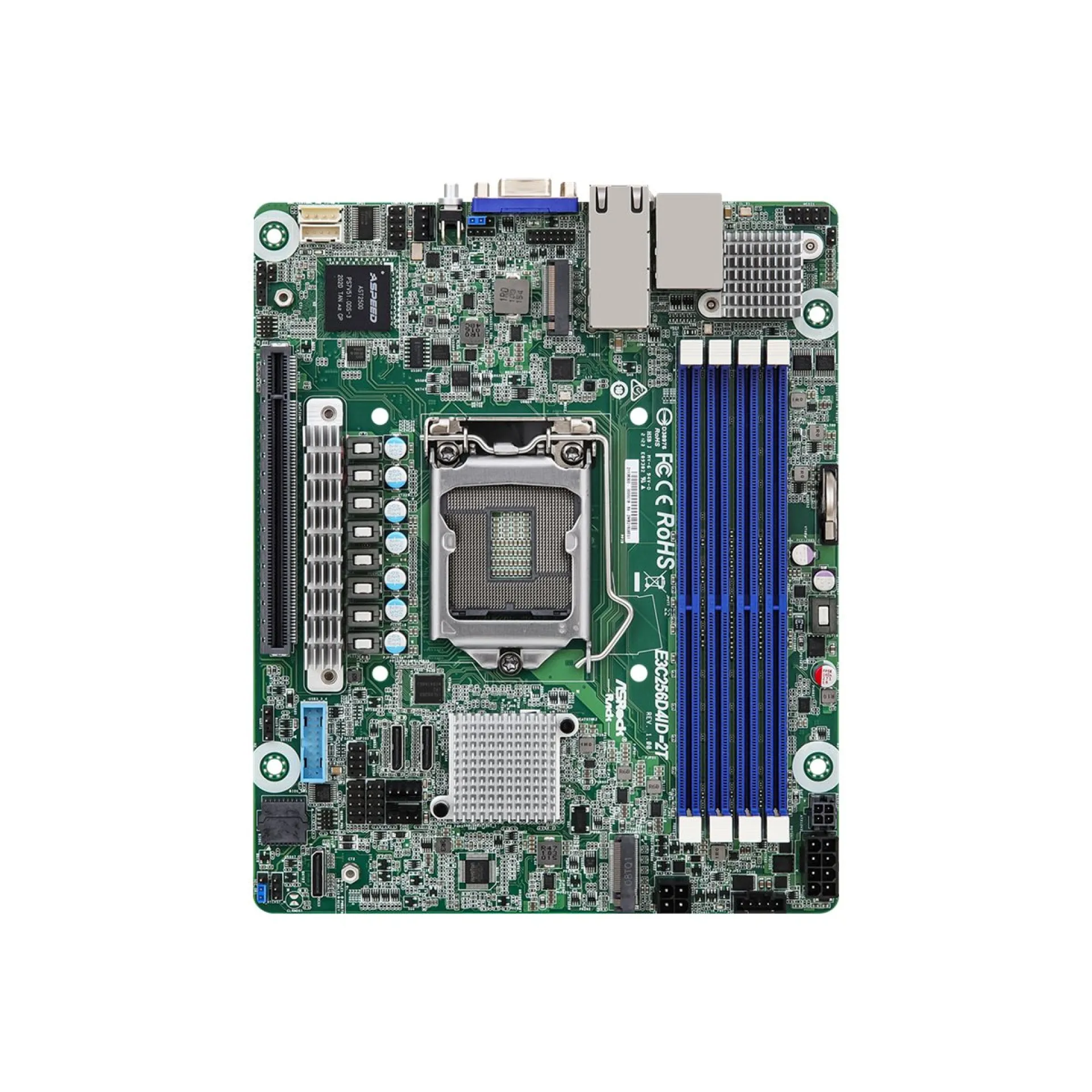

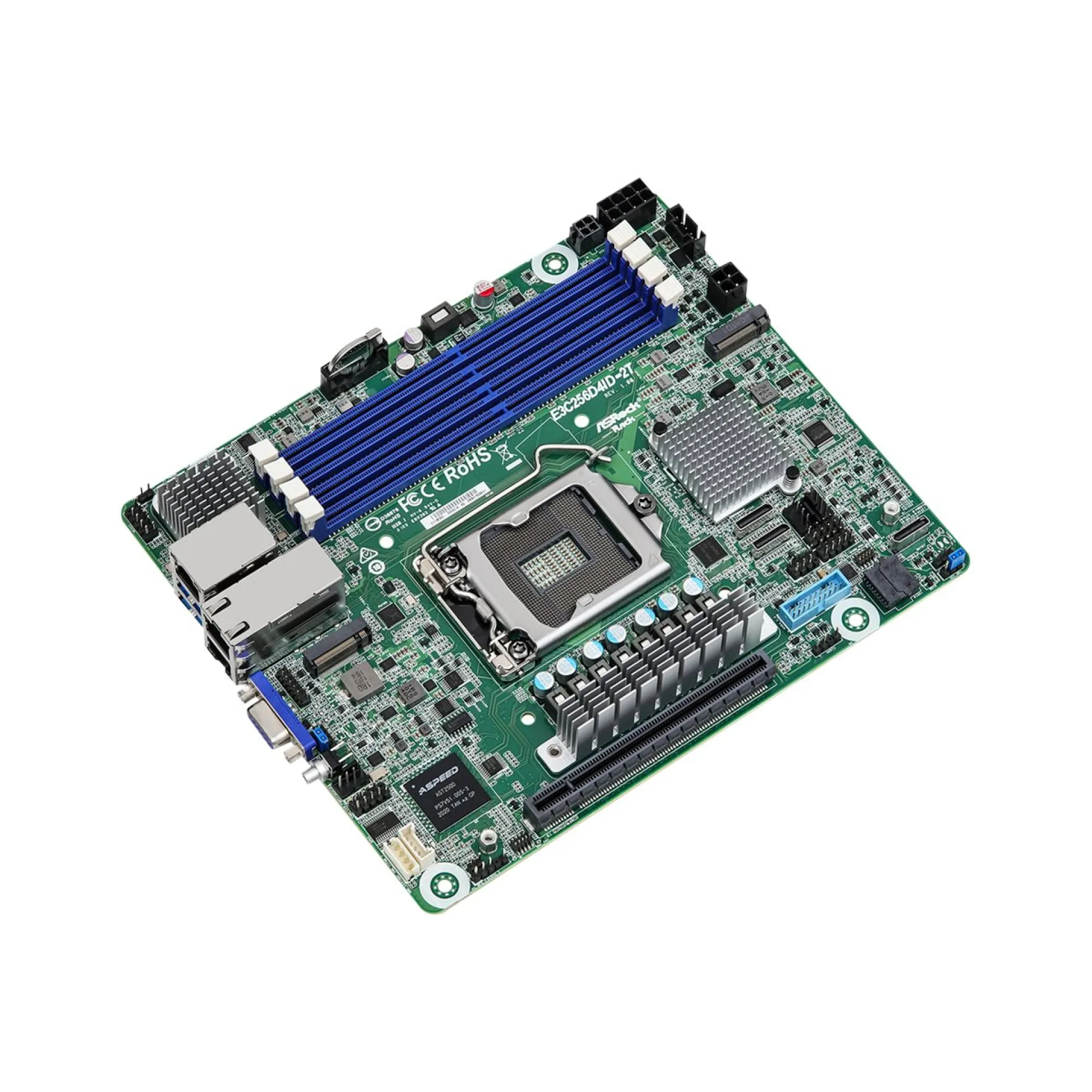

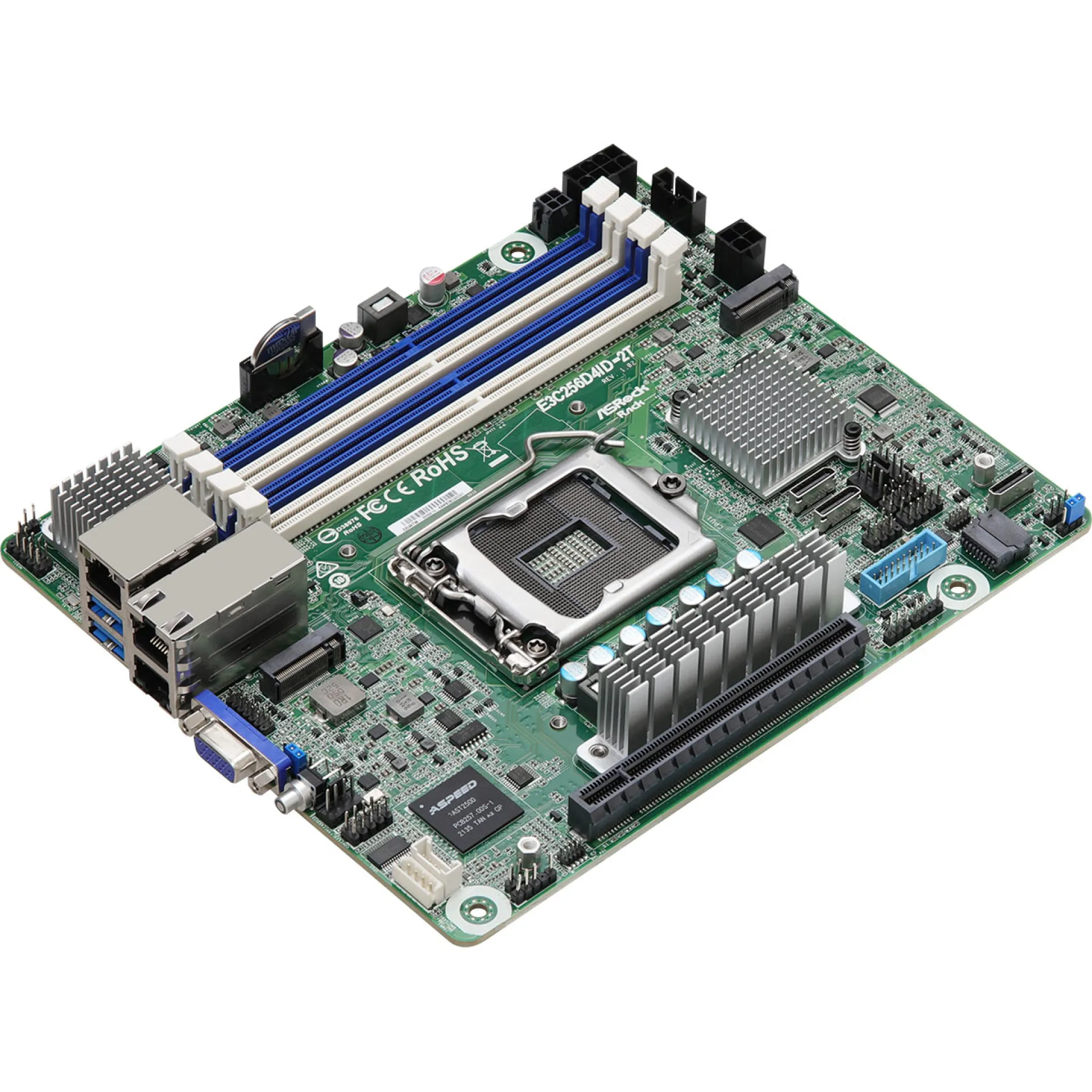

High-Density Mini-ITX Server Motherboard featuring dual 10GbE and remote management with the E3C256D4ID-2T

The E3C256D4ID-2T is a compact ASRock server motherboard built on the Intel C256 platform for LGA1200 processors, enabling cost-efficient Xeon E3-class compute in edge and branch footprints. Its 4-DIMM DDR4 memory architecture supports ECC operation for data integrity while maintaining dual-channel bandwidth for mixed virtualization and infrastructure services.

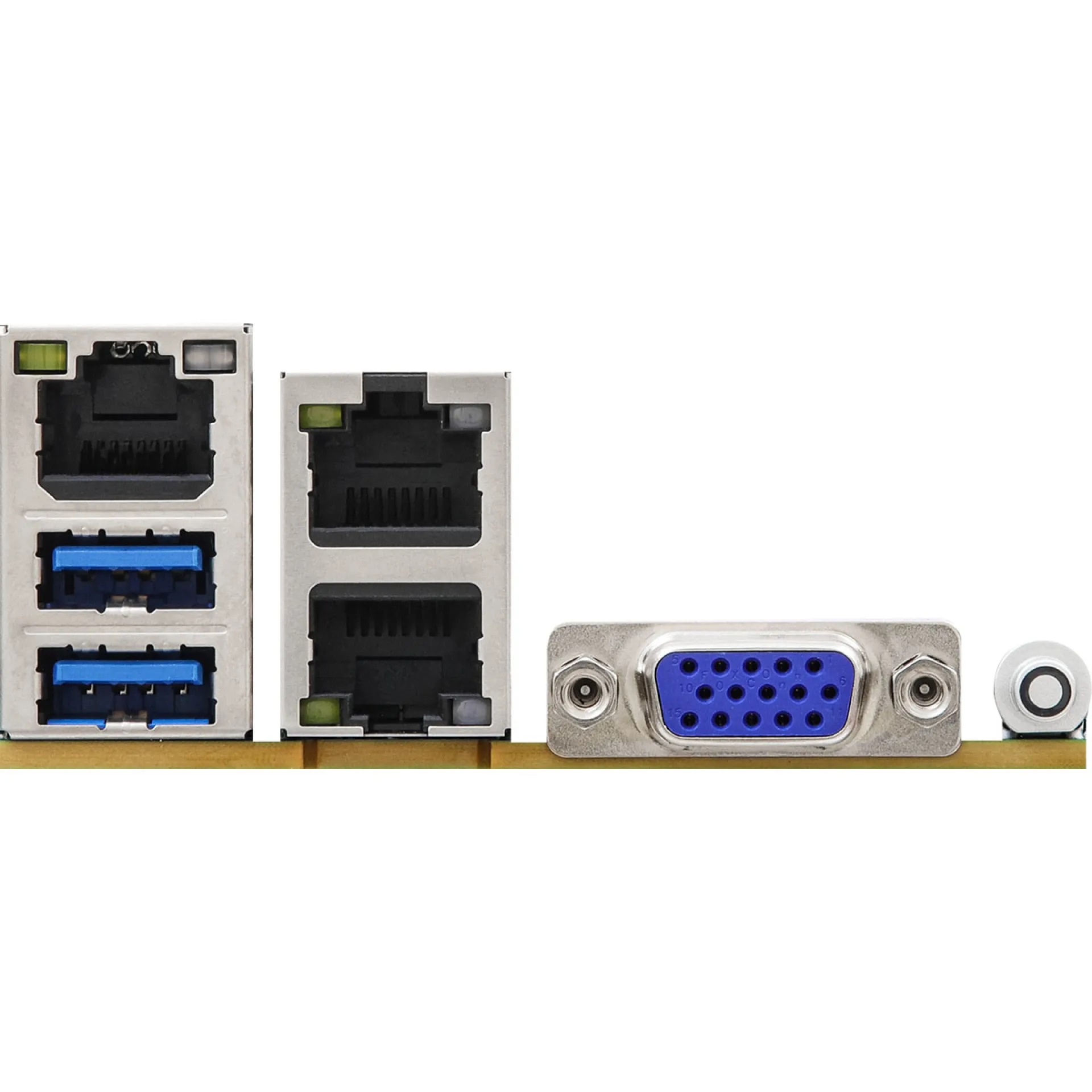

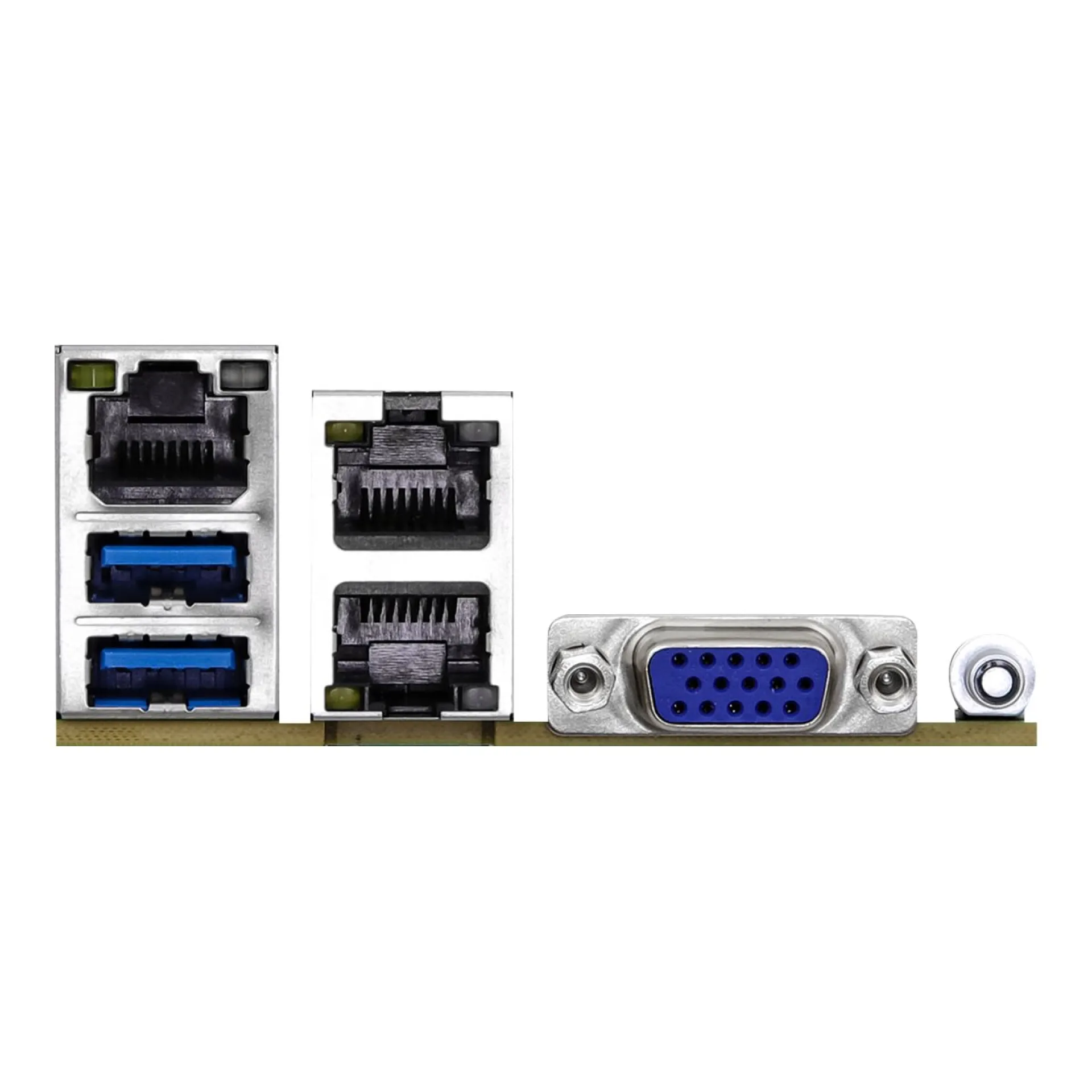

For I/O scale, the E3C256D4ID-2T provides a PCIe 4.0 x16 slot for accelerator-class expansion or high-throughput adapters, paired with flexible storage routing that balances capacity and latency. Eight SATA 6Gb/s ports target dense local disks, while NVMe and dual M.2 2280 interfaces enable fast boot, caching, or low-latency data tiers. Dual 10GbE RJ45 ports based on the Intel X710-AT2 establish deterministic uplinks for network appliances and microservers without consuming expansion slots.

Why Choose the E3C256D4ID-2T?

The E3C256D4ID-2T is engineered for deployments where performance per litre and serviceability matter: a full server feature set in Mini-ITX, predictable PCIe topology, and integrated management for lights-out operations. This design supports scalable rollouts across distributed sites by standardising on 10GbE connectivity, ECC-capable memory, and storage options that can be tuned per node role.

ASRock applies a server-first engineering approach with platform validation, firmware control via AMI UEFI, and integrated IPMI/BMC management to align with modern data centre and remote edge operations. The E3C256D4ID-2T also includes a dedicated management port and optional TPM header support for security-oriented build requirements.

Key Applications:

Edge and branch microservers
Compact virtualization hosts
10GbE network appliances
Storage gateway and caching nodes
Remote-managed infrastructure services

At Happyware - Server Hardware you benefit from non-binding offers tailored to your bill of materials for the E3C256D4ID-2T and an extended warranty option up to 6 years to protect long-lived edge deployments.

Technical details of E3C256D4ID-2T

CPU Socket:

H5 (LGA 1200)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Pentium Xeon E3

Form Factor:

Mini-ITX

Chipset:

Intel C256

RAM Maximum Capacity:

128GB

Max RAM Frequency :

3200MHz

RAM Slots:

4 DIMM DDR4

RAM Channels:

Dual-Channel

PCIe Slots:

1 PCIe 4.0 x16

M.2 Slots:

1 PCIe 3.0 x4 M.2 2280 M-Key 1 PCIe 4.0 x4 M.2 2280 M-Key

Network Ports:

2 RJ45 10 Gigabit Ethernet

ECC Support:

ECC Non-ECC

Onboard Network:

Ethernet

Suitability:

Server

Performance Class:

High performance

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

1x VGA

USB Ports:

2x USB 3.2 Gen 1 Type-A 2x USB 3.2 Gen 1

Other Ports:

1x IPMI Management Port

Trusted Platform Module (TPM):

Optional

BIOS:

AMI UEFI

Wi-Fi Support:

None

Embedded:

GPIO Pins:

Card Reader:

How long is the Warranty and how you can get technical support for E3C256D4ID-2T

Warranty:	12 months (part)
RMA Url:	https://www.asrock.com/support/?cat=RMA
Description:	Items must be returned first for RMA processing. No advanced replacements.
