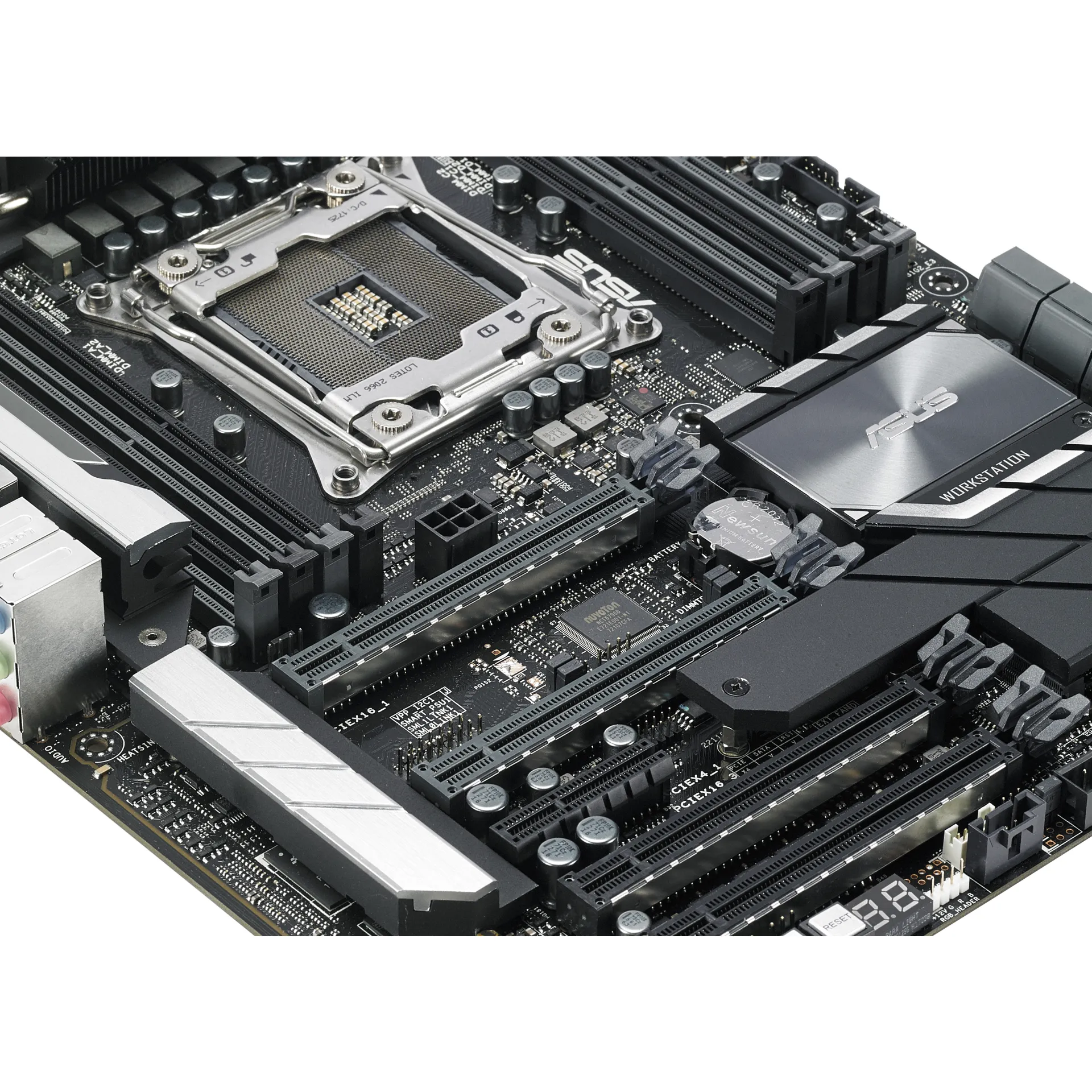

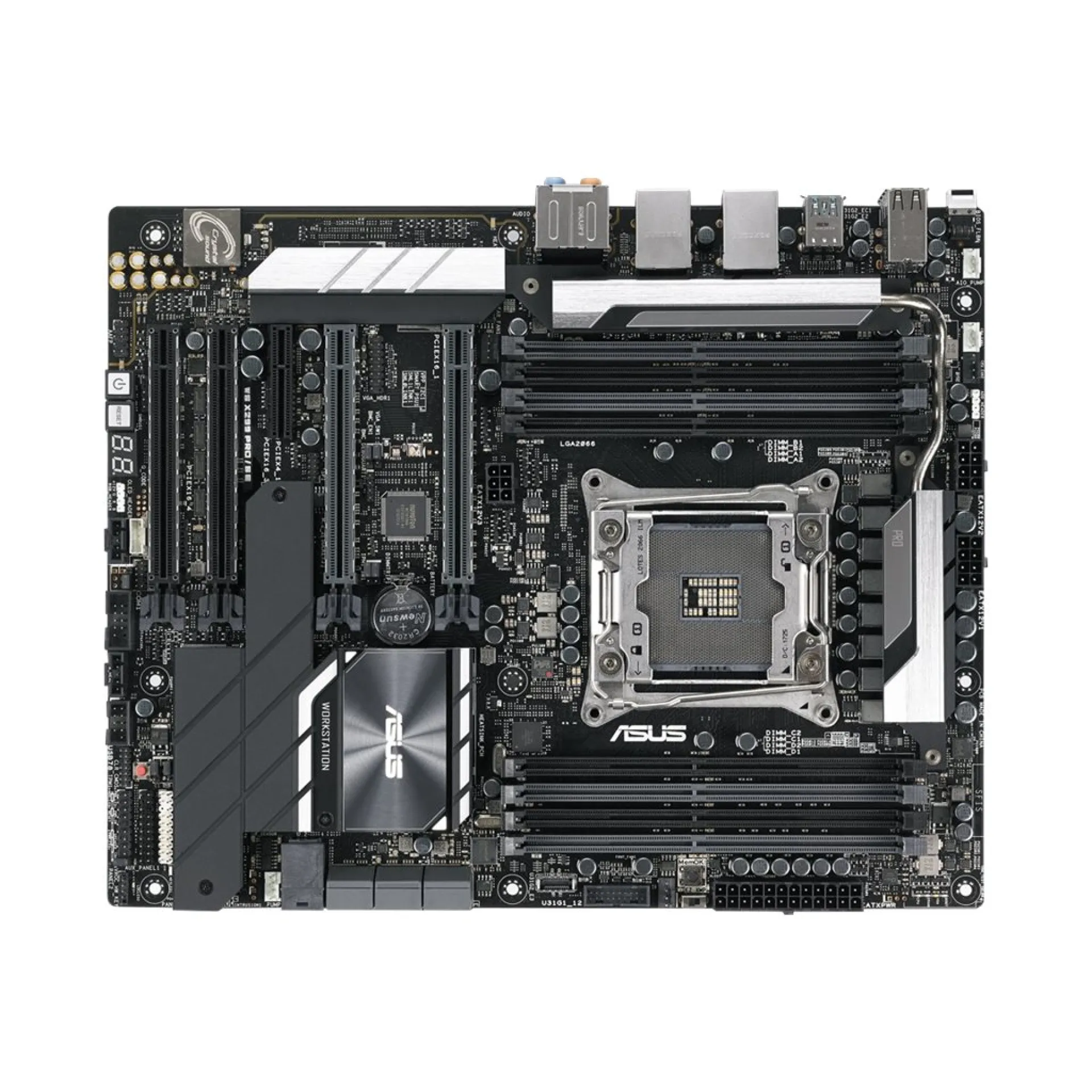

90SW00A0-M0EAY0 ASUS ATX Single R4 (LGA 2066) 8 DIMM Slots Workstation Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for 90SW00A0-M0EAY0 and save cash:

Quantity	Unit price
To 9	€548.00
To 19	€521.00 €548.00 (4.93% saved)
To 49	€510.00 €548.00 (6.93% saved)
From 50	€494.00 €548.00 (9.85% saved)

See all Single CPU (UP) Motherboards

See other ASUS products

€548.00

Out of stock

Not available

Happyware Article Number:

SH2M3820-401853

Manufacturer Number:

90SW00A0-M0EAY0

Brand:

ASUS

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

90SW00A0-M0EAY0

High-Performance ATX Workstation Motherboard featuring Intel X299 LGA2066 platform architecture with the 90SW00A0-M0EAY0

The 90SW00A0-M0EAY0 is an ASUS WS X299 Pro/SE ATX workstation motherboard designed for single-socket Intel Core X-series compute where balanced CPU throughput, dense I/O, and predictable thermals are critical. Built on the Intel X299 chipset, the 90SW00A0-M0EAY0 targets CAD/CAE, content creation, and lab-style validation environments that require stable PCIe 3.0 lane allocation and deterministic storage behavior.

Memory is provisioned through 8 DDR4 DIMM slots supporting up to 256GB, enabling larger in-memory datasets and multi-VM development stacks without overcommitting. For expansion, the 90SW00A0-M0EAY0 provides multiple PCIe 3.0 x16 mechanical slots with varied electrical wiring to accommodate GPUs, high-speed NICs, storage HBAs, and capture cards while keeping bandwidth contention manageable. Storage design combines 6x SATA 6Gb/s with dual M.2 PCIe 3.0 x4 sockets, aligning well to tiered NVMe-plus-SATA layouts and RAID 0/1/5/10 configurations for performance or resiliency, supported by TPM for platform trust.

Why Choose the 90SW00A0-M0EAY0?

The 90SW00A0-M0EAY0 is engineered for enterprise density-to-performance efficiency in an ATX footprint, pairing workstation-class expandability with management capabilities that simplify remote operations. With dual Intel I210-AT 1GbE and integrated IPMI/BMC via an ASPEED AST2500, the 90SW00A0-M0EAY0 supports scalable deployment as a dev/virtualization node or an edge/SMB infrastructure host where out-of-band access reduces hands-on intervention.

ASUS designs this platform around electrical stability, validated component interoperability, and data centre-aligned manageability, ensuring consistent behavior under sustained PCIe, memory, and storage load while maintaining a serviceable layout for lifecycle operations.

Key Applications:

CAD/CAE workstation builds
Content creation and rendering
Virtualization and software testing labs
Edge infrastructure and SMB services
GPU compute prototyping

At Happyware - Server Hardware you benefit from non-binding offers tailored to your bill of materials for the 90SW00A0-M0EAY0, helping you standardize builds across teams, and from extended warranty options up to 6 years for long-term operational security.

Technical details of 90SW00A0-M0EAY0

CPU Socket:

R4 (LGA 2066)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Core X-series

Form Factor:

ATX

Chipset:

Intel X299

RAM Maximum Capacity:

256GB

Max RAM Frequency :

4133MHz

RAM Slots:

8 DIMM DDR4

PCIe Slots:

1 PCIe 3.0 x4 1 PCIe 3.0 x16 2 PCIe 3.0 x16

M.2 Slots:

1 PCIe 3.0 x4 M.2 22110, M.2 2280, M.2 2260, M.2 2242 M-Key 1 PCIe 3.0 x4/SATA M.2 2280, M.2 2260, M.2 2242 M-Key

Network Ports:

2 RJ45 1 Gbps

ECC Support:

Non-ECC

Onboard Network:

Ethernet

Suitability:

Workstation

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

1x VGA

USB Ports:

2x USB 3.0 Type-A 1x USB 3.1 Type-C 2x USB 2.0 Type-A

Other Ports:

1x IPMI Management Port

Trusted Platform Module (TPM):

Yes

Wi-Fi Support:

None

Onboard Audio Chipset:

Realtek ALC1220P

Embedded:

Card Reader:

Yes

How long is the Warranty and how you can get technical support for 90SW00A0-M0EAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
