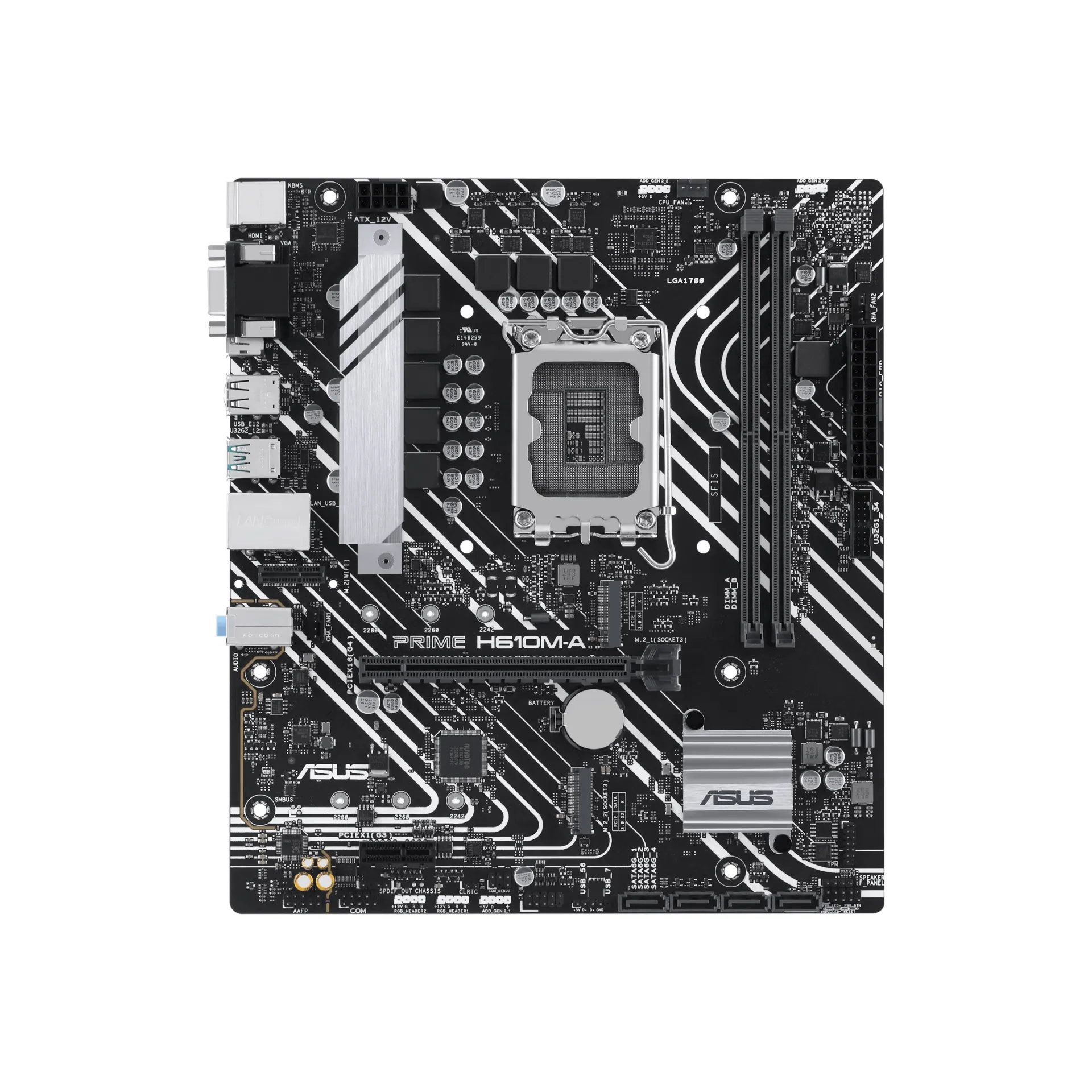

90MB1G20-M0EAYC ASUS Micro-ATX Single V (LGA 1700) 2 DIMM Slots Mainboard

Get extra volume discount for 90MB1G20-M0EAYC and save cash:

Quantity	Unit price
To 19	€140.00
To 49	€129.00 €140.00 (7.86% saved)
To 99	€119.00 €140.00 (15% saved)
From 100	€112.00 €140.00 (20% saved)

Product line:

Prime

See all ASUS

See other ASUS products

€140.00

In stock

Happyware Article Number:

SH9M4662-727547

Manufacturer Number:

90MB1G20-M0EAYC

Brand:

ASUS

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

90MB1G20-M0EAYC

Compact Micro-ATX Intel H610 Platform Motherboard with DDR5 and PCIe 4.0 Expansion using the 90MB1G20-M0EAYC

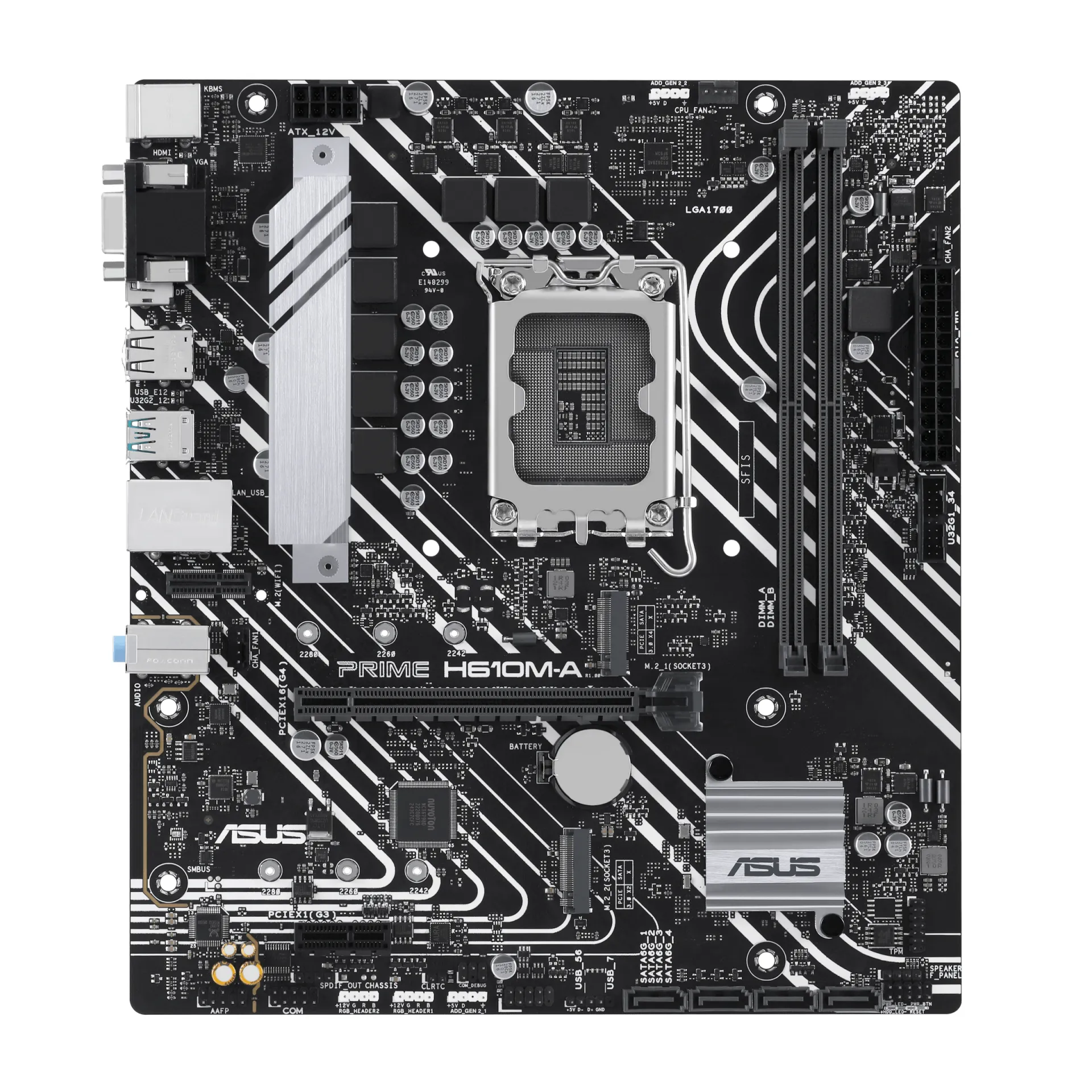

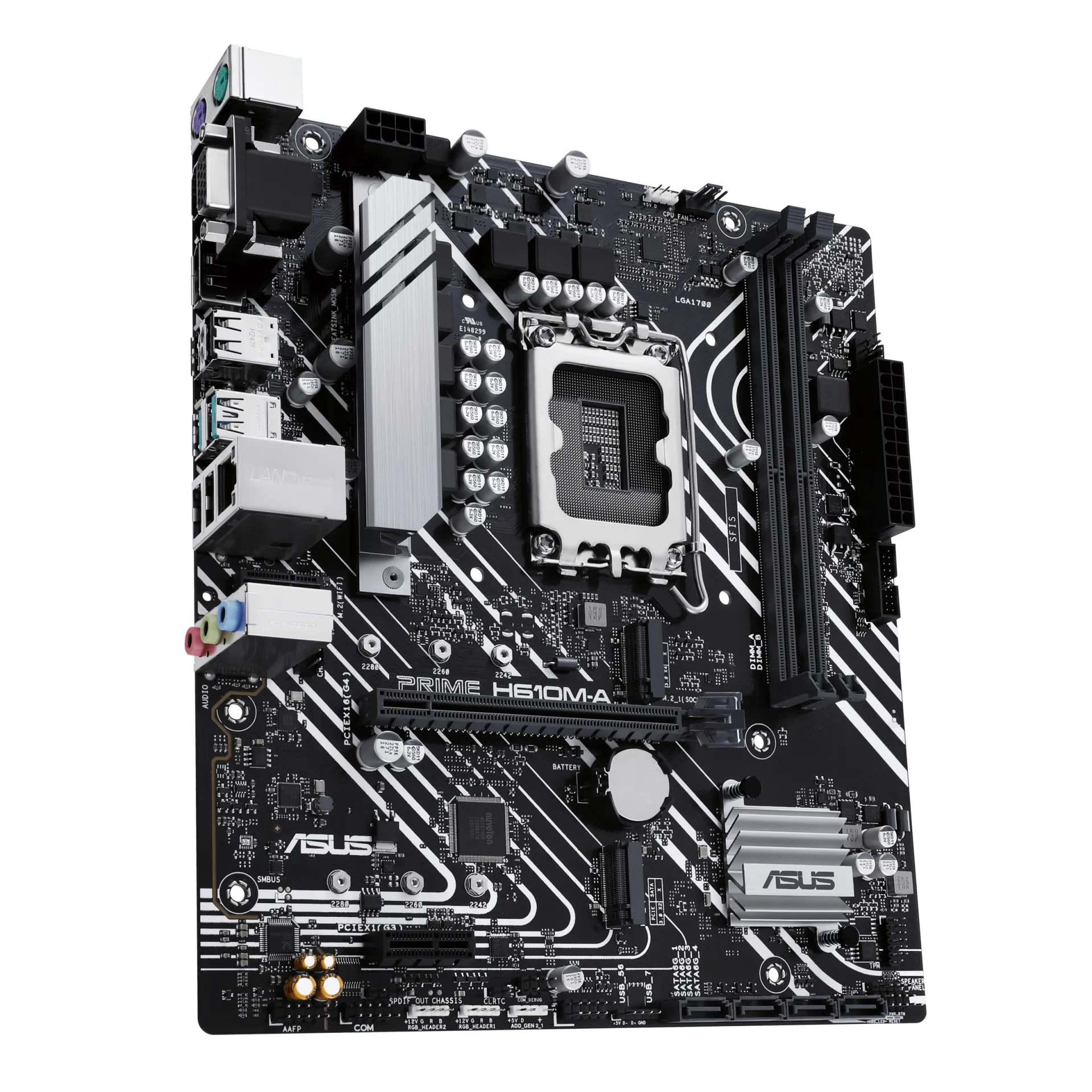

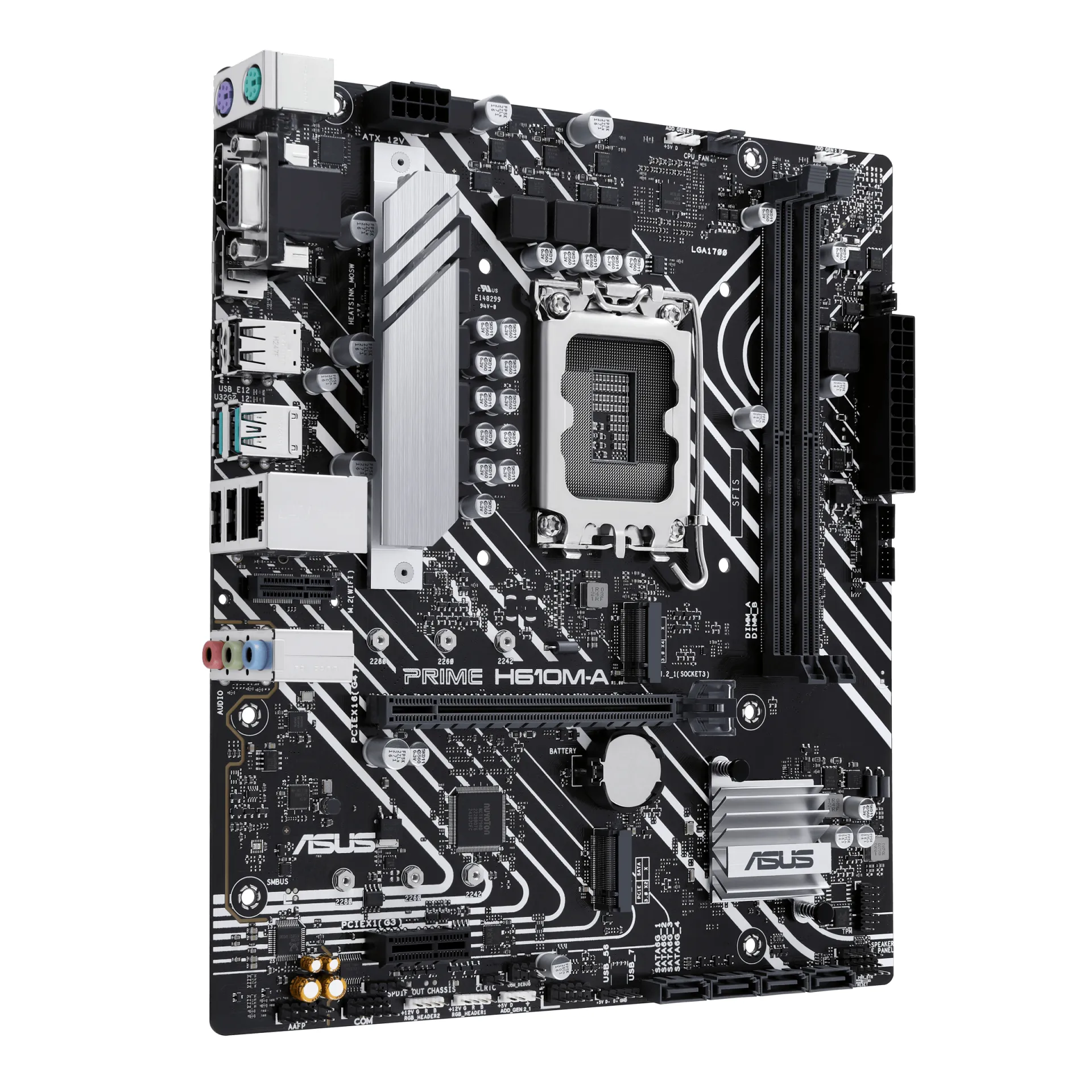

The 90MB1G20-M0EAYC is an ASUS Micro-ATX motherboard built on the Intel H610 chipset for the LGA1700 desktop platform, aligning with 12th/13th/14th Gen class Intel Core, Pentium Gold, and Celeron processors. It is designed for controlled, cost-aware deployments where predictable platform behavior, integrated display flexibility, and standard enterprise components are required.

With 2 DDR5 DIMM slots, the 90MB1G20-M0EAYC supports dual-channel memory scaling up to 96GB, enabling responsive multitasking for branch systems and entry workstation use. PCIe topology is optimized for practical expansion: a PCIe 4.0 x16 slot supports a single full-height GPU or high-bandwidth accelerator card, complemented by a PCIe 3.0 x1 slot for additional I/O. Storage architecture combines 2 M.2 sockets (PCIe 3.0 x4 and PCIe 3.0 x2) with 4 SATA III ports, allowing balanced boot, cache, and capacity configurations. Integrated Intel I219-V 1GbE provides stable connectivity for office, edge, and appliance roles, while TPM support addresses baseline platform security requirements without adding IPMI/BMC complexity.

Why Choose the 90MB1G20-M0EAYC?

The 90MB1G20-M0EAYC delivers a strong density-to-function ratio for compact enclosures, pairing DDR5 memory efficiency with a PCIe 4.0 x16 expansion path for a single-GPU workstation or specialized edge card. Its standard x86 serviceability and straightforward chipset feature set support repeatable rollouts, predictable validation, and scalable spares management across distributed sites.

ASUS engineering emphasizes board-level reliability, signal integrity, and long-term platform stability, with designs aligned to modern data centre and enterprise integration standards for consistent interoperability across CPUs, memory, storage, and peripherals.

Key Applications:

SMB and branch office endpoints
Light server roles without out-of-band management
Entry-level single-GPU workstations
Edge appliances with TPM-enabled security

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your 90MB1G20-M0EAYC deployment plan and extended warranty options up to 6 years to protect long-lifecycle infrastructure investments.

Technical details of 90MB1G20-M0EAYC

CPU Socket:

V (LGA 1700)

Onboard Memory:

CPU Manufacturer:

Intel

CPU Supported Type:

Core i9 Core i7 Core i5 Core i3 Pentium Gold Celeron

Form Factor:

Micro-ATX

Chipset:

Intel H610

RAM Maximum Capacity:

96GB

Max RAM Frequency :

5600MHz

RAM Slots:

2 DIMM DDR5

RAM Channels:

Dual-Channel

PCIe Slots:

1 PCIe 3.0 x1 1 PCIe 4.0 x16

M.2 Slots:

1 PCIe 3.0 x2 M.2 2280/2260/2242 M-Key 1 PCIe 3.0 x4 M.2 2280/2260/2242 M-Key 1 Unspecified M.2 2230 E-Key

Network Ports:

1 RJ45 1 Gbps

ECC Support:

Non-ECC

Onboard Network:

Ethernet

Onboard CPU:

Onboard Graphic:

Yes

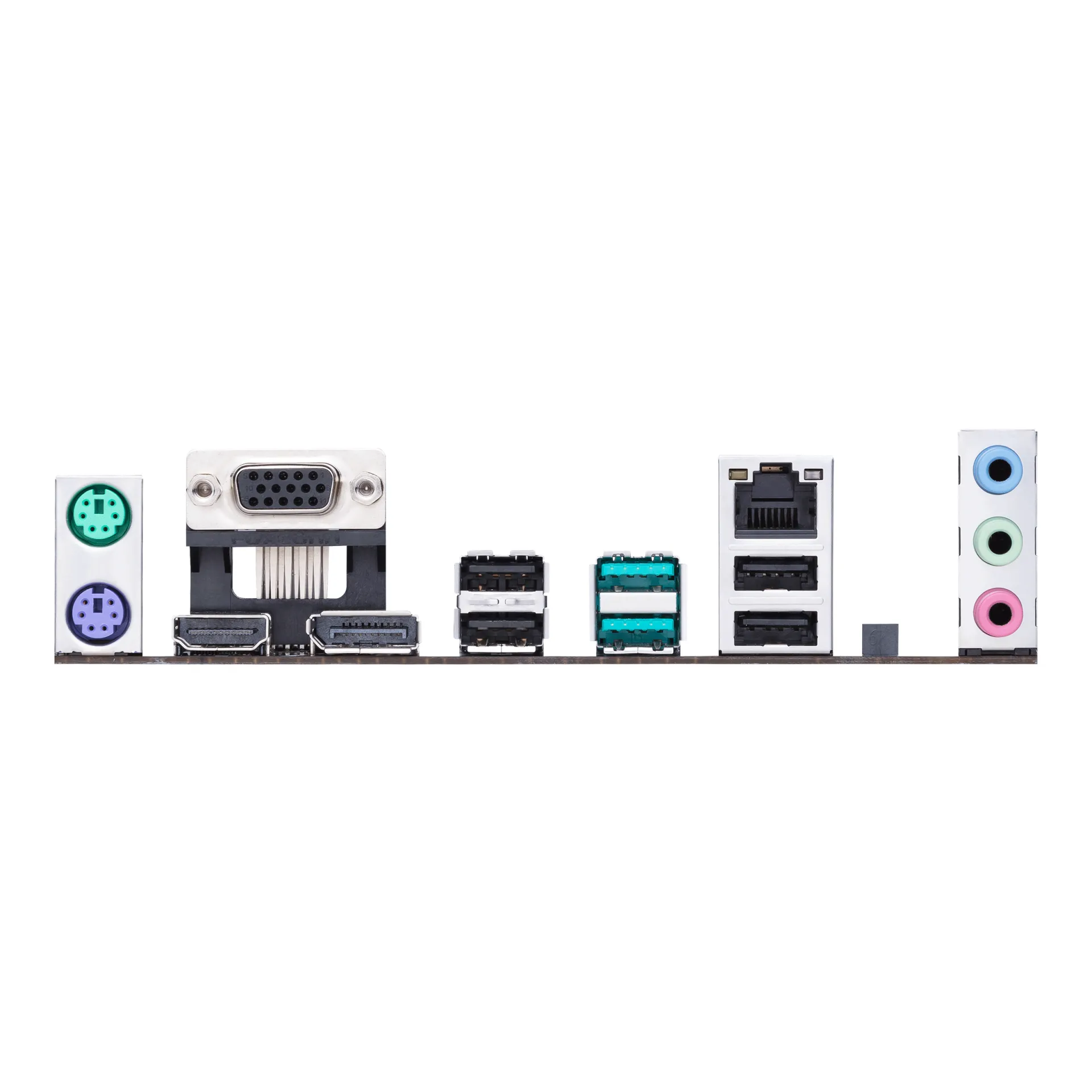

Video Output:

1x DisplayPort 1x HDMI 1x VGA

USB Ports:

4x USB 2.0 Type-A 2x USB 3.2 Gen 1 Header 2x USB 2.0 header 1x USB 2.0 header 2x USB 3.2 Gen 2 Type-A

Other Ports:

3x Audio Port 1x PS/2 keyboard 1x PS/2 mouse 1x COM Port 1x RJ-45 LAN Port

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Wi-Fi Support:

None

Onboard Audio Chipset:

Realtek ALC897

Card Reader:

How long is the Warranty and how you can get technical support for 90MB1G20-M0EAYC

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
