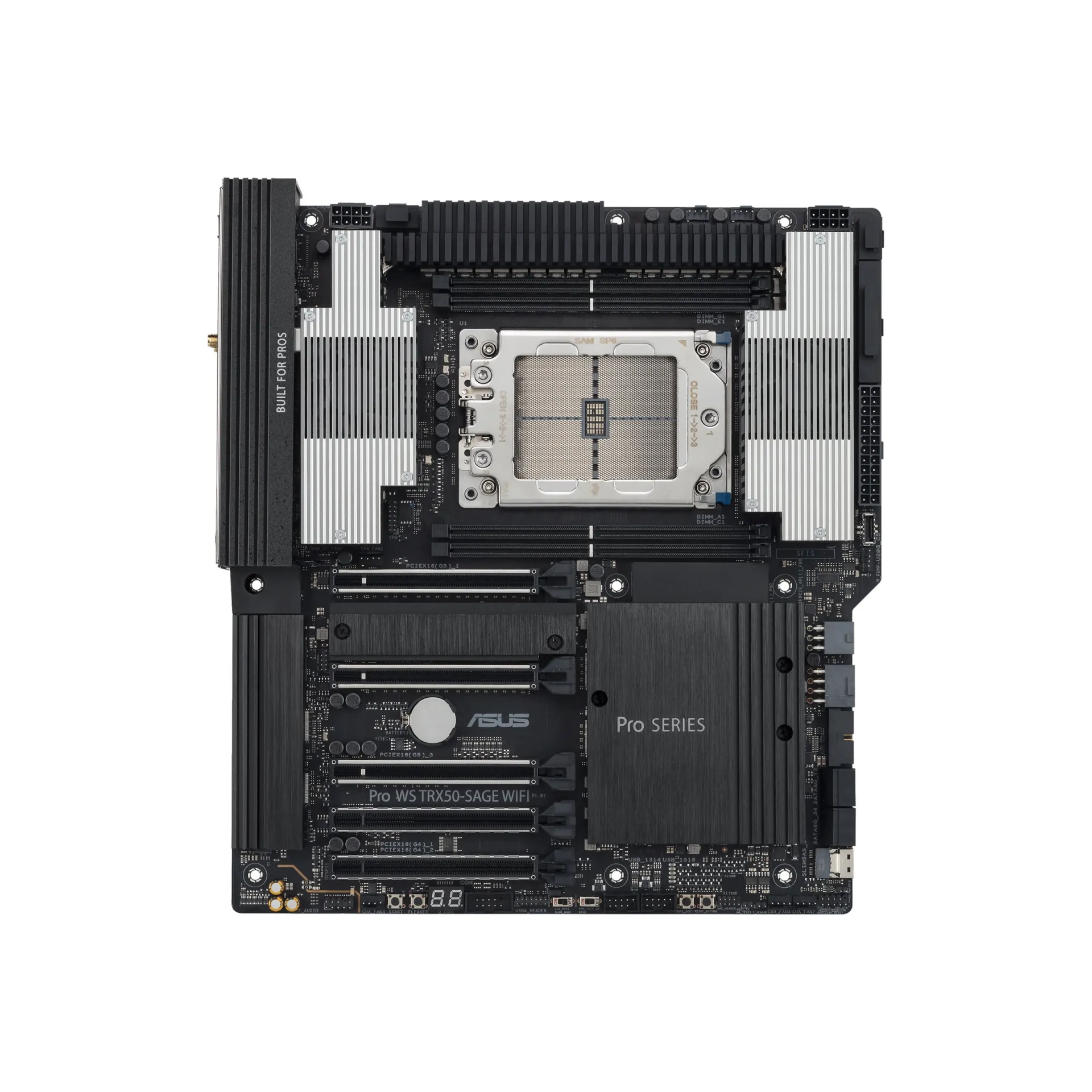

90MB1FZ0-M0EAY0 ASUS E-ATX Single sTR5 4 DIMM Slots Workstation Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for 90MB1FZ0-M0EAY0 and save cash:

Quantity	Unit price
To 4	€918.00
To 9	€891.00 €918.00 (2.94% saved)
To 19	€873.00 €918.00 (4.9% saved)
From 20	€854.00 €918.00 (6.97% saved)

Product line:

Pro WS

See all EATX Motherboard

See other ASUS products

€918.00

In stock

Happyware Article Number:

SH4M7023-542649

Manufacturer Number:

90MB1FZ0-M0EAY0

Brand:

ASUS

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

90MB1FZ0-M0EAY0

High-Performance E-ATX Workstation Motherboard enabling sTR5 Threadripper scalability with the 90MB1FZ0-M0EAY0

The 90MB1FZ0-M0EAY0 is an ASUS Pro WS TRX50-SAGE WIFI workstation motherboard engineered for AMD sTR5 (LGA4844) Ryzen Threadripper and Threadripper Pro platforms, targeting dense GPU and high-IO workstation compute. The AMD TRX50 chipset, integrated BMC/IPMI management, and ECC-capable DDR5 memory design align the board to controlled, serviceable deployments where uptime and remote operations matter as much as raw throughput.

For accelerator-heavy builds, 90MB1FZ0-M0EAY0 provides multiple full-height, full-length PCIe slots across PCIe 5.0 and PCIe 4.0 lanes to sustain multi-add-in-card configurations without constraining bandwidth-sensitive workloads. Local storage is optimized for scratch and dataset staging through a blended NVMe architecture with M.2 PCIe Gen5 and Gen4 support alongside SATA 6Gb/s for capacity tiers. Dual wired networking (10GbE plus 2.5GbE) reduces reliance on add-on NICs, while Wi‑Fi 7 and Bluetooth 5.4 support flexible workstation placement and peripheral integration when needed.

Why Choose the 90MB1FZ0-M0EAY0?

The 90MB1FZ0-M0EAY0 is designed to translate Threadripper platform lanes into predictable expansion density, enabling high GPU utilization, fast NVMe scratch performance, and segmented network paths in a single E-ATX footprint. Its BMC/IPMI tooling and platform security features support enterprise lifecycle practices, while the quad-channel DDR5 ECC capability and robust IO planning help scale from single-node AI development to multi-card visualization or simulation workstations with consistent serviceability.

ASUS builds the Pro WS line around electrical margining, validation depth, and standards-aligned manageability, delivering stable firmware behavior, controlled update paths, and compatibility focus for modern data center and engineering workstation environments.

Key Applications:

Multi-GPU AI development and inference
3D rendering and content creation
Engineering simulation and CAE
High-speed NVMe scratch and data staging
Remote-managed workstation deployments

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your needs for 90MB1FZ0-M0EAY0-based builds, and can extend the warranty up to 6 years to protect long-lifecycle workstation and lab investments.

Technical details of 90MB1FZ0-M0EAY0

CPU Socket:

sTR5

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

AMD

CPU Supported Type:

Ryzen Threadripper Ryzen Threadripper Pro

Form Factor:

E-ATX

Chipset:

AMD TRX50

RAM Maximum Capacity:

1024GB

Max RAM Frequency :

5200MHz

RAM Slots:

4 DIMM DDR5

RAM Channels:

Quad-Channel

PCIe Slots:

1 PCIe 4.0 x4 1 PCIe 4.0 x16 1 PCIe 5.0 x8 2 PCIe 5.0 x16

M.2 Slots:

1 PCIe Gen 4 M.2 2230 E-Key 1 PCIe Gen 4 M.2 2280 M-Key 2 PCIe Gen 5 M.2 2280/2260/2242 M-Key

Network Ports:

1 RJ45 2.5 Gbps 1 RJ45 10 Gbps

ECC Support:

ECC

Onboard Network:

Ethernet

Suitability:

Workstation

Performance Class:

High performance

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

USB Ports:

4x USB 2.0 Type-A 2x USB 3.2 Gen 1 Type-A 6x USB 3.2 Gen 2 Type-A 1x USB 3.2 Gen 2x2 Type-C 2x USB 2.0 Type-A

Other Ports:

1x Serial Ports 1x Audio Port

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Wi-Fi Support:

Wi-Fi 7

Bluetooth integrated:

5.4

Onboard Audio Chipset:

Realtek ALC1220

Embedded:

Card Reader:

How long is the Warranty and how you can get technical support for 90MB1FZ0-M0EAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
