90SB0CY0-M0UAY1 ASUS ATX Single V (LGA 1700) 4 DIMM Slots Mainboard

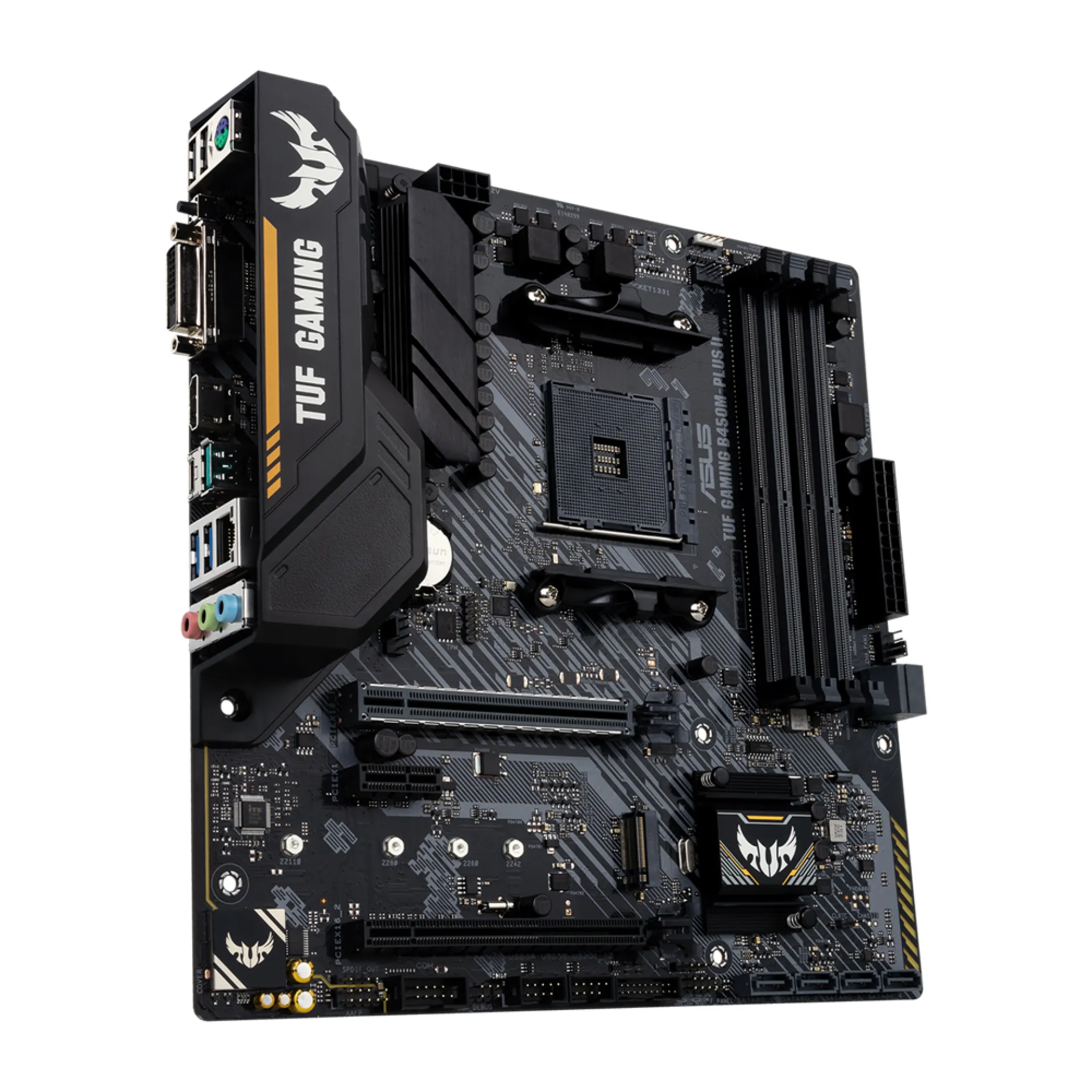

*Picture may not be exactly the same as the product

See all ASUS

See other ASUS products

This product is currently not priced. Request a personalized quote now.

Out of stock

Not available

Happyware Article Number:

SE9M1349-447727

Manufacturer Number:

90SB0CY0-M0UAY1

Brand:

ASUS

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

90SB0CY0-M0UAY1

High-Performance ATX Server Motherboard for single-socket LGA1700 infrastructure with the 90SB0CY0-M0UAY1

The 90SB0CY0-M0UAY1 is an ASUS server motherboard built on the Intel C266 platform for LGA1700, designed to deliver predictable behaviour in compact enterprise nodes where validated CPU compatibility and remote manageability are mandatory. It supports Intel Xeon and Pentium processors to balance core density and platform cost for edge, branch, and dedicated appliance deployments.

For memory integrity, the 90SB0CY0-M0UAY1 implements DDR5 ECC UDIMM across 4 DIMM slots in a dual-channel topology, providing an efficient path to up to 128GB for lightweight virtualisation and services consolidation. Expansion is engineered around PCIe 5.0, including a full-length x16 slot plus additional PCIe 5.0 and PCIe 4.0 slots for NICs, HBAs, or accelerator-class add-ins where bandwidth determinism matters. Storage architecture is tuned for mixed media: 8x SATA for capacity-heavy arrays and 2x M.2 22110 PCIe 4.0 NVMe for boot, cache, or log tiers, enabling clean separation of OS and data planes.

Why Choose the 90SB0CY0-M0UAY1?

The 90SB0CY0-M0UAY1 provides an enterprise-focused density-to-performance profile by combining a modern DDR5 ECC UDIMM memory path, PCIe 5.0 expansion headroom, and SATA-rich connectivity on an ATX footprint. With ASPEED AST2600 BMC IPMI management and TPM header support, the 90SB0CY0-M0UAY1 aligns with secure, lights-out deployment models and simplifies lifecycle operations across distributed sites.

ASUS engineers this platform for continuous duty in standard rack and tower server designs, prioritising signal integrity, validated component interoperability, and management compatibility with modern data centre operational practices.

Key Applications:

Edge and branch virtualisation hosts
Firewall and gateway appliances
Storage-oriented SATA server builds
Dual NVMe boot and cache nodes
Lab and development validation platforms

At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment requirements for the 90SB0CY0-M0UAY1, and extended warranty options up to 6 years to protect long-lived infrastructure investments.

Technical details of 90SB0CY0-M0UAY1

CPU Socket:

V (LGA 1700)

Onboard Memory:

CPU Manufacturer:

Intel

CPU Supported Type:

Pentium Xeon

Form Factor:

ATX

Chipset:

Intel C266

RAM Maximum Capacity:

128GB

Max RAM Frequency :

4400MHz

RAM Slots:

4 DIMM DDR5

RAM Channels:

Dual-Channel

PCIe Slots:

1 PCIe 5.0 x8 1 PCIe 5.0 x16 2 PCIe 4.0 x8

M.2 Slots:

2 PCIe 4.0/NVME M.2 22110 M-Key

Network Ports:

2 RJ45 1 Gbps

ECC Support:

ECC

Onboard Network:

Ethernet

Onboard CPU:

Onboard Graphic:

Yes

Video Output:

1x VGA

USB Ports:

4x USB 3.2 Gen 2 ports 2x USB 2.0

Other Ports:

1x COM Port 1x TPM Header

Trusted Platform Module (TPM):

Yes

Embedded:

How long is the Warranty and how you can get technical support for 90SB0CY0-M0UAY1

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
