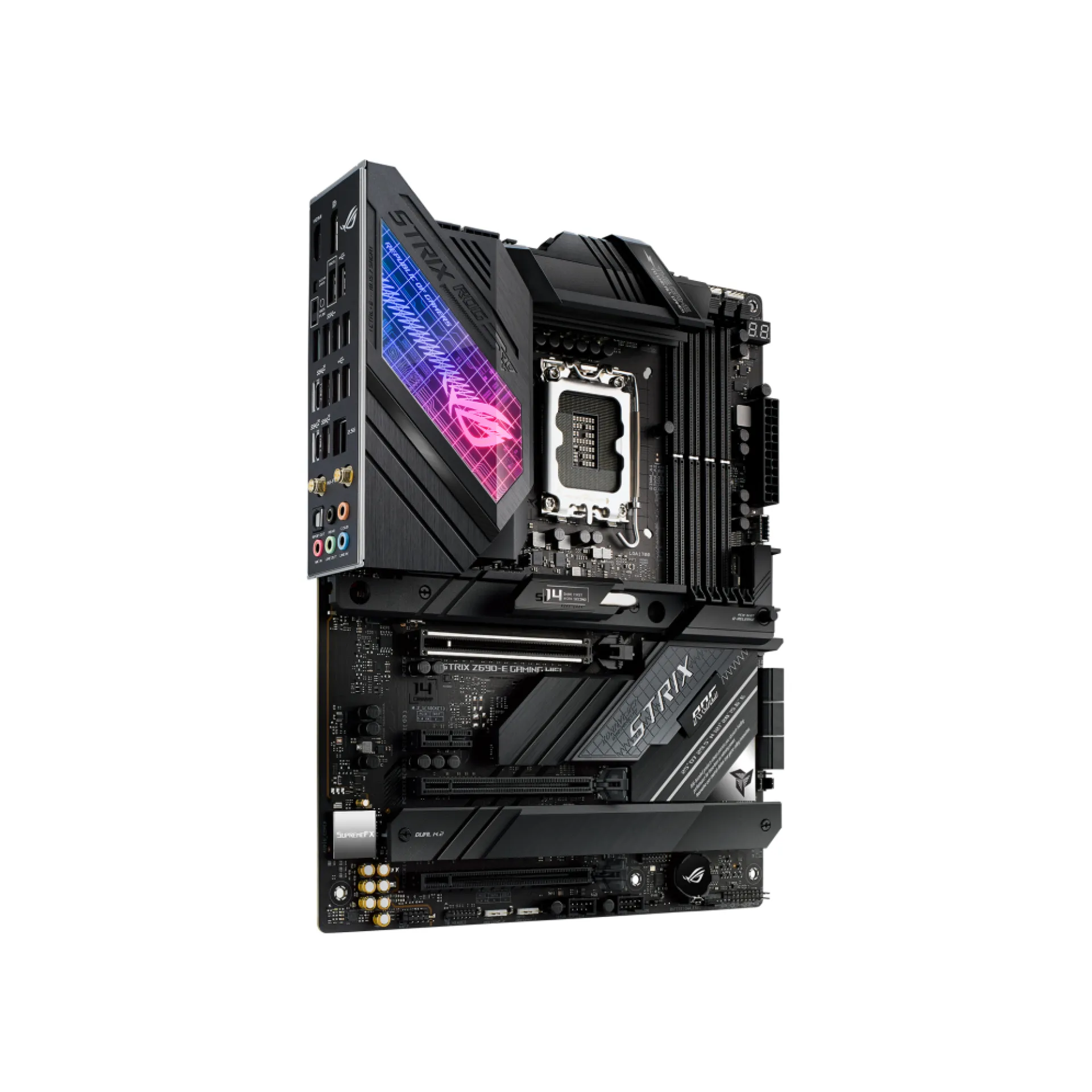

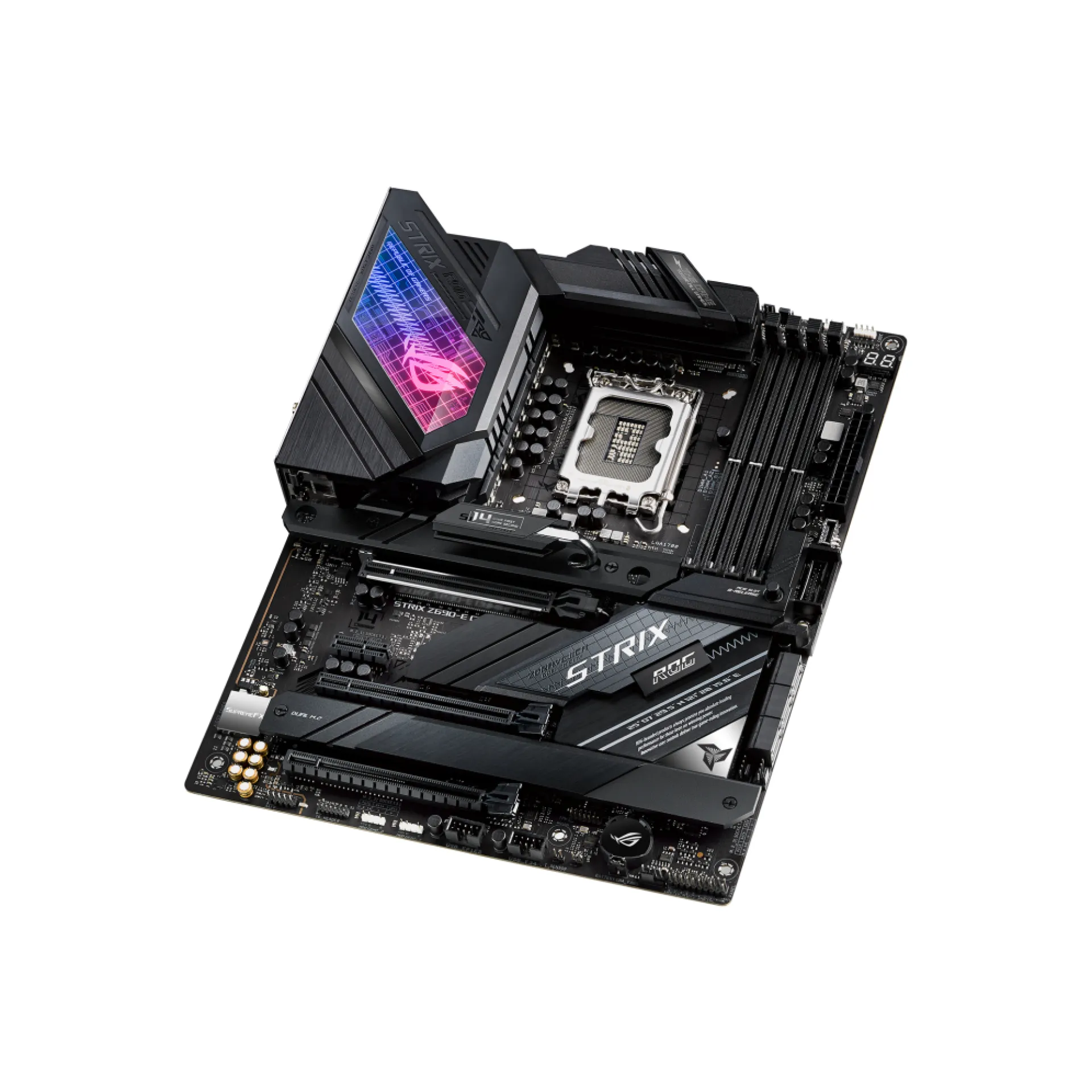

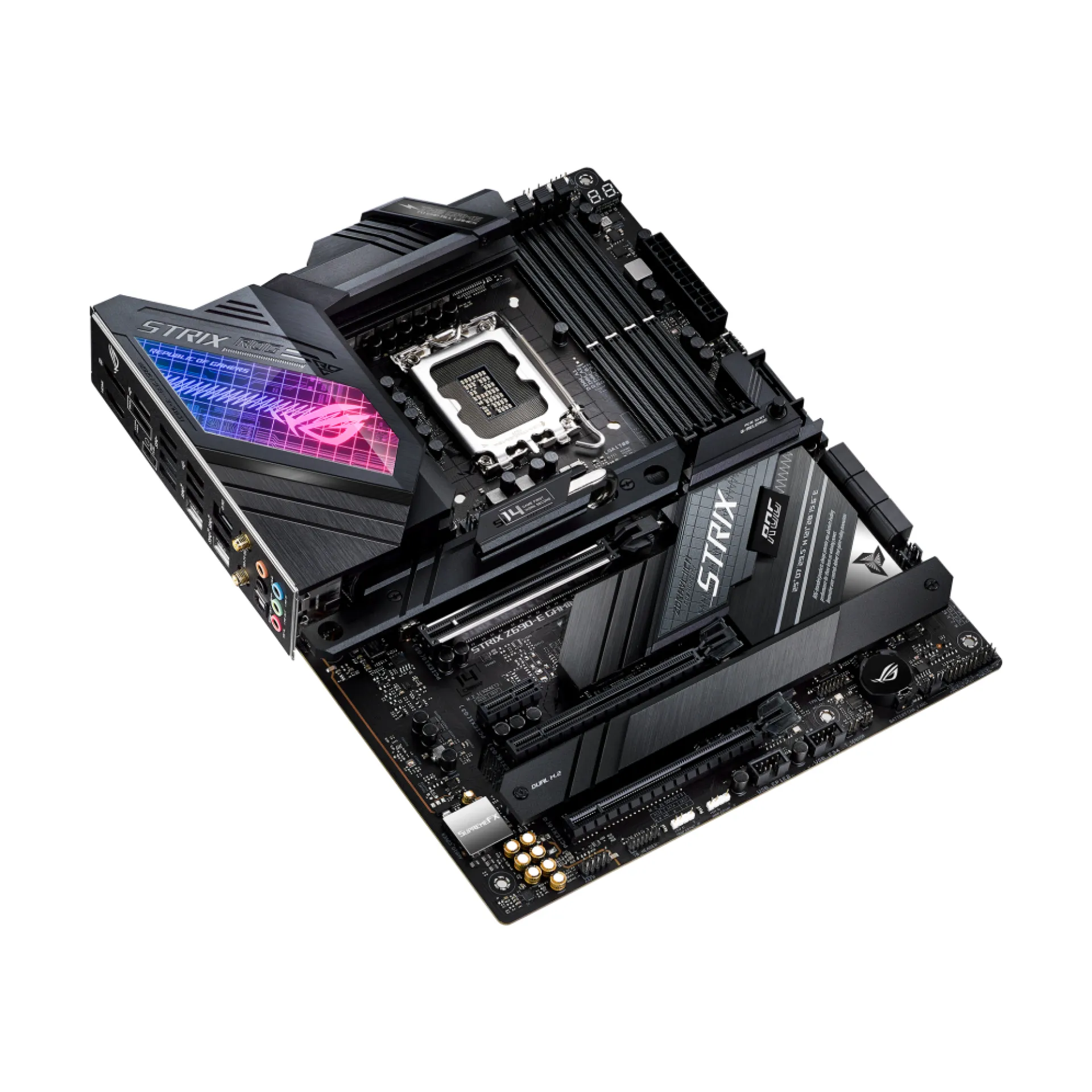

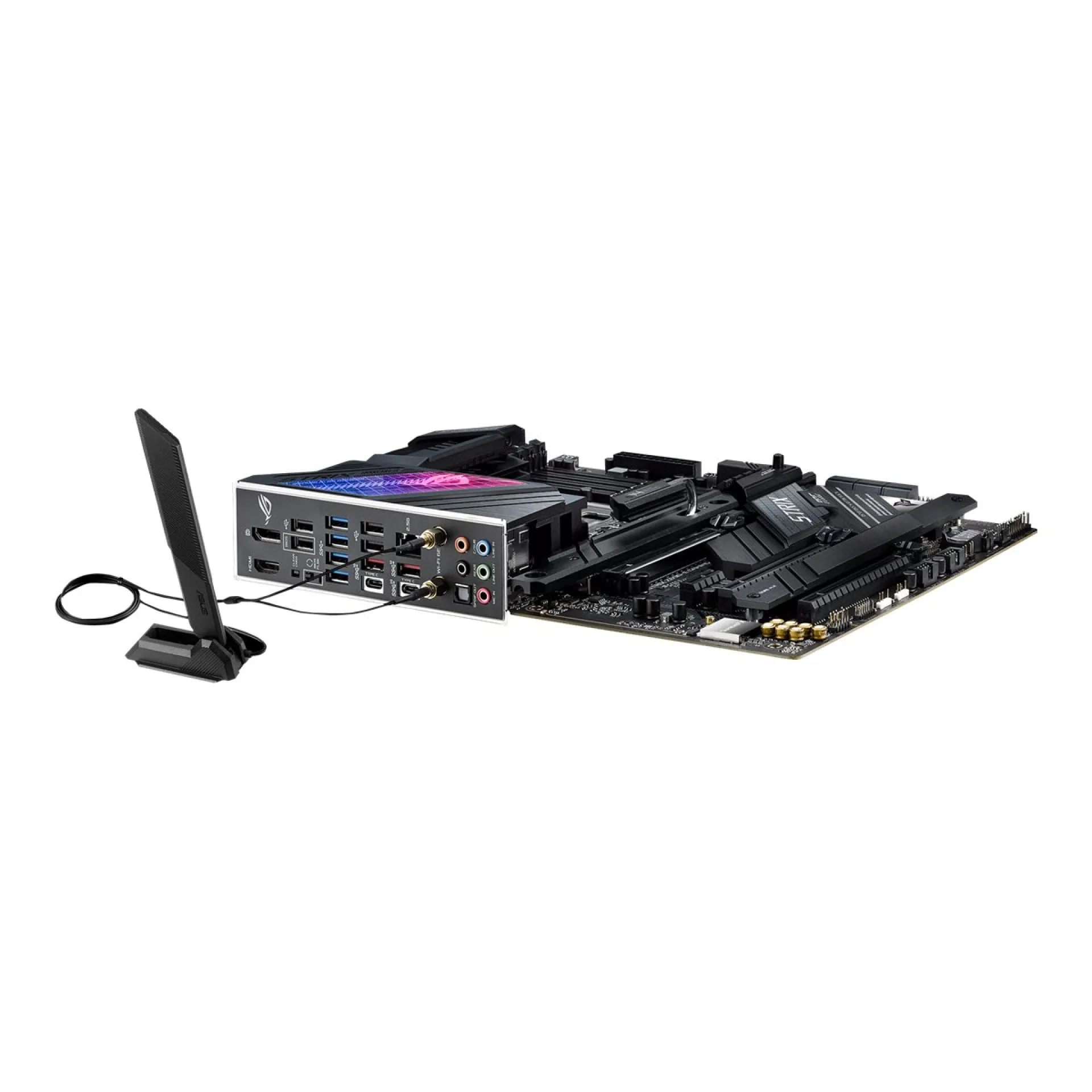

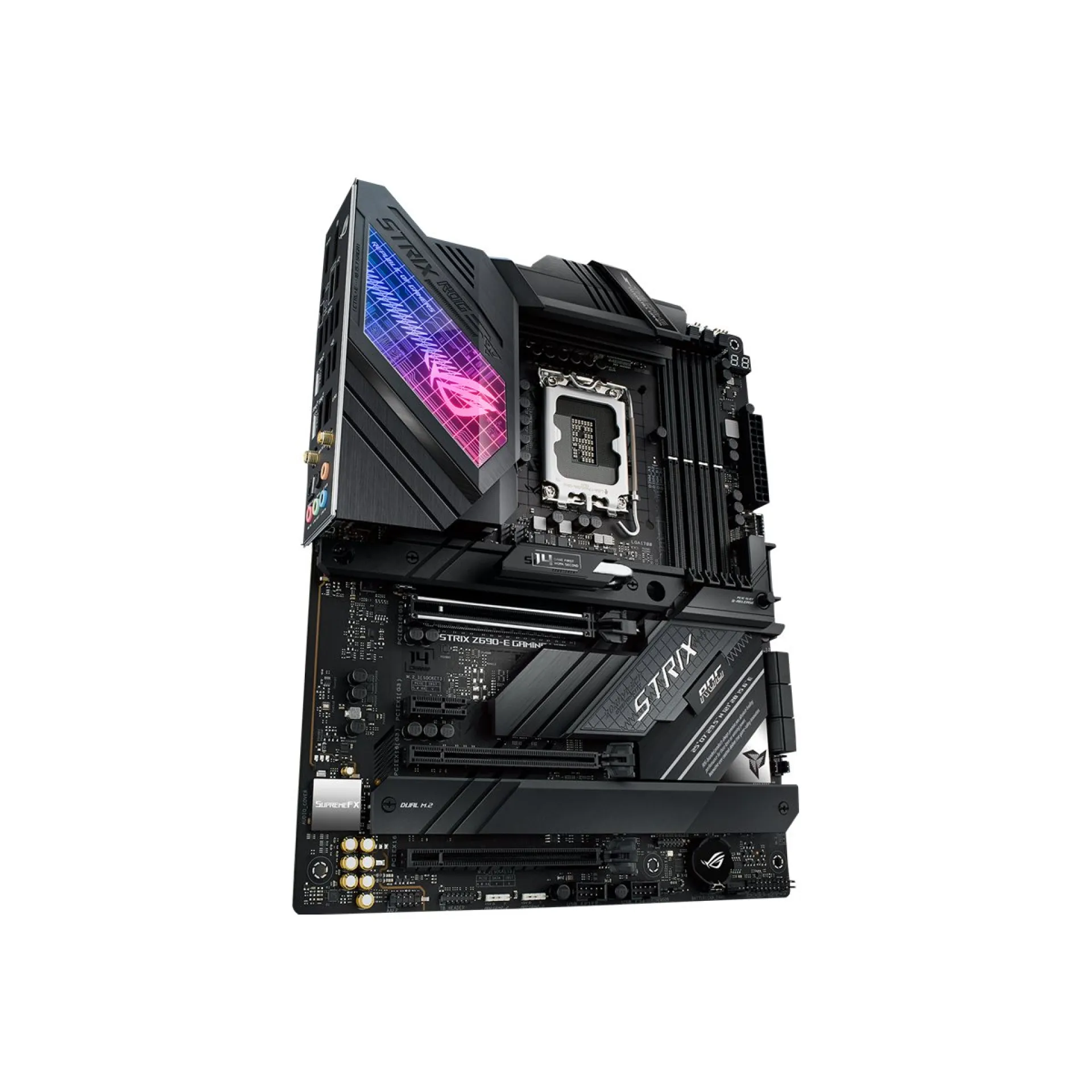

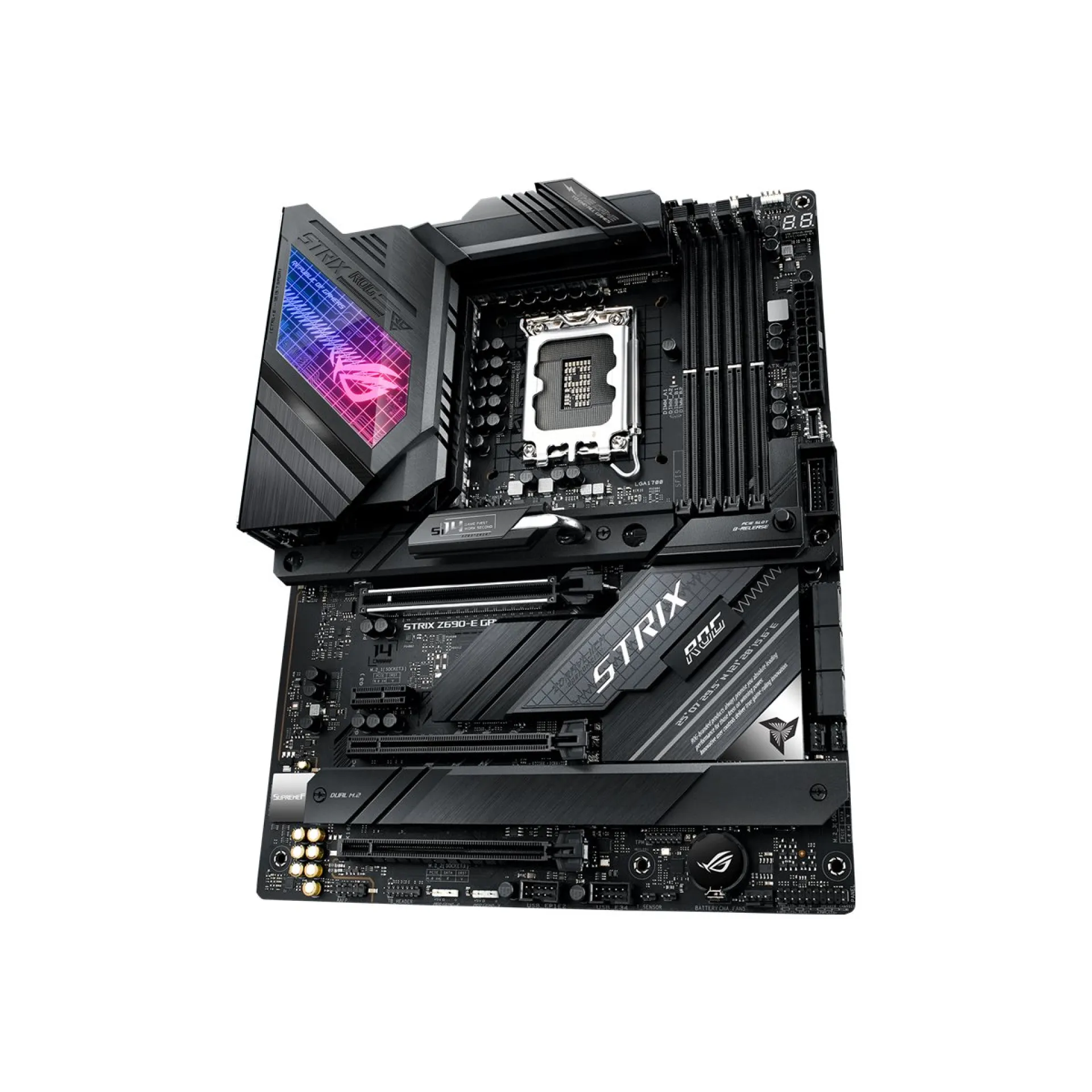

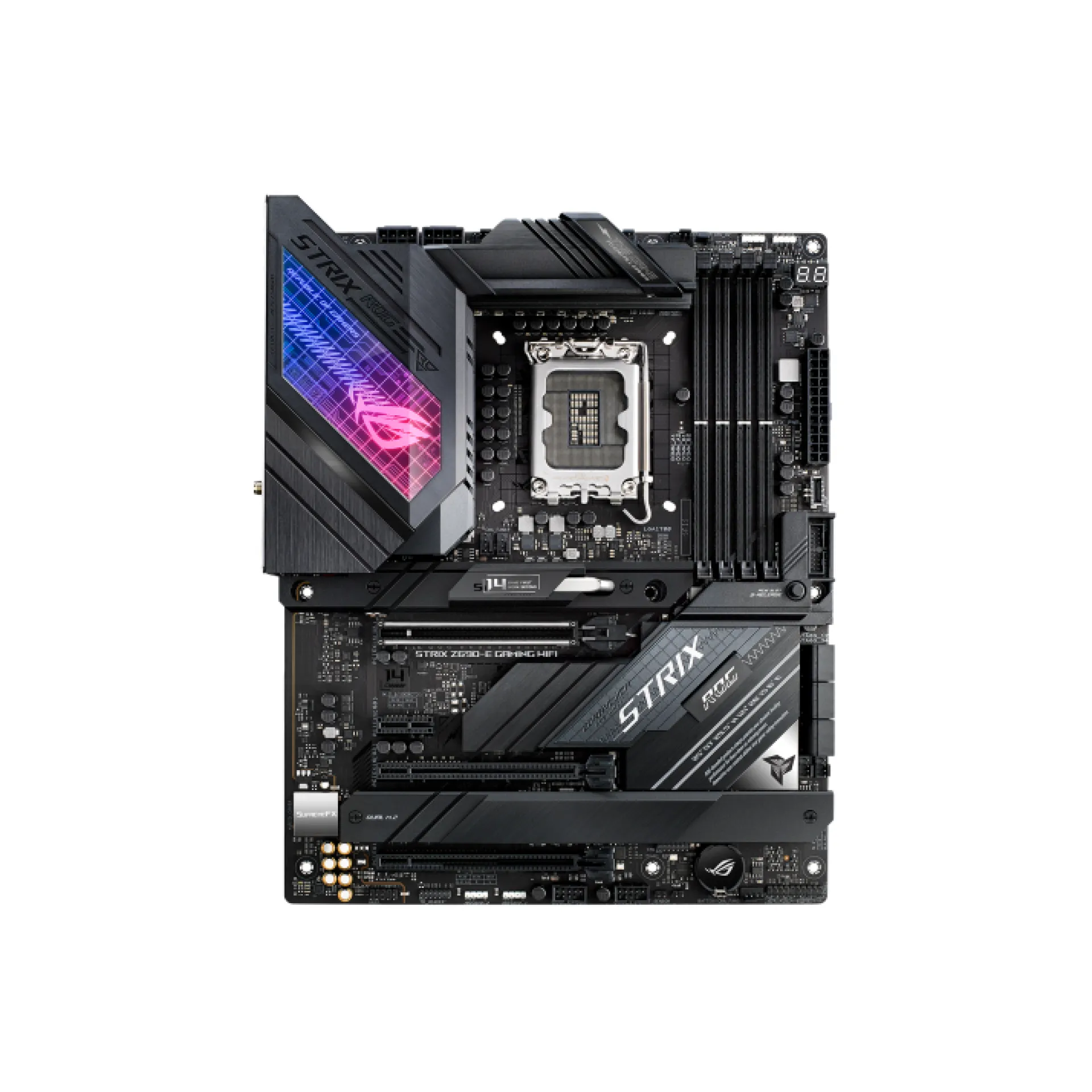

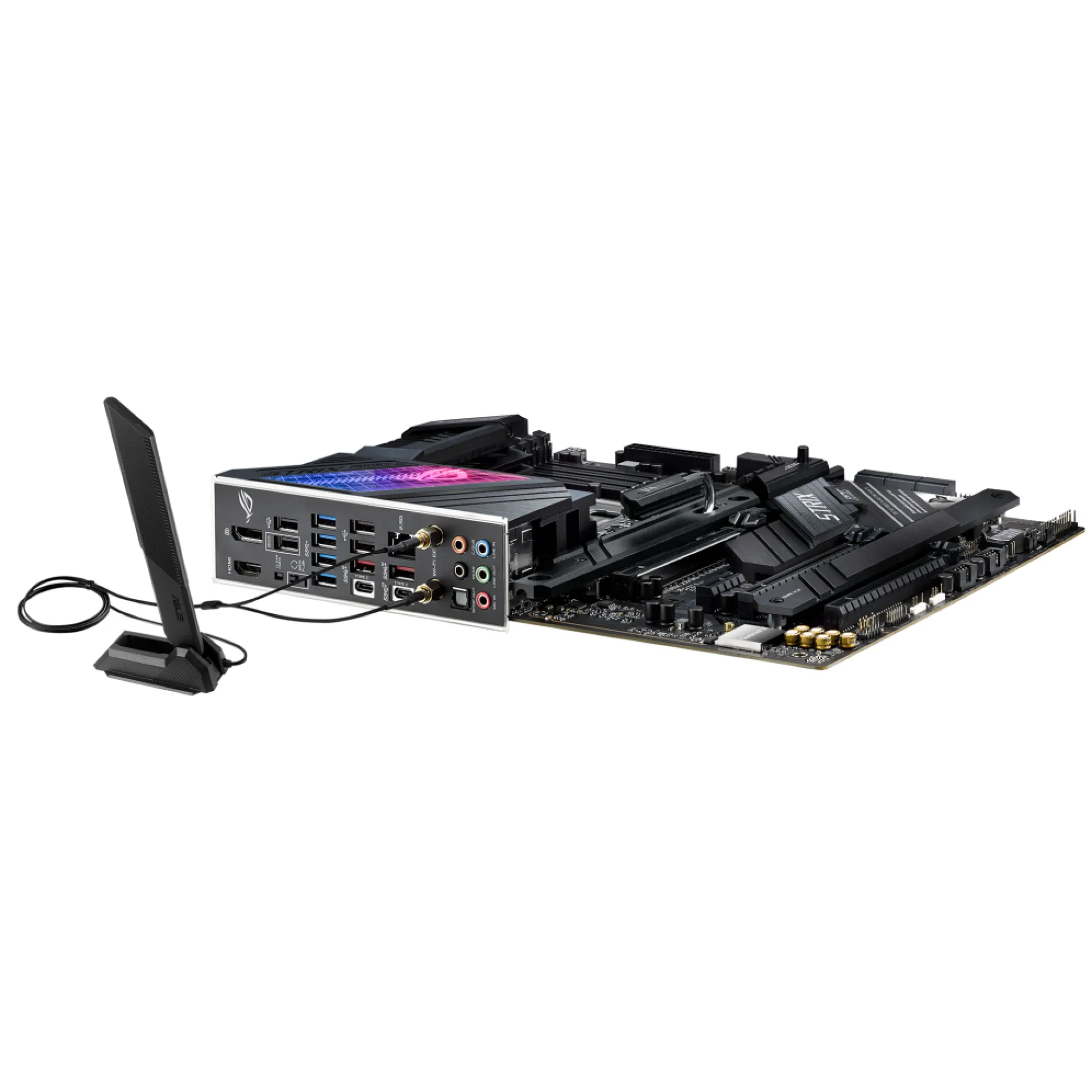

90MB18J0-M0EAY0

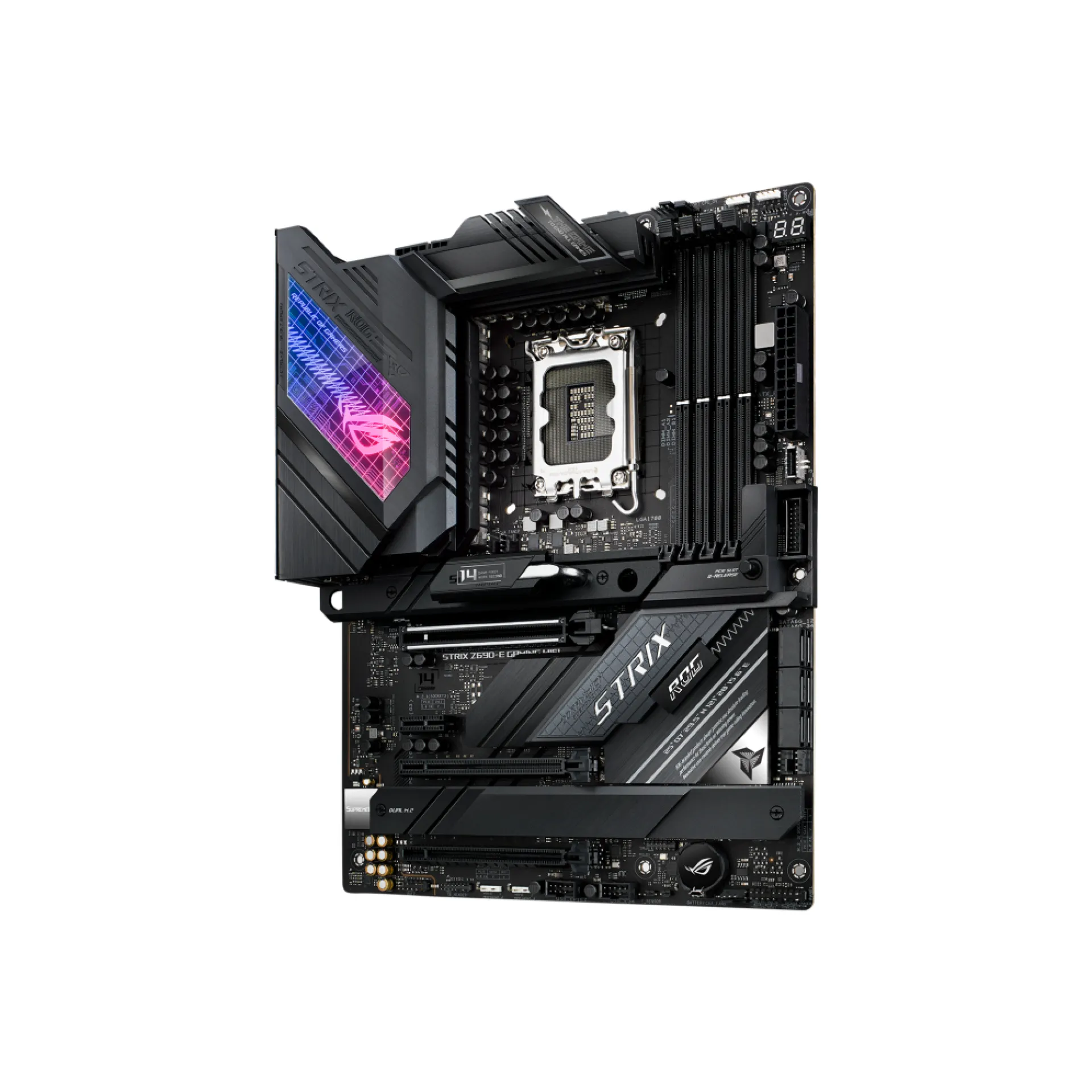

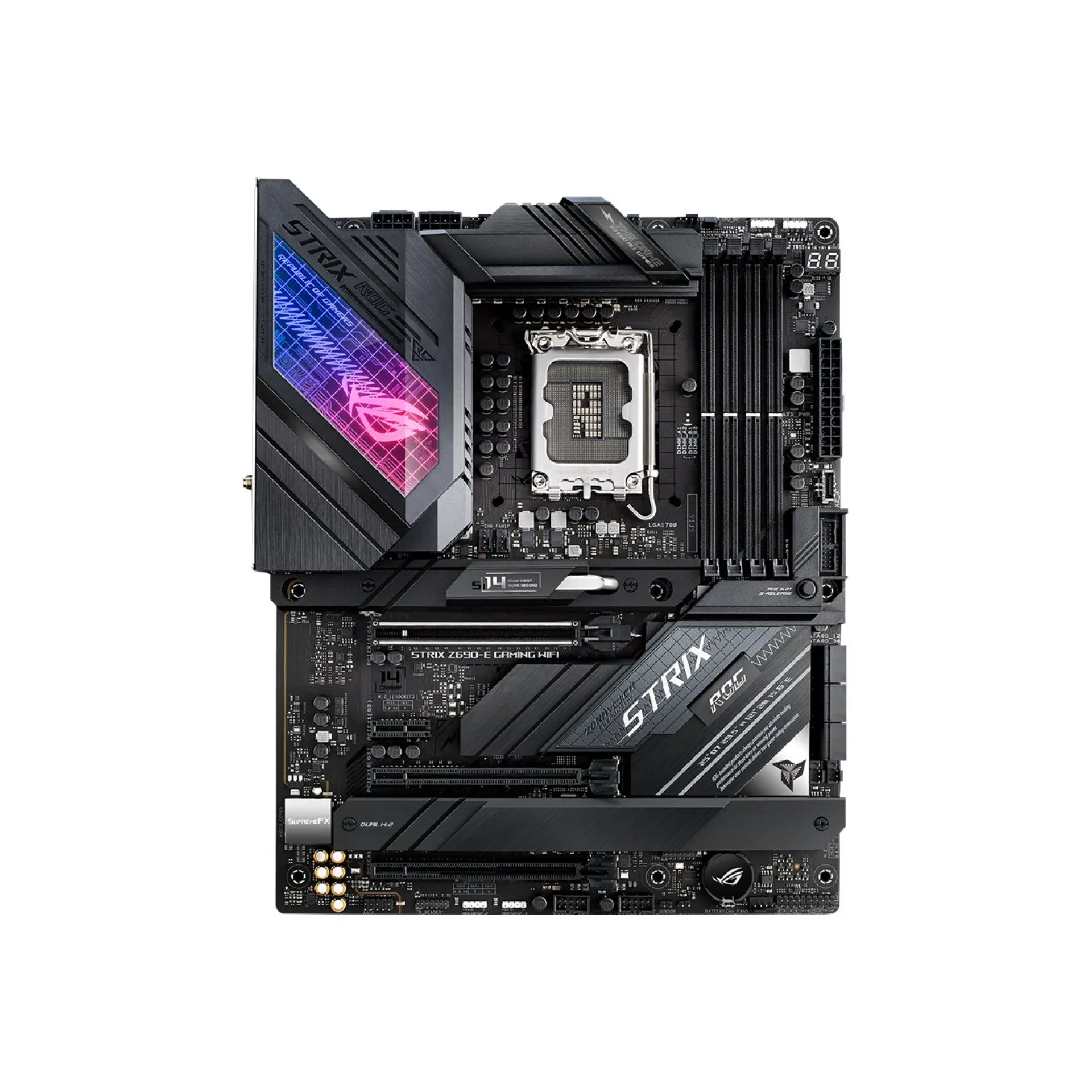

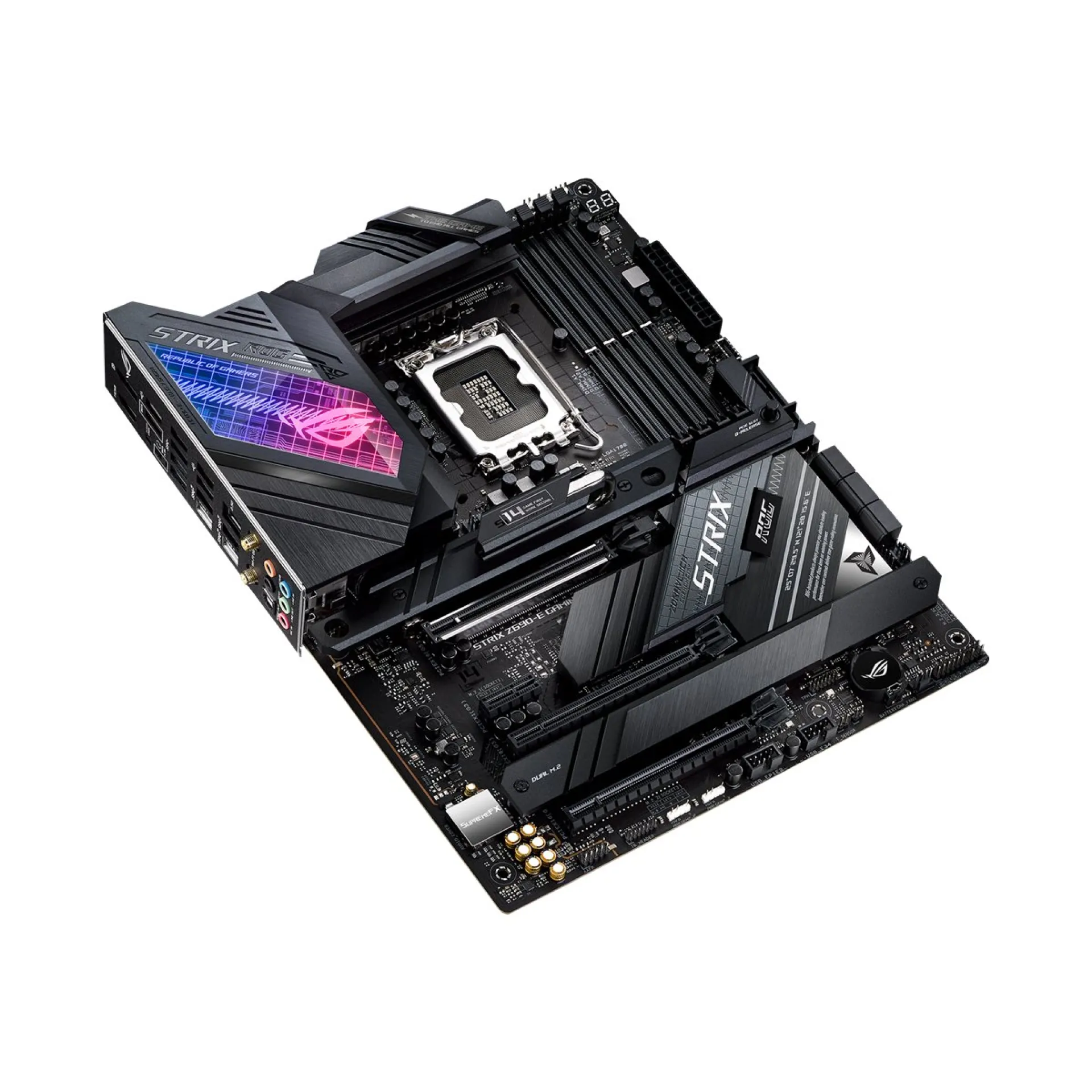

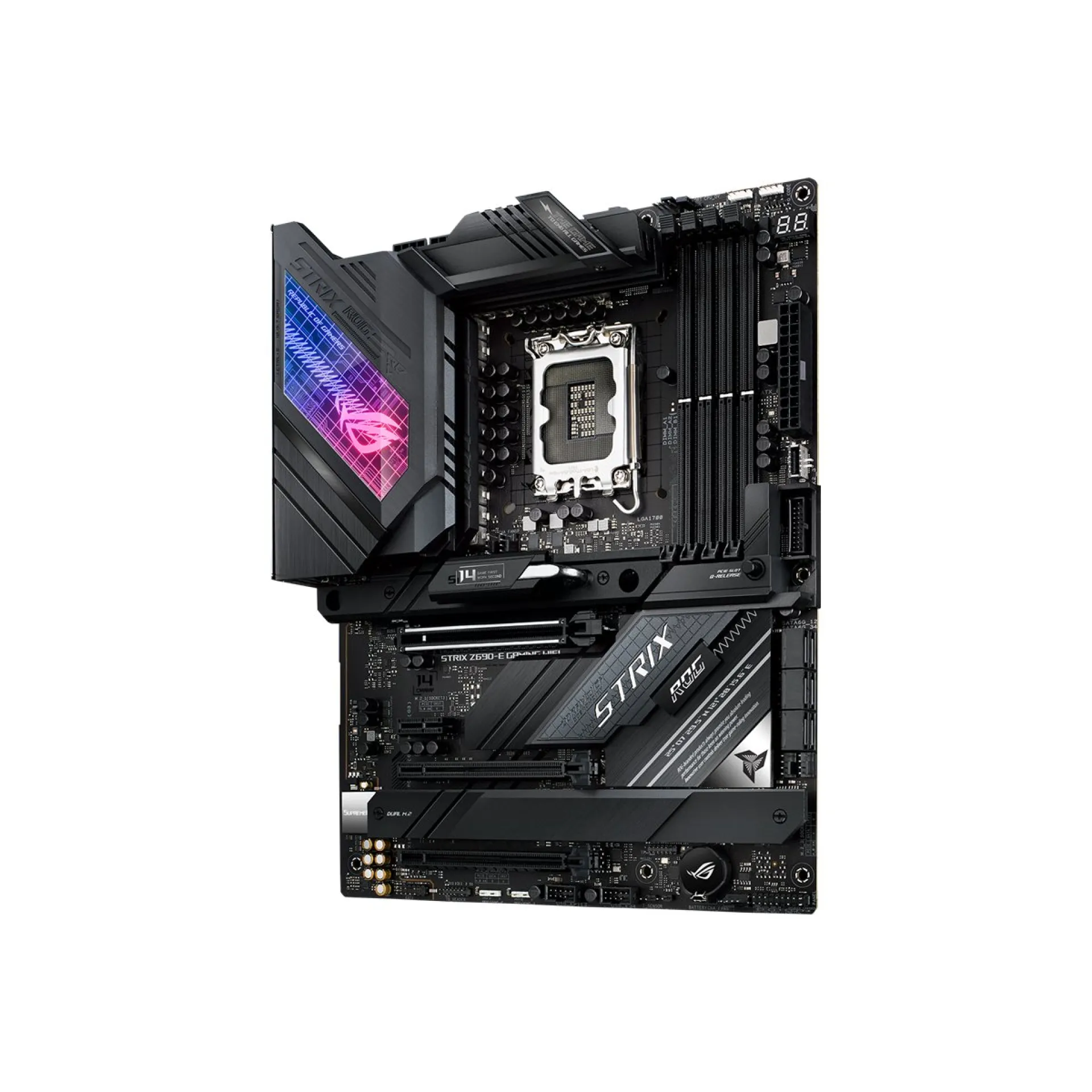

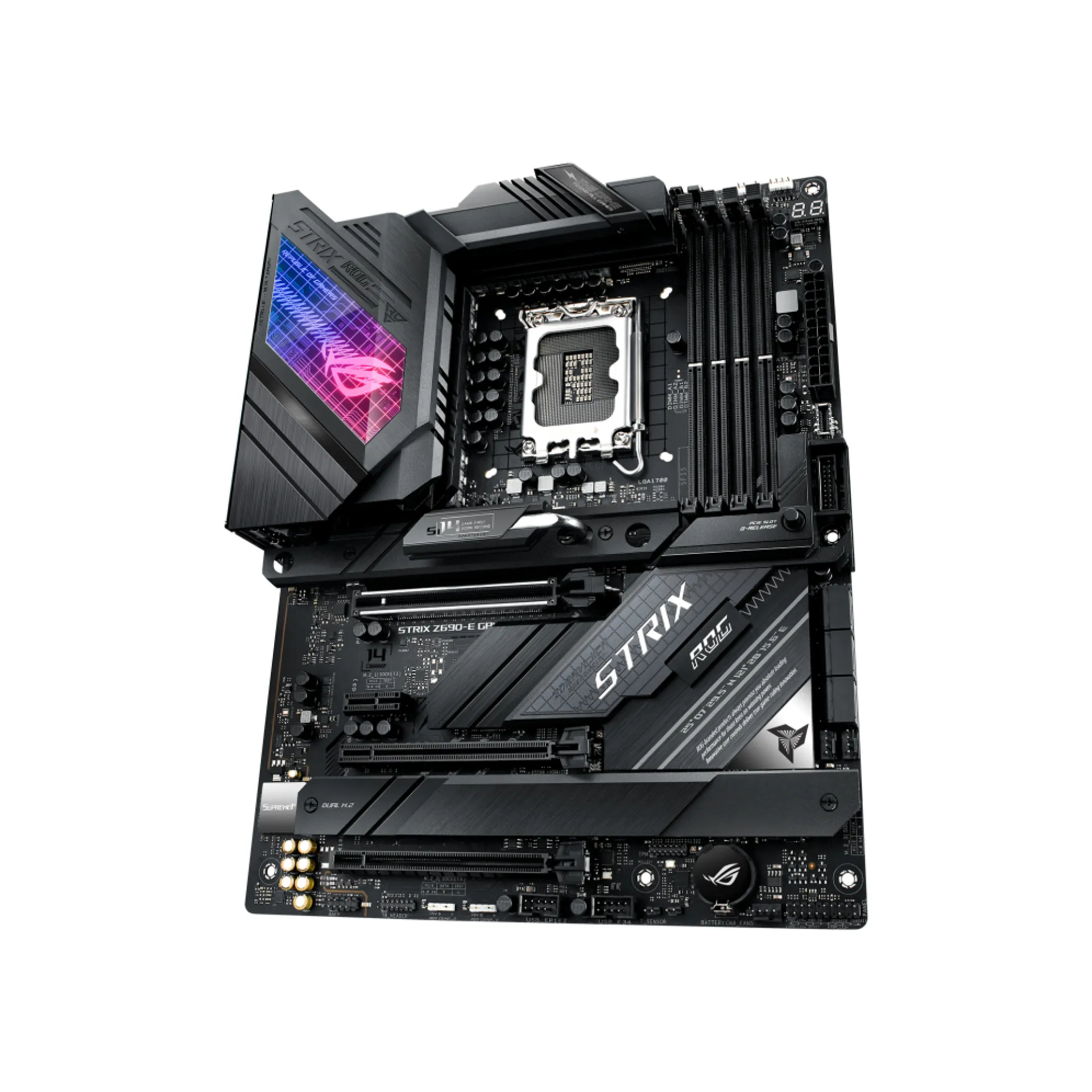

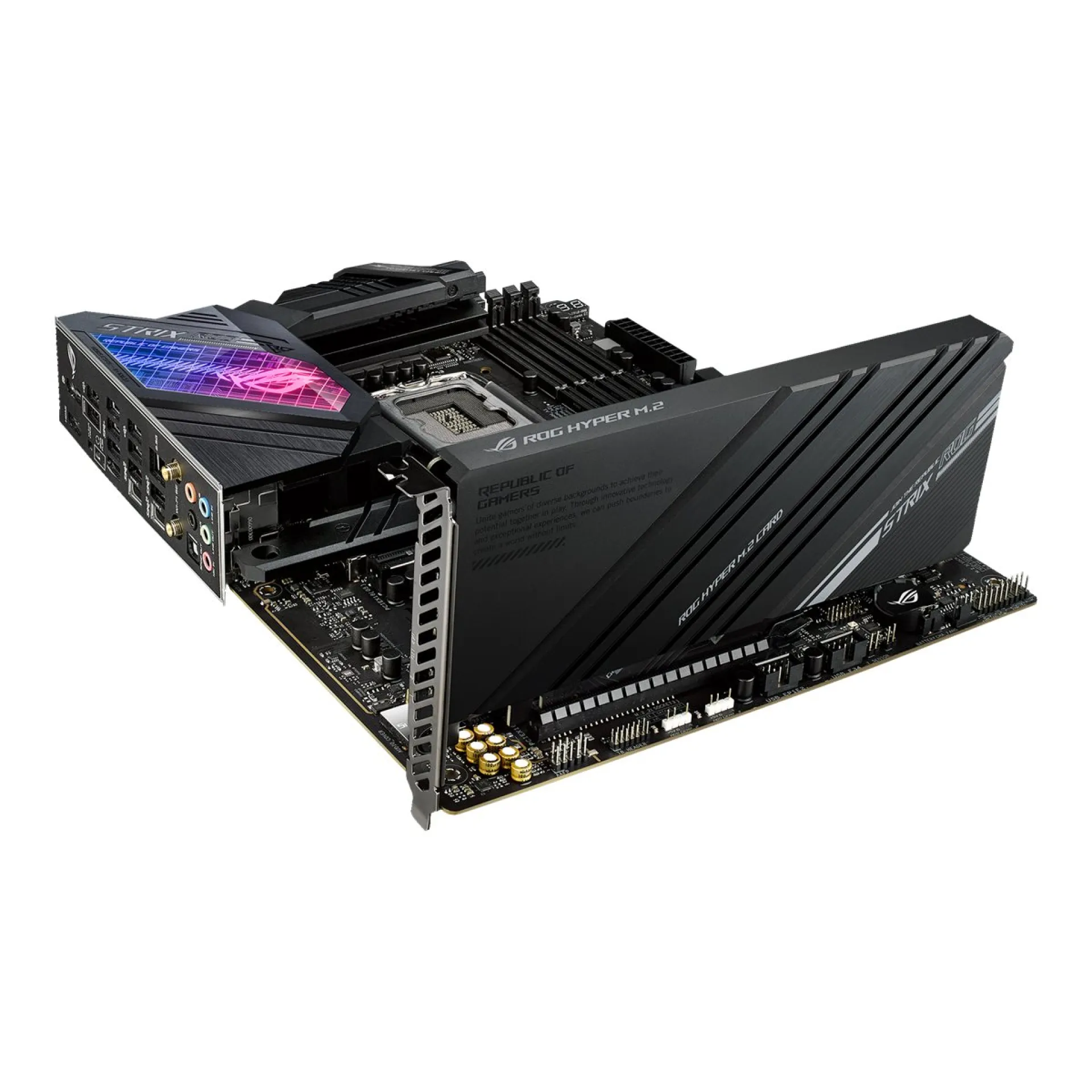

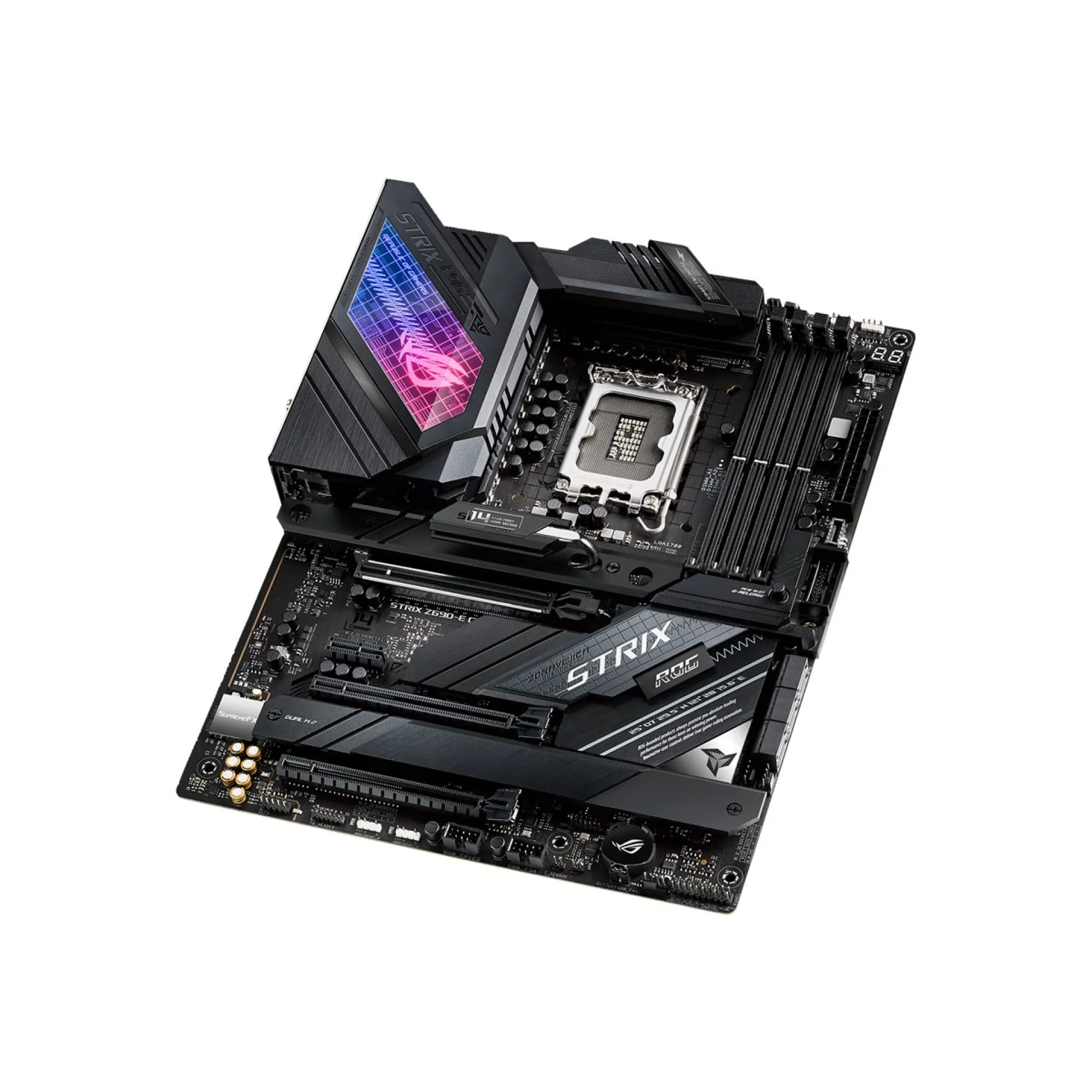

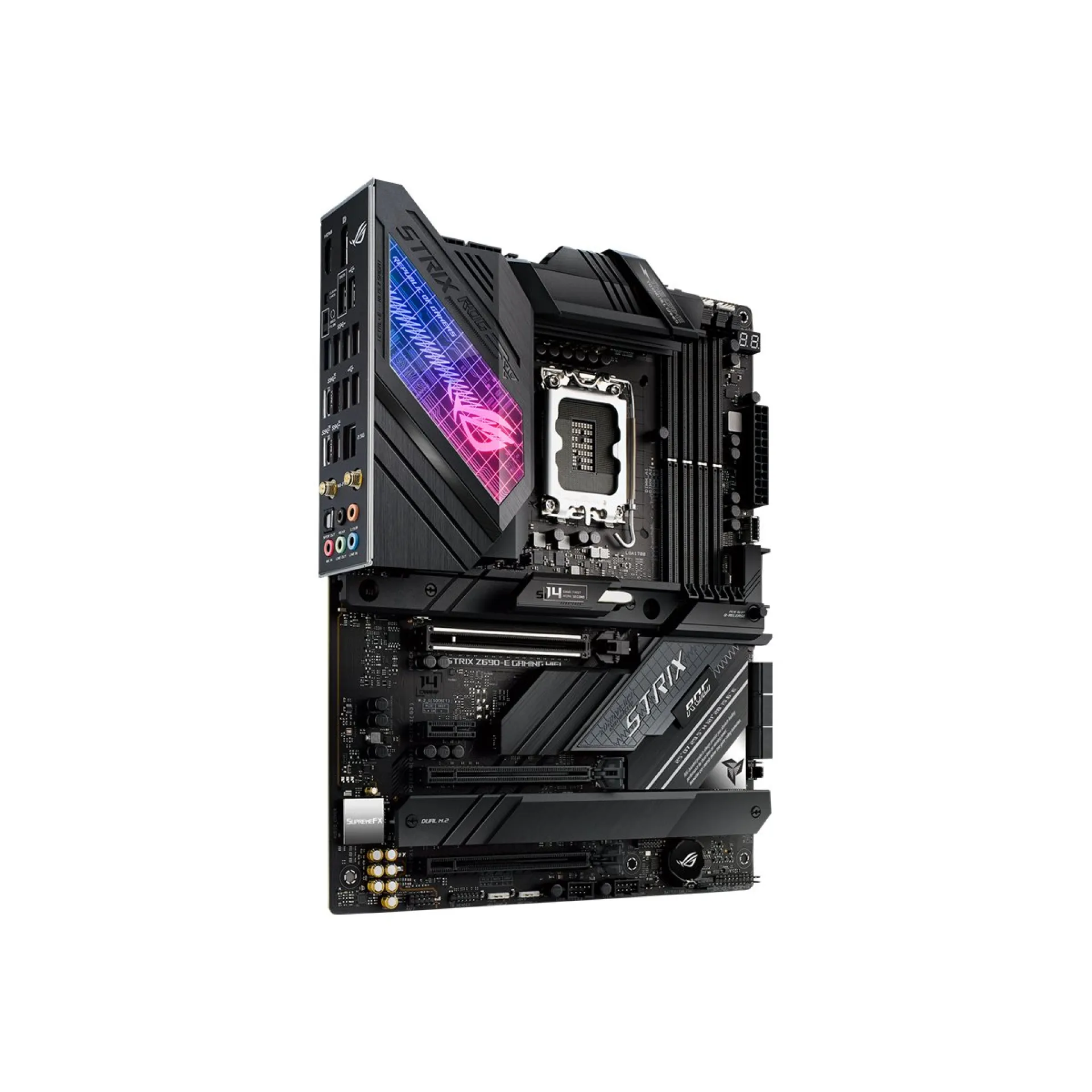

High-Performance ATX Desktop Motherboard featuring Intel Z690 DDR5 and PCIe 5.0 expansion with the 90MB18J0-M0EAY0

The 90MB18J0-M0EAY0 is an ASUS ATX motherboard built on the Intel Z690 chipset for the LGA1700 desktop platform, aligning with Intel Core 12th and 13th Gen-class CPUs for high-frequency compute and modern I/O. Its DDR5 dual-channel memory architecture (4 DIMM slots) targets bandwidth-sensitive creator and engineering workloads where memory throughput and low-latency tuning influence build performance and stability.

For acceleration and storage, the 90MB18J0-M0EAY0 provides a PCIe 5.0 x16 slot for next-generation GPUs, plus additional full-height PCIe slots for capture, NICs, or high-speed adapters. The storage topology emphasizes NVMe density with multiple M.2 sockets, including PCIe Gen5 and Gen4 paths to separate OS, scratch, and project volumes, complemented by 6x SATA III for capacity tiers. Integrated 2.5GbE and Wi‑Fi 6E enable flexible placement in office or lab environments, while HDMI 2.1 and DisplayPort 1.4 support iGPU-capable CPUs for deployments without a discrete GPU.

Why Choose the 90MB18J0-M0EAY0?

The 90MB18J0-M0EAY0 is engineered for a strong density-to-performance ratio in a standard ATX footprint, balancing PCIe 5.0 graphics readiness with multi-NVMe expansion and practical networking. It scales cleanly from general-purpose desktops to creator workstations by keeping critical resources—memory channels, PCIe lanes, and storage endpoints—accessible for phased upgrades and predictable integration.

ASUS applies a reliability-first engineering approach with mature UEFI firmware controls, TPM support, and RAID capability to match modern endpoint and departmental compute standards. The platform is designed for consistent build quality and repeatable deployments, recognizing that it is a UEFI-managed desktop board without integrated IPMI/BMC.

Key Applications:

Creator workstation builds
Multi-NVMe desktop storage tiers
PCIe Gen5 GPU compute and visualization
Engineering and EDA desktop environments
Office and lab general-purpose PCs

At Happyware - Server Hardware you benefit from non-binding offers tailored to your 90MB18J0-M0EAY0 rollout requirements and an extended warranty of up to 6 years to secure long-term platform continuity for enterprise desktop and workstation fleets.

Technical details of 90MB18J0-M0EAY0

CPU Socket:

V (LGA 1700)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Pentium Celeron Core

Form Factor:

ATX

Chipset:

Intel Z690

RAM Maximum Capacity:

128GB

Max RAM Frequency :

6400MHz

RAM Slots:

4 DIMM DDR5

RAM Channels:

Dual-Channel

PCIe Slots:

1 PCIe 3.0 x1 1 PCIe 3.0 x16 1 PCIe 4.0 x16 1 PCIe 5.0 x16

M.2 Slots:

1 CNVi M.2 2230 E-Key 1 PCIe Gen 4 M.2 22110/2280/2260/2242 M-Key 1 PCIe Gen 4/SATA M.2 2280/2260/2242 M-Key 1 PCIe Gen 5 M.2 22110/2280/2260/2242 M-Key

ECC Support:

Non-ECC

Onboard Network:

Ethernet

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

1x HDMI 2.1 1x DisplayPort 1.4

USB Ports:

1x USB 3.2 Gen 2 Type-C 4x USB 2.0 Type-A 2x USB 3.2 Gen 2 Type-A 2x USB 3.2 Gen 1 Type-A 4x USB 3.2 Gen 1 Type-A 4x USB 2.0 header 1x USB 3.2 Gen 2x2 Type-C

Other Ports:

5x Audio Port 1x Toslink S/PDIF Out 1x PS/2 Combo 1x Thunderbolt Header 1x Chassis Intrusion Header 2x Antennenanschluss Quick Connect 1x TPM Header

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Wi-Fi Support:

Wi-Fi 6E

Bluetooth integrated:

5.3

Onboard Audio Chipset:

Realtek ALC4080

Embedded:

How long is the Warranty and how you can get technical support for 90MB18J0-M0EAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
