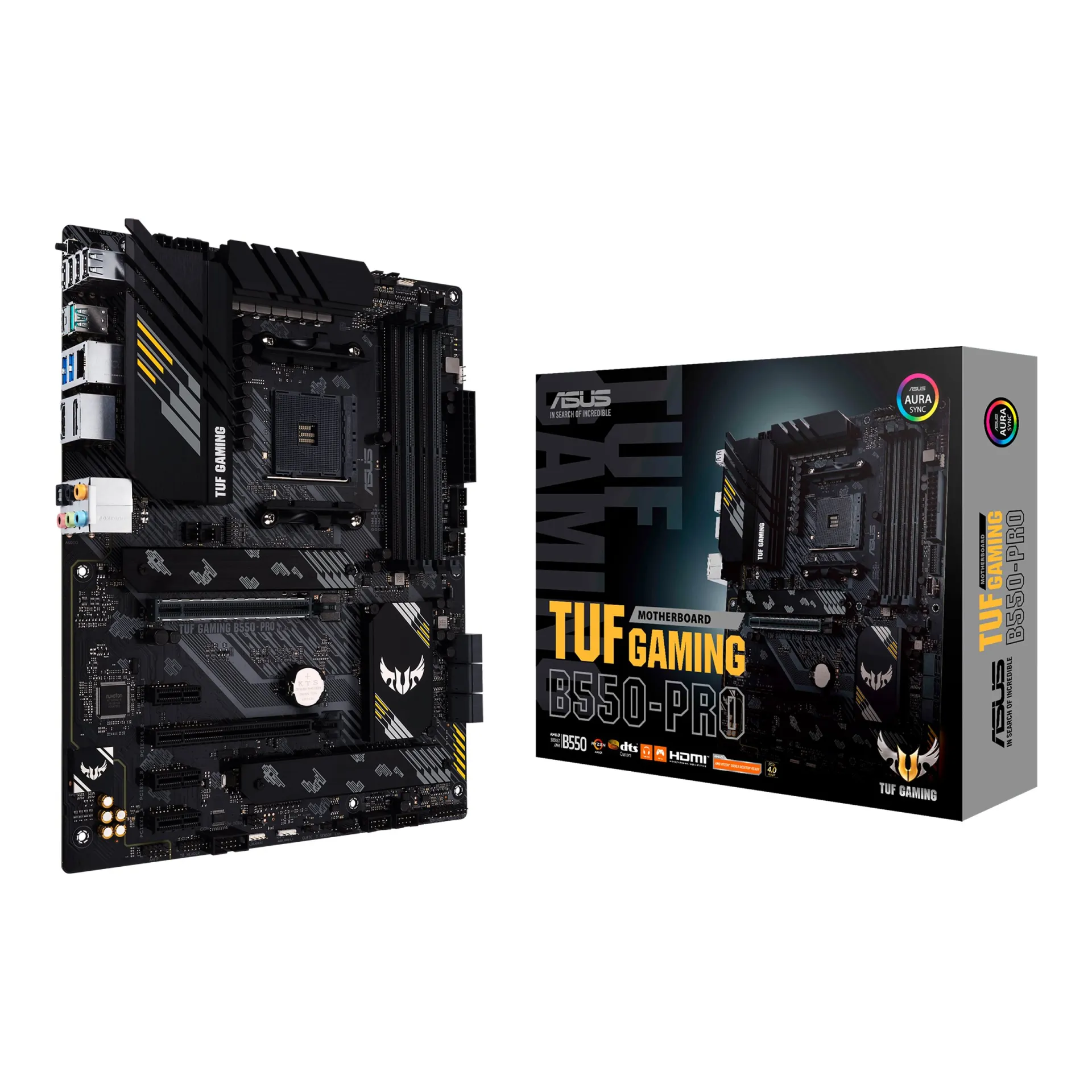

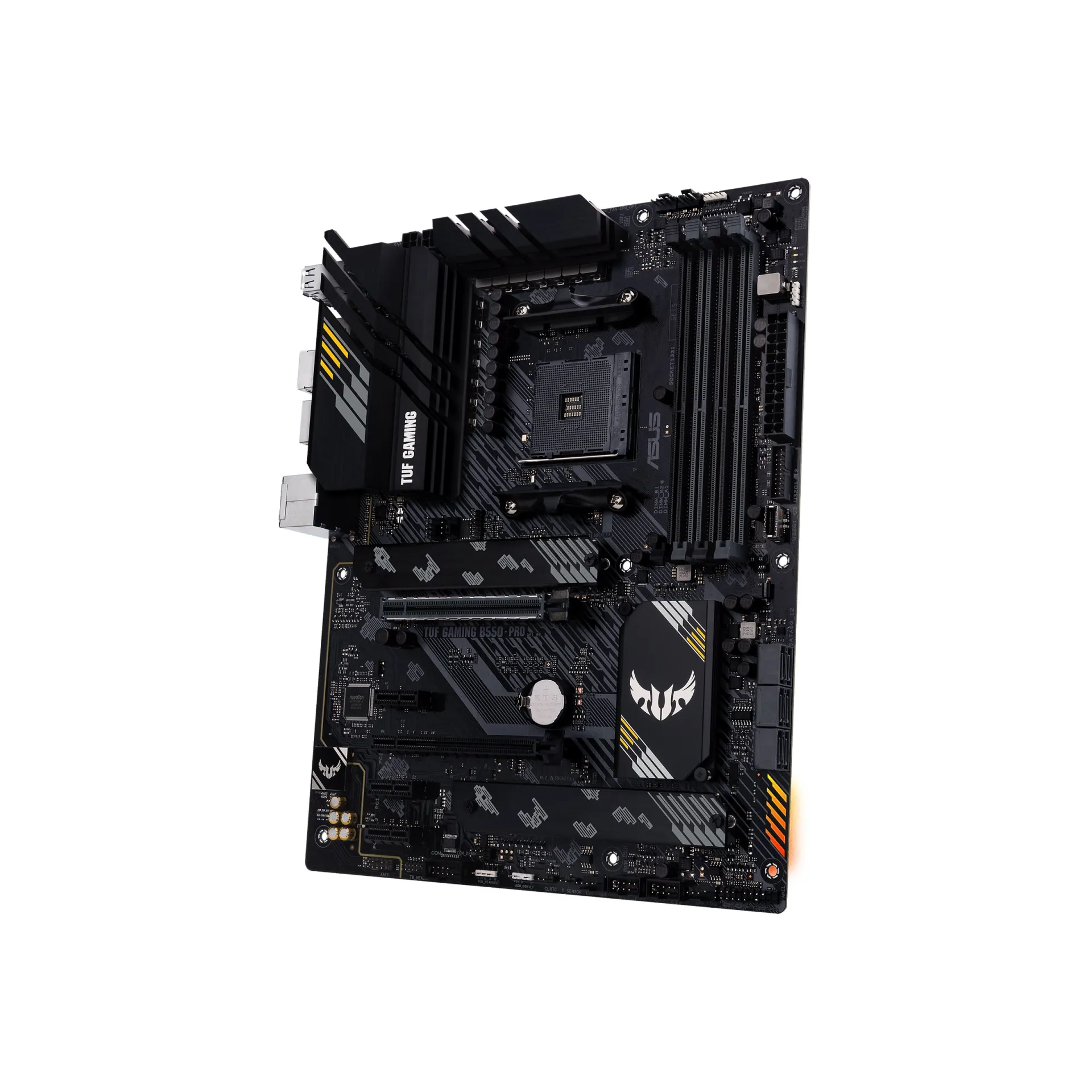

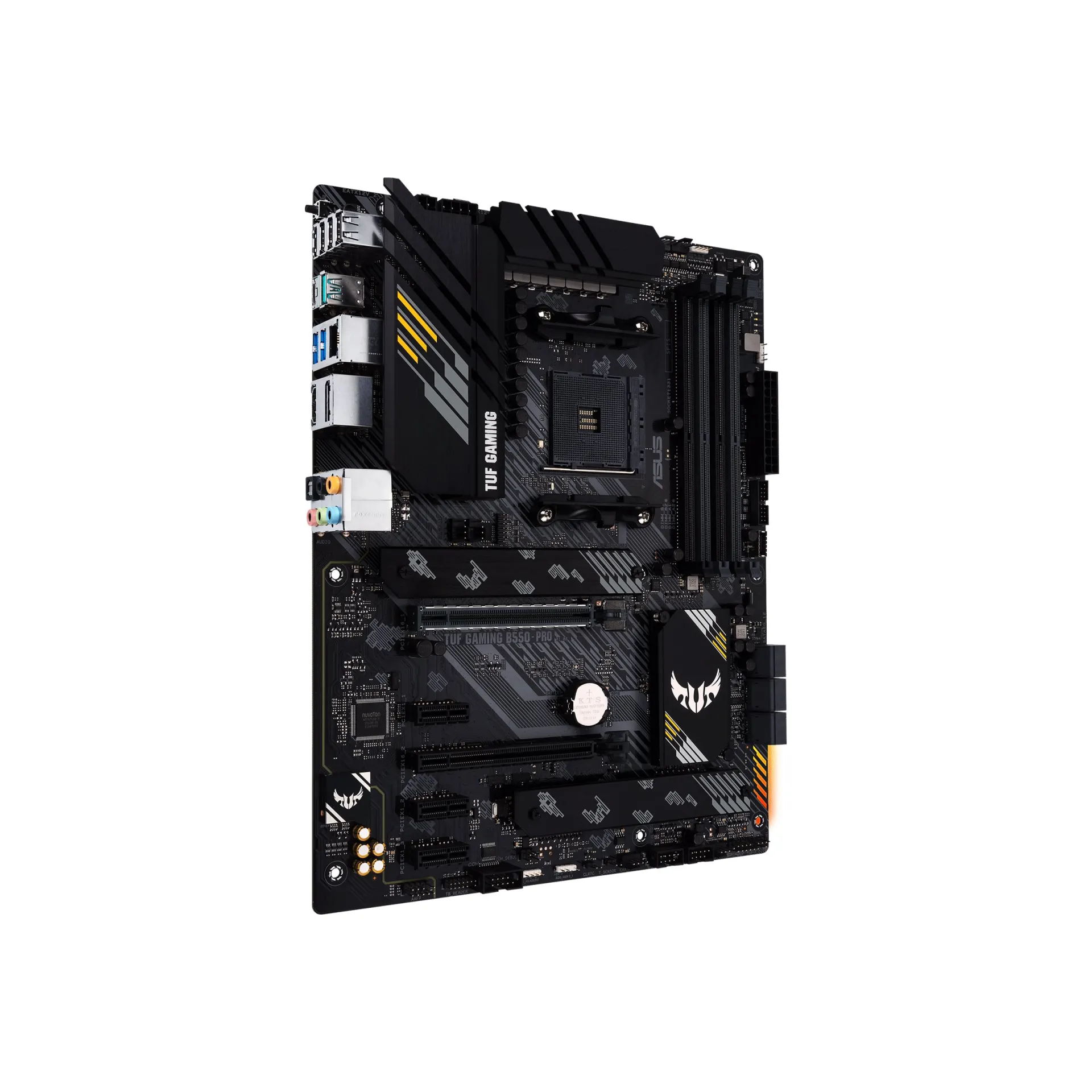

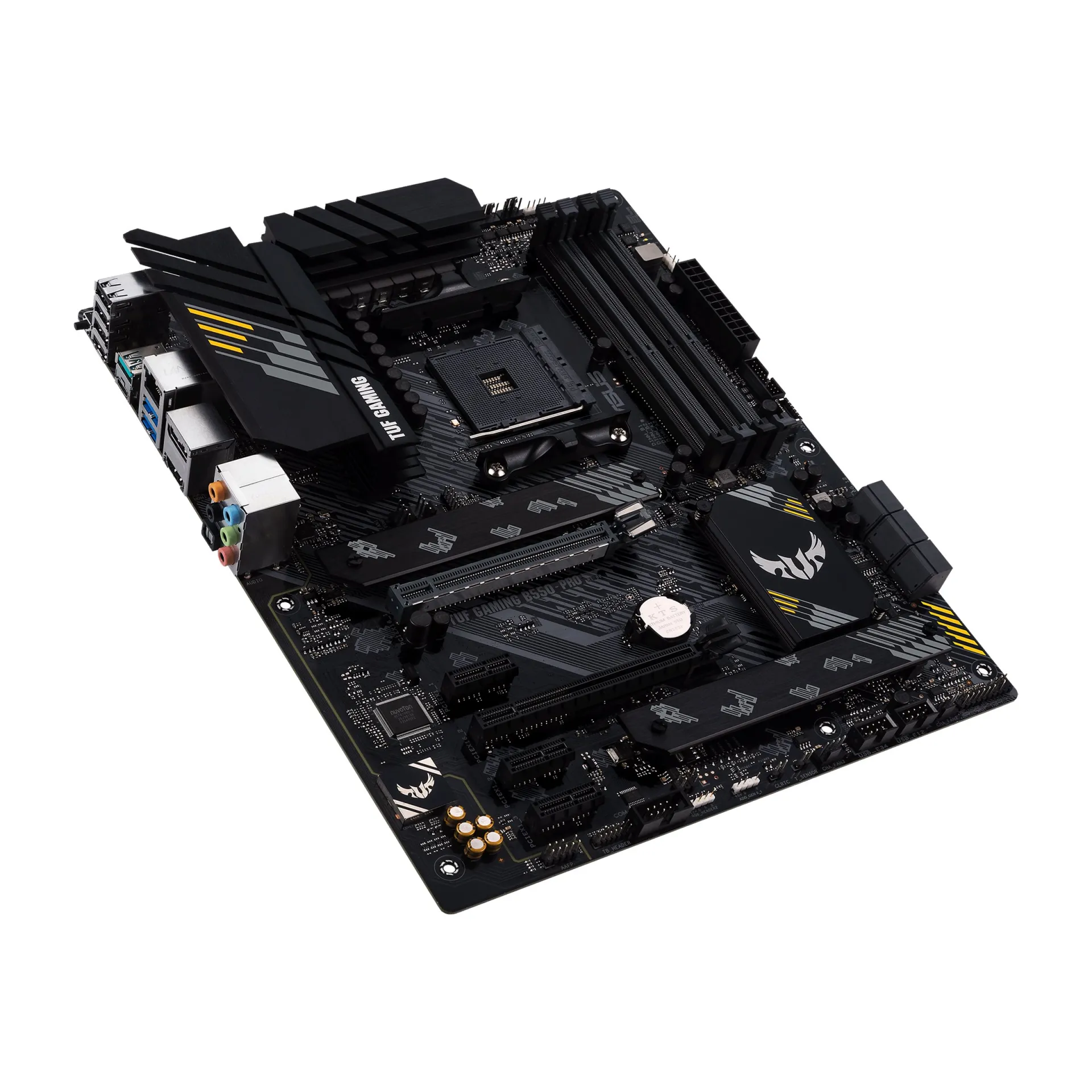

90MB17R0-M0EAY0 ASUS ATX Single AM4 4 DIMM Slots Mainboard

Get extra volume discount for 90MB17R0-M0EAY0 and save cash:

Quantity	Unit price
To 9	€197.00
To 19	€188.00 €197.00 (4.57% saved)
To 49	€184.00 €197.00 (6.6% saved)
From 50	€178.00 €197.00 (9.64% saved)

Product line:

TUF Gaming

See other ASUS products

€197.00

Out of stock

Not available

Happyware Article Number:

SH6M2336-217142

Manufacturer Number:

90MB17R0-M0EAY0

Brand:

ASUS

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

90MB17R0-M0EAY0

Enterprise-Ready ATX AM4 Motherboard Architecture with PCIe 4.0 Expansion using the 90MB17R0-M0EAY0

The 90MB17R0-M0EAY0 is an ASUS ATX motherboard built on the AMD B550 platform for Ryzen AM4 processors, designed for cost-controlled workstation and desktop compute where deterministic I/O and upgrade paths matter. Its PCIe topology prioritises a primary PCIe 4.0 x16 full-length slot for a discrete GPU, while additional full-height expansion supports add-in cards for storage, capture, or NIC upgrades in engineering and lab environments.

For memory architecture, the 90MB17R0-M0EAY0 provides 4x DDR4 DIMM slots with dual-channel operation up to 128GB and support indications for ECC and non-ECC modules, enabling stable builds for virtualization labs and sustained compilation workloads. Storage is architected for mixed media: dual M.2 NVMe sockets (1x PCIe 4.0 x4 and 1x PCIe 3.0 x4) reduce latency for scratch and active datasets, while 6x SATA ports and RAID support accommodate capacity tiers and archival volumes without external HBAs.

Why Choose the 90MB17R0-M0EAY0?

The 90MB17R0-M0EAY0 delivers a balanced density-to-performance profile for AM4 deployments by combining PCIe 4.0 GPU bandwidth, flexible NVMe/SATA storage scaling, and practical expansion in a standard ATX footprint. It suits organisations standardising on Ryzen-based workstations where predictable component interoperability, straightforward serviceability, and staged upgrades are required without adding platform management overhead.

ASUS engineering focuses on durable power delivery, validated firmware behaviour, and board-level protection aligned to modern data centre-adjacent standards for controlled thermal and electrical operation. With AMI UEFI, BIOS Flashback/EZ Flash, TPM header support, and 2.5GbE networking, the platform is structured for repeatable provisioning and secure baseline configuration.

Key Applications:

General-purpose workstation compute
Single-GPU acceleration nodes
NVMe-backed build and CI systems
Virtualization and lab environments
Edge analytics and gateway servers

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your needs for 90MB17R0-M0EAY0-based builds, plus extended warranty options up to 6 years to protect long-life workstation and edge deployments.

Technical details of 90MB17R0-M0EAY0

CPU Socket: AM4

Onboard Memory: No

RAID Support: Yes

CPU Manufacturer: AMD

CPU Supported Type: Ryzen

Form Factor: ATX

Chipset: AMD B550

RAM Maximum Capacity: 128GB

Max RAM Frequency : 5100MHz

RAM Slots: 4 DIMM DDR4

RAM Channels: Dual-Channel

PCIe Slots: 1 PCIe 3.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1

M.2 Slots: 1 PCIe 3.0 M.2 2260, M.2 2280, M.2 2242, M.2 22110 M-Key, 1 PCIe 4.0 M.2 2260, M.2 2280, M.2 2242, M.2 22110 M-Key

Network Ports: 1 RJ45 2.5 Gbps

ECC Support: ECC, Non-ECC

Onboard Network: Ethernet

Onboard CPU: No

RAID Support: Yes

Onboard Graphic: No

Video Output: 1x DisplayPort 1.2, 1x HDMI 2.1

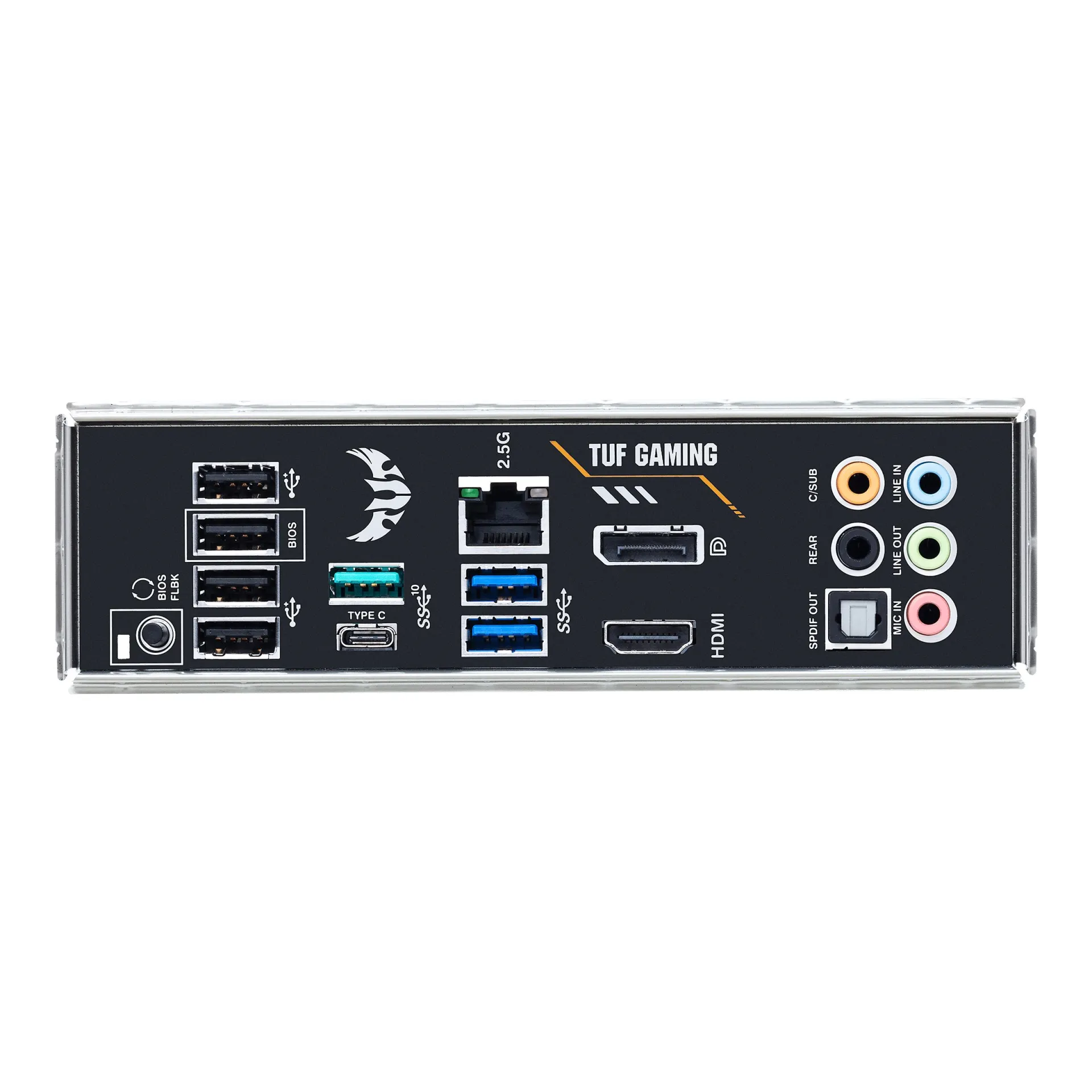

USB Ports: 1x USB 3.2 Gen 1 Type-C, 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 1 Type-A, 4x USB 2.0 Type-A

Other Ports: 1x COM Ports, 1x Serial Ports, 1x Thunderbolt Header, 1x TPM Header

Trusted Platform Module (TPM): Yes

BIOS: AMI UEFI

Wi-Fi Support: None

Onboard Audio Chipset: Realtek ALC1200

Embedded: No

GPIO Pins: 0

Card Reader: No

How long is the Warranty and how you can get technical support for 90MB17R0-M0EAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
