90MB1C10-M0EAY0

Micro-ATX AM5 Enterprise Motherboard Platform with DDR5 and Gen5 NVMe using the 90MB1C10-M0EAY0

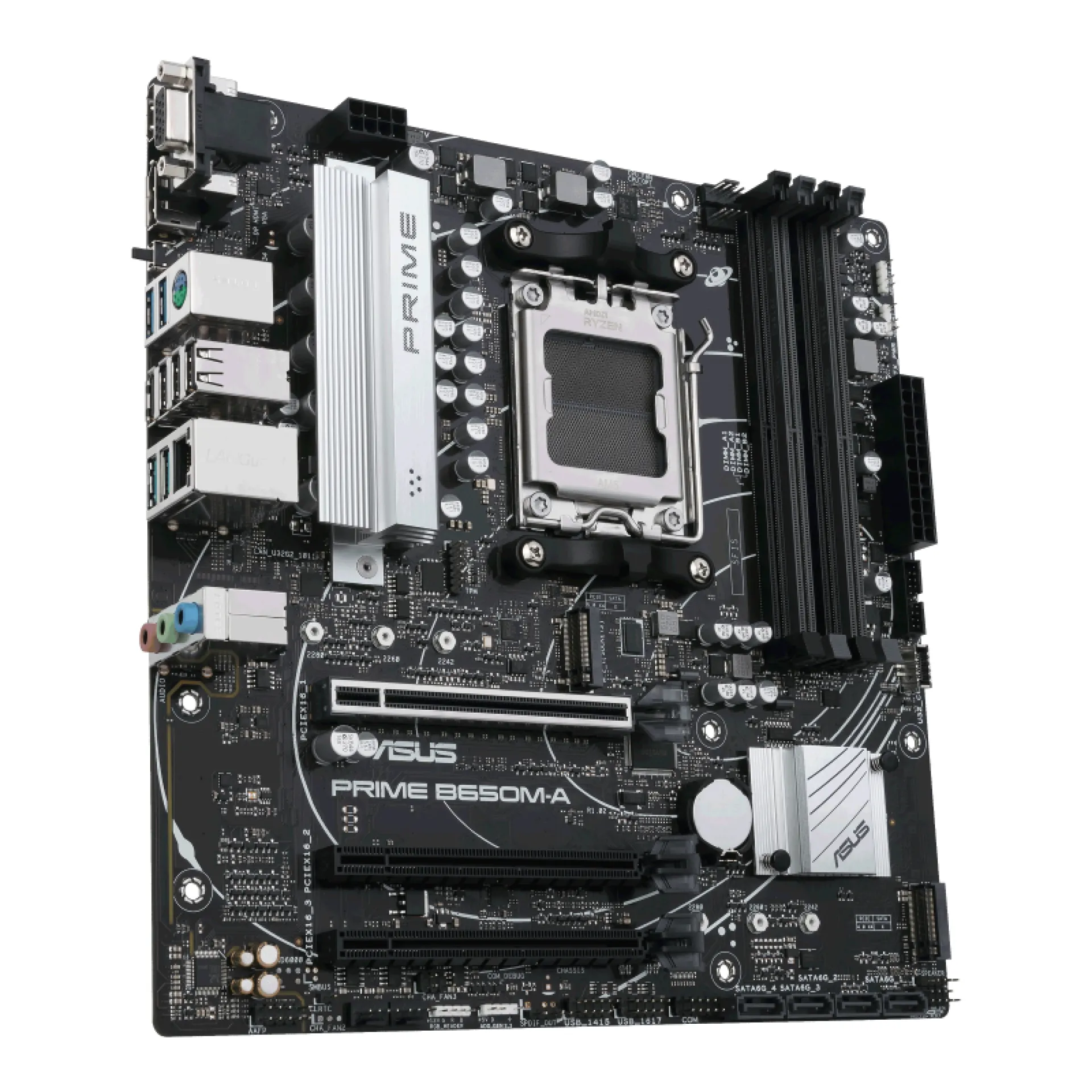

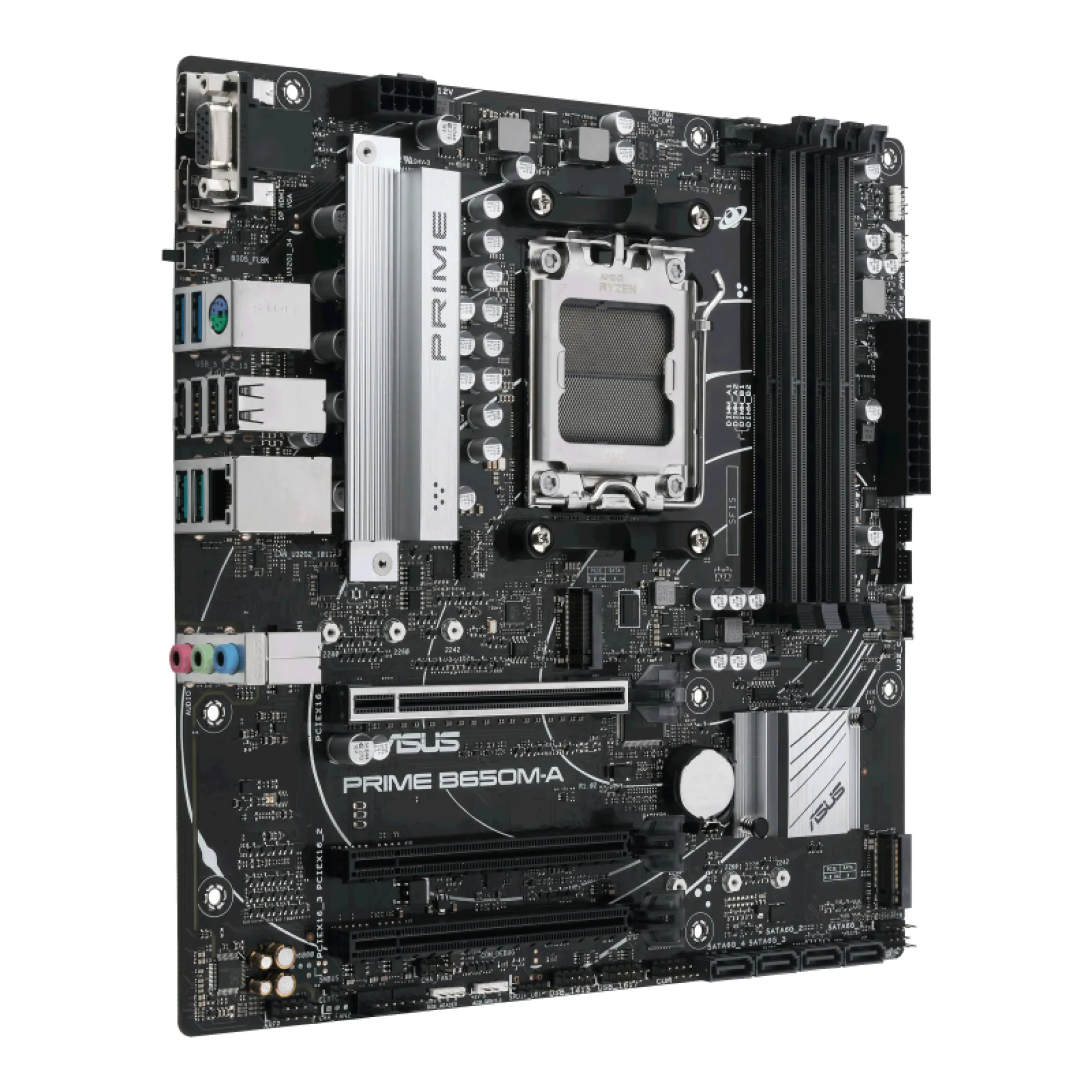

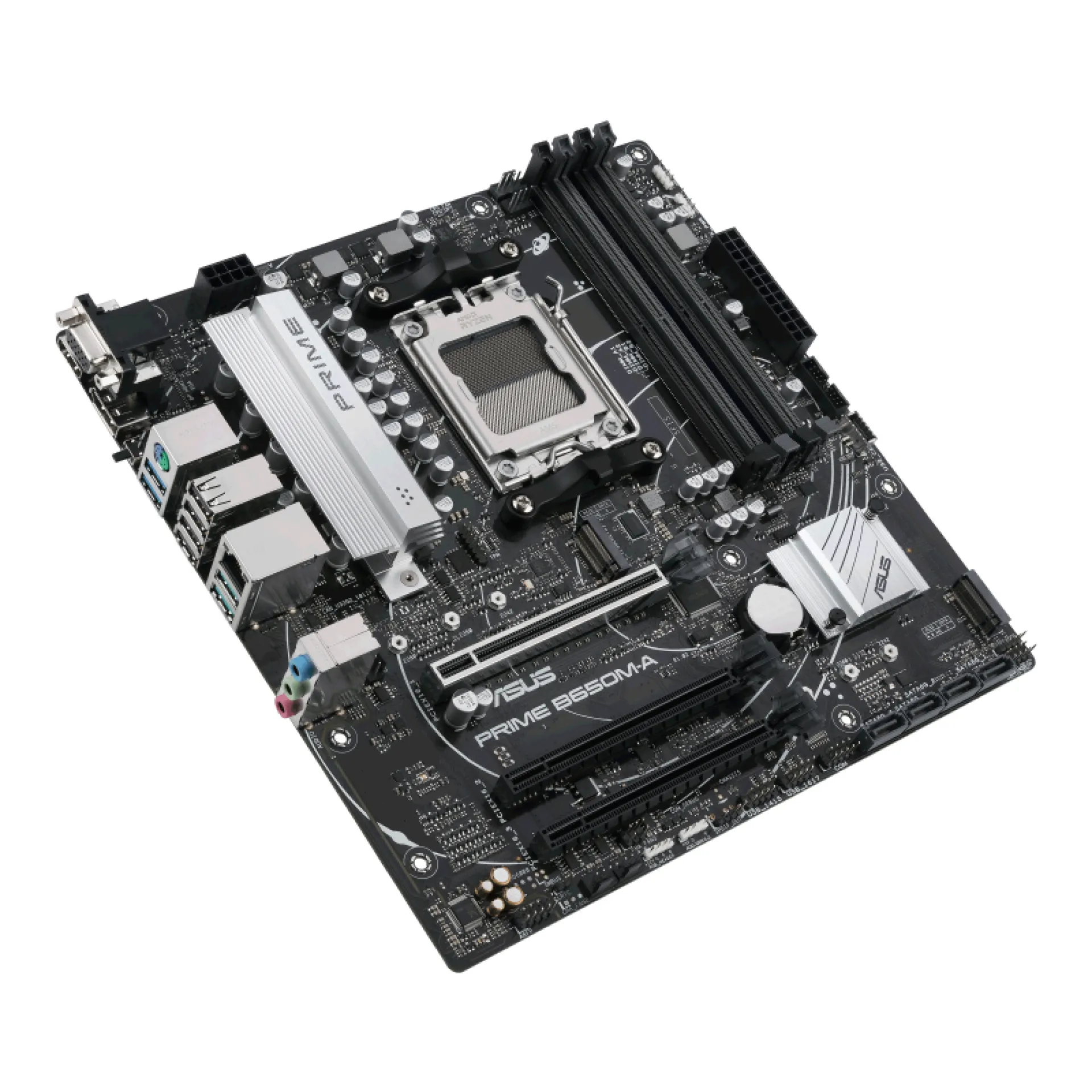

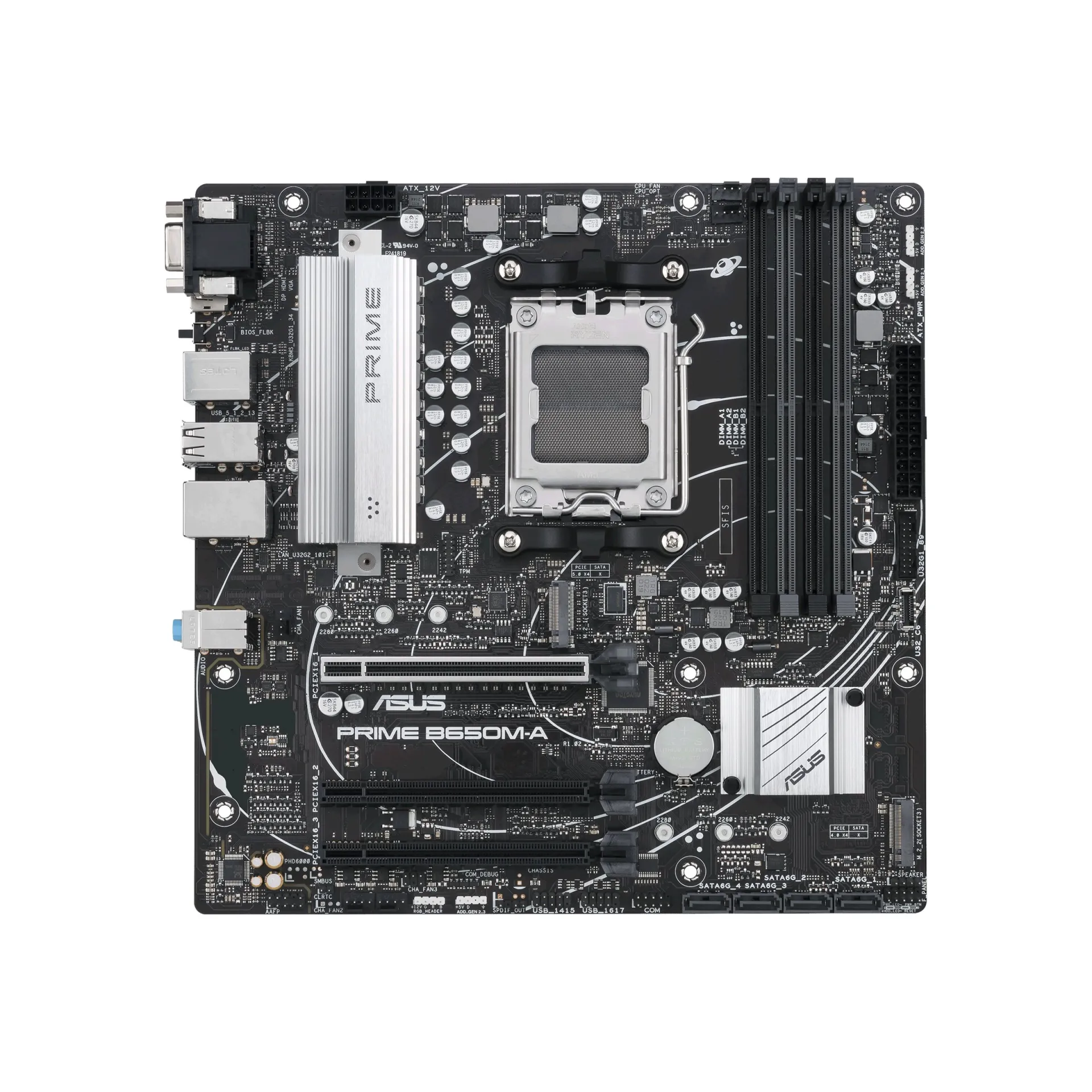

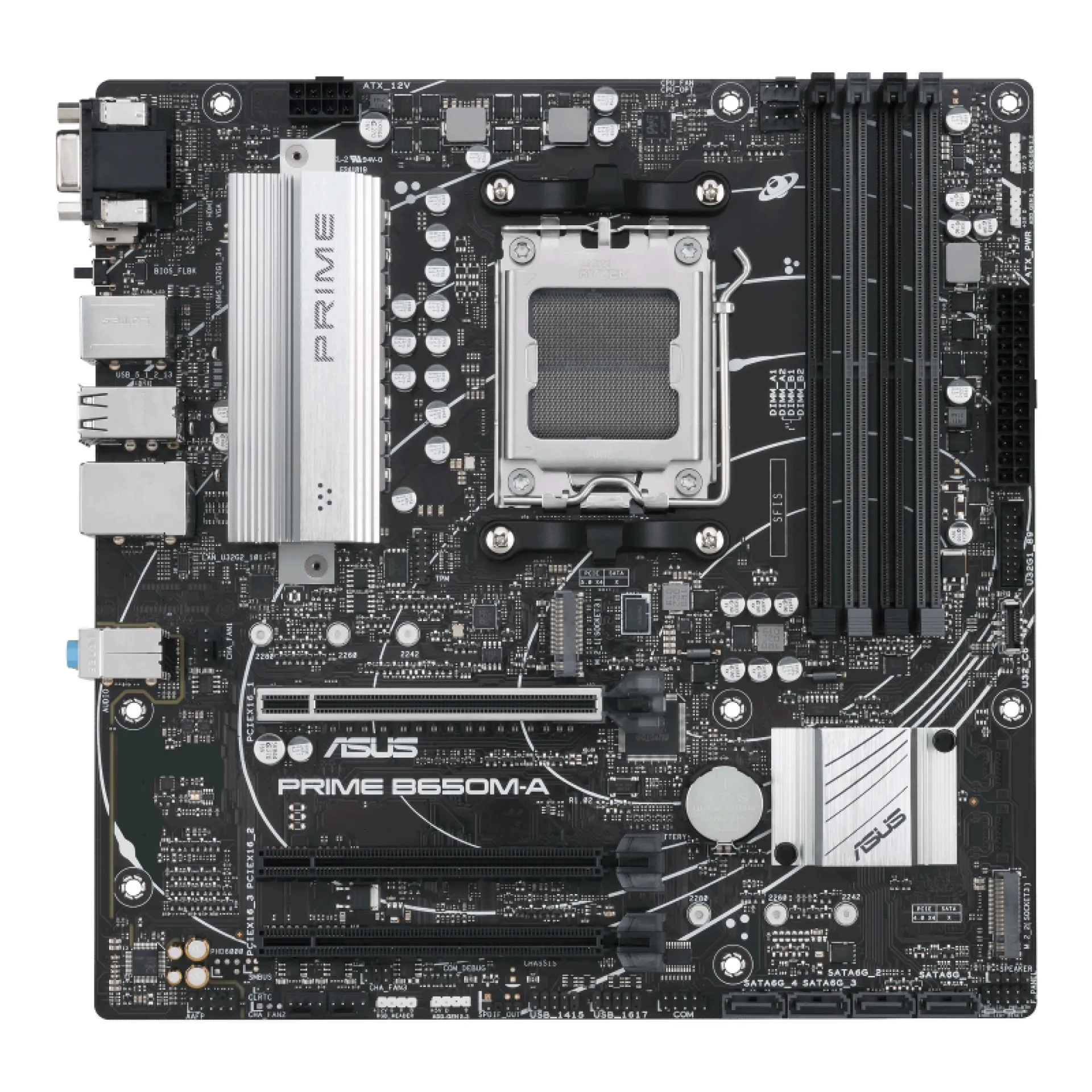

The 90MB1C10-M0EAY0 is a Micro-ATX ASUS PRIME B650M-A motherboard engineered for AMD Ryzen on the AM5 (LGA1718) platform, targeting dependable workstation and SMB deployments where DDR5 bandwidth and modern I/O matter. It supports dual-channel DDR5 across 4 DIMM slots up to 128GB, with ECC or non-ECC operation dependent on CPU and BIOS, enabling predictable memory behavior for creator and office virtualization profiles.

For storage, the 90MB1C10-M0EAY0 implements a tiered architecture with 2 M.2 sockets—1x PCIe Gen5 x4 for next-generation NVMe scratch or hot data, and 1x PCIe Gen4 x4 for high-throughput secondary NVMe—plus 4x SATA III for capacity drives or mirrored OS volumes. Expansion is aligned to single-GPU or accelerator-light systems with a PCIe 4.0 x16 slot (x16 electrical) and 2x PCIe 4.0 x1 slots for NICs, capture, or controller cards. Connectivity includes 2.5GbE and a practical USB mix, while iGPU-dependent display outputs (HDMI 2.1, DisplayPort 1.4, VGA) support flexible endpoint configurations.

Why Choose the 90MB1C10-M0EAY0?

The 90MB1C10-M0EAY0 balances density and serviceability for branch, lab, and creator fleets by combining AM5 longevity with Gen5 NVMe readiness in a compact Micro-ATX footprint. TPM support and RAID capability align with enterprise provisioning and baseline security requirements, while the measured expansion layout keeps thermals and cabling manageable in small chassis without sacrificing a full-height GPU slot.

ASUS designs the platform around stable power delivery, validated component interoperability, and firmware maturity to meet modern data centre and edge standards for uptime, lifecycle management, and consistent rollouts across mixed-use environments.

Key Applications:

SMB and branch office desktops
Creator workstations with NVMe scratch
Single-GPU engineering and visualization builds
Light virtualization and lab hosts
Secure TPM-enabled endpoint deployments

At Happyware - Server Hardware you benefit from non-binding offers tailored to your rollout, helping you standardize the 90MB1C10-M0EAY0 across teams while keeping procurement predictable, and you can extend the warranty up to 6 years to protect long lifecycle deployments.

Technical details of 90MB1C10-M0EAY0

CPU Socket:

AM5

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

AMD

CPU Supported Type:

Ryzen

Form Factor:

Micro-ATX

Chipset:

AMD B650

RAM Maximum Capacity:

128GB

Max RAM Frequency :

5600MHz

RAM Slots:

4 DIMM DDR5

RAM Channels:

Dual-Channel

PCIe Slots:

1 PCIe 4.0 x16 2 PCIe 4.0 x1

M.2 Slots:

1 PCIe Gen 4 M.2 2280/2260/2242 M-Key 1 PCIe Gen 5 M.2 2280/2260/2242 M-Key

Network Ports:

1 RJ45 2.5 Gbps

ECC Support:

ECC Non-ECC

Onboard Network:

Ethernet

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

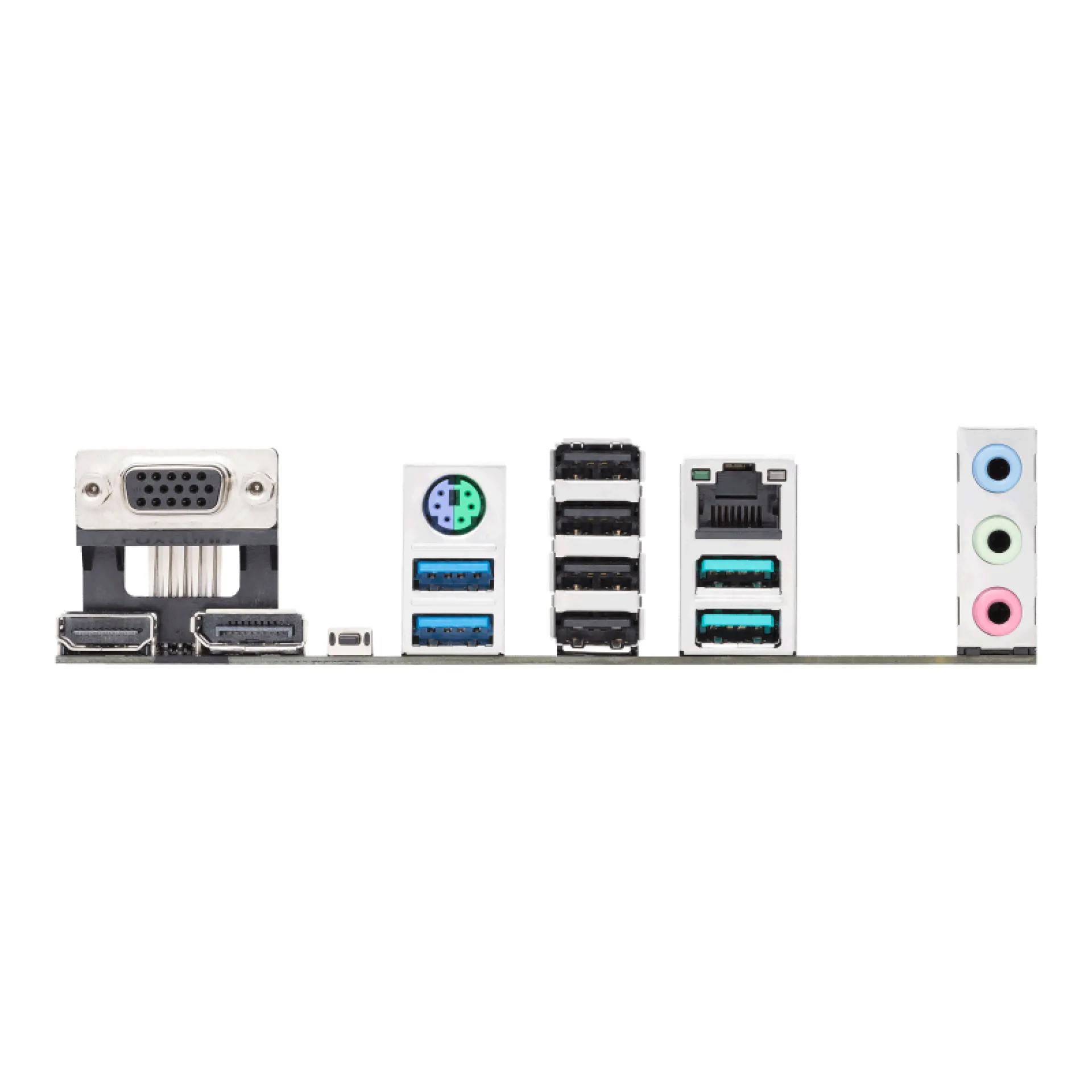

Video Output:

1x HDMI 2.1 1x DisplayPort 1.4 1x VGA

USB Ports:

4x USB 2.0 Type-A 2x USB 3.2 Gen 1 Header 2x USB 3.2 Gen 2 Type-A 2x USB 3.2 Gen 1 Type-A 1x USB 3.2 Gen 1 Type-C 4x USB 2.0 header

Other Ports:

1x PS/2 Combo 1x RJ-45 (2.5GBase-T, Realtek RTL8125BG) 3x 3.5mm Klinke (Realtek ALC897)

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Wi-Fi Support:

None

Onboard Audio Chipset:

Realtek ALC897

GPIO Pins:

How long is the Warranty and how you can get technical support for 90MB1C10-M0EAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
