90MB1CJ0-M0EAY0 ASUS ATX Single V (LGA 1700) 4 DIMM Slots Mainboard

Get extra volume discount for 90MB1CJ0-M0EAY0 and save cash:

Quantity	Unit price
To 9	€263.00
To 19	€250.00 €263.00 (4.94% saved)
To 49	€245.00 €263.00 (6.84% saved)
From 50	€237.00 €263.00 (9.89% saved)

Product line:

Prime

See other ASUS products

€263.00

In stock

Happyware Article Number:

SH2M8236-982288

Manufacturer Number:

90MB1CJ0-M0EAY0

Brand:

ASUS

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

90MB1CJ0-M0EAY0

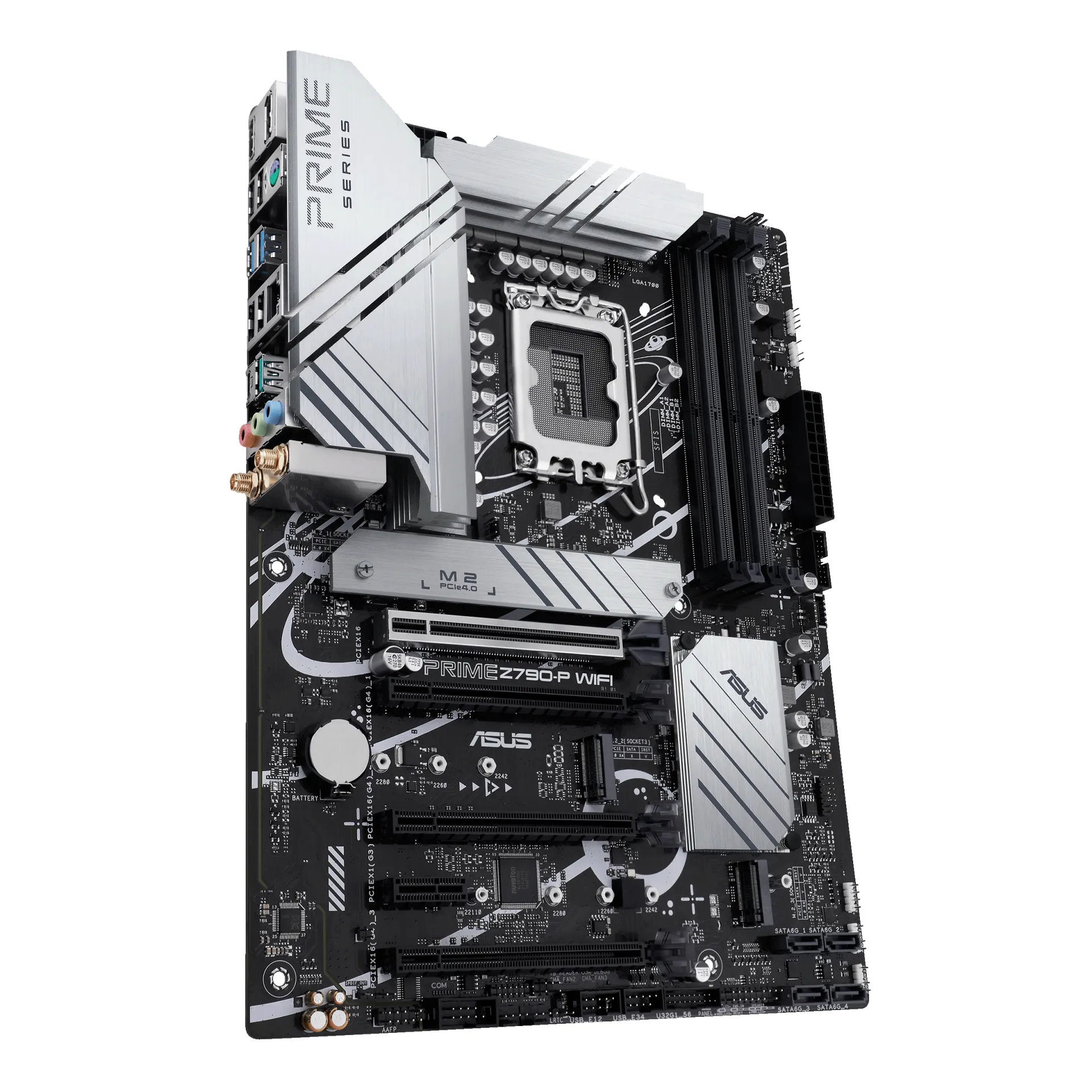

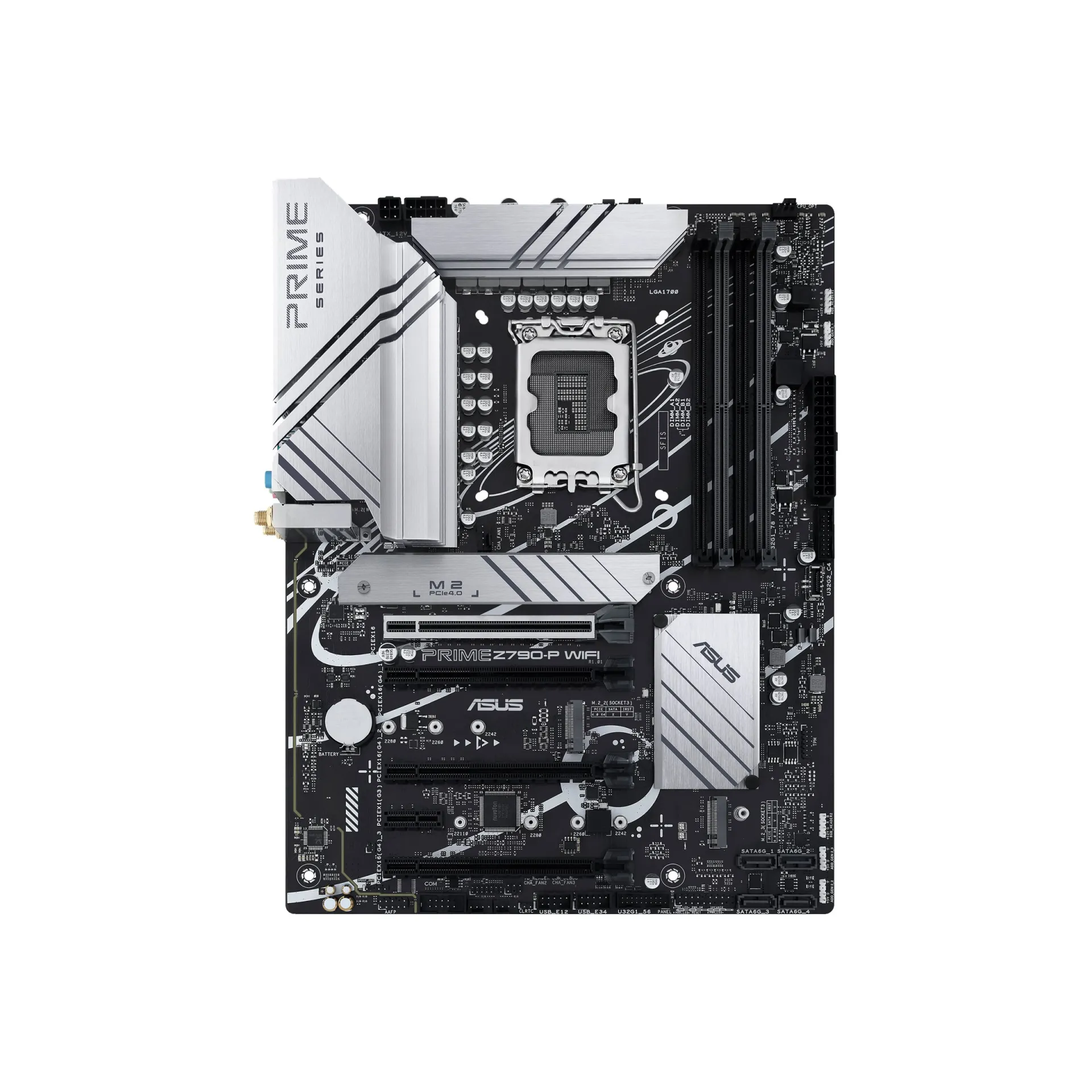

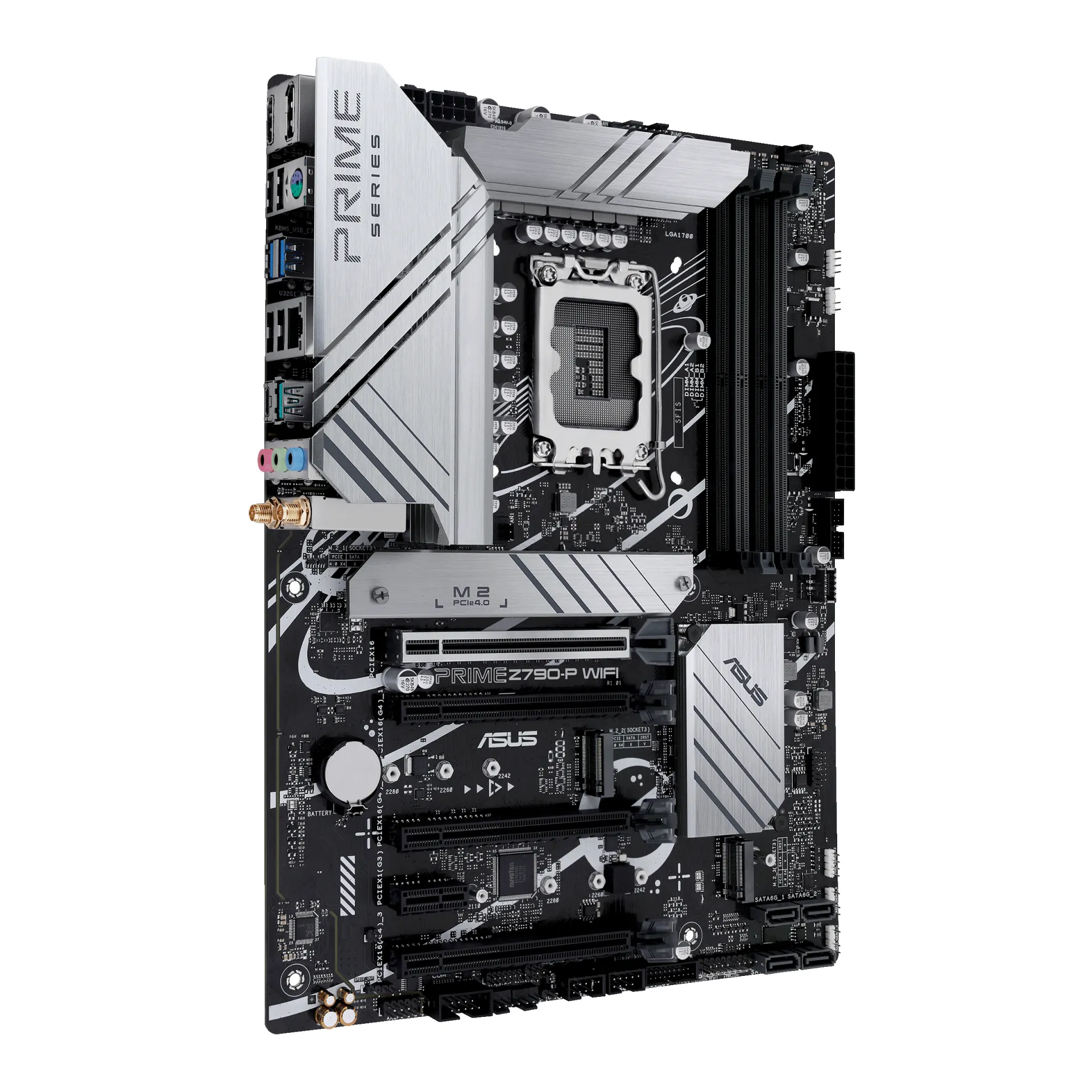

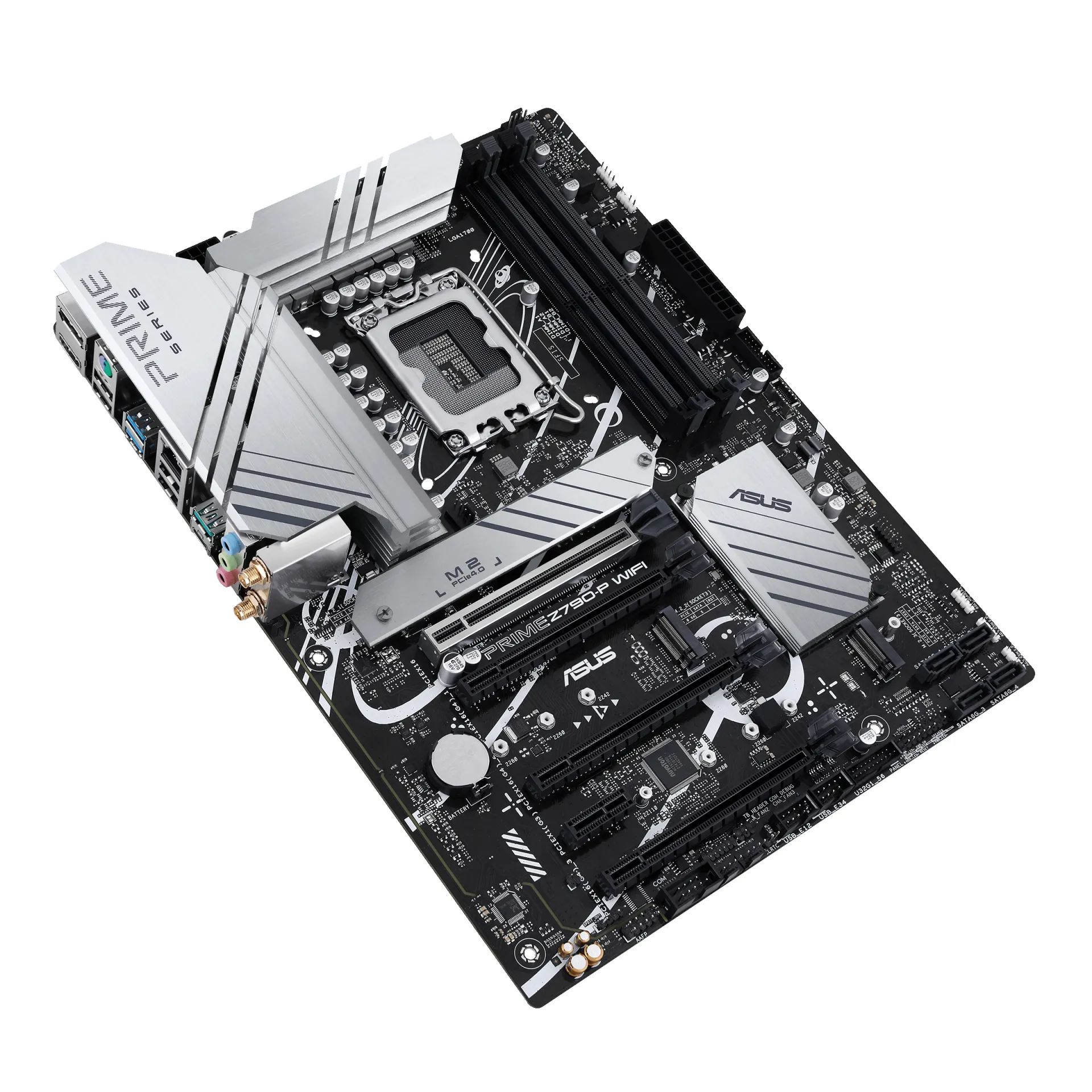

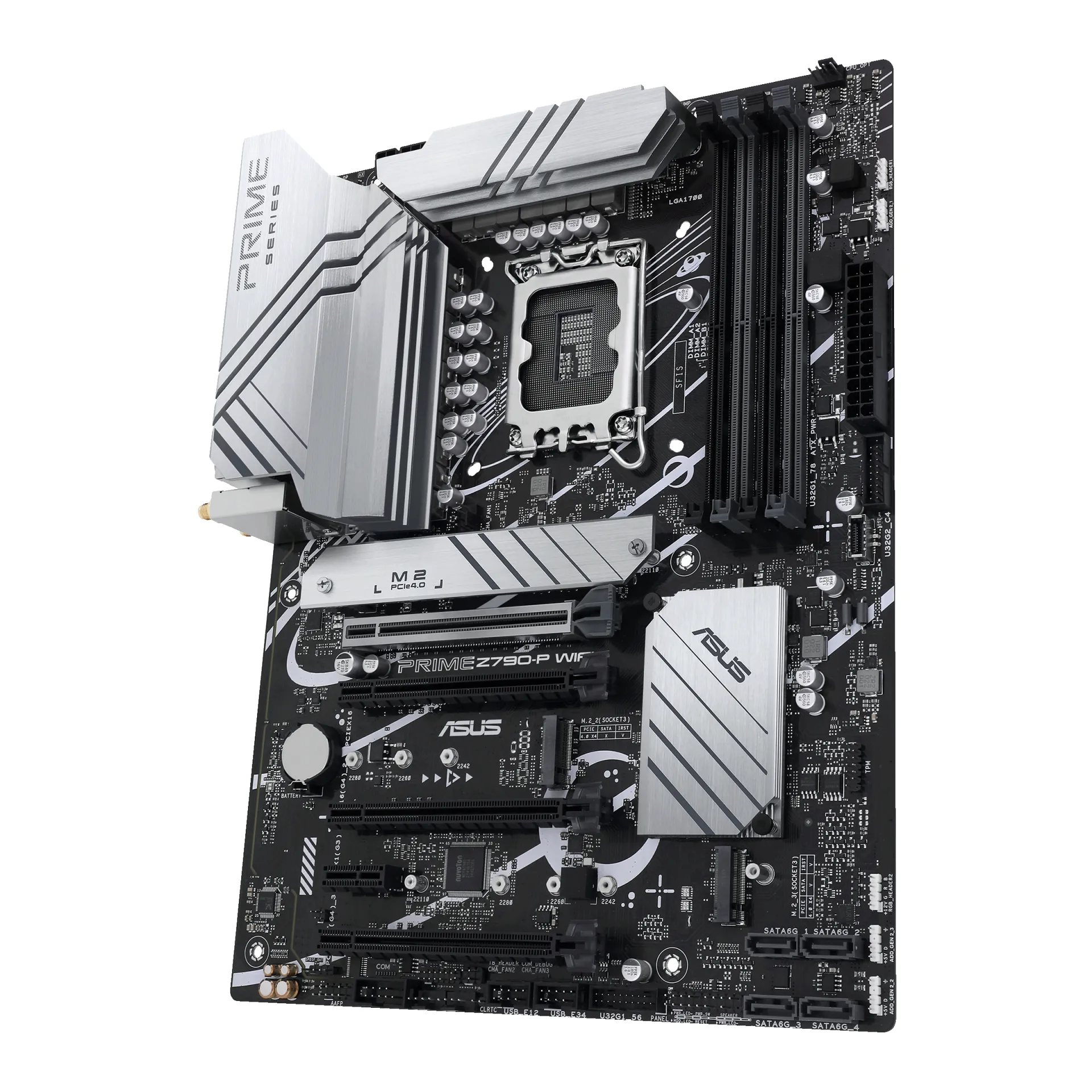

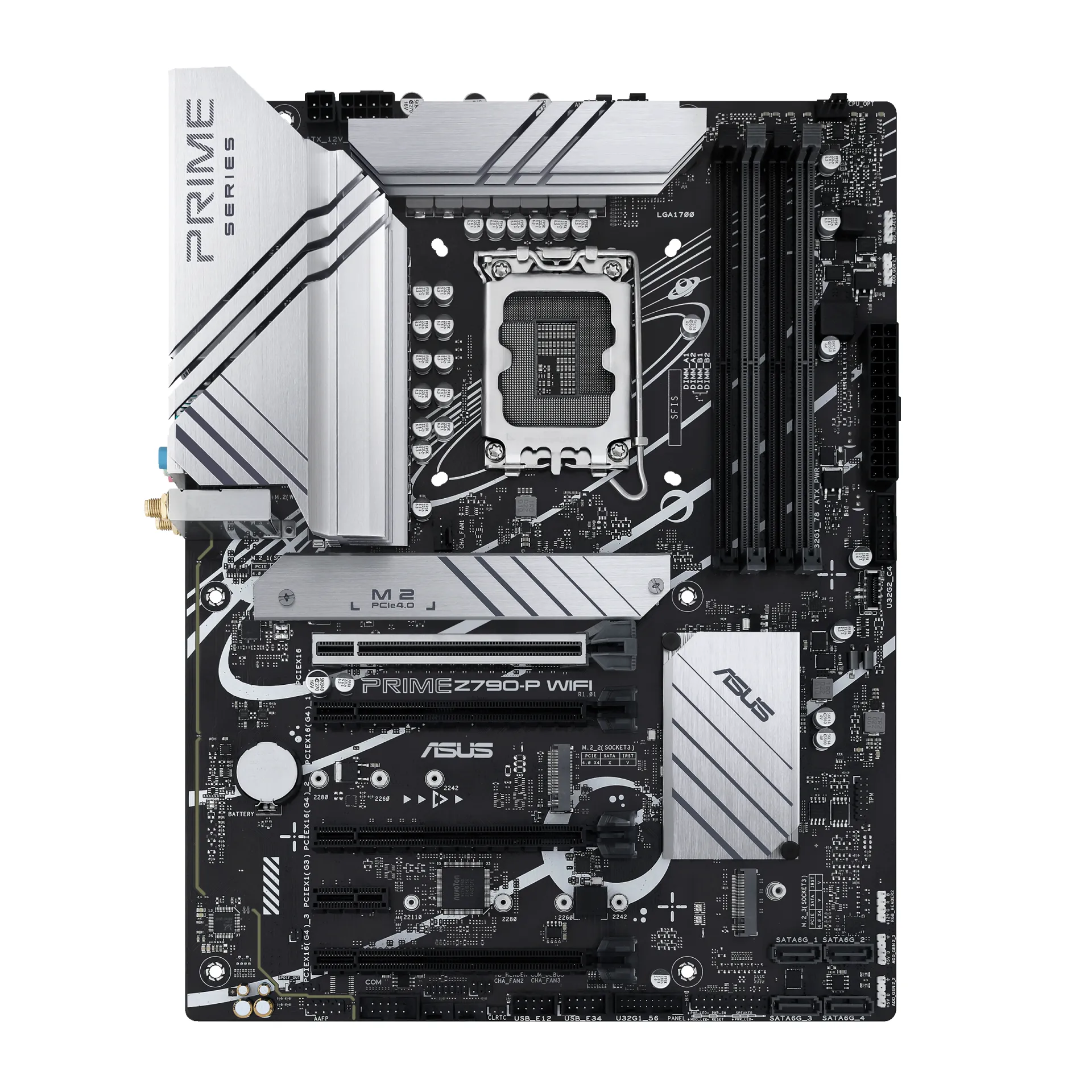

ATX Intel Z790 Desktop/Workstation Motherboard featuring DDR5 and PCIe 5.0 expansion with the 90MB1CJ0-M0EAY0

The 90MB1CJ0-M0EAY0 is an ASUS ATX motherboard built on the Intel Z790 chipset for the LGA1700 desktop platform, targeting reliable workstation build bases and high-throughput lab or edge nodes. It supports Intel Core 13th/12th Gen-class processors and aligns well with discrete GPU deployments where PCIe lane allocation, memory stability, and storage locality are primary design constraints.

With the 90MB1CJ0-M0EAY0, DDR5 dual-channel memory is implemented across 4 DIMM slots for up to 128GB, enabling high-frequency configurations for content creation, CAD, and compute-heavy desktop workflows. GPU and accelerator integration is optimized via a PCIe 5.0 x16 slot for bandwidth-sensitive cards, complemented by additional PCIe 4.0 and PCIe 3.0 slots for capture, storage, or NIC expansion. Storage architecture is designed for fast local datasets with 3 PCIe 4.0 M.2 NVMe sockets plus 4 SATA 6Gb/s ports, supporting mixed NVMe/SATA tiers and platform-dependent RAID. Connectivity is anchored by 2.5GbE and Wi-Fi 6 with Bluetooth 5.2 for flexible deployment where wired and wireless access are both required.

Why Choose the 90MB1CJ0-M0EAY0?

The 90MB1CJ0-M0EAY0 provides a balanced density-to-performance ratio for teams standardizing on LGA1700 systems that need modern DDR5, PCIe 5.0 GPU readiness, and multiple NVMe endpoints without moving to a server platform. Its expansion layout and storage topology scale cleanly from single-GPU workstations to compact edge nodes, while UEFI and TPM support simplify consistent provisioning and baseline security policies.

ASUS engineering focuses on predictable platform behavior, validated power delivery design, and firmware maturity to fit modern data centre operational practices, including repeatable builds, controlled updates, and long service lifecycles in managed desktop and lab environments.

Key Applications:

Content creation workstations
CAD and technical visualization
GPU-accelerated desktop compute
Edge data acquisition and processing
NVMe-centric local build servers

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your rollout plan for 90MB1CJ0-M0EAY0-based systems, and from extended warranty options up to 6 years to protect long-lived workstation and edge deployments.

Technical details of 90MB1CJ0-M0EAY0

CPU Socket: V (LGA 1700)

Onboard Memory: No

RAID Support: Yes

CPU Manufacturer: Intel

CPU Supported Family: Celeron, Core i3, Core i5, Core i7, Core i9, Pentium Gold

Form Factor: ATX

Chipset: Intel Z790

RAM Maximum Capacity: 128GB

Max RAM Frequency: 7200MHz

RAM Slots: 4 DIMM DDR5

RAM Channels: Dual-Channel

PCIe Slots: 1 PCIe 3.0 x1, 1 PCIe 5.0 x16, 3 PCIe 4.0 x16

M.2 Slots: 1 PCIe 4.0 M.2 2242, M.2 2260, M.2 2280 M-Key, 2 PCIe 4.0 M.2 2260, M.2 2280, M.2 22110 M-Key

Network Ports: 1 RJ45 2.5 Gbps

ECC Support: Non-ECC

Onboard Network: Ethernet

Onboard CPU: No

RAID Support: Yes

Onboard Graphic: Yes

Video Output: 1x DisplayPort, 1x HDMI

USB Ports: 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 1 Type-A, 4x USB 2.0 Type-A

Other Ports: 1x PS/2 keyboard, 1x Serial (COM) Port

Trusted Platform Module (TPM): Yes

BIOS: AMI UEFI

Wi-Fi Support: Wi-Fi 6 (802.11ax)

Bluetooth integrated: 5.2

Embedded: No

Card Reader: No

How long is the Warranty and how you can get technical support for 90MB1CJ0-M0EAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
