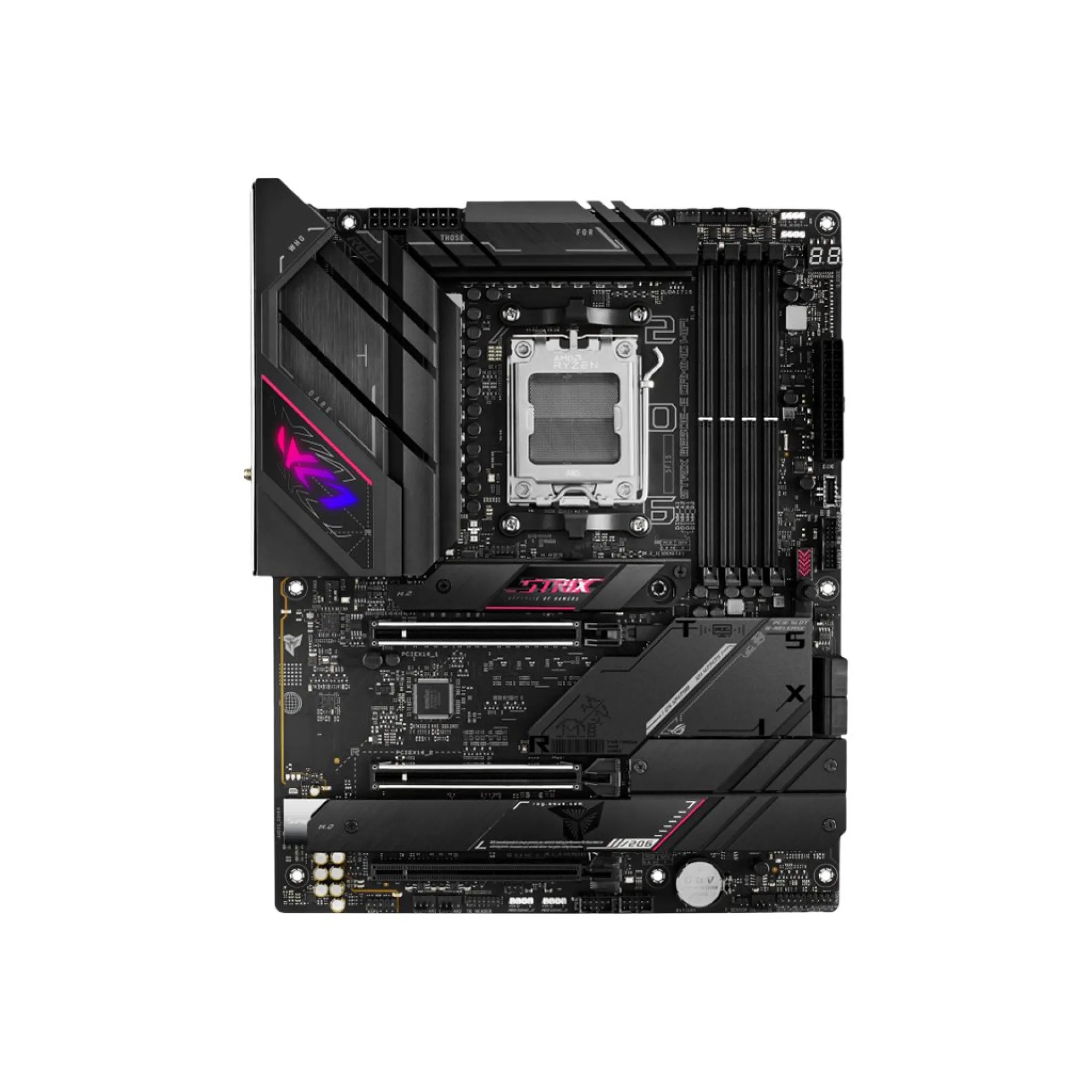

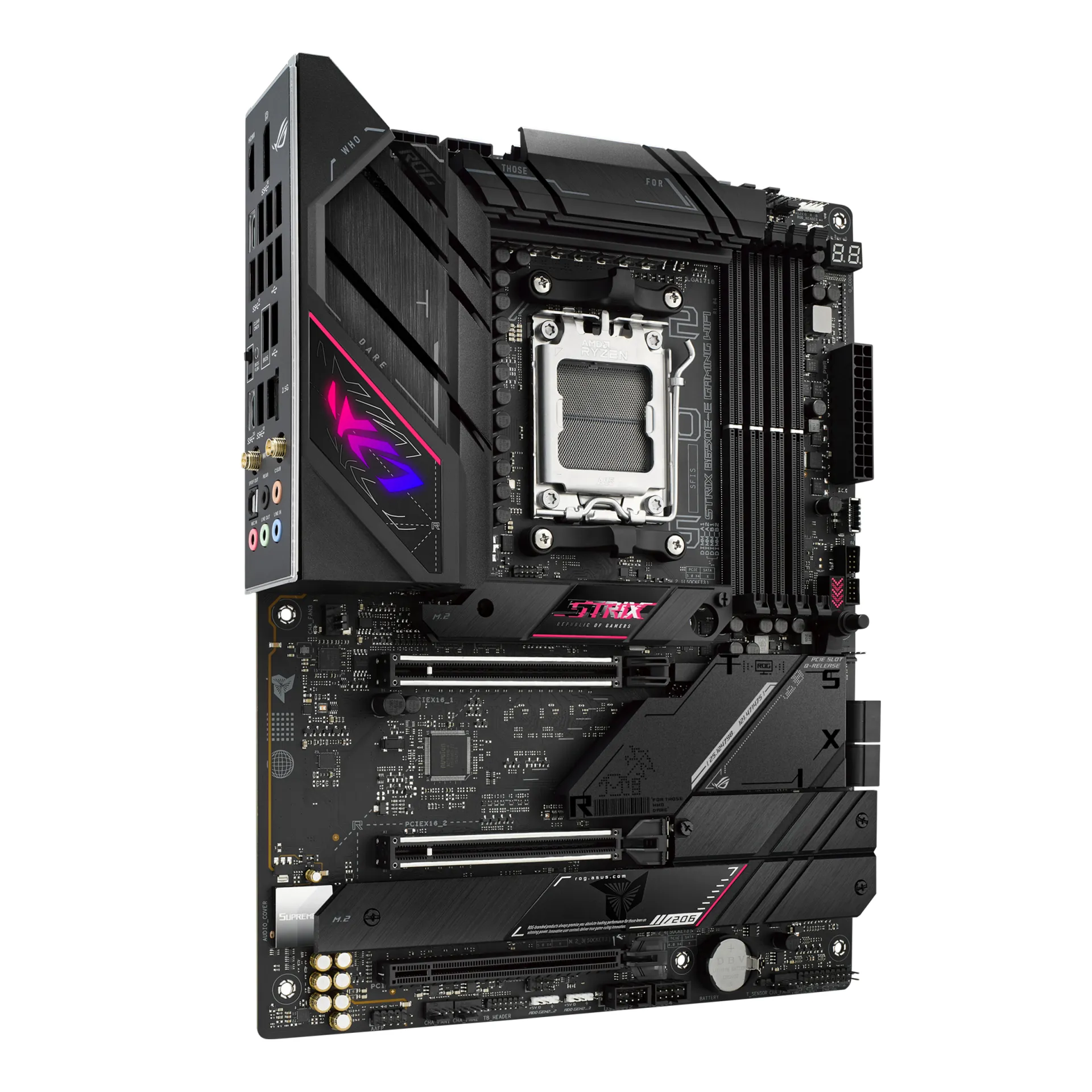

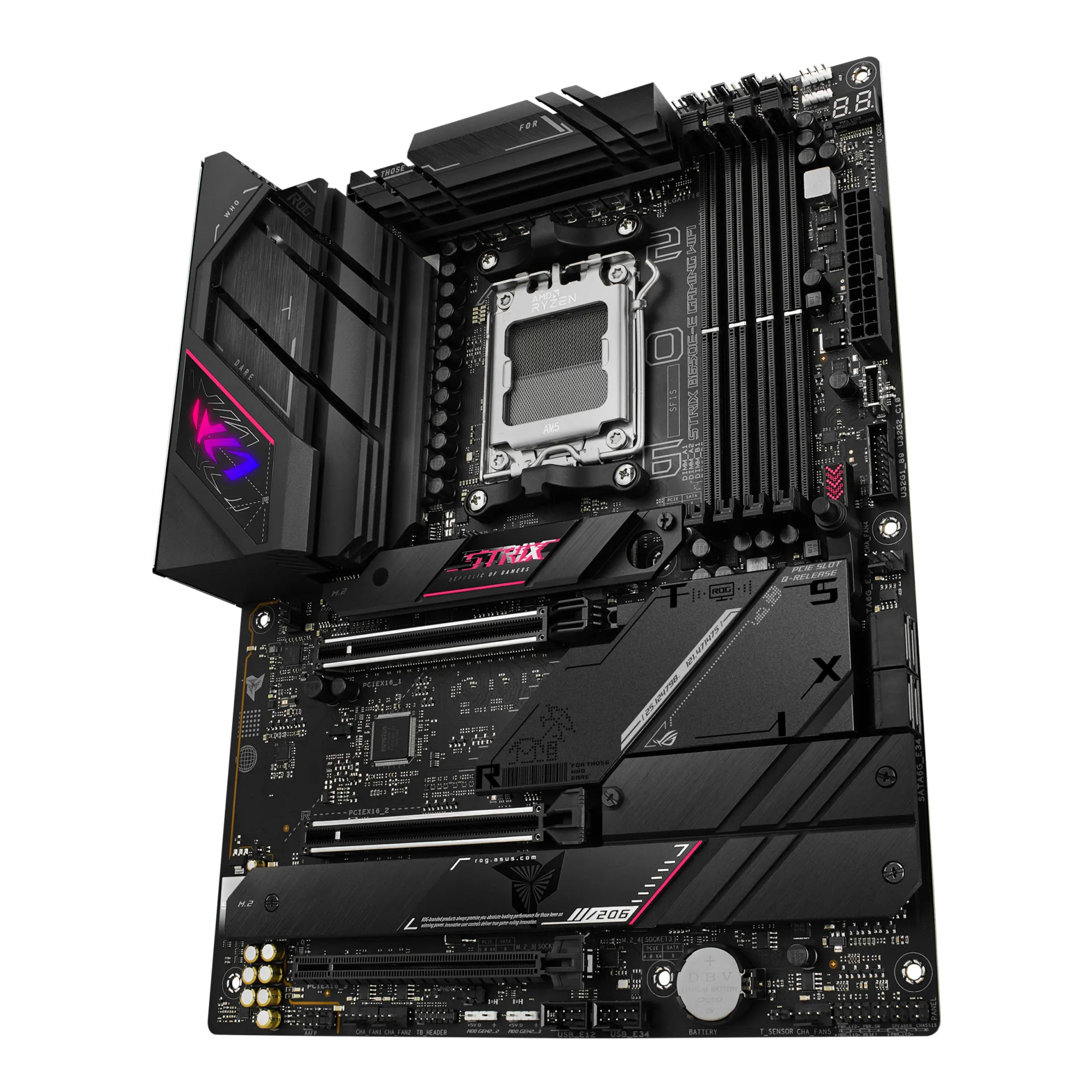

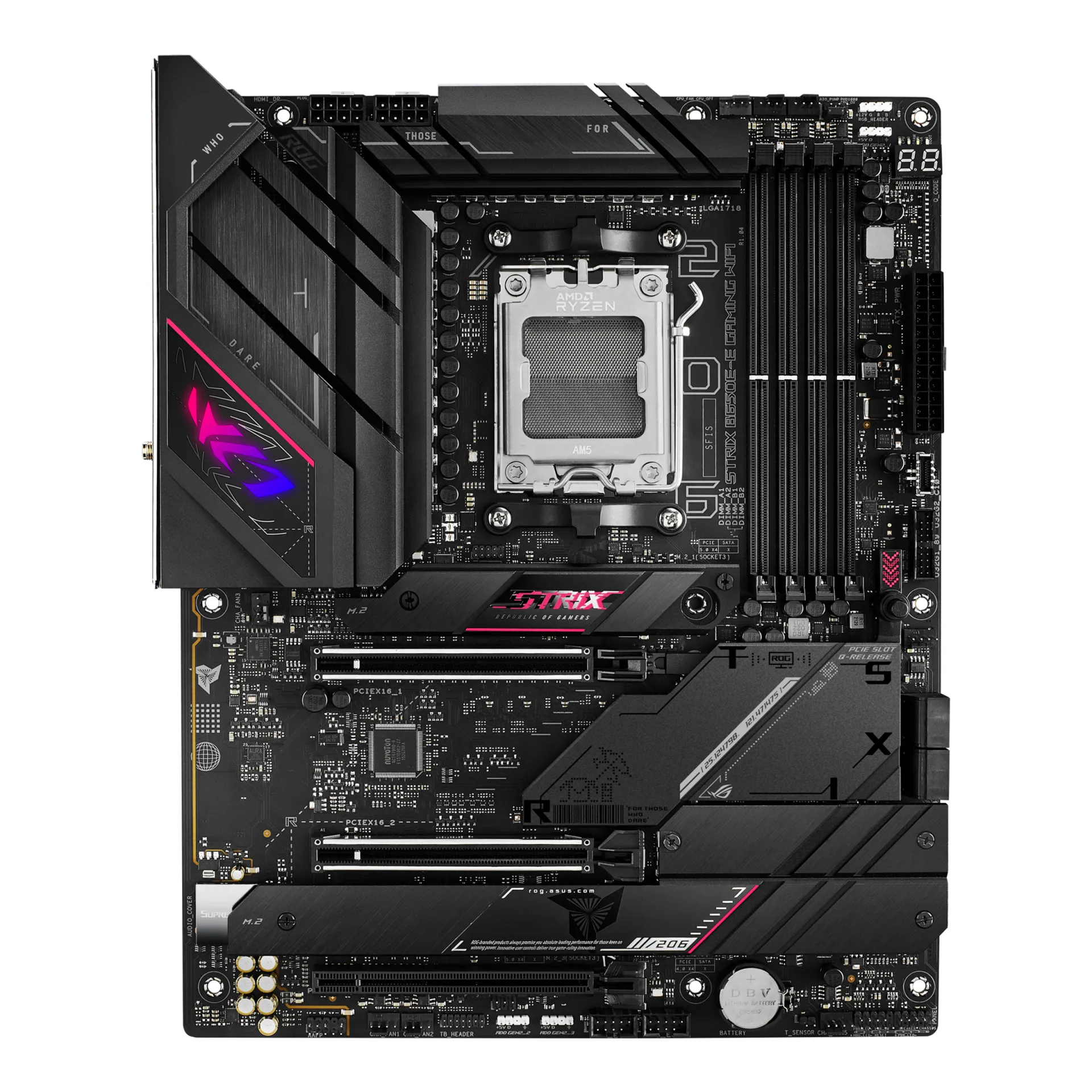

90MB1BB0-M0EAY0 ASUS ATX Single AM5 4 DIMM Slots Mainboard

Get extra volume discount for 90MB1BB0-M0EAY0 and save cash:

Quantity	Unit price
To 9	€323.00
To 19	€307.00 €323.00 (4.95% saved)
To 49	€301.00 €323.00 (6.81% saved)
From 50	€291.00 €323.00 (9.91% saved)

Product line:

ROG Strix

See other ASUS products

€323.00

In stock

Happyware Article Number:

SH8M9259-792438

Manufacturer Number:

90MB1BB0-M0EAY0

Brand:

ASUS

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

90MB1BB0-M0EAY0

ATX AMD AM5 Motherboard Platform with PCIe 5.0 Expansion and Gen5 NVMe Storage using 90MB1BB0-M0EAY0

The 90MB1BB0-M0EAY0 is an ASUS ATX motherboard built on the AMD B650E chipset for the AM5 Ryzen platform, targeting performance desktops and workstation-class builds that demand strong I/O, deterministic latency, and clean upgrade paths. Its PCIe 5.0 topology supports modern GPU deployments while keeping additional lanes available for high-throughput peripherals and storage devices.

For memory, the 90MB1BB0-M0EAY0 implements dual-channel DDR5 across 4 DIMM slots with capacity up to 192GB and support for ECC/non-ECC operation where the CPU and platform allow, enabling stable builds for compile workloads, simulation pre-processing, and content creation. Storage architecture is optimized for mixed tiers: 2x M.2 PCIe 5.0 x4 for next-generation NVMe plus 2x M.2 PCIe 4.0 x4 and 4x SATA 6Gb/s with RAID support, allowing separation of OS, scratch, and dataset volumes. Integrated connectivity combines 2.5GbE and Wi-Fi 6E, reducing add-in card requirements and preserving PCIe slots for accelerators or high-speed capture.

Why Choose the 90MB1BB0-M0EAY0?

The 90MB1BB0-M0EAY0 delivers a practical density-to-performance balance for AM5 deployments by pairing PCIe 5.0 GPU capability with multiple Gen5/Gen4 NVMe options, enabling scalable I/O without moving to larger platforms. This architecture supports phased expansion, predictable component qualification, and reliable operation for enterprise engineering teams standardizing high-end desktop and small workstation fleets.

ASUS designs this platform with an emphasis on power delivery robustness, signal integrity for high-speed links, and UEFI tooling aligned with modern data centre build standards, including USB BIOS Flashback for controlled recovery and lifecycle management in staged rollouts.

Key Applications:

AM5 workstation and engineering desktops
GPU-accelerated content creation
NVMe-intensive data staging and scratch storage
Software development and build servers
High-performance home lab virtualization

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your rollout and BOM requirements, and you can extend the warranty up to 6 years to secure long-term platform standardization for the 90MB1BB0-M0EAY0.

Technical details of 90MB1BB0-M0EAY0

CPU Socket: AM5

Onboard Memory: No

RAID Support: Yes

CPU Manufacturer: AMD

CPU Supported Type: Ryzen

Form Factor: ATX

Chipset: AMD B650E

RAM Maximum Capacity: 192GB

Max RAM Frequency : 8000MHz

RAM Slots: 4 DIMM DDR5

RAM Channels: Dual-Channel

PCIe Slots: 1 PCIe 4.0 x16, 1 PCIe 5.0 x16

M.2 Slots: 1 PCIe 5.0 x4 M.2 2260, M.2 2280, M.2 2242, M.2 22110 M-Key, 1 PCIe 5.0 x4 M.2 2280, M.2 2260, M.2 2242 M-Key, 1 WiFi+BT-Modul M.2 2230 E-Key, 2 PCIe 4.0 x4 M.2 2280, M.2 2260, M.2 2242 M-Key

Network Ports: 1 RJ45 2.5 Gbps

ECC Support: ECC, Non-ECC

Onboard Network: Ethernet

Onboard CPU: No

RAID Support: Yes

Onboard Graphic: Yes

Video Output: 1x DisplayPort 1.4, 1x HDMI 2.1

USB Ports: 1x Thunderbolt header, 1x USB-C 3.2 Gen 2, 1x USB-C 3.2 Gen 2 Header, 1x USB-C 3.2 Gen 2x2, 2x USB 3.2 Gen 1 Header, 4x USB 2.0, 4x USB 2.0 header, 6x USB 3.2 Gen 2

Trusted Platform Module (TPM): No

BIOS: AMI UEFI

Wi-Fi Support: Wi-Fi 6E

Bluetooth integrated: 5.3

Onboard Audio Chipset: Realtek ALC4080

Embedded: No

Card Reader: No

How long is the Warranty and how you can get technical support for 90MB1BB0-M0EAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
