90MB1EH0-M0EAYC ASUS Micro-ATX Single AM5 4 DIMM Slots Mainboard
Get extra volume discount for 90MB1EH0-M0EAYC and save cash:
| Quantity | Unit price |
|---|---|
| To 9 |
€213.03
|
| To 19 |
€202.40
€213.03
(4.99% saved)
|
| To 49 |
€198.20
€213.03
(6.96% saved)
|
| From 50 |
€191.80
€213.03
(9.97% saved)
|
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
ASUS Prime
€213.03
Do you have questions about this product 90MB1EH0-M0EAYC?
90MB1EH0-M0EAYC
Micro-ATX AMD AM5 Workstation and Edge Motherboard Architecture with the 90MB1EH0-M0EAYC

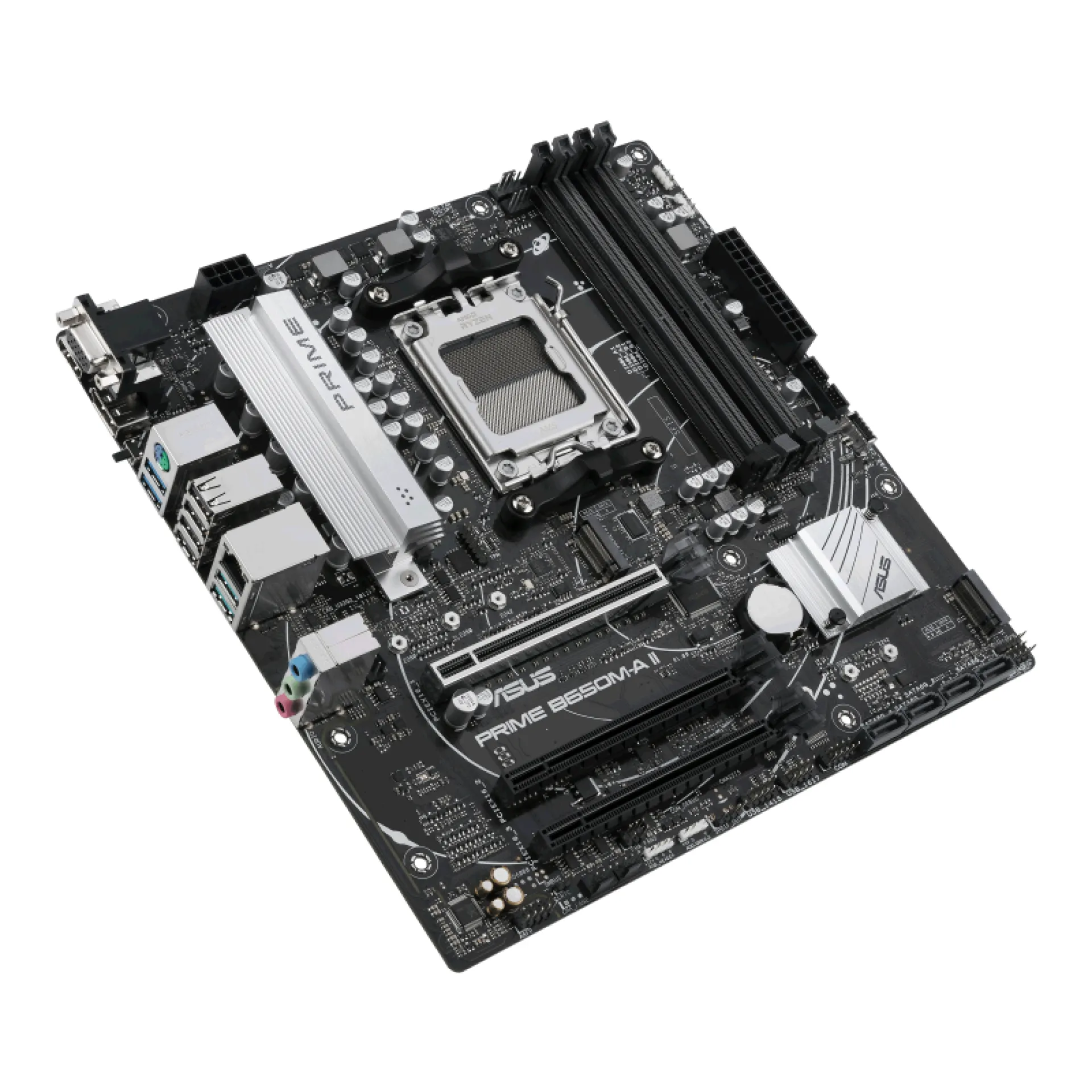

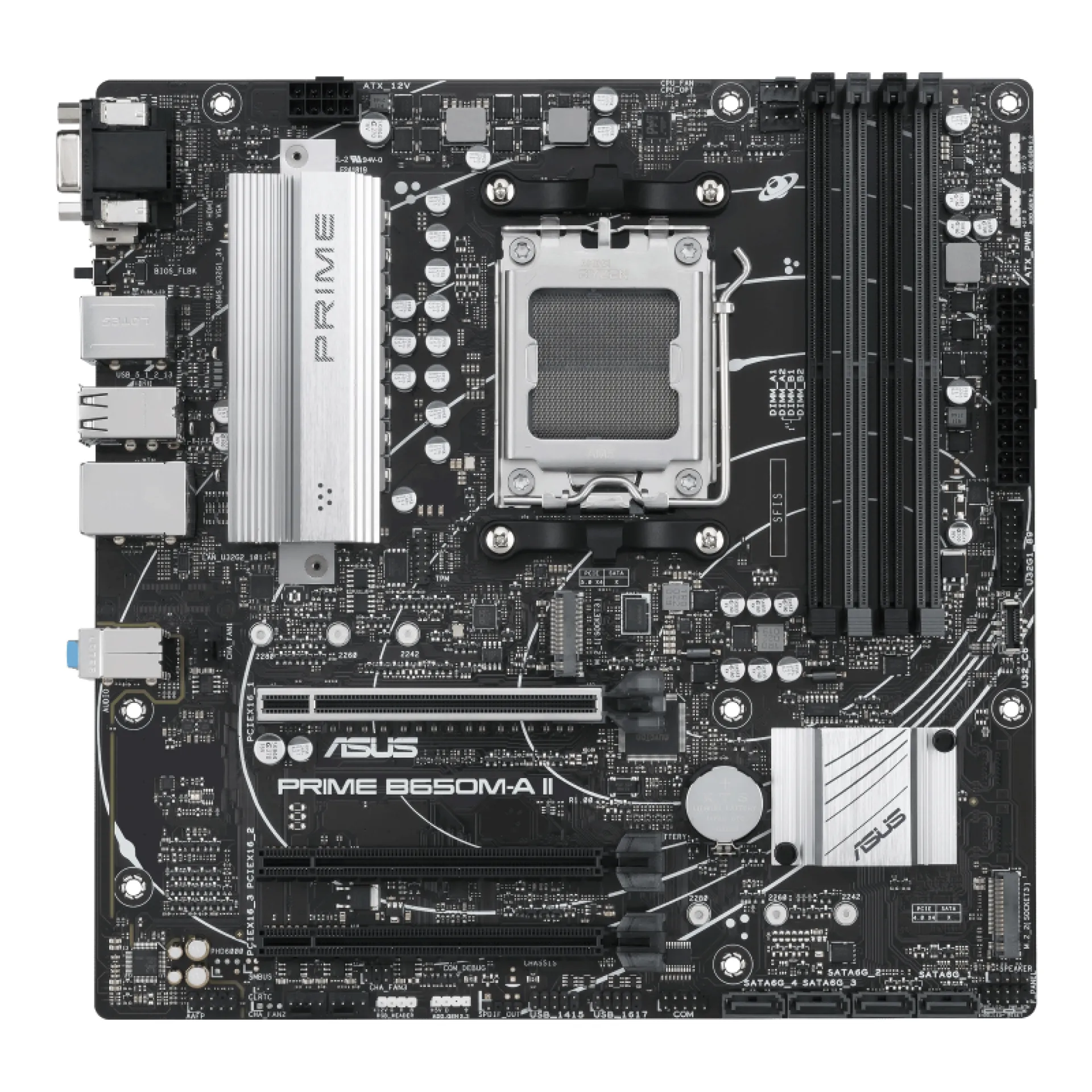

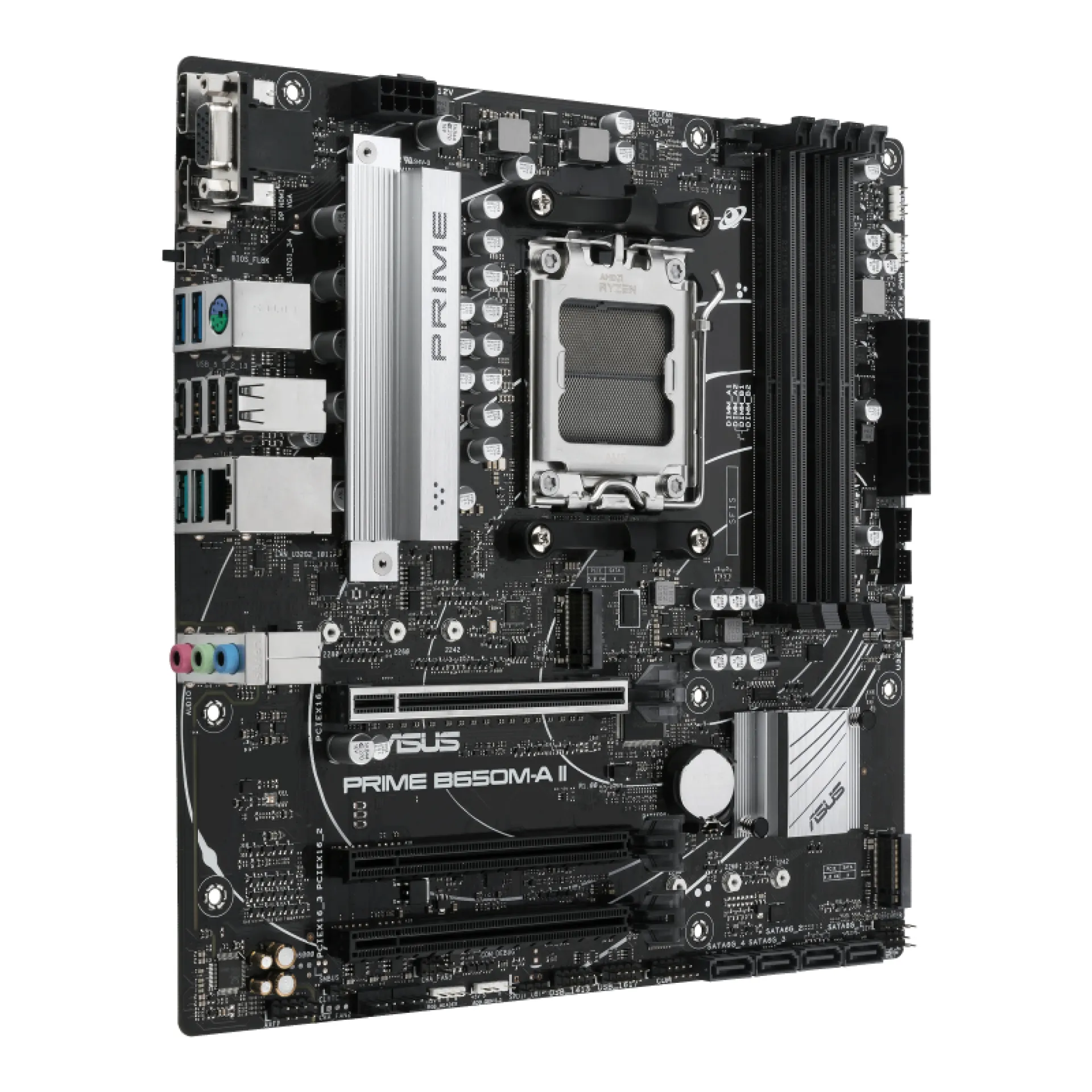

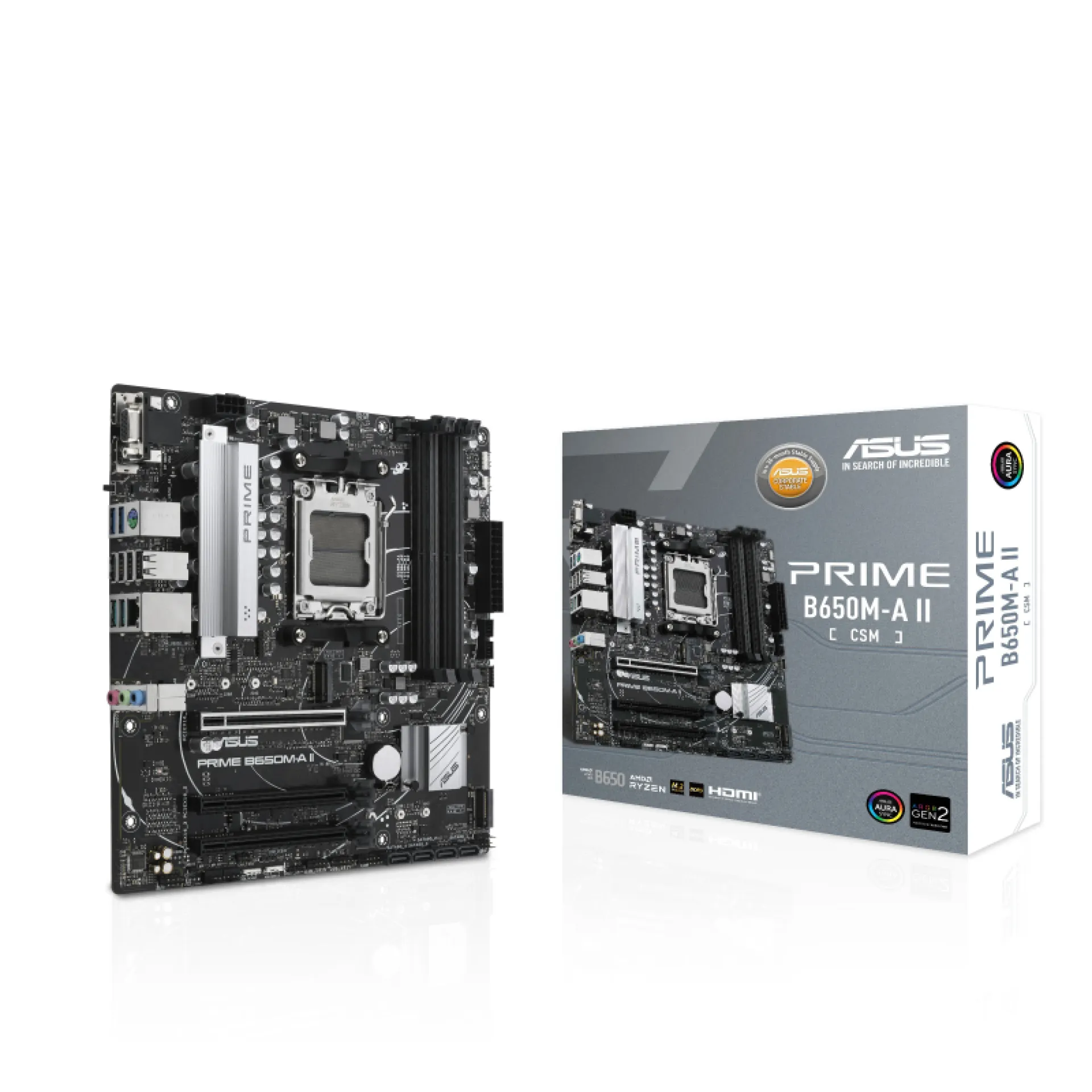

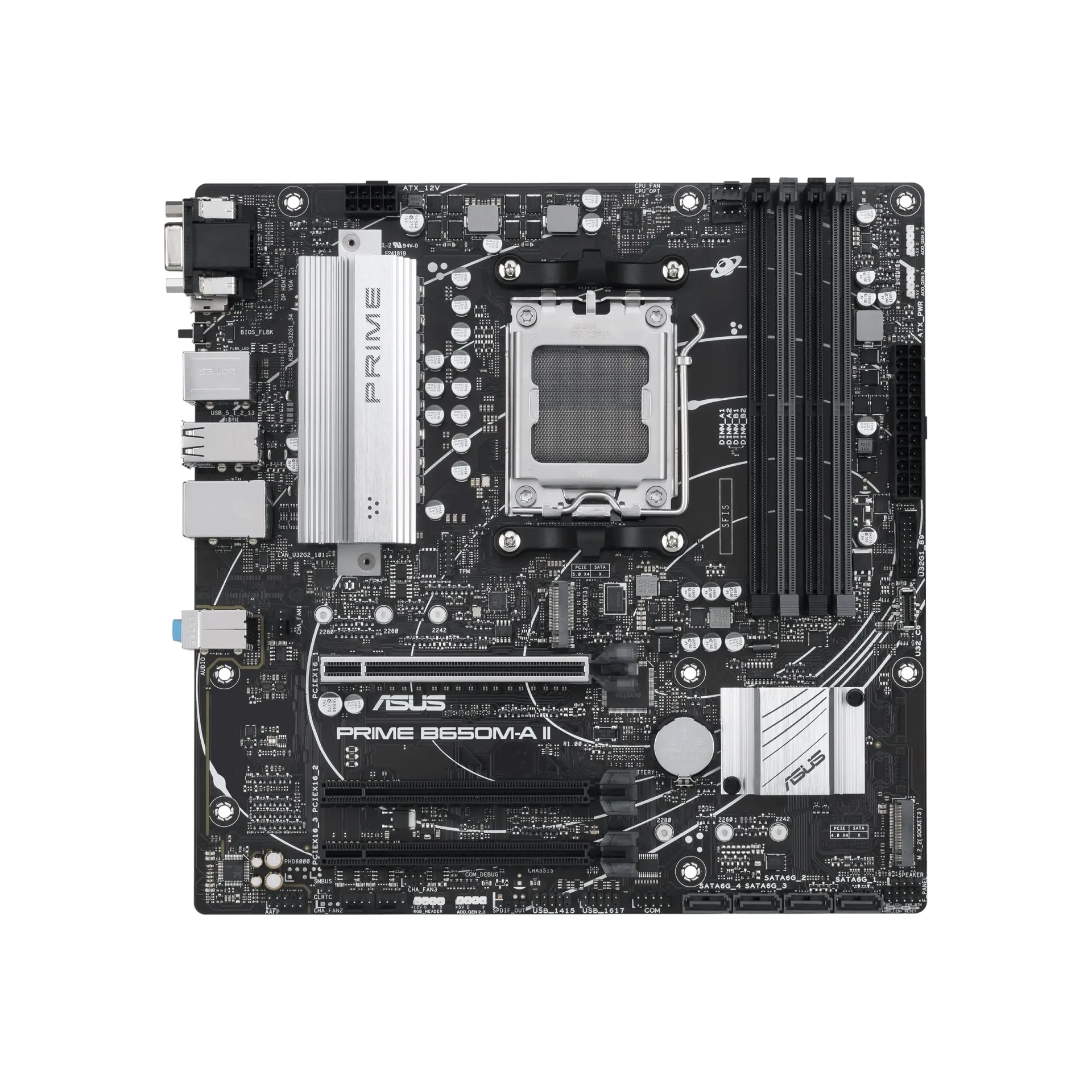

The 90MB1EH0-M0EAYC is an ASUS Prime B650M-A II-CSM Micro-ATX baseboard designed for AMD Ryzen AM5 deployments where compact density must still support modern DDR5 memory, fast PCIe storage, and predictable expansion. Built on the AMD B650 chipset, it aligns well with content creation workstations, virtualisation labs, and small services hosts that prioritise balanced I/O over GPU-heavy topologies.
For memory architecture, the 90MB1EH0-M0EAYC provides dual-channel DDR5 with 4 DIMM slots up to 192GB, supporting ECC and non-ECC operation where the platform permits, enabling more resilient builds for long-running tasks. Storage design is oriented around tiered performance: a PCIe 5.0 x4 M.2 slot for primary NVMe throughput, a second PCIe 4.0 x4 M.2 for capacity or scratch workloads, plus 4 SATA 6Gb/s ports with RAID support for mixed media sets. Expansion is delivered through a PCIe 4.0 x16 slot for a primary accelerator or high-bandwidth adapter and 2 PCIe 4.0 x1 slots for NIC, capture, or additional I/O.
Why Choose the 90MB1EH0-M0EAYC?
The 90MB1EH0-M0EAYC offers a pragmatic density-to-performance profile for SMB and edge deployments that need current-generation DDR5 and NVMe while remaining serviceable within a compact chassis. With UEFI-based firmware features such as BIOS Flashback and optional TPM support, it fits controlled rollouts where lifecycle stability, repeatable provisioning, and scalable peripheral integration matter more than out-of-band management.
ASUS engineering focuses on electrical stability, validated component design, and firmware consistency to meet modern data centre and enterprise desktop standards, enabling the 90MB1EH0-M0EAYC to serve as a dependable foundation for mixed I/O builds without unnecessary platform complexity.
Key Applications:
- Content creation workstations
- Virtualisation lab hosts
- Edge services nodes
- Mixed NVMe and SATA storage builds
- SMB file and application servers
At Happyware - Server Hardware you benefit from non-binding offers tailored to your bill of materials for 90MB1EH0-M0EAYC-based builds, with the option to extend warranty coverage up to 6 years to protect long-lived workstation and edge deployments.
Technical details of 90MB1EH0-M0EAYC
How long is the Warranty and how you can get technical support for 90MB1EH0-M0EAYC
| Warranty: | 36 months (part) |
|---|---|
| On site service: | yes |
| RMA Url: | https://www.asus.com/support/warranty-status-inquiry |
| Description: | In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in. |
| Support Portal: | https://support.happyware.com |
|---|
