90MB1C00-M0EAY0 ASUS Micro-ATX Single AM5 4 DIMM Slots Mainboard

Get extra volume discount for 90MB1C00-M0EAY0 and save cash:

Quantity	Unit price
To 9	€347.00
To 19	€330.00 €347.00 (4.9% saved)
To 49	€323.00 €347.00 (6.92% saved)
From 50	€313.00 €347.00 (9.8% saved)

Product line:

Prime

See other ASUS products

€347.00

In stock

Happyware Article Number:

SH9M5667-325948

Manufacturer Number:

90MB1C00-M0EAY0

Brand:

ASUS

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

90MB1C00-M0EAY0

Micro-ATX AM5 Business Motherboard Platform with DDR5 and PCIe 5.0 NVMe, built on the 90MB1C00-M0EAY0

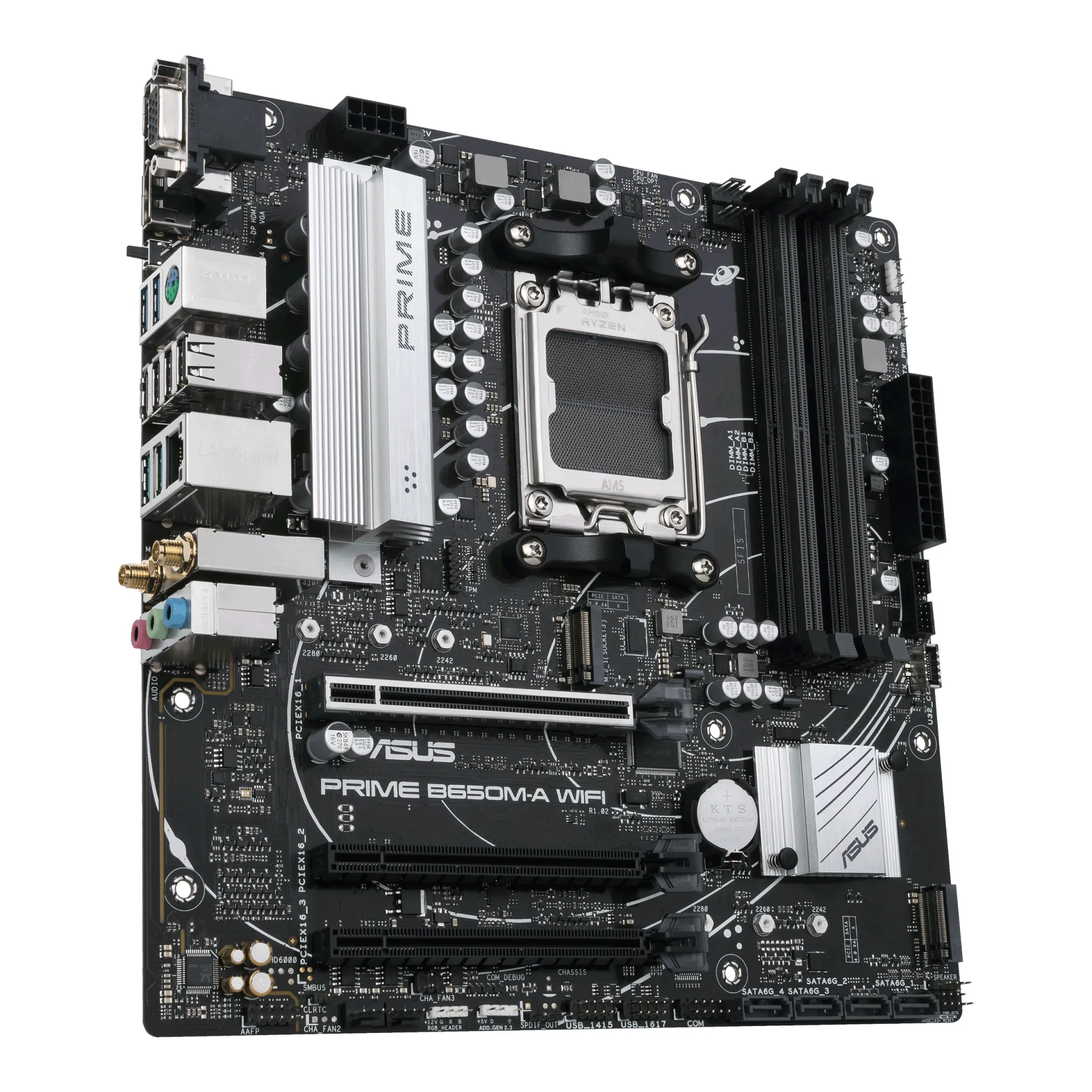

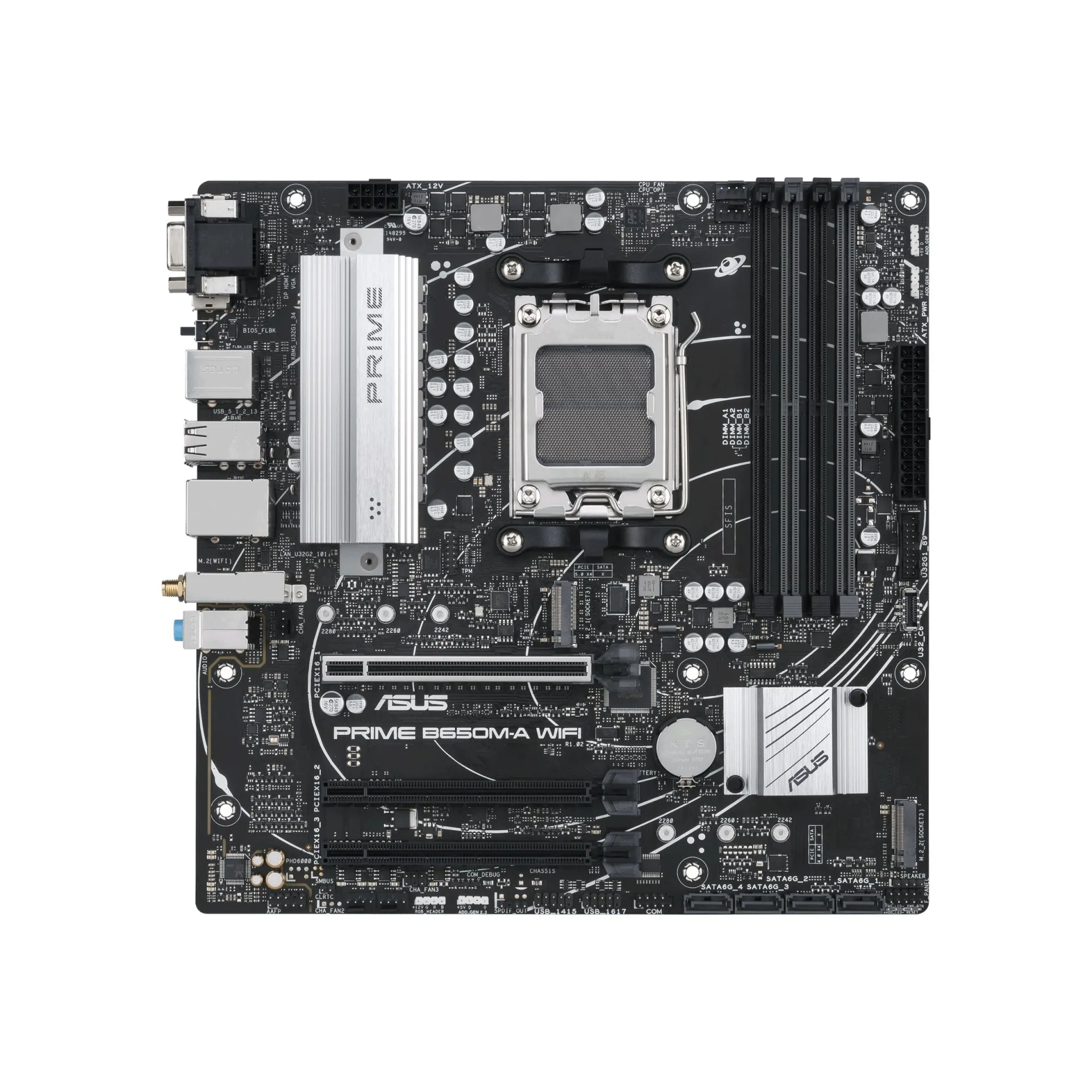

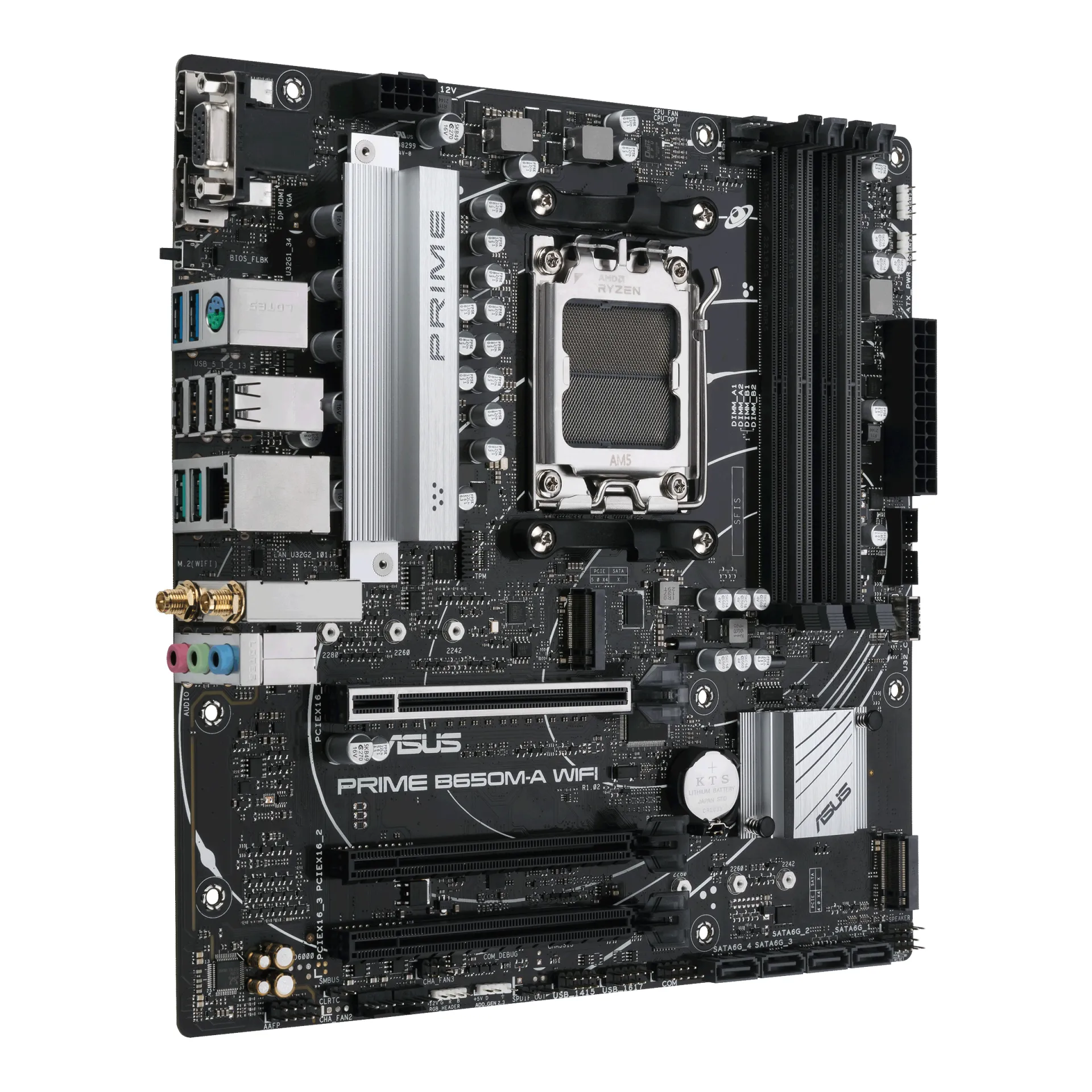

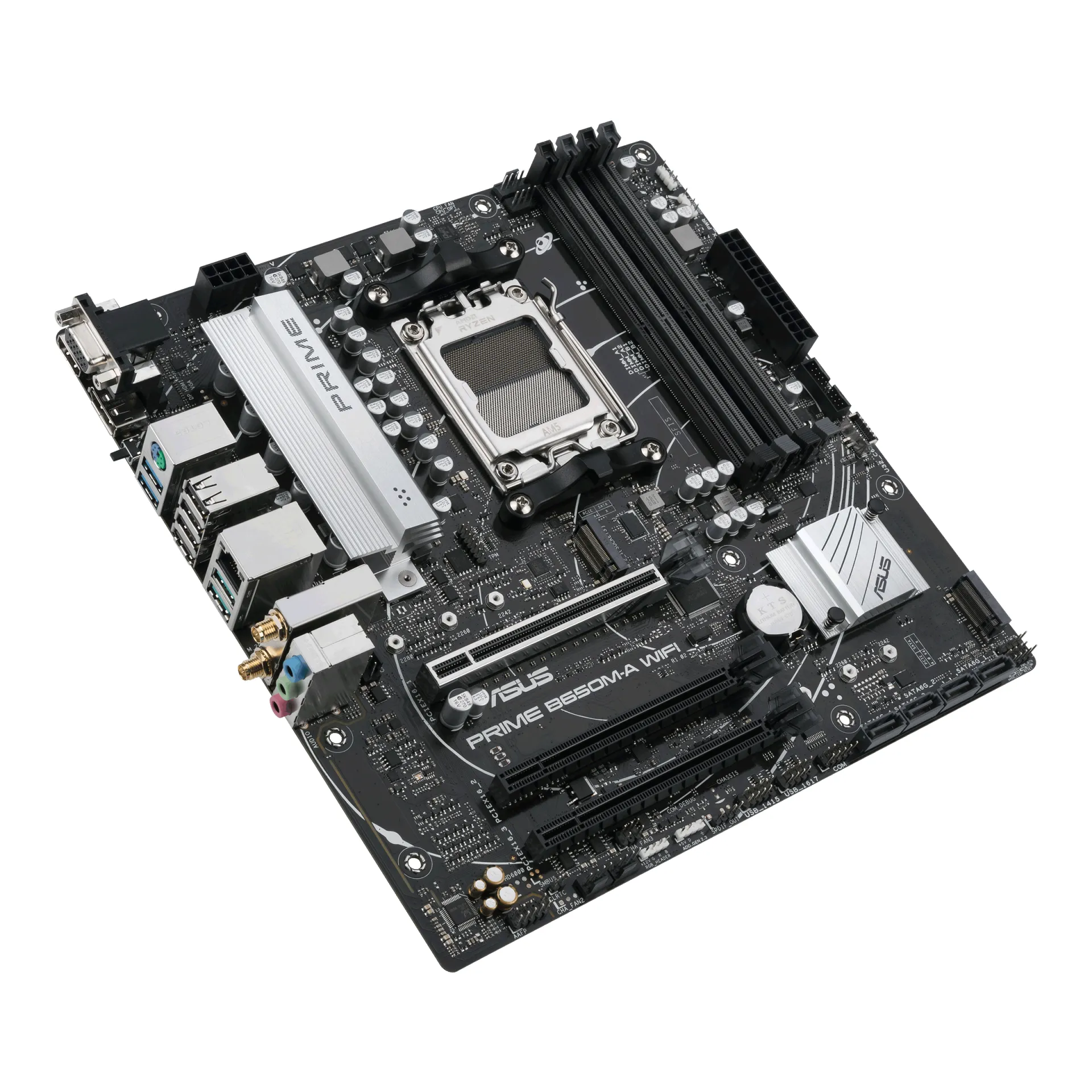

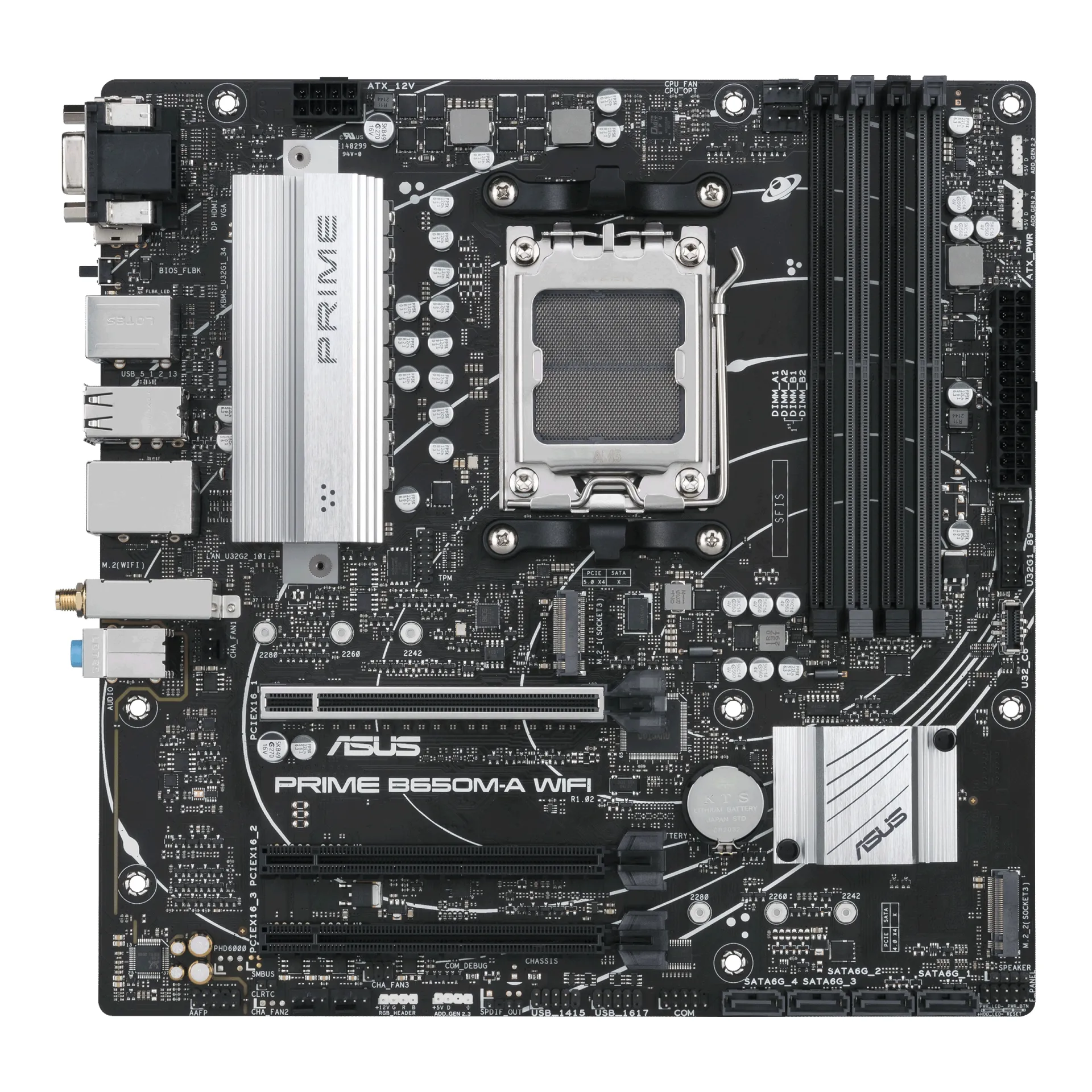

The 90MB1C00-M0EAY0 is an ASUS Prime B650M-A WIFI Micro-ATX motherboard designed for AMD Ryzen processors on the AM5 (LGA1718) platform, targeting dependable workstation and compact systems where balanced I/O and upgrade headroom matter. Its DDR5 dual-channel memory architecture supports up to 128GB across 4 DIMM slots, with ECC and non-ECC operation depending on CPU and platform enablement, aligning well with long-running productivity and content workflows.

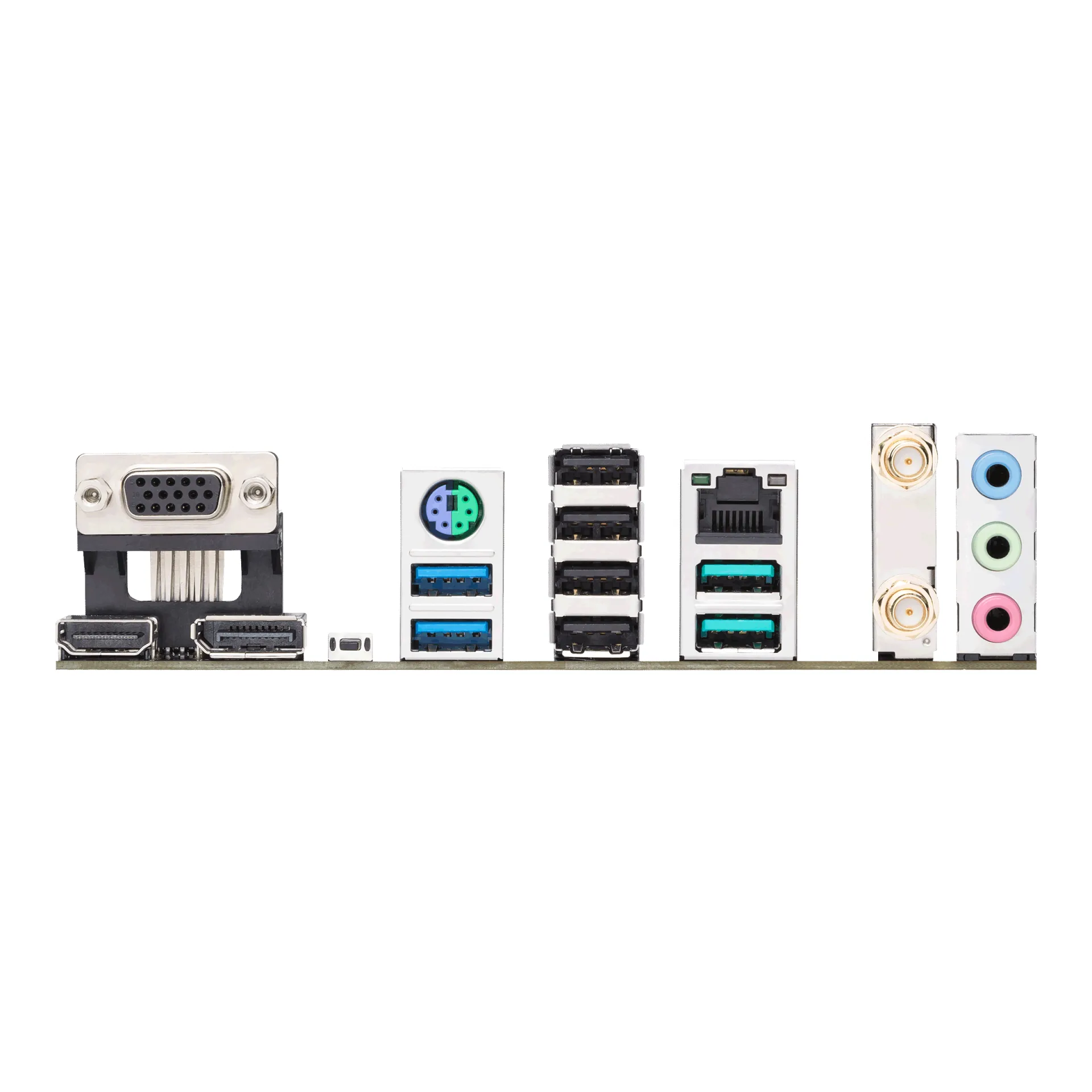

For storage and expansion, the 90MB1C00-M0EAY0 provides a tiered PCIe topology: one M.2 PCIe 5.0 x4 slot for next-generation NVMe throughput and a second M.2 PCIe 4.0 x4 slot for scalable secondary flash, complemented by 4 SATA 6Gb/s ports for capacity-focused SSD or HDD pools. Integrated connectivity combines 2.5GbE (Realtek RTL8125BG) with Wi‑Fi 6 and Bluetooth 5.3, supporting flexible edge, lab, and office deployments. Display outputs (HDMI 2.1, DisplayPort 1.4, VGA) enable iGPU-driven systems without discrete GPUs, and USB provisioning includes rear USB 3.2 Gen2 plus an internal USB 3.2 Gen1 Type-C header for modern front-panel integration.

Why Choose the 90MB1C00-M0EAY0?

The 90MB1C00-M0EAY0 delivers a practical density-to-performance ratio for Micro-ATX builds, pairing AM5 compute scalability with contemporary storage bandwidth and enterprise-relevant controls such as firmware TPM support and RAID capabilities. It is well suited for standardized rollouts where predictable I/O, multi-drive flexibility, and straightforward serviceability are required, while accepting that remote OOB management is not provided due to the absence of IPMI/BMC.

ASUS engineering emphasizes platform stability, validated component selection, and firmware maturity to align with modern data centre and lab standards, supporting consistent behavior across lifecycle refreshes and controlled configuration baselines.

Key Applications:

General productivity workstations
Content creation and media editing
Small form factor office PCs
Edge development and test benches
Local virtualisation labs

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment requirements and an extended warranty up to 6 years to protect long-lived 90MB1C00-M0EAY0 platform investments.

Technical details of 90MB1C00-M0EAY0

CPU Socket: AM5

Onboard Memory: No

RAID Support: Yes

CPU Manufacturer: AMD

CPU Supported Type: Ryzen

Form Factor: Micro-ATX

Chipset: AMD B650

RAM Maximum Capacity: 128GB

Max RAM Frequency : 5600MHz

RAM Slots: 4 DIMM DDR5

RAM Channels: Dual-Channel

M.2 Slots: 1 CNVi M.2 2230 E-Key, 1 PCIe 4.0 M.2 2280, M.2 2260, M.2 2242 M-Key, 1 PCIe 5.0 M.2 2280, M.2 2260, M.2 2242 M-Key

ECC Support: ECC, Non-ECC

Onboard Network: Ethernet

Onboard CPU: No

RAID Support: Yes

Onboard Graphic: Yes

Video Output: 1x DisplayPort 1.4, 1x HDMI 2.1, 1x VGA

USB Ports: 1x USB 3.2 Gen 1 Type-C, 2x USB 3.2 Gen 1 Type-A, 2x USB 3.2 Gen 2 Type-A, 4x USB 2.0 Type-A

Other Ports: 1x PS/2 Combo, 1x RJ-45 (2.5GBase-T, Realtek RTL8125BG), 1x serial, 1x S/PDIF-Header, 1x Speaker-Header, 1x TPM Header, 2x Antennenanschluss Quick Connect, 3x 3.5mm Klinke (Realtek ALC897)

Trusted Platform Module (TPM): Yes

BIOS: AMI UEFI

Wi-Fi Support: Wi-Fi 6 (802.11ax)

Bluetooth integrated: 5.3

Onboard Audio Chipset: Realtek ALC897

How long is the Warranty and how you can get technical support for 90MB1C00-M0EAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
