90MB14V0-M0EAY0

Micro-ATX AM4 Motherboard Architecture for Compact Workstations and Lab Nodes with the 90MB14V0-M0EAY0

The 90MB14V0-M0EAY0 is an ASUS Prime B550M-K Micro-ATX motherboard built around the AMD B550 chipset to deliver a balanced AM4 platform for SMB workstations, entry lab servers, and space-constrained edge deployments. It supports Ryzen-family CPUs, enabling a practical mix of core count, clock performance, and platform longevity for general productivity, light content creation, and virtualization testbeds.

With the 90MB14V0-M0EAY0, the memory subsystem is designed for predictable throughput via dual-channel DDR4 across 4 DIMM slots up to 128GB, with ECC and non-ECC support depending on the installed CPU. PCIe lane allocation is optimized for modern I/O: a PCIe 4.0 x16 slot for GPU or accelerator-class expansion, plus PCIe 3.0 x1 slots for NICs, capture, or controller cards. Storage architecture combines 2x M.2 (one PCIe 4.0 x4/SATA up to 22110 and one PCIe 3.0 x4/SATA) with 4x SATA 6Gb/s, aligning well with software RAID NAS builds and mixed SSD/HDD tiers.

Why Choose the 90MB14V0-M0EAY0?

The 90MB14V0-M0EAY0 targets high utility per rack unit or per branch enclosure by concentrating PCIe 4.0, dual M.2, and flexible display outputs into a Micro-ATX footprint. This supports reliable rollouts where density-to-performance, straightforward servicing, and scalable add-in expansion are required without moving to a larger chassis class.

ASUS engineering prioritizes stable power delivery, mature UEFI management, and broad component validation to align with modern data centre and edge standards. Features such as RAID support and EZ Flash 3 streamline lifecycle maintenance and reduce operational friction across distributed fleets based on the 90MB14V0-M0EAY0.

Key Applications:

SMB productivity workstations
Light content creation
Virtualization lab testbeds
Software RAID NAS builds
Edge and branch Micro-ATX systems

At Happyware - Server Hardware you benefit from non-binding offers tailored to your configuration goals for the 90MB14V0-M0EAY0, and an extended warranty up to 6 years to protect long-term platform availability in enterprise deployments.

Technical details of 90MB14V0-M0EAY0

CPU Socket:

AM4

RAID Support:

Yes

CPU Manufacturer:

AMD

CPU Supported Type:

Ryzen

Form Factor:

Micro-ATX

Chipset:

AMD B550

RAM Maximum Capacity:

128GB

Max RAM Frequency :

4866MHz

RAM Slots:

4 DIMM DDR4

RAM Channels:

Dual-Channel

PCIe Slots:

1 PCIe 4.0 x16 2 PCIe 3.0 x1

M.2 Slots:

1 PCIe 3.0 x4/SATA M.2 2280/2260/2242 M-Key 1 PCIe 4.0 x4/SATA M.2 2260, M.2 2280, M.2 2242, M.2 22110 M-Key

Network Ports:

1 RJ45 1 Gbps

ECC Support:

ECC Non-ECC

Onboard Network:

Ethernet

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

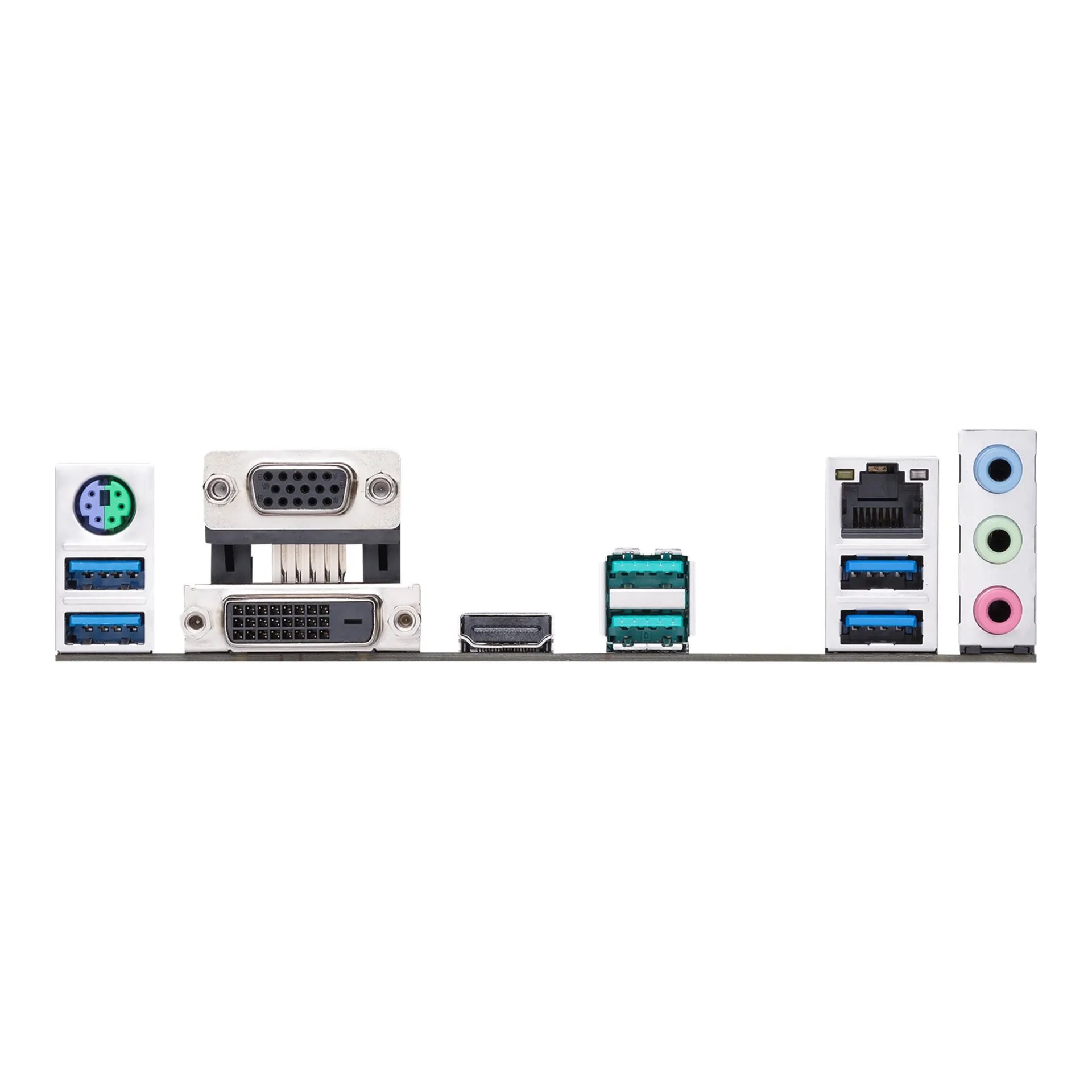

1x DVI-D 1x HDMI 2.1 1x VGA

USB Ports:

2x USB 3.2 Gen 1 Header 2x USB 3.2 Gen 2 ports 4x USB 2.0 header 4x USB 3.2 Gen 1 ports

Other Ports:

1x PS/2 Combo 3x 3.5mm Klinke (Realtek ALC887) 1x RJ-45 LAN Port

BIOS:

AMI UEFI

Wi-Fi Support:

None

Onboard Audio Chipset:

Realtek ALC887

Embedded:

How long is the Warranty and how you can get technical support for 90MB14V0-M0EAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
