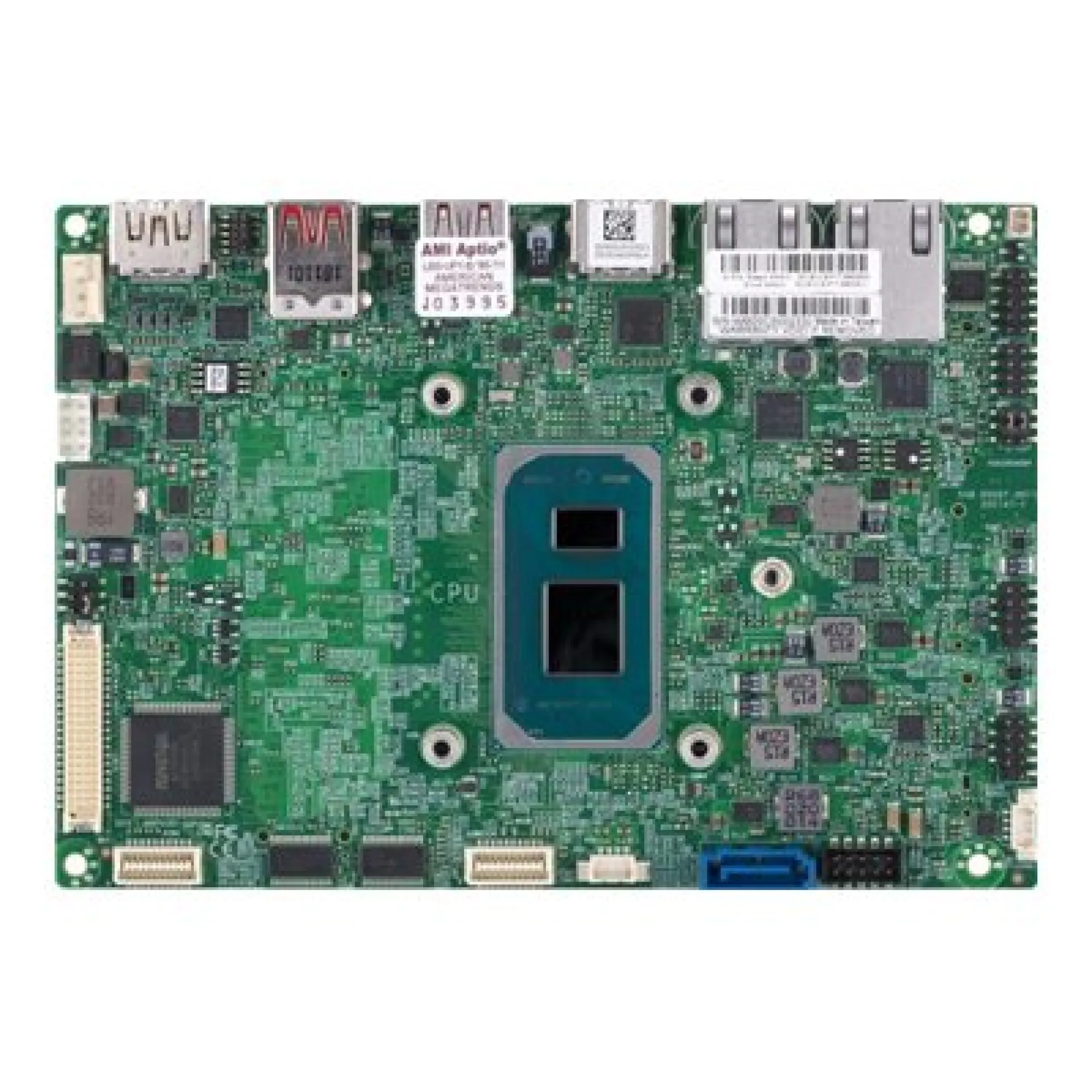

MBD-X12STN-C-WOHS-B Supermicro 3.5" SBC Single FCBGA1449 2 SO-DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X12STN-C-WOHS-B and save cash:

Quantity	Unit price
To 9	€321.00
To 19	€306.00 €321.00 (4.67% saved)
To 49	€299.00 €321.00 (6.85% saved)
From 50	€290.00 €321.00 (9.66% saved)

Product line:

X13

See all Embedded Motherboard

See other Supermicro products

€321.00

Out of stock

Not available

Happyware Article Number:

SH8M1879-647760

Manufacturer Number:

MBD-X12STN-C-WOHS-B

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X12STN-C-WOHS-B

Embedded 3.5” SBC edge server motherboard enabling low-power Intel SoC compute with the MBD-X12STN-C-WOHS-B

The MBD-X12STN-C-WOHS-B is a compact Supermicro 3.5” SBC engineered for embedded and edge deployments requiring deterministic I/O, low thermal load, and integrated graphics on a single-socket Intel Celeron-class SoC platform (15W TDP). Its integrated CPU/GPU design simplifies BOM and reduces platform complexity for IoT gateways, control systems, and small service nodes where space, power budget, and long uptime are primary constraints.

To sustain responsive multitasking, the MBD-X12STN-C-WOHS-B provides dual DDR4 SO-DIMM channels up to 64GB at 3200 MT/s for light virtualization, containerized services, and telemetry aggregation. PCIe is allocated where it matters most in small footprints: an M.2 M-Key slot with PCIe 4.0 x4 for high-throughput NVMe, complemented by additional M.2 B-Key and E-Key options to integrate cellular/Wi-Fi modules or auxiliary storage, plus SATA III for boot or bulk media. Dual 2.5GbE (Intel I225-IT) enables segmented edge networking, while DisplayPort and dual HDMI outputs support local HMI, digital signage, or KVM-free commissioning.

Why Choose the MBD-X12STN-C-WOHS-B?

The MBD-X12STN-C-WOHS-B is optimized for density-to-performance in fanless or constrained enclosures, with a 0–85°C operating profile and +12–24V DC input that aligns to industrial power domains. Because the MBD-X12STN-C-WOHS-B is supplied without a heatsink, it supports purpose-built thermal engineering for sealed systems, conduction plates, or chassis-integrated cooling, improving deployment consistency across sites.

Supermicro’s embedded engineering emphasizes stable firmware (AMI UEFI BIOS), enterprise-grade component selection, and platform features such as TPM header support to align with modern security baselines and lifecycle-managed edge infrastructure.

Key Applications:

IoT gateways and protocol translation
Industrial control and HMI nodes
Light virtualization and container hosts
Network security appliances
Remote monitoring and telemetry aggregation

At Happyware - Server Hardware you benefit from non-binding offers tailored to your project scope for the MBD-X12STN-C-WOHS-B and an extended warranty option up to 6 years, supporting predictable lifecycle planning for distributed edge rollouts.

Technical details of MBD-X12STN-C-WOHS-B

CPU Socket: FCBGA1449

Onboard Memory: No

RAID Support: No

CPU Manufacturer: Intel

CPU Supported Type: Celeron

Form Factor: 3.5" SBC

Chipset: System-on-Chip (SoC)

RAM Maximum Capacity: 64GB

Max RAM Frequency : 3200MHz

RAM Slots: 2 SO-DIMM DDR4

M.2 Slots: 1 CNVi/PCIe 3.0 x1/USB 2.0 M.2 2230 E-Key, 1 PCIe 4.0 x4 M.2 2242, M.2 2280 M-Key, 1 USB 3.0/USB 2.0/SATA/PCIe 3.0 x1 M.2 2242, M.2 3042, M.2 2280 B-Key

Network Ports: 2 RJ45 2.5 Gbps

ECC Support: Non-ECC

Onboard Network: Ethernet

Suitability: Server

Onboard CPU: Yes

RAID Support: No

Onboard Graphic: Yes

Video Output: 1x DisplayPort, 1x HDMI 1.4b, 1x HDMI 2.0b

USB Ports: 3x USB 3.2 Gen 1 ports, 4x USB

Other Ports: 1x 8-bit GPIO header, 1x HD Audio header, 1x SMBus Header, 1x System Fan, 1x TPM Header, 4x COM Port, x

Trusted Platform Module (TPM): Yes

BIOS: AMI UEFI

Wi-Fi Support: None

Onboard Audio Chipset: Realtek ALC888S

Embedded: Yes

GPIO Pins: 8

Card Reader: No

How long is the Warranty and how you can get technical support for MBD-X12STN-C-WOHS-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
