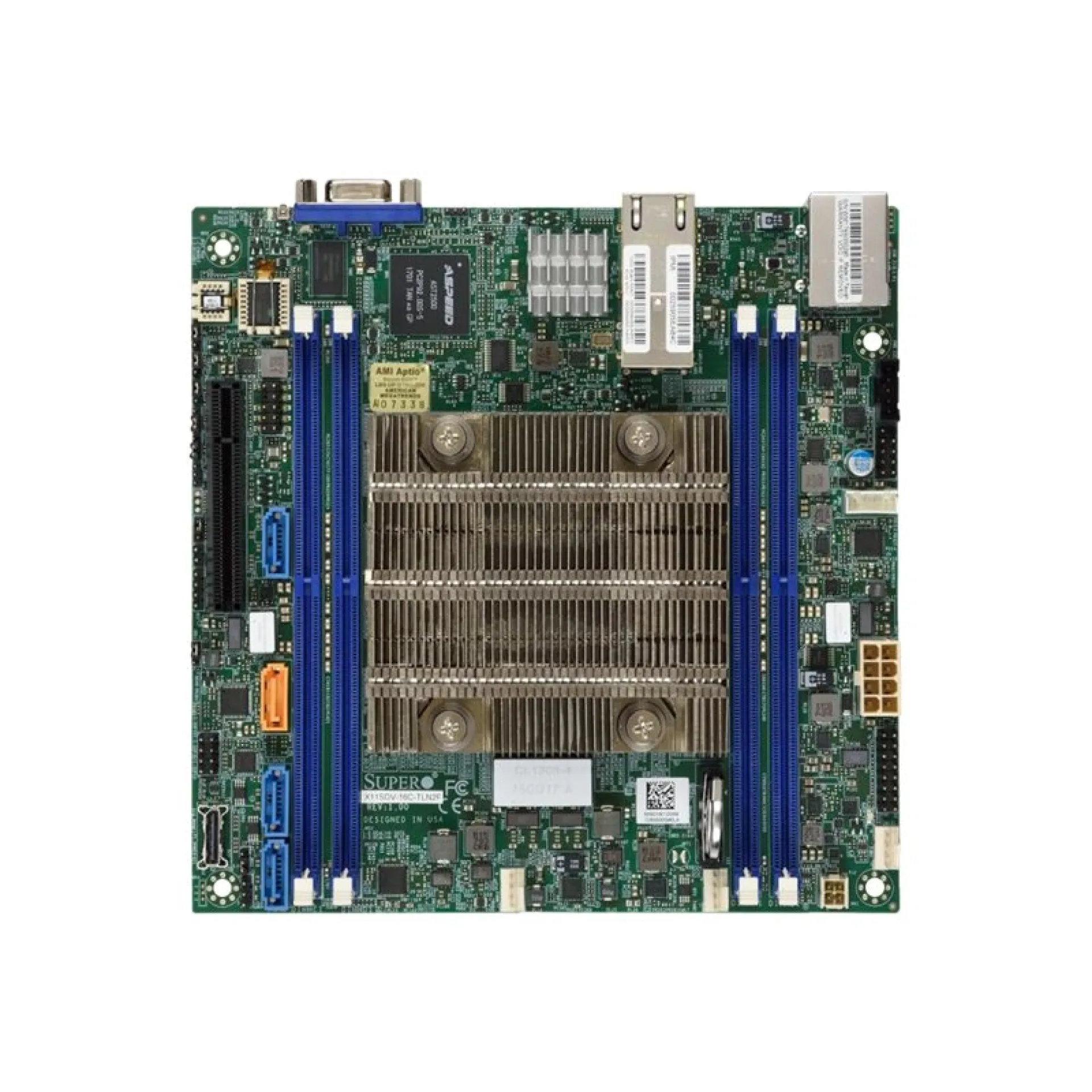

MBD-X11SDV-8C-TLN2F-O Supermicro Mini-ITX Single FCBGA2518 4 DIMM Slots Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X11SDV-8C-TLN2F-O and save cash:

Quantity	Unit price
To 4	€1,150.00
To 9	€1,116.00 €1,150.00 (2.96% saved)
To 19	€1,093.00 €1,150.00 (4.96% saved)
From 20	€1,071.00 €1,150.00 (6.87% saved)

Product line:

X11

See all Single CPU (UP) Motherboards

See other Supermicro products

€1,150.00

Out of stock

Not available

Happyware Article Number:

SH2M7182-306916

Manufacturer Number:

MBD-X11SDV-8C-TLN2F-O

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X11SDV-8C-TLN2F-O

High-Density Mini-ITX Embedded Server Motherboard for edge and storage nodes with the MBD-X11SDV-8C-TLN2F-O

The MBD-X11SDV-8C-TLN2F-O integrates an Intel Xeon D SoC platform on a compact Mini-ITX footprint, delivering server-class compute with a 65W thermal envelope for branch, edge, and embedded deployments where space, power, and serviceability are constrained. With the CPU and graphics onboard, the design reduces platform complexity while maintaining predictable performance for virtualized network services and security appliance roles.

For memory resiliency, the MBD-X11SDV-8C-TLN2F-O supports DDR4 ECC DIMMs across 4 slots in a quad-channel architecture up to 512GB, enabling higher VM density and stable caching behavior under sustained load. PCIe 3.0 expansion is optimized for compact chassis with 2 full-height full-length slots, suitable for NICs, HBAs, or accelerator-class I/O where deterministic throughput matters. Storage is streamlined around 8 SATA III ports for backplane-attached arrays, while dual 10GbE RJ45 via Intel X557 provides the bandwidth required for NAS/ROBO nodes and east-west traffic without external adapters. Integrated IPMI/BMC and TPM header support align with controlled remote operations and baseline platform security.

Why Choose the MBD-X11SDV-8C-TLN2F-O?

The MBD-X11SDV-8C-TLN2F-O is engineered for high functionality per cubic inch: a balanced SoC compute profile, enterprise-grade ECC memory, and dual 10GbE in a Mini-ITX form factor to simplify edge standardization. Its I/O layout supports scalable configurations—from storage-heavy SATA nodes to network-centric appliances—while IPMI-enabled management reduces hands-on intervention across distributed sites.

Supermicro focuses on pragmatic platform engineering: validated server components, lifecycle-aware firmware practices, and compatibility with modern data center operational models. With AMI UEFI BIOS, RAID support, and integrated management, the platform is designed for predictable provisioning, monitoring, and controlled maintenance windows.

Key Applications:

Virtualized network services
Security appliances
Edge/branch compute nodes
NAS/ROBO storage
Industrial embedded servers

At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment plans for the MBD-X11SDV-8C-TLN2F-O, plus extended warranty options up to 6 years to protect long-lived edge and storage rollouts.

Technical details of MBD-X11SDV-8C-TLN2F-O

CPU Socket: FCBGA2518

Onboard Memory: No

RAID Support: Yes

CPU Manufacturer: Intel

CPU Supported Type: Xeon D

Form Factor: Mini-ITX

Chipset: System-on-Chip (SoC)

RAM Maximum Capacity: 512GB

Max RAM Frequency : 2133MHz

RAM Slots: 4 DIMM DDR4

RAM Channels: Quad-Channel

PCIe Slots: 1 PCIe 3.0 x4, 1 PCIe 3.0 x8

Network Ports: 2 RJ45 10 Gbps

ECC Support: ECC

Onboard Network: Ethernet

Onboard CPU: Yes

RAID Support: Yes

Onboard Graphic: Yes

Video Output: 1x VGA

USB Ports: 2x USB 2.0 Type-A, 2x USB 3.0 Type-A

Other Ports: 1x BMC Header, 1x Chassis Intrusion Header, 1x TPM Header

Trusted Platform Module (TPM): Yes

BIOS: AMI UEFI

Wi-Fi Support: None

Bluetooth integrated: None

Onboard Audio Chipset: No

Embedded: Yes

Card Reader: No

How long is the Warranty and how you can get technical support for MBD-X11SDV-8C-TLN2F-O

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
