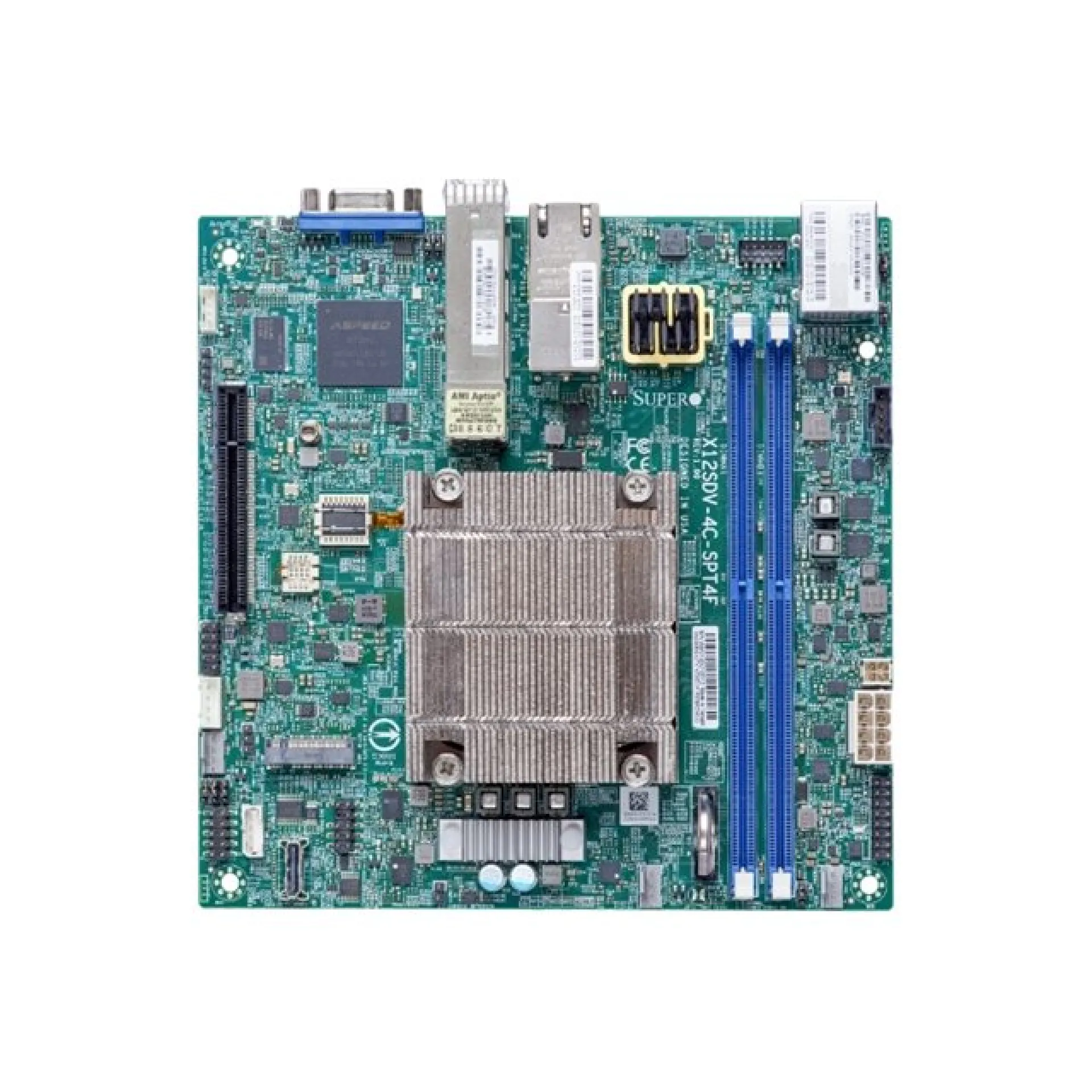

MBD-X12SDV-4C-SPT4F-O Supermicro Mini-ITX Single FCBGA2227 2 DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X12SDV-4C-SPT4F-O and save cash:

Quantity	Unit price
To 4	€958.00
To 9	€930.00 €958.00 (2.92% saved)
To 19	€911.00 €958.00 (4.91% saved)
From 20	€892.00 €958.00 (6.89% saved)

Product line:

X13

See all Embedded Motherboard

See other Supermicro products

€958.00

Out of stock

Not available

Happyware Article Number:

SH1M9214-919834

Manufacturer Number:

MBD-X12SDV-4C-SPT4F-O

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X12SDV-4C-SPT4F-O

Mini-ITX embedded server motherboard enabling edge networking density with the MBD-X12SDV-4C-SPT4F-O

The MBD-X12SDV-4C-SPT4F-O integrates an onboard Intel Xeon D SoC to deliver a compact, low-power platform engineered for always-on edge compute and network-centric appliances. By combining CPU, I/O, and high-speed Ethernet on a Mini-ITX footprint, it reduces external controllers and simplifies thermal and power design in dense deployments.

For memory, the MBD-X12SDV-4C-SPT4F-O provides 2 DDR4 DIMM slots supporting ECC and up to 128GB, aligning well with virtualization nodes and microservices that require predictable error handling. Expansion and storage are designed around PCIe Gen4 where it matters: a PCIe 4.0 x8 slot supports high-throughput accelerators or NICs, while hybrid storage connectivity spans 4 SATA ports, 4 NVMe ports, and an M.2 2280 (M-Key) interface supporting PCIe 4.0 x4 or SATA for flexible boot and cache tiers. Integrated networking combines 2x 25GbE SFP28 and 2x 10GbE RJ45, enabling high fan-out edge aggregation or service chaining without add-in cards.

Why Choose the MBD-X12SDV-4C-SPT4F-O?

The MBD-X12SDV-4C-SPT4F-O is optimized for high I/O per liter, delivering 25GbE-class connectivity, PCIe Gen4 expansion, and NVMe/SATA scalability in a single embedded board. This density-to-performance profile supports standardized ROBO rollouts, minimizes cabling and component variance, and improves reliability through integrated management and security primitives suitable for remote operations.

Supermicro designs embedded server platforms with an emphasis on lifecycle stability, validated enterprise components, and management features aligned with modern data center and edge standards. Integrated IPMI/BMC with AST2600 graphics and TPM support help streamline provisioning, monitoring, and security baselines at scale.

Key Applications:

Edge compute nodes with 25GbE uplinks
ROBO virtualization and microservices
NVMe/SATA hybrid storage appliances
Network security and service chaining
Compact management and control planes

At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment and an extended warranty up to 6 years, helping you standardize on the MBD-X12SDV-4C-SPT4F-O with predictable procurement and long-term operational assurance.

Technical details of MBD-X12SDV-4C-SPT4F-O

CPU Socket: FCBGA2227

Onboard Memory: No

RAID Support: Yes

CPU Manufacturer: Intel

CPU Supported Type: Xeon D

Form Factor: Mini-ITX

Chipset: System-on-Chip (SoC)

RAM Maximum Capacity: 128GB

Max RAM Frequency : 2933MHz

RAM Slots: 2 DIMM DDR4

PCIe Slots: 1 PCIe 3.0 x4, 1 PCIe 4.0 x8

M.2 Slots: 1 PCIe 4.0 x4/SATA M.2 2280 M-Key

Network Ports: 2 RJ45 10 Gbps, 2 SFP28 25 Gbps

ECC Support: ECC, Non-ECC

Onboard Network: Ethernet

Suitability: Server

Onboard CPU: Yes

RAID Support: Yes

Onboard Graphic: Yes

Other Ports: 1x COM Port, 1x IPMI Management Port, 1x TPM Header

Trusted Platform Module (TPM): Yes

BIOS: AMI 32MB SPI Flash EEPROM

Wi-Fi Support: None

Onboard Audio Chipset: No

Embedded: Yes

GPIO Pins: 0

Card Reader: No

How long is the Warranty and how you can get technical support for MBD-X12SDV-4C-SPT4F-O

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
