E3C246D4I-2T

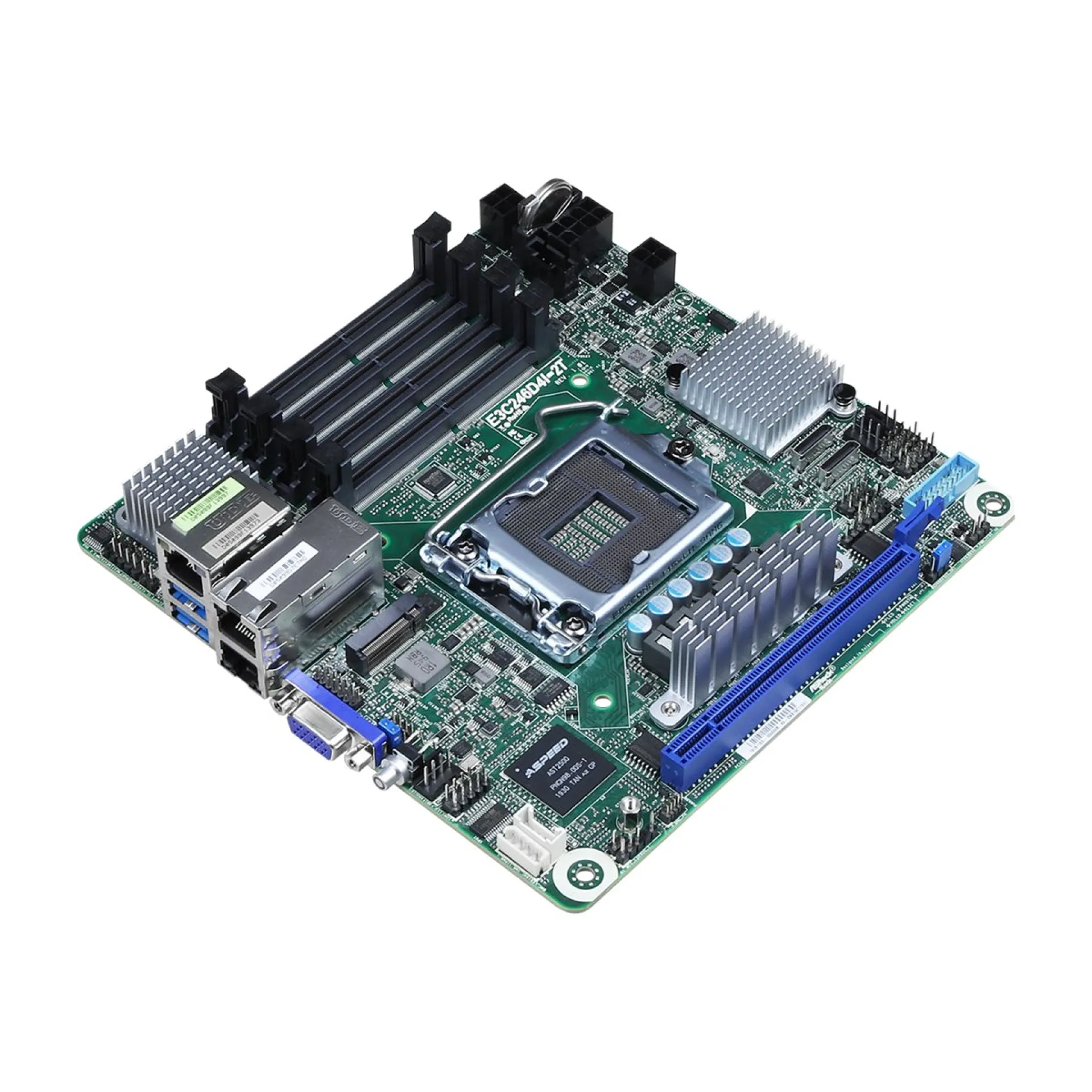

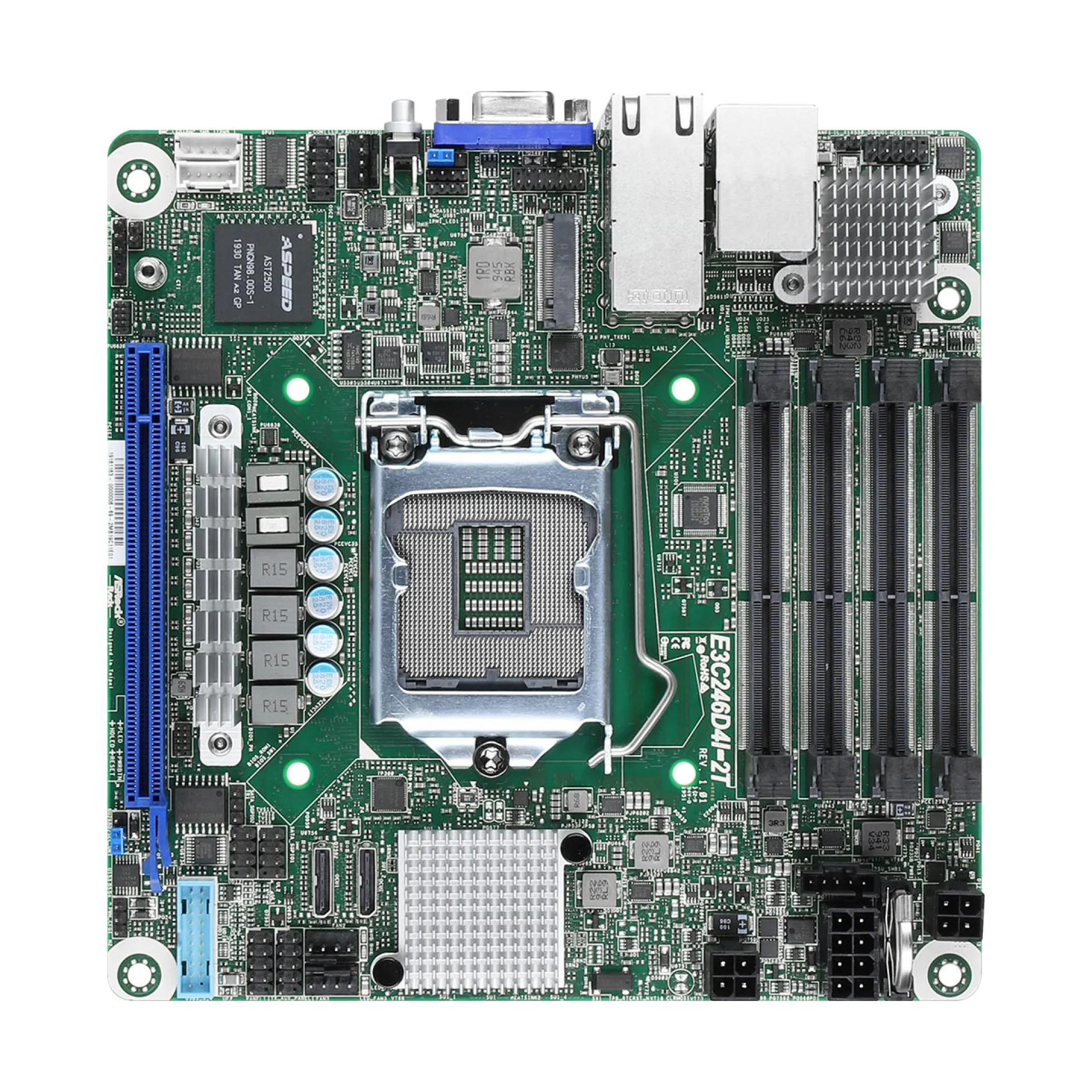

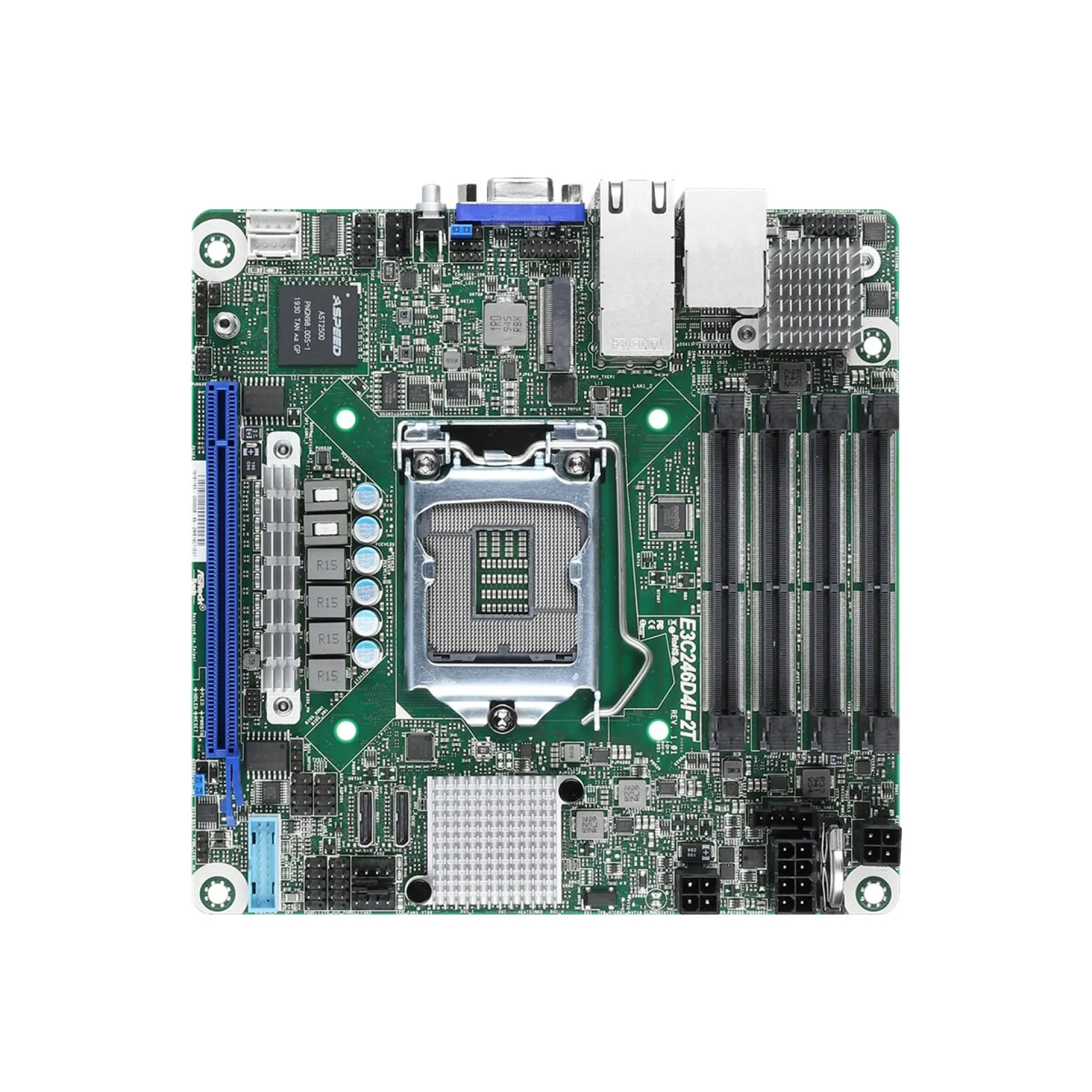

High-Density Mini-ITX Server Motherboard featuring Dual 10GbE and IPMI with the E3C246D4I-2T

The E3C246D4I-2T is a compact Intel C246 (LGA1151) server motherboard engineered for edge and branch deployments that require enterprise networking and out-of-band control in a minimal footprint. It supports Intel Xeon E processors and aligns single-socket compute with a platform tuned for service consolidation, remote operations, and predictable I/O behavior.

Memory architecture is optimized for dense, power-aware builds: 4 DDR4 SO-DIMM slots provide dual-channel bandwidth with support for ECC or non-ECC up to 128GB, enabling reliable virtualization and appliance workloads. For expansion, the E3C246D4I-2T exposes PCIe 3.0 via a full x16 slot for high-throughput NICs, accelerators, or specialized adapters, while storage design focuses on SATA-rich layouts with 8 SATA 6Gb/s ports plus an M.2 2280 (M-Key) PCIe 3.0 slot for fast boot or cache tiers. Dual Intel X550 10GbE RJ45 interfaces provide low-latency east/west connectivity, complemented by a dedicated management LAN for IPMI access.

Why Choose the E3C246D4I-2T?

The E3C246D4I-2T delivers a balanced density-to-performance profile for small chassis servers by combining 10GbE throughput, SATA-heavy storage fan-out, and integrated IPMI/BMC for lights-out operations. This architecture supports repeatable rollouts, simplifies remote remediation, and scales effectively as a standardized node for distributed sites and compact racks.

ASRock designs this platform with an enterprise engineering focus on signal integrity, stable firmware behavior, and interoperability with modern data centre practices, including dedicated management paths and optional TPM header support for security-aligned deployments.

Key Applications:

Edge and branch virtualization nodes
Firewall and router appliances with 10GbE uplinks
Compact NAS and SATA-centric SDS builds
Remote-managed infrastructure gateways

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your project requirements and an extended warranty up to 6 years, supporting predictable lifecycle planning for E3C246D4I-2T based deployments.

Technical details of E3C246D4I-2T

CPU Socket:

H4 (LGA 1151)

Onboard Memory:

RAID Support:

CPU Manufacturer:

Intel

CPU Supported Type:

Xeon E

Form Factor:

Mini-ITX

Chipset:

Intel C246

RAM Maximum Capacity:

4TB

Max RAM Frequency :

2666MHz

RAM Slots:

4 SO-DIMM DDR4

RAM Channels:

Dual-Channel

PCIe Slots:

1 PCIe 3.0 x16

M.2 Slots:

1 PCIe 3.0 M.2 2280 M-Key

Network Ports:

2 RJ45 10 Gbps

ECC Support:

ECC Non-ECC

Onboard Network:

Ethernet

Suitability:

Server

Onboard CPU:

RAID Support:

Onboard Graphic:

Yes

Video Output:

1x VGA

USB Ports:

2x USB 3.2 Gen 1 ports

Other Ports:

1x IPMI Management Port

Trusted Platform Module (TPM):

Optional

BIOS:

AMI UEFI

Wi-Fi Support:

None

Bluetooth integrated:

None

Embedded:

GPIO Pins:

Card Reader:

How long is the Warranty and how you can get technical support for E3C246D4I-2T

Warranty:	12 months (part)
RMA Url:	https://www.asrock.com/support/?cat=RMA
Description:	Items must be returned first for RMA processing. No advanced replacements.
