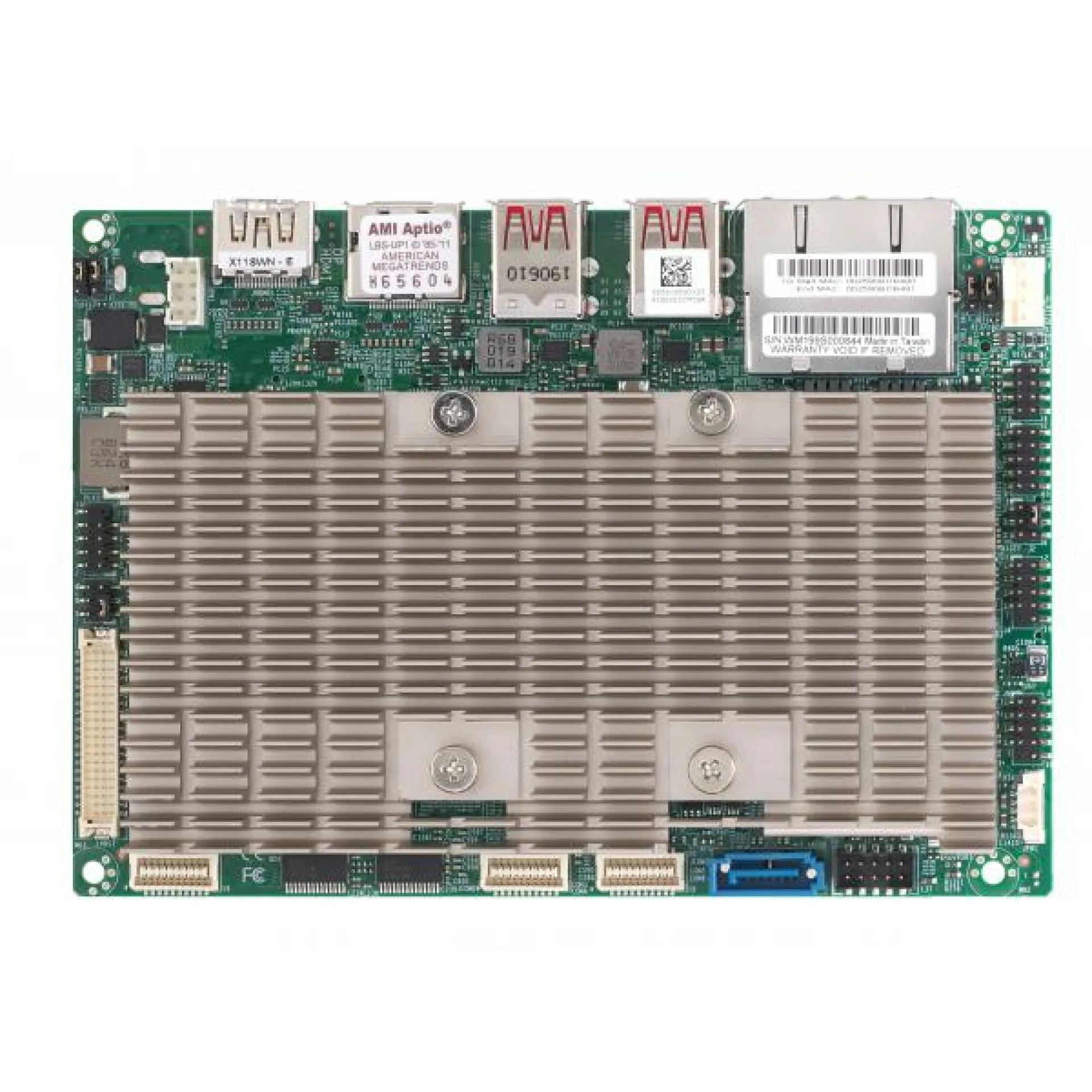

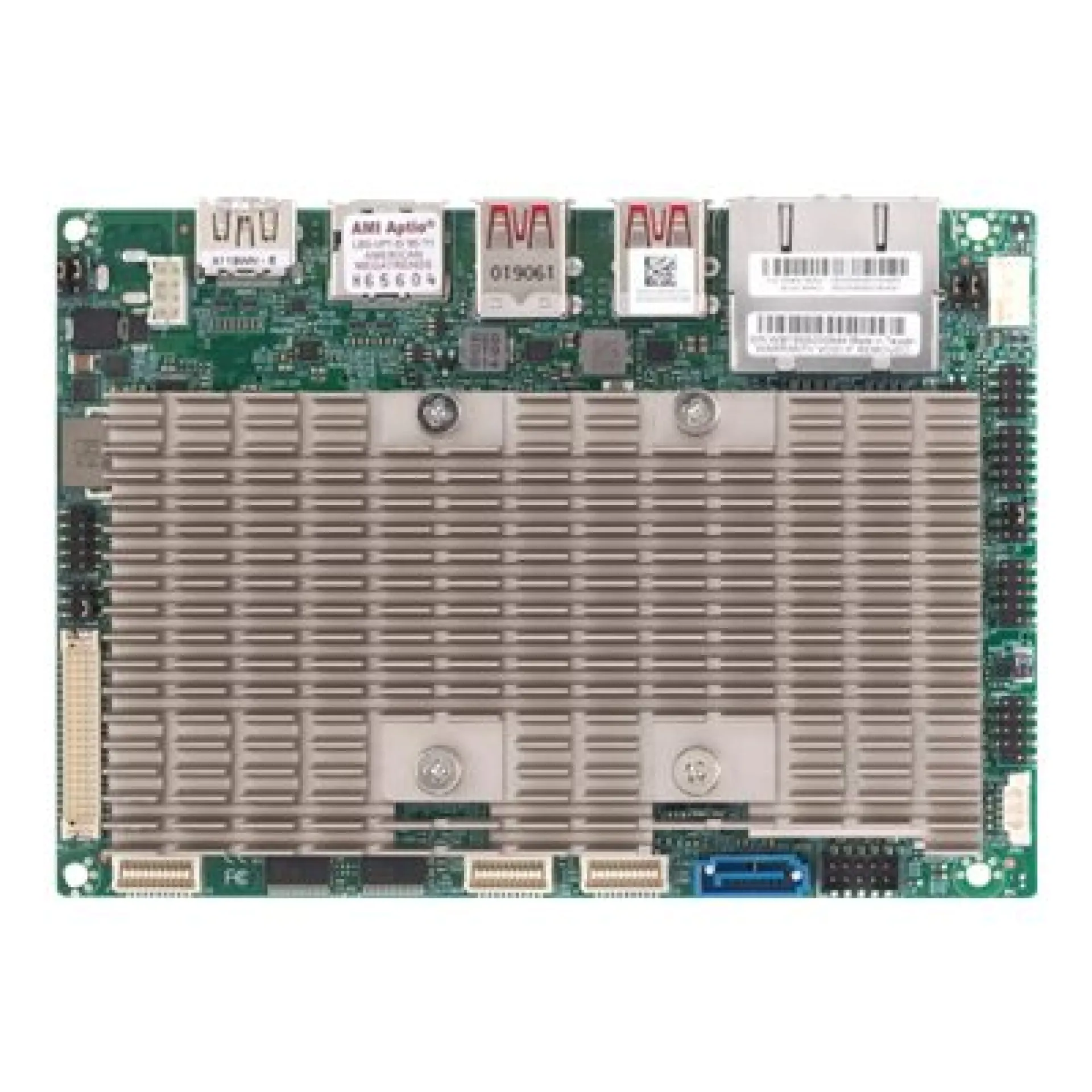

MBD-X11SWN-E-O Supermicro 3.5" SBC 2 SO-DIMM Slots Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X11SWN-E-O and save cash:

Quantity	Unit price
To 9	€673.00
To 19	€640.00 €673.00 (4.9% saved)
To 49	€627.00 €673.00 (6.84% saved)
From 50	€607.00 €673.00 (9.81% saved)

Product line:

X11

See all Motherboards

See other Supermicro products

€673.00

Out of stock

Not available

Happyware Article Number:

SH3M1758-450377

Manufacturer Number:

MBD-X11SWN-E-O

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X11SWN-E-O

High-Density 3.5" Embedded SBC Motherboard featuring Intel SoC edge graphics with the MBD-X11SWN-E-O

The MBD-X11SWN-E-O is a 3.5" embedded motherboard built on an Intel SoC platform with an onboard Core i5-class CPU and integrated graphics, designed for space-constrained edge compute and appliance deployments. With a 15W TDP envelope, the platform prioritises predictable thermal behaviour and sustained performance in sealed or low-airflow enclosures while still supporting multi-display output over HDMI, DisplayPort, and LVDS.

MBD-X11SWN-E-O uses dual-channel DDR4 SO-DIMM memory with 2 slots for up to 64GB, enabling responsive HMI stacks, lightweight virtualisation, and cache-heavy gateway services. Expansion and storage are optimised around PCIe 3.0 through an M.2 M-Key (x4) for NVMe-class media and an M.2 B-Key for SATA/USB-based devices, complemented by a SATA III 6Gb/s port for robust OS or logging configurations. Dual 1GbE RJ45 interfaces provide straightforward segmentation for WAN/LAN, OT/IT, or management/data plane separation without a discrete NIC.

Why Choose the MBD-X11SWN-E-O?

The MBD-X11SWN-E-O delivers a balanced density-to-performance profile for embedded fleets where board-level integration reduces cabling, power overhead, and failure points. Its M.2-centric I/O model scales cleanly from kiosks to branch appliances, while TPM support and UEFI firmware provide an enterprise-aligned foundation for secure boot workflows and consistent provisioning across sites.

Supermicro engineering focuses on long-life embedded stability, conservative component selection, and interoperability with modern data centre and edge standards, making MBD-X11SWN-E-O a dependable baseboard for controlled, repeatable deployments across temperature-variable environments.

Key Applications:

Digital signage players
Retail and branch systems
Industrial HMIs and kiosks
Lightweight firewall and router appliances
IoT and edge gateways

At Happyware - Server Hardware you benefit from non-binding offers tailored to your rollout quantities and configuration targets for the MBD-X11SWN-E-O, helping you standardise procurement for embedded programs. For long-lived installations, an extended warranty of up to 6 years can be added to protect lifecycle budgets and operational continuity.

Technical details of MBD-X11SWN-E-O

Onboard Memory:

CPU Manufacturer:

Intel

CPU Supported Type:

Core i5

Form Factor:

3.5" SBC

Chipset:

System-on-Chip (SoC)

RAM Maximum Capacity:

64GB

Max RAM Frequency :

2400MHz

RAM Slots:

2 SO-DIMM DDR4

RAM Channels:

Dual-Channel

M.2 Slots:

1 CNVi/PCIe 3.0 x1/USB 2.0 M.2 2230 E-Key 1 PCIe 3.0 x4 M.2 2242/2280 M-Key 1 USB 3.0/SATA M.2 2242/3042/2280 B-Key

Network Ports:

2 RJ45 1 Gbps

ECC Support:

Non-ECC

Onboard Network:

Ethernet

Onboard CPU:

Yes

Onboard Graphic:

Yes

Video Output:

1x LVDS 1x DisplayPort 1x HDMI

USB Ports:

4x USB 2.0 header 4x USB 3.1 Gen2 Type-A

Other Ports:

1x GPIO - header 1x Audio Port 1x SMBus Header

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Wi-Fi Support:

None

Onboard Audio Chipset:

Realtek ALC888S

Embedded:

Yes

GPIO Pins:

How long is the Warranty and how you can get technical support for MBD-X11SWN-E-O

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
