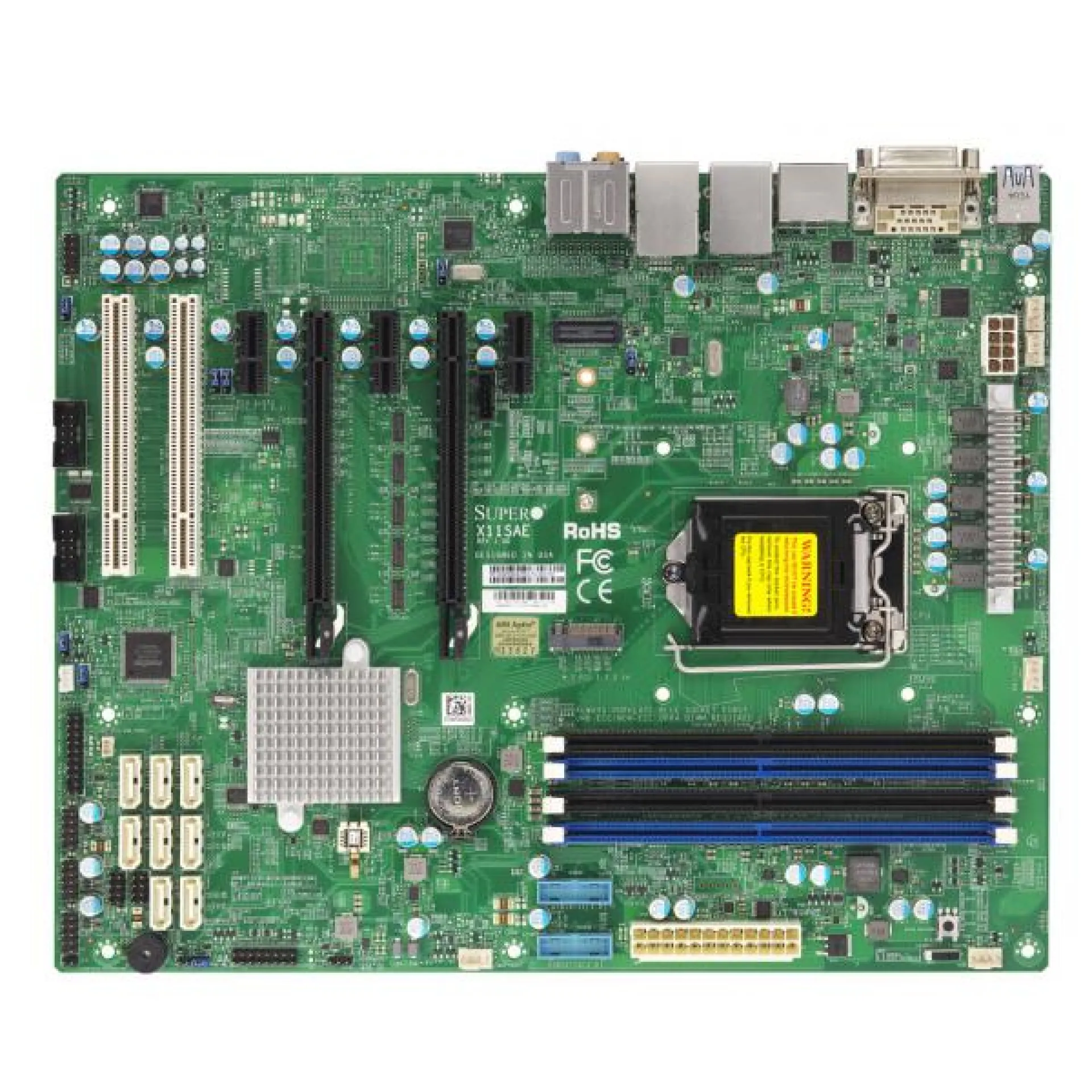

MBD-X11SAE-O Supermicro ATX Single H4 (LGA 1151) 4 DIMM Slots Embedded Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X11SAE-O and save cash:

Quantity	Unit price
To 9	€324.00
To 19	€308.00 €324.00 (4.94% saved)
To 49	€302.00 €324.00 (6.79% saved)
From 50	€292.00 €324.00 (9.88% saved)

Product line:

X11

See all Single CPU (UP) Motherboards

See other Supermicro products

€324.00

In stock

Happyware Article Number:

SH0M3707-288889

Manufacturer Number:

MBD-X11SAE-O

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X11SAE-O

High-Performance ATX Server/Workstation Motherboard featuring Intel C236 LGA1151 platform with the MBD-X11SAE-O

The MBD-X11SAE-O is an ATX single-socket LGA1151 motherboard engineered for Intel Xeon E3-1200 v5/v6 and 6th/7th Gen Core processors, aligning compute density with efficient 95W-class CPU envelopes for edge and SMB server deployments. Its dual-channel DDR4 architecture provides 4 UDIMM slots with support for ECC or non-ECC memory, enabling predictable error handling and stable virtualization footprints without moving to a larger platform.

For I/O scalability, the MBD-X11SAE-O integrates PCIe Gen3 expansion with multiple full-height slots to accommodate accelerators, high-speed NICs, capture cards, or storage controllers in a workstation or appliance chassis. Storage design balances conventional SATA domain requirements with an NVMe-ready M.2 interface over PCIe 3.0 x4, supporting mixed OS and data tiering strategies. Dual Intel 1GbE controllers with Intel AMT-class manageability options support segmented networks and service access paths, while UEFI firmware, TPM header, watchdog, and intrusion detection provide a foundation for controlled, repeatable systems engineering.

Why Choose the MBD-X11SAE-O?

The MBD-X11SAE-O delivers a pragmatic performance-to-expansion profile for organizations standardizing on LGA1151 servers or workstation nodes, providing ECC-capable memory support, multi-slot PCIe Gen3 growth, and enterprise-oriented platform controls in a widely supported ATX form factor. The MBD-X11SAE-O is well suited to scale as an edge compute baseboard where predictable I/O mapping and long-term serviceability matter.

Supermicro designs platforms with a focus on validated component interoperability, conservative power and signal integrity margins, and feature sets aligned to modern data centre operational practices, supporting stable deployments across mixed infrastructure lifecycles.

Key Applications:

Entry-level server builds
Edge appliances with remote management
SMB virtualization hosts
Light database and file services
Workstation expansion platforms

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment plan for the MBD-X11SAE-O and an extended warranty up to 6 years to protect long-lived infrastructure investments.

Technical details of MBD-X11SAE-O

CPU Socket: H4 (LGA 1151)

Onboard Memory: No

RAID Support: Yes

CPU Manufacturer: Intel

CPU Supported Type: Core i7, Core i5, Core i3, Xeon E3

Form Factor: ATX

Chipset: Intel C236

RAM Maximum Capacity: 64GB

Max RAM Frequency : 2400MHz

RAM Slots: 4 DIMM DDR4

RAM Channels: Dual-Channel

PCIe Slots: 2 PCIe 3.0 x16, 3 PCIe 3.0 x1

M.2 Slots: 1 PCIe 3.0 x4 M.2 2242, M.2 2260, M.2 2280 M-Key

Network Ports: 1 RJ45 1 Gbps

ECC Support: ECC, Non-ECC

Onboard Network: Ethernet

Suitability: Embedded, Server, Workstation

Onboard CPU: No

RAID Support: Yes

Onboard Graphic: Yes

Video Output: 1x DisplayPort, 1x DVI-D, 1x HDMI

USB Ports: 1x USB 3.2 Gen 1 Header, 2x USB 2.0 Type-A, 2x USB 3.0 Type-A, 2x USB 3.1 Gen2 Type-A, 3x USB 2.0 header

Other Ports: 1x DisplayPort, 1x DVI-D, 1x HDMI port, 1x RJ-45 (1000Base-T, Intel I210-AT), 1x RJ-45 (1000Base-T, Intel I219-LM), 1x Toslink S/PDIF Out, 1x TPM Header, 2x serial, 2x USB 2.0, 2x USB 3.0, 2x USB 3.0 header, 2x USB 3.1 Gen 2 ports, 3x USB 2.0 header, 5x 3.5mm Klinke (Realtek ALC888)

Trusted Platform Module (TPM): Yes

BIOS: AMI UEFI

Wi-Fi Support: None

Onboard Audio Chipset: Realtek ALC888

Card Reader: No

How long is the Warranty and how you can get technical support for MBD-X11SAE-O

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
