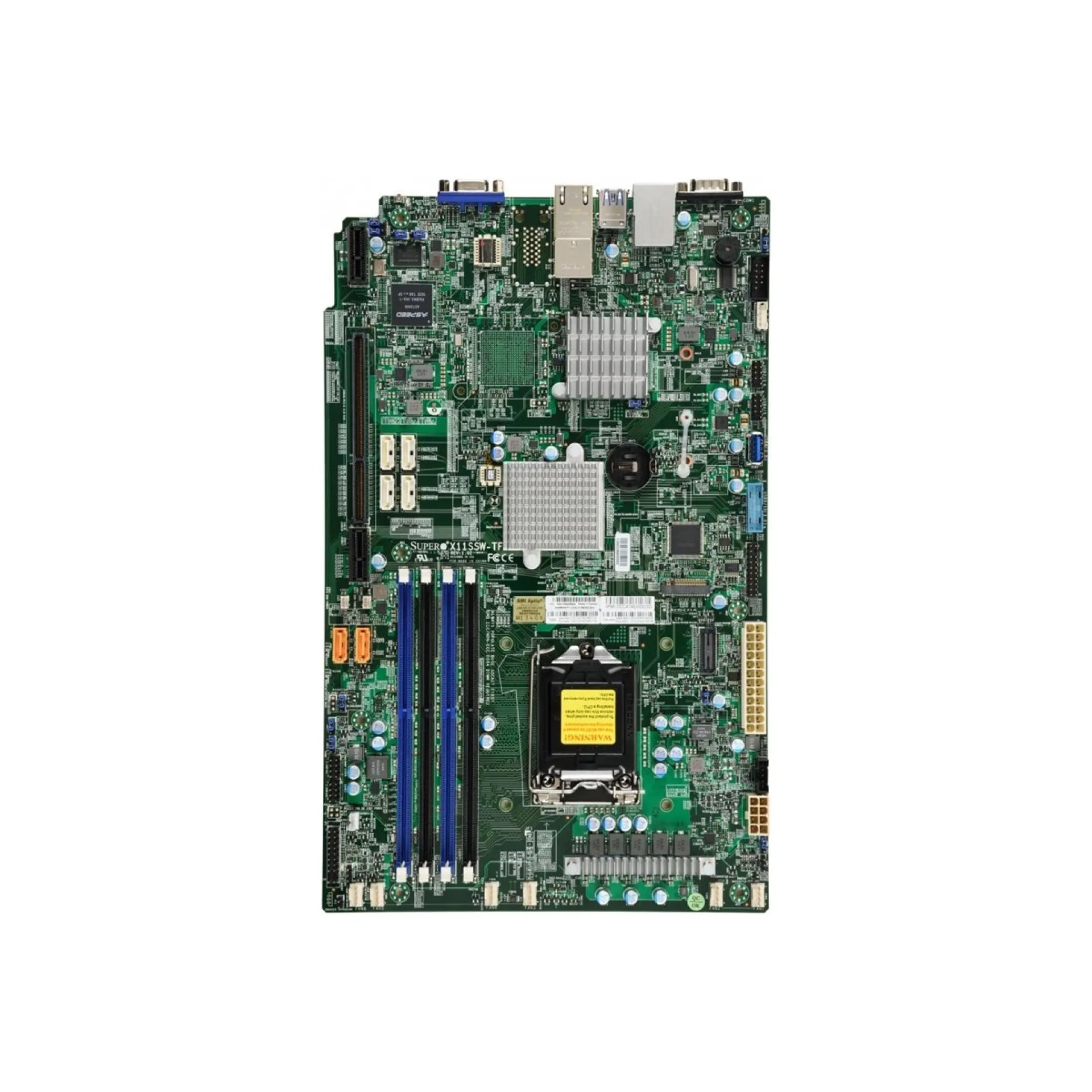

MBD-X11SSW-TF-O Supermicro Proprietary Single H4 (LGA 1151) 4 DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X11SSW-TF-O and save cash:

Quantity	Unit price
To 9	€483.00
To 19	€460.00 €483.00 (4.76% saved)
To 49	€450.00 €483.00 (6.83% saved)
From 50	€436.00 €483.00 (9.73% saved)

Product line:

X11

See all Single CPU (UP) Motherboards

See other Supermicro products

€483.00

In stock

Happyware Article Number:

SH0M7370-737401

Manufacturer Number:

MBD-X11SSW-TF-O

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X11SSW-TF-O

Compact Server Motherboard architecture with integrated 10GbE management-ready networking using the MBD-X11SSW-TF-O

The MBD-X11SSW-TF-O is engineered for compact edge, branch, and storage-focused server builds where dual 10GbE and remote manageability are foundational requirements rather than add-ons. Built on the Intel C236 server chipset and an Intel LGA1151 platform for Xeon E3/Core i3/Pentium/Celeron processors, the MBD-X11SSW-TF-O targets efficient single-socket deployments that prioritise predictable thermals and stable platform validation.

For memory, the MBD-X11SSW-TF-O supports DDR4 ECC UDIMM across 4 DIMM slots up to 64GB, enabling error-correcting operation for light virtualisation, lab consolidation, and resilient NAS control-plane workloads. Expansion is streamlined with PCIe 3.0, delivering a dedicated x16 slot for high-bandwidth adapters while the onboard M.2 (PCIe 3.0 x4) provides a clean boot or cache tier separate from the 6x SATA III ports. This storage layout keeps SATA lanes available for capacity drives while preserving fast local media for OS, metadata, or write-back caching. Integrated IPMI/BMC (AST2400 with VGA) and a TPM header support operational security and unattended lifecycle management.

Why Choose the MBD-X11SSW-TF-O?

The MBD-X11SSW-TF-O consolidates key data centre-grade capabilities—dual Intel X540 10GbE, dedicated management networking, ECC memory support, and PCIe 3.0 expansion—into a proprietary board footprint suited to dense, purpose-built systems. This architecture enables consistent deployment at scale for edge clusters or storage nodes while keeping serviceability and remote troubleshooting central to the design.

Supermicro designs server platforms around long lifecycle validation, component-level reliability, and standards-aligned remote management, supporting predictable integration into modern rack and edge infrastructure operations.

Key Applications:

Edge and branch servers with 10GbE uplinks
NAS and SATA-centric storage nodes
Software-defined storage cache/boot tiers with M.2
Light virtualisation and lab consolidation
Remote-managed infrastructure appliances

At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment plan for the MBD-X11SSW-TF-O and extended warranty options up to 6 years to secure long-term platform continuity in production environments.

Technical details of MBD-X11SSW-TF-O

CPU Socket:

H4 (LGA 1151)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Core i3 Pentium Celeron Xeon E3

Form Factor:

Proprietary

Chipset:

Intel C236

RAM Maximum Capacity:

64GB

Max RAM Frequency :

2400MHz

RAM Slots:

4 DIMM DDR4

PCIe Slots:

1 PCIe 3.0 x16

M.2 Slots:

1 PCIe 3.0 x4 M.2 2280, M.2 2260, M.2 22110 M-Key

Network Ports:

2 RJ45 10 Gbps

ECC Support:

ECC

Onboard Network:

Ethernet

Suitability:

Server

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

1x VGA

USB Ports:

2x USB 2.0 2x USB 3.0 4x USB 2.0 1x USB 3.0 Type-A

Other Ports:

1x IPMI Management Port 2x COM Port 1x TPM Header 2x SuperDOM (Disk on Module) ports

Trusted Platform Module (TPM):

Yes

BIOS:

AMI 128MB SPI Flash EEPROM

Wi-Fi Support:

None

Bluetooth integrated:

None

Embedded:

Card Reader:

How long is the Warranty and how you can get technical support for MBD-X11SSW-TF-O

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
