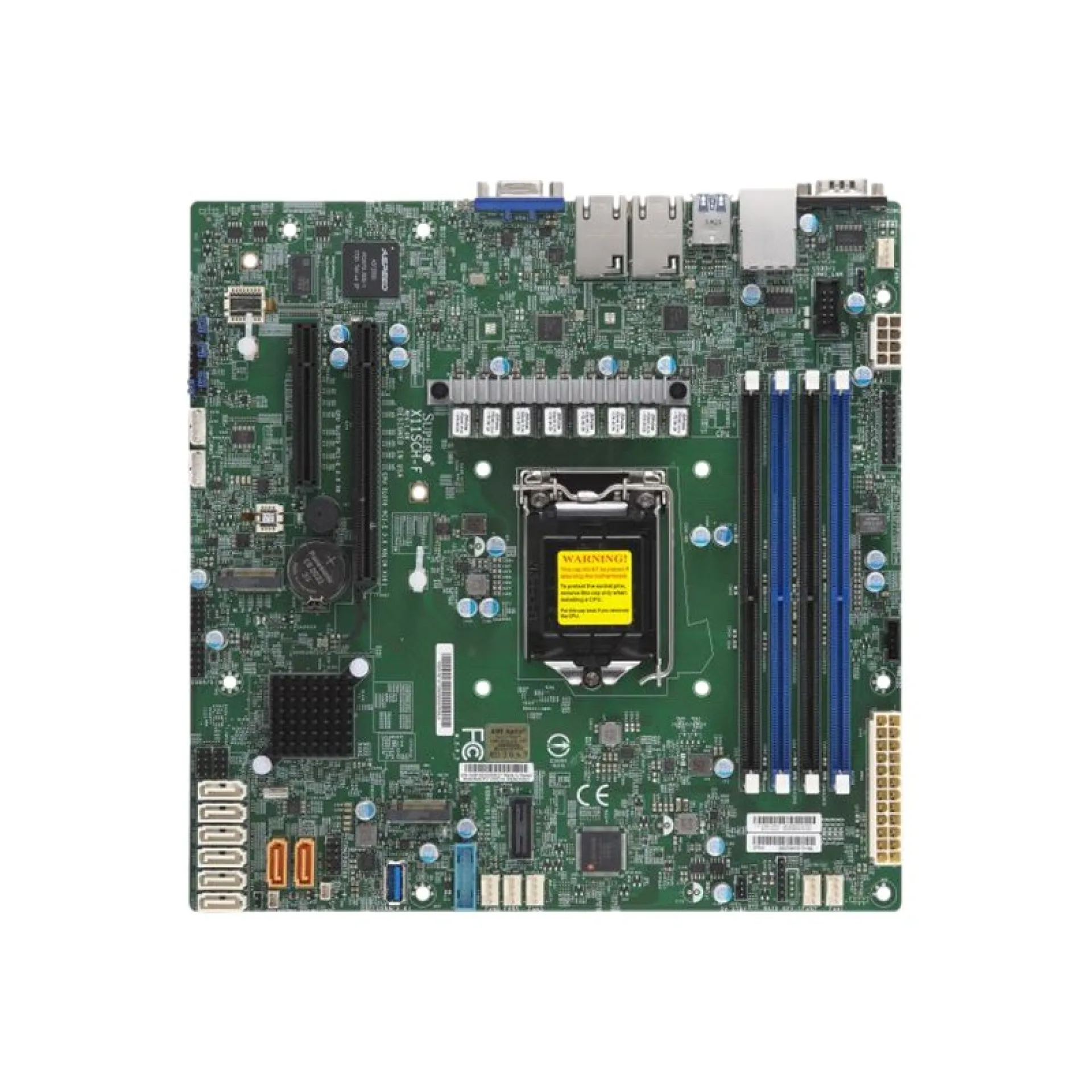

MBD-X11SCH-F-B Supermicro microATX Single H4 (LGA 1151) 4 DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X11SCH-F-B and save cash:

Quantity	Unit price
To 9	€334.00
To 19	€318.00 €334.00 (4.79% saved)
To 49	€311.00 €334.00 (6.89% saved)
From 50	€301.00 €334.00 (9.88% saved)

Product line:

X11

See all Single CPU (UP) Motherboards

See other Supermicro products

€334.00

Out of stock

Not available

Happyware Article Number:

SH6M9482-397022

Manufacturer Number:

MBD-X11SCH-F-B

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X11SCH-F-B

High-Performance microATX Server Motherboard featuring Intel C246 manageability with the MBD-X11SCH-F-B

The MBD-X11SCH-F-B is a compact Supermicro microATX server motherboard built on the Intel C246 platform for LGA1151 processors, aligning cost-controlled infrastructure with enterprise-grade management. It supports Xeon E and selected Core-class CPUs up to 95W, enabling efficient single-socket edge nodes, SMB servers, and dedicated appliances where predictable thermals and stable platform firmware are priorities.

With 4 DDR4 DIMM slots supporting ECC memory up to 128GB, the MBD-X11SCH-F-B is designed for integrity-sensitive services such as directory, backup, and light virtualization. PCIe 3.0 expansion provides a balanced lane budget for HBAs, NICs, or accelerator-class adapters, while 8 SATA III ports plus dual M.2 (PCIe 3.0 x4) sockets enable flexible storage tiering with NVMe boot or cache in front of capacity SATA arrays. Dual Intel I210 1GbE interfaces target reliable baseline connectivity for branch and edge deployments without overprovisioning network fabric.

Why Choose the MBD-X11SCH-F-B?

The MBD-X11SCH-F-B delivers a strong density-to-control ratio by combining a compact microATX footprint with integrated IPMI/BMC remote operations for unattended sites. For standard 1GbE network services and storage-centric nodes, the MBD-X11SCH-F-B scales cleanly through PCIe add-in cards and SATA/NVMe expansion, while maintaining predictable serviceability and lifecycle consistency for fleet deployments.

Supermicro engineering emphasizes platform longevity, validated server components, and management features aligned with modern data center and edge standards. The design integrates UEFI firmware, TPM support, and ASPEED AST2500-based out-of-band management to keep the MBD-X11SCH-F-B operationally consistent across remote and on-prem environments.

Key Applications:

SMB entry server nodes
NAS and backup servers
General-purpose SATA storage
Light virtualization hosts
Branch network services

At Happyware - Server Hardware you benefit from non-binding offers tailored to your MBD-X11SCH-F-B rollout requirements and an extended warranty up to 6 years to secure long-term operation across distributed installations.

Technical details of MBD-X11SCH-F-B

CPU Socket:

H4 (LGA 1151)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Xeon E Pentium Celeron Core

Form Factor:

microATX

Chipset:

Intel C246

RAM Maximum Capacity:

128GB

Max RAM Frequency :

2666MHz

RAM Slots:

4 DIMM DDR4

PCIe Slots:

1 PCIe 3.0 x8 1 PCIe 3.0 x16

M.2 Slots:

2 PCIe 3.0 x4 M.2 22110, M.2 2280 M-Key

Network Ports:

2 RJ45 1 Gbps

ECC Support:

ECC

Onboard Network:

Ethernet

Suitability:

Server

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

1x VGA

USB Ports:

1x USB 3.1 Gen 1 Type A 2x USB 3.1 Gen 2 ports 2x USB 2.0 4x USB 2.0 2x USB 3.1 Gen 1

Other Ports:

2x COM Port

Trusted Platform Module (TPM):

Yes

BIOS:

256MB UEFI

Wi-Fi Support:

None

Onboard Audio Chipset:

Embedded:

GPIO Pins:

Card Reader:

How long is the Warranty and how you can get technical support for MBD-X11SCH-F-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
