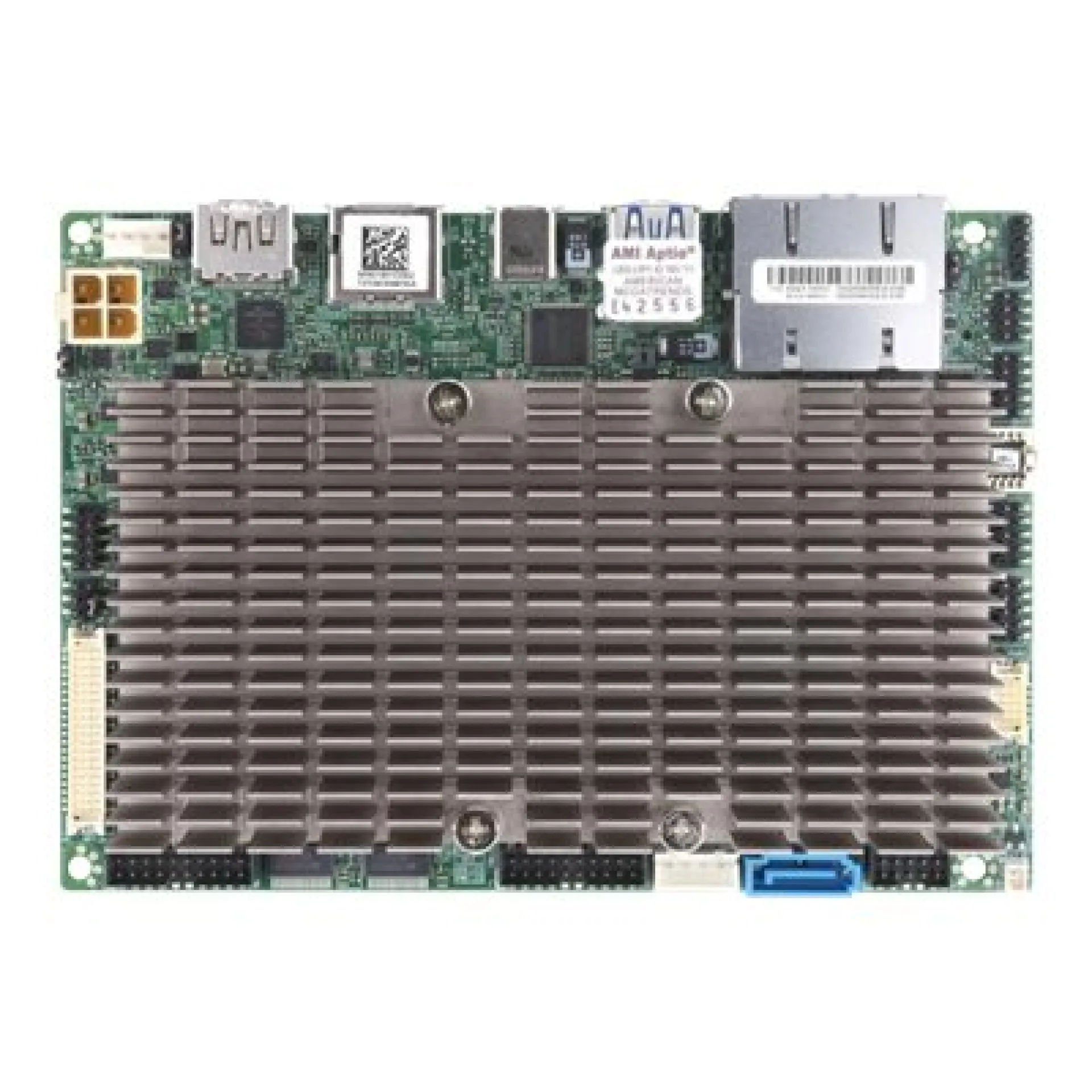

MBD-X11SSN-E-VDC-B Supermicro 3.5" SBC Single FCBGA1356 2 SO-DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X11SSN-E-VDC-B and save cash:

Quantity	Unit price
To 9	€654.00
To 19	€622.00 €654.00 (4.89% saved)
To 49	€609.00 €654.00 (6.88% saved)
From 50	€590.00 €654.00 (9.79% saved)

Product line:

X11

See all Embedded Motherboard

See other Supermicro products

€654.00

Out of stock

Not available

Happyware Article Number:

SH7M1558-356345

Manufacturer Number:

MBD-X11SSN-E-VDC-B

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X11SSN-E-VDC-B

Compact 3.5" Embedded Server Motherboard architecture with Intel SoC integration using the MBD-X11SSN-E-VDC-B

The MBD-X11SSN-E-VDC-B is a Supermicro 3.5" single-board embedded server motherboard designed around an Intel SoC (FCBGA1356) platform for low-power, always-on edge deployments. With i5-class 15W CPU capability and integrated Intel HD Graphics, it targets appliance-style compute where predictable thermals and deterministic I/O matter more than socketed CPU upgrades.

Memory is delivered through 2 DDR4 SO-DIMM non-ECC channels up to 32GB, enabling lightweight virtualization, control-plane services, or local analytics without the overhead of large server DIMM ecosystems. PCIe 3.0 expansion is optimized for compact peripherals: a PCIe 3.0 x1 slot supports modest add-in requirements, while storage and module growth are handled via M.2 2280 B-Key (PCIe 3.0 x2/SATA/USB2.0) plus Mini-PCIe with mSATA support and a SATA III port. Dual 1GbE on Intel controllers provides stable network edge throughput and driver maturity, and the board’s DP/HDMI/LVDS display outputs support kiosks and digital signage nodes. A +12V DC input and 0–70°C operating range align the MBD-X11SSN-E-VDC-B with embedded enclosures and industrial environments.

Why Choose the MBD-X11SSN-E-VDC-B?

The MBD-X11SSN-E-VDC-B delivers a high density-to-performance profile for edge compute by combining low-TDP Intel SoC processing, versatile I/O, and enterprise-grade NICs in a 3.5" footprint. The architecture is well suited to scalable rollouts where consistent hardware baselines, controlled power budgets, and flexible storage/module options simplify validation and long-term field maintenance, even without a BMC.

Supermicro engineers its embedded platforms to prioritize lifecycle stability, signal integrity, and compatibility with modern data centre and edge standards, enabling reliable integration into appliance chassis, ruggedized systems, and managed infrastructure designs.

Key Applications:

Network edge routing and firewall appliances
Monitoring, telemetry, and protocol gateways
Kiosk and POS control systems
Digital signage players
Light industrial computing and HMI nodes

At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment plan for the MBD-X11SSN-E-VDC-B, and the option to extend the warranty up to 6 years to protect long-lived edge installations.

Technical details of MBD-X11SSN-E-VDC-B

CPU Socket: FCBGA1356

Onboard Memory: No

RAID Support: No

CPU Manufacturer: Intel

CPU Supported Type: Core i5

Form Factor: 3.5" SBC

Chipset: System-on-Chip (SoC)

RAM Maximum Capacity: 32GB

Max RAM Frequency : 2133MHz

RAM Slots: 2 SO-DIMM DDR4

PCIe Slots: 1 PCIe 3.0 x1

M.2 Slots: 1 PCIe 3.0 x2/SATA/USB 2.0 M.2 2280 B-Key

Network Ports: 1 RJ45 1 Gbps

ECC Support: Non-ECC

Onboard Network: Ethernet

Suitability: Server

Onboard CPU: No

RAID Support: No

Onboard Graphic: Yes

Video Output: 1x DisplayPort, 1x HDMI, 1x LVDS

USB Ports: 1x USB 3.1 Gen2 Type-C, 2x USB 3.0, 4x USB 2.0

Other Ports: 1x TPM Header, 4x COM Port

Trusted Platform Module (TPM): Yes

BIOS: AMI UEFI

Wi-Fi Support: None

Embedded: Yes

GPIO Pins: 8

Card Reader: No

How long is the Warranty and how you can get technical support for MBD-X11SSN-E-VDC-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
