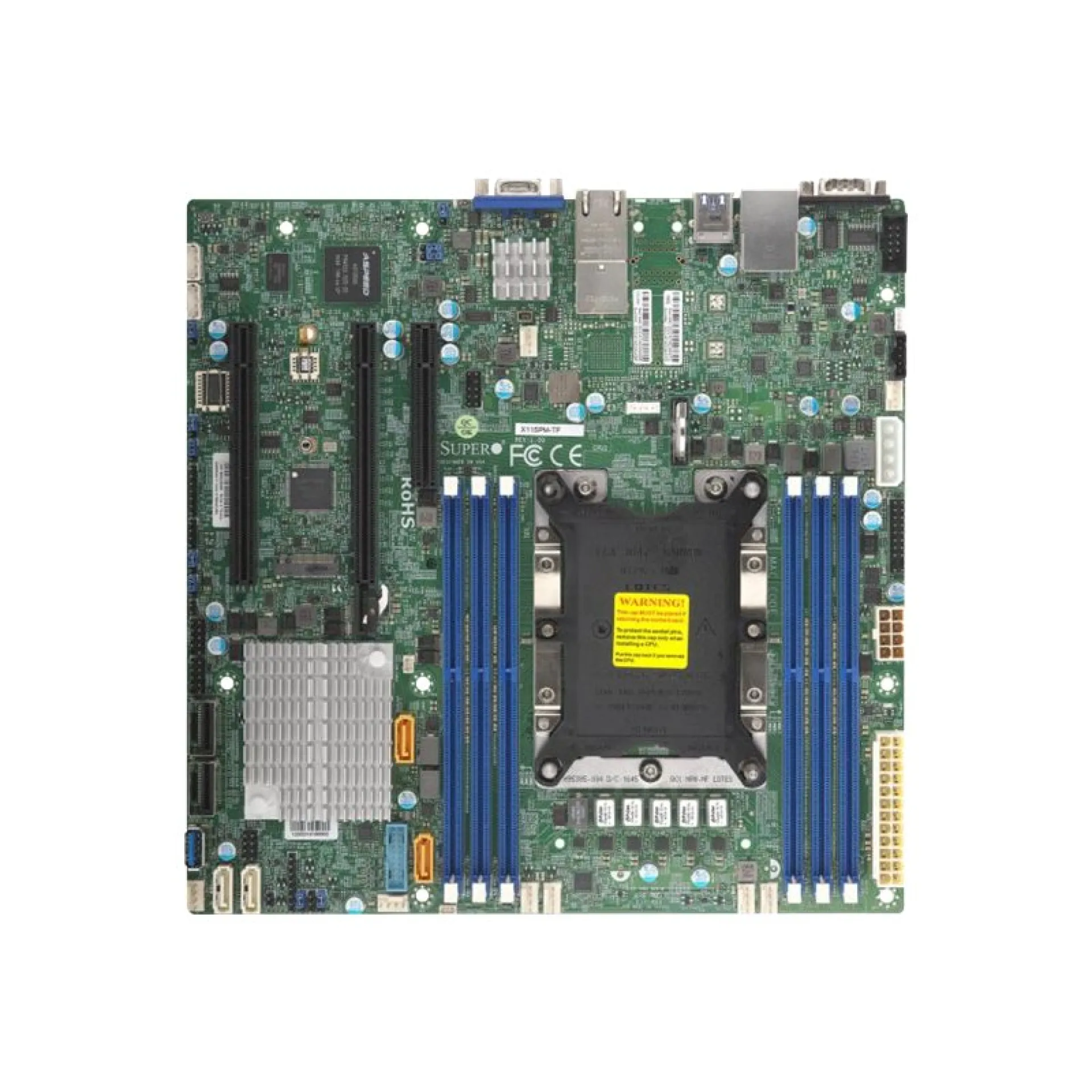

MBD-X11SPM-TF-B Supermicro Micro-ATX Single P (LGA 3647) 6 DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X11SPM-TF-B and save cash:

Quantity	Unit price
To 9	€562.96
To 19	€538.83 €562.96 (4.29% saved)
To 49	€527.53 €562.96 (6.29% saved)
From 50	€510.63 €562.96 (9.3% saved)

Product line:

X11

See all Embedded Motherboard

See other Supermicro products

€562.96

Out of stock

Happyware Article Number:

SH1M5589-841042

Manufacturer Number:

MBD-X11SPM-TF-B

Brand:

Supermicro

Are you a reseller?

Do you have questions about this product MBD-X11SPM-TF-B?

Our team of server experts will be happy to help you to ensure you purchase the right product.

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X11SPM-TF-B

High-Performance Micro-ATX Server Motherboard featuring Single-Socket Xeon Scalable Architecture with the MBD-X11SPM-TF-B

MBD-X11SPM-TF-B is a Supermicro Micro-ATX server motherboard built on the Intel C622 platform for 1x Intel Xeon Scalable (LGA3647) processors, enabling a compact node design without sacrificing enterprise I/O and management. The single-socket layout is optimized for balanced compute density, pairing up to 165W CPU classes with a 6-channel DDR4 ECC memory architecture that supports up to 1.5TB across 6 DIMM slots for virtualization consolidation and infrastructure services.

For expansion planning, MBD-X11SPM-TF-B delivers PCIe 3.0 bandwidth through 2x x16 and 1x x8 slots, supporting high-throughput NICs, RAID/HBA controllers, or accelerator-class adapters where lane determinism matters. Storage topology is oriented to drive-dense chassis designs with 12x SATA III ports plus 2x SATA DOM options, complemented by an M.2 PCIe 3.0 x4 socket for boot or cache SSD deployment to keep service volumes and data volumes logically separated.

Why Choose the MBD-X11SPM-TF-B?

MBD-X11SPM-TF-B provides an efficient density-to-performance profile for edge racks and short-depth chassis where Micro-ATX is operationally advantageous but enterprise features remain mandatory. Its integrated dual 10GbE RJ45 networking reduces slot consumption, while IPMI/BMC out-of-band management supports standardized provisioning and lifecycle control across scaled fleets.

Supermicro engineers this platform for data centre predictability, combining validated server component ecosystems with long-life board design, remote management integration, and security-enablement via a TPM header to align with modern operational and compliance requirements.

Key Applications:

Virtualization hosts
Infrastructure services nodes
Drive-dense SATA storage servers
Edge compute deployments
Software-defined storage

At Happyware - Server Hardware you benefit from 24/7 Customer Service to support configuration decisions and deployment timelines for MBD-X11SPM-TF-B based builds, and you can secure planning flexibility via Non-Binding Offers tailored to your node architecture and rollout scope.

Technical details of MBD-X11SPM-TF-B

CPU Socket:

P (LGA 3647)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Xeon Scalable

Form Factor:

Micro-ATX

Chipset:

C622

RAM Maximum Capacity:

1536GB

Max RAM Frequency :

2933MHz

RAM Slots:

6 DIMM DDR4

RAM Channels:

6-Channel

PCIe Slots:

1 PCIe 3.0 x8 2 PCIe 3.0 x16

Storage Ports:

12 SATA III (6Gb/s)

M.2 Slots:

1 PCIe 3.0 x4 M.2 2280, M.2 2242 M-Key

Network Ports:

1 RJ45 10 Gbps

Onboard Network:

Ethernet

Suitability:

Server

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

x1 VGA 0

USB Ports:

x4 USB 2.0 header 0 x2 USB 2.0 rear 0 x1 USB 3.0 Type-A 0 x2 USB 3.0 header 0 x2 USB 3.0 rear 0

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Wi-Fi Support:

None

Onboard Audio Chipset:

Embedded:

Yes

How long is the Warranty and how you can get technical support for MBD-X11SPM-TF-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
