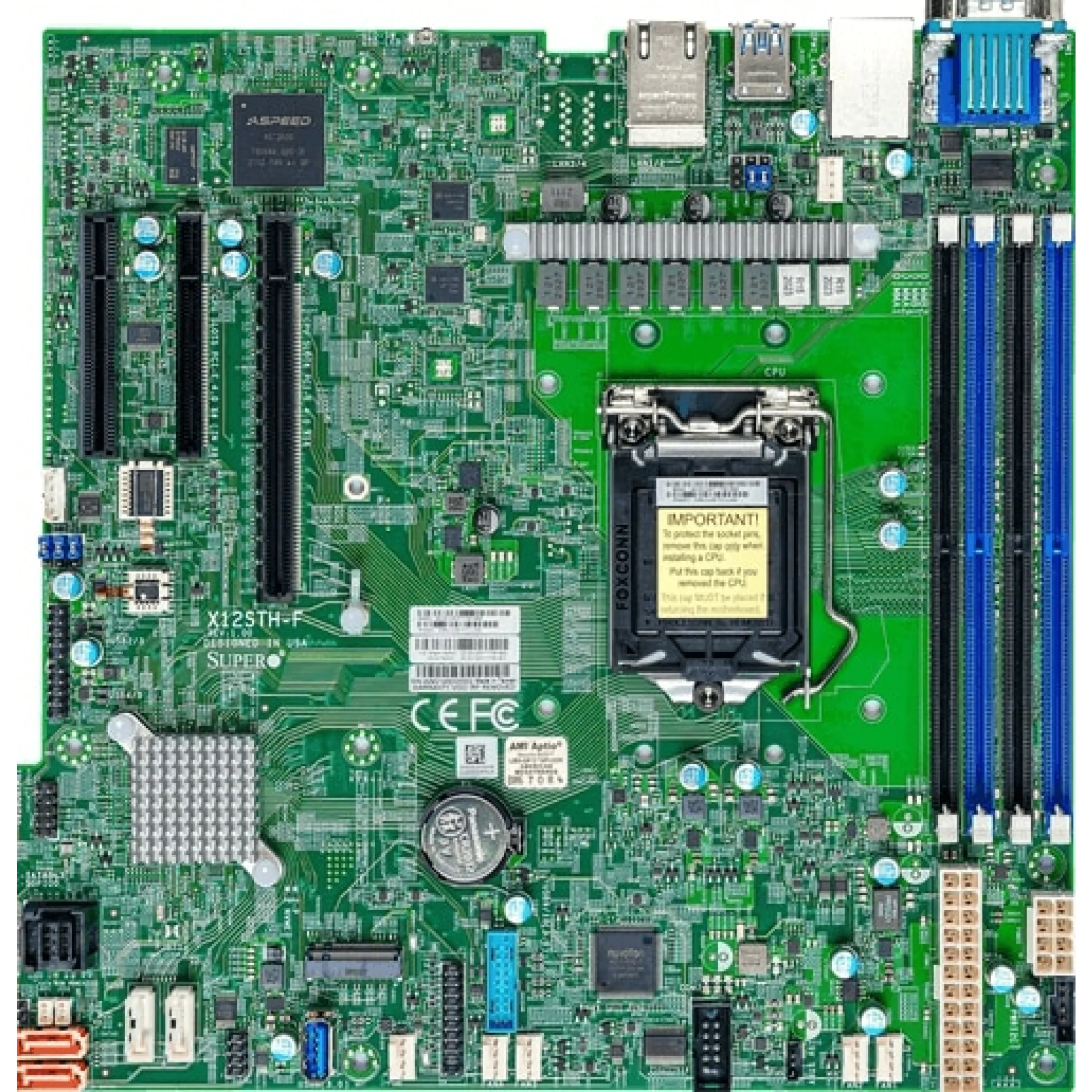

MBD-X12STH-F-B Supermicro Micro-ATX Single H5 (LGA 1200) 4 DIMM Slots Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X12STH-F-B and save cash:

Quantity	Unit price
To 9	€379.00
To 19	€361.00 €379.00 (4.75% saved)
To 49	€353.00 €379.00 (6.86% saved)
From 50	€342.00 €379.00 (9.76% saved)

Product line:

X13

See all Intel Xeon Motherboard

See other Supermicro products

€379.00

Out of stock

Not available

Happyware Article Number:

SH8M3115-552572

Manufacturer Number:

MBD-X12STH-F-B

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X12STH-F-B

Micro-ATX server motherboard for edge and SMB compute featuring Intel C256 with the MBD-X12STH-F-B

The MBD-X12STH-F-B is a Micro-ATX single-socket server motherboard built on the Supermicro X12STH-F platform, aligning Intel Xeon E and Pentium LGA1200 processors with the Intel C256 chipset for compact, serviceable infrastructure nodes. It targets branch virtualization and appliance deployments where predictable I/O, ECC protection, and out-of-band control are mandatory.

Its dual-channel DDR4 ECC UDIMM design with 4 DIMM slots supports up to 128GB at up to 3200MT/s, enabling stable VM consolidation and directory or file services under sustained load. Expansion is optimized for mixed accelerators and high-speed adapters via PCIe 4.0 and PCIe 3.0 slots, while storage is balanced between 8x SATA III for capacity arrays and an M.2 (M-Key) PCIe 3.0 x4 NVMe-capable socket for fast boot, cache, or logging tiers. Integrated dual 1GbE Intel I210-AT provides deterministic connectivity for edge routing, management networks, or SMB LANs, and the embedded IPMI/BMC with VGA console streamlines remote provisioning and incident response.

Why Choose the MBD-X12STH-F-B?

The MBD-X12STH-F-B delivers an efficient density-to-performance profile for small-footprint racks and short-depth enclosures, combining PCIe 4.0 expansion headroom with enterprise management. The MBD-X12STH-F-B is well suited to scalable rollouts of standardized nodes, where consistent firmware control, TPM-ready security posture, and predictable storage lanes reduce operational variance across sites.

Supermicro designs platforms with datacenter-aligned validation, focusing on long-life components, manageable thermals, and firmware maturity for continuous service. With the MBD-X12STH-F-B, this engineering approach supports reliable edge and SMB deployments that require remote control, chassis intrusion awareness, and integration into modern monitoring and lifecycle processes.

Key Applications:

Edge and branch virtualization nodes
AD/DNS/DHCP infrastructure services
File and print servers
Firewall, UTM, and security appliances
Monitoring and control-plane systems

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your rollout requirements for the MBD-X12STH-F-B, enabling fast procurement alignment for projects and multi-site standardization. For long-lived deployments, you can extend the warranty up to 6 years to secure lifecycle planning and operational continuity.

Technical details of MBD-X12STH-F-B

CPU Socket:

H5 (LGA 1200)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Xeon E Pentium

Form Factor:

Micro-ATX

Chipset:

Intel C256

RAM Maximum Capacity:

128GB

Max RAM Frequency :

3200MHz

RAM Slots:

4 DIMM DDR4

RAM Channels:

Dual-Channel

PCIe Slots:

1 PCIe 3.0 x8 1 PCIe 4.0 x8 1 PCIe 4.0 x16

M.2 Slots:

1 PCIe 3.0 x4 M.2 22110/2280 M-Key

Network Ports:

2 RJ45 1 Gbps

ECC Support:

ECC

Onboard Network:

Ethernet

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

1x VGA

USB Ports:

4x USB 2.0 Type-A 2x USB 3.2 Gen 1 Header 2x USB 3.2 Gen 1 Type-A 1x USB 3.2 Gen 1 Type-A 2x USB 2.0 Type-A

Other Ports:

1x Chassis Intrusion Header 2x COM Ports 1x TPM Header

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Onboard Audio Chipset:

Embedded:

Card Reader:

How long is the Warranty and how you can get technical support for MBD-X12STH-F-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
