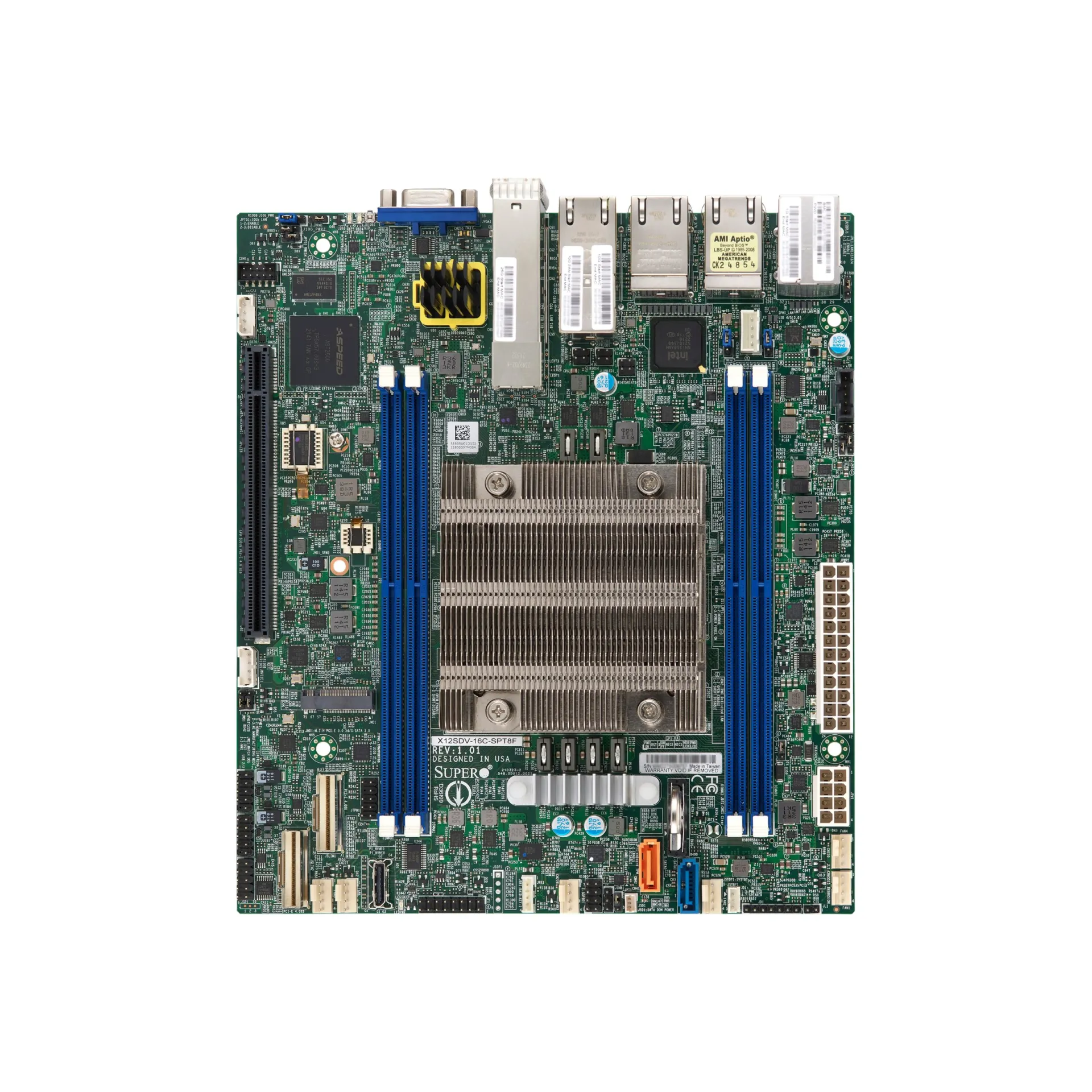

MBD-X12SDV-4C-SPT8F-B

High-Density Embedded Micro-ATX Server Motherboard featuring Xeon D SoC I/O acceleration with the MBD-X12SDV-4C-SPT8F-B

The MBD-X12SDV-4C-SPT8F-B integrates an onboard Intel Xeon D SoC to deliver predictable edge-class performance within a compact Micro-ATX footprint, targeting network services, security appliances, and space-constrained infrastructure nodes. Its DDR4 ECC memory architecture scales to 512GB across 4 DIMM slots, enabling higher VM density and stable in-memory caching for branch and embedded deployments.

For I/O-heavy designs, the MBD-X12SDV-4C-SPT8F-B provides PCIe Gen4 expansion bandwidth through multiple slots, supporting high-throughput NICs, accelerators, and storage controllers without bottlenecks. Storage is architected for mixed media: 4 NVMe ports for low-latency data paths, 6 SATA III ports for capacity tiers, plus an M.2 slot (SATA or PCIe 3.0 x4) and SATA DOM support to separate OS and data planes. Networking is built for aggregation and segmentation, combining 25GbE SFP28, 10GbE RJ45, and 1GbE interfaces for uplink, east-west traffic, and management isolation.

Why Choose the MBD-X12SDV-4C-SPT8F-B?

The MBD-X12SDV-4C-SPT8F-B is engineered to maximize density-to-performance by combining compute, high-speed PCIe Gen4 I/O, and multi-tier networking on a single embedded platform. This reduces component count, simplifies thermal and power design, and supports scalable rollouts across ROBO sites where consistent remote manageability and deterministic throughput are required.

Supermicro designs embedded server platforms with an emphasis on data centre-aligned reliability, validated component interoperability, and long-life availability. The integrated IPMI/BMC management stack and TPM-ready security posture support controlled operations in distributed environments while keeping service processes standardised.

Key Applications:

Edge security and firewall appliances
ROBO virtualisation hosts
NVMe + SATA storage nodes
25GbE/10GbE network aggregation
Industrial control and telemetry gateways

At Happyware - Server Hardware you benefit from non-binding offers tailored to your MBD-X12SDV-4C-SPT8F-B deployment plan, enabling accurate platform sizing for edge, storage, or networking builds. Extended Warranty options of up to 6 years provide additional operational security for long-life infrastructure rollouts.

Technical details of MBD-X12SDV-4C-SPT8F-B

CPU Socket:

FCBGA2579

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Xeon D

Form Factor:

Micro-ATX

Chipset:

System-on-Chip (SoC)

RAM Maximum Capacity:

512GB

Max RAM Frequency :

2666MHz

RAM Slots:

4 DIMM DDR4

PCIe Slots:

1 PCIe 3.0 x4 1 PCIe 4.0 x16 2 PCIe 4.0 x8

M.2 Slots:

1 SATA/PCIe 3.0 x4 M.2 2242, M.2 2280 M-Key

Network Ports:

2 RJ45 10 Gbps 2 SFP28 25 Gbps 4 RJ45 1 Gbps

ECC Support:

ECC Non-ECC

Onboard Network:

Ethernet

Suitability:

Embedded

Onboard CPU:

Yes

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

1x VGA

USB Ports:

2x USB

Other Ports:

1x IPMI Management Port 1x COM Port 1x TPM Header 1x SATA DOM (Disk on Module)

Trusted Platform Module (TPM):

Yes

BIOS:

AMI 32MB SPI Flash EEPROM

Wi-Fi Support:

None

Onboard Audio Chipset:

Embedded:

Yes

Card Reader:

How long is the Warranty and how you can get technical support for MBD-X12SDV-4C-SPT8F-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
