MBD-X11SDV-8C-TP8F-O Supermicro Flex ATX Single FCBGA2518 4 DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X11SDV-8C-TP8F-O and save cash:

Quantity	Unit price
To 4	€1,428.00
To 9	€1,386.00 €1,428.00 (2.94% saved)
To 19	€1,358.00 €1,428.00 (4.9% saved)
From 20	€1,329.00 €1,428.00 (6.93% saved)

Product line:

X11

See all Single CPU (UP) Motherboards

See other Supermicro products

€1,428.00

Out of stock

Not available

Happyware Article Number:

SH9M9337-322443

Manufacturer Number:

MBD-X11SDV-8C-TP8F-O

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X11SDV-8C-TP8F-O

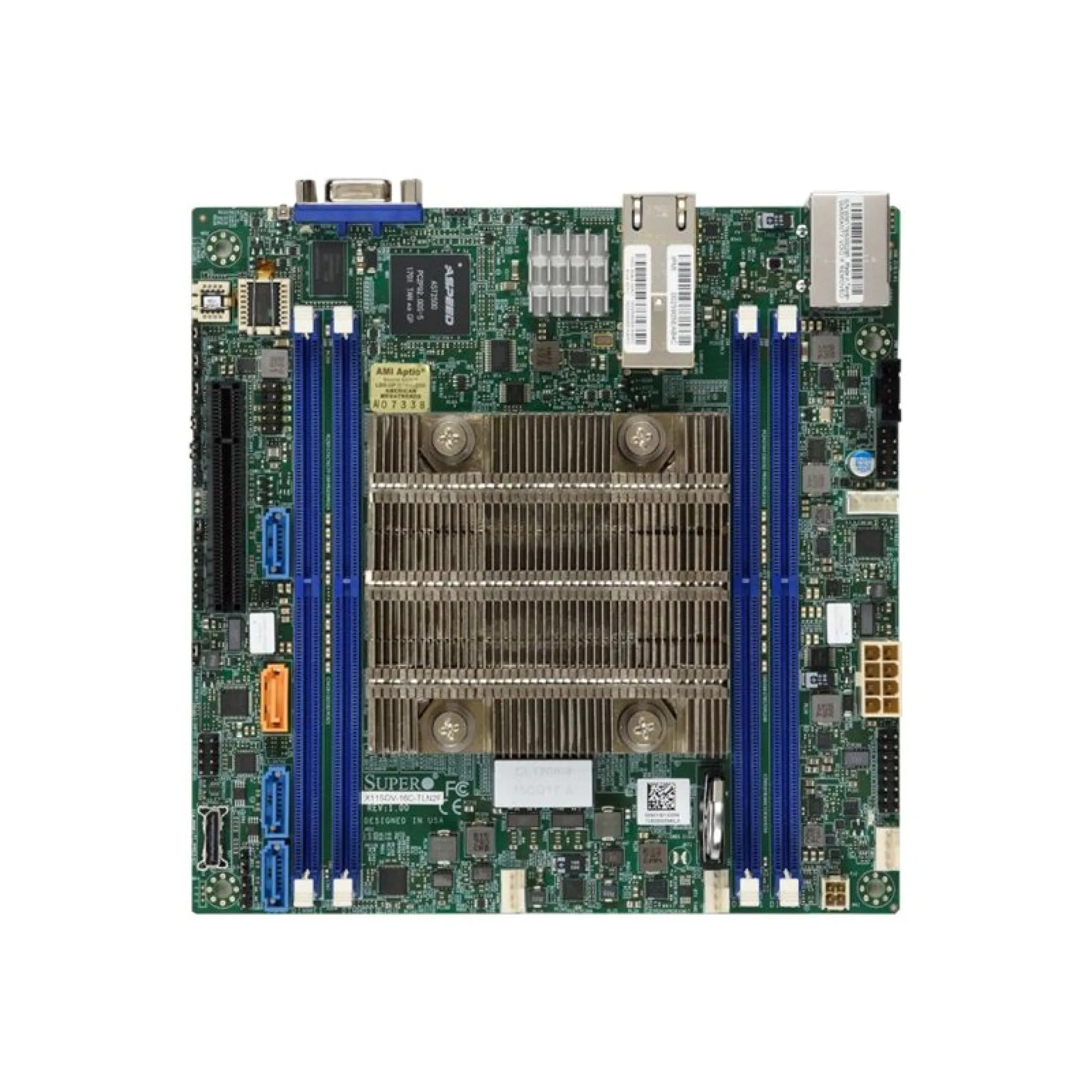

High-Density Flex ATX Embedded Server Motherboard featuring Xeon D SoC networking and storage I/O with the MBD-X11SDV-8C-TP8F-O

The MBD-X11SDV-8C-TP8F-O is a Flex ATX server motherboard built around an Intel Xeon D embedded SoC to deliver compute, networking, and management in a compact footprint for edge nodes and appliance-class deployments. By integrating high-bandwidth Ethernet, IPMI, and balanced PCIe Gen3 expansion, the platform reduces component count while maintaining deterministic performance for always-on services.

For memory-intensive virtualization and network functions, the MBD-X11SDV-8C-TP8F-O supports quad-channel DDR4 ECC RDIMM across 4 DIMM slots, enabling higher capacity and reliability under sustained load. Storage architecture is optimized for tiered designs: dual U.2 NVMe ports for boot, cache, or hot data, complemented by 4 SATA III ports for capacity media, plus 2 M.2 sockets (SATA or PCIe Gen3) to simplify mirrored boot or service partitions. Two PCIe Gen3 full-height full-length slots (x16 and x8 electrical) allow high-throughput NICs, accelerators, or storage adapters without exceeding edge power and space constraints.

Why Choose the MBD-X11SDV-8C-TP8F-O?

The MBD-X11SDV-8C-TP8F-O combines density-to-performance efficiency with enterprise operability: integrated 10GbE and 1GbE connectivity, remote management via IPMI 2.0 BMC, and ECC memory support align with scalable rollouts where hands-on access is limited. The MBD-X11SDV-8C-TP8F-O also provides a predictable expansion path for evolving network and storage requirements while keeping thermal and cabling complexity controlled.

Supermicro engineers platforms for long service life and data center interoperability, emphasizing validated components, robust firmware via AMI UEFI BIOS, and management features that support standardized provisioning and monitoring across distributed infrastructure.

Key Applications:

Edge and branch virtualization nodes
Firewall, router, and network services appliances
NVMe boot and cache microservers
Compact storage gateways (SATA data + NVMe tier)

At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment plan for the MBD-X11SDV-8C-TP8F-O, helping you align configuration and rollout schedules with procurement requirements, and you can extend the warranty up to 6 years to protect long-lived edge and infrastructure installations.

Technical details of MBD-X11SDV-8C-TP8F-O

CPU Socket:

FCBGA2518

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Xeon D

Form Factor:

Flex ATX

Chipset:

System-on-Chip (SoC)

RAM Maximum Capacity:

512GB

Max RAM Frequency :

2133MHz

RAM Slots:

4 DIMM DDR4

RAM Channels:

Quad-Channel

PCIe Slots:

1 PCIe 3.0 x8 1 PCIe 3.0 x16

M.2 Slots:

2 SATA/PCIe Gen 3 M.2 2280, M.2 3042 M-Key/E-Key

Network Ports:

2 RJ45 10 Gbps 2 SFP+ 10 Gbps 4 RJ45 1 Gbps

ECC Support:

ECC

Onboard Network:

Ethernet

Suitability:

Server

Onboard CPU:

Yes

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

1x VGA

USB Ports:

2x USB 3.0 Type-A 2x USB 2.0 Type-A

Other Ports:

1x Serial Ports 1x TPM Header

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Onboard Audio Chipset:

Embedded:

GPIO Pins:

How long is the Warranty and how you can get technical support for MBD-X11SDV-8C-TP8F-O

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
