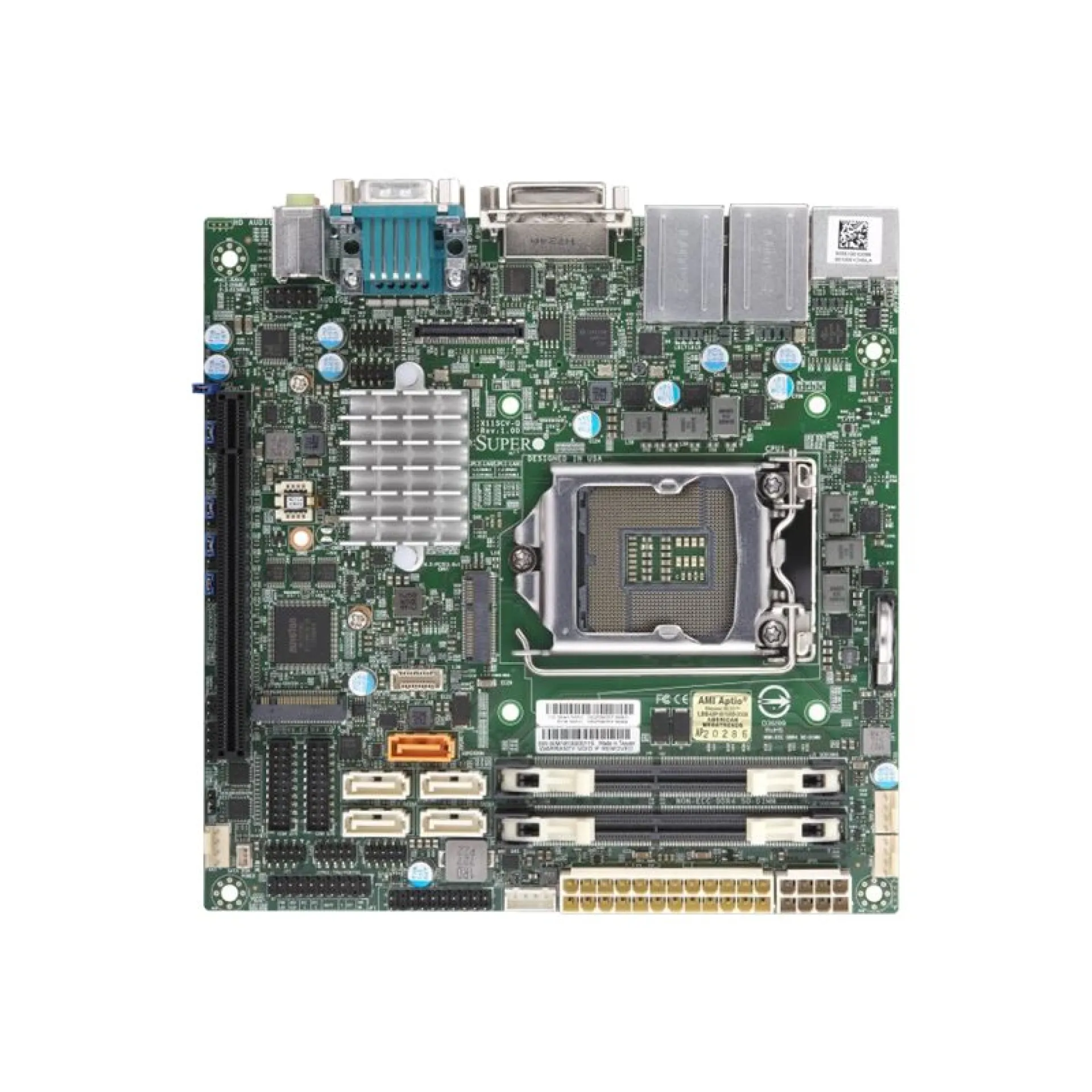

MBD-X11SCV-Q-B Supermicro Mini-ITX Single H4 (LGA 1151) 2 SO-DIMM Slots Embedded Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X11SCV-Q-B and save cash:

Quantity	Unit price
To 9	€299.00
To 19	€285.00 €299.00 (4.68% saved)
To 49	€279.00 €299.00 (6.69% saved)
From 50	€270.00 €299.00 (9.7% saved)

Product line:

X11

See all Workstation Motherboards

See other Supermicro products

€299.00

Out of stock

Not available

Happyware Article Number:

SH4M9412-802117

Manufacturer Number:

MBD-X11SCV-Q-B

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X11SCV-Q-B

High-Density Mini-ITX Embedded/Workstation Motherboard Architecture with the MBD-X11SCV-Q-B

The MBD-X11SCV-Q-B is a compact Supermicro Mini-ITX platform built around Intel Q370 and an LGA1151 socket to support efficient x86 control nodes, appliances, and entry workstations. With CPU support across Pentium, Celeron, and Core families up to 65W TDP, the MBD-X11SCV-Q-B targets balanced compute-per-watt where deterministic behavior and long-life components matter more than maximum core counts.

For memory, the MBD-X11SCV-Q-B implements dual-channel DDR4 via 2 SO-DIMM slots, enabling up to 32GB at DDR4-2666 for responsive OS, caching, and light virtualization without expanding the board footprint. PCIe Gen3 connectivity is centered on a PCIe 3.0 x16 slot for NIC, accelerator, or storage HBA integration, complemented by an M-Key M.2 (PCIe Gen3) for high-throughput NVMe boot or local scratch. Storage design is reinforced by 5 SATA III ports for mirrored OS plus multi-drive datasets, while an additional E-Key M.2 supports PCIe Gen3 WLAN or specialized I/O modules, aligning the MBD-X11SCV-Q-B with appliance-grade configurability.

Why Choose the MBD-X11SCV-Q-B?

The MBD-X11SCV-Q-B delivers a pragmatic density-to-performance ratio for edge racks and constrained enclosures by combining workstation-class I/O with an appliance-oriented layout. Dual Intel 1GbE controllers, watchdog support, TPM capability, and chassis intrusion detection provide operational stability for fleets where predictable boot, secure provisioning, and scalable serviceability are primary deployment requirements.

Supermicro engineers platforms with conservative power delivery, validated firmware, and data-centre-aligned component selection to support continuous operation across embedded and enterprise environments. This design approach prioritizes compatibility, lifecycle management, and integration consistency for standardized builds.

Key Applications:

Edge control and automation gateways
Network and security appliances
NAS and compact storage nodes
Entry workstations and lab desktops
Virtualization test and staging hosts

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment quantities and configuration targets, plus an extended warranty option up to 6 years to protect long-lived MBD-X11SCV-Q-B rollouts.

Technical details of MBD-X11SCV-Q-B

CPU Socket:

H4 (LGA 1151)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Pentium Celeron Core

Form Factor:

Mini-ITX

Chipset:

Intel Q370

RAM Maximum Capacity:

32GB

Max RAM Frequency :

2666MHz

RAM Slots:

2 SO-DIMM DDR4

RAM Channels:

Dual-Channel

PCIe Slots:

1 PCIe 3.0 x16

M.2 Slots:

1 PCIe 3.0 M.2 2230 E-Key 1 PCIe 3.0 M.2 2242, M.2 2280 M-Key

Network Ports:

1 RJ45 1 Gbps

ECC Support:

Non-ECC

Onboard Network:

Ethernet

Suitability:

Embedded Workstation

Performance Class:

Low-End

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

1x HDMI 2.0a 1x DVI-D 1x DisplayPort 1.2

USB Ports:

1x USB 3.1 Type-A 4x USB 3.2 Gen 2 Type-A

Other Ports:

2x Serial Ports 2x Audio Port

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Wi-Fi Support:

None

Onboard Audio Chipset:

Realtek ALC888

Embedded:

GPIO Pins:

Card Reader:

How long is the Warranty and how you can get technical support for MBD-X11SCV-Q-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
