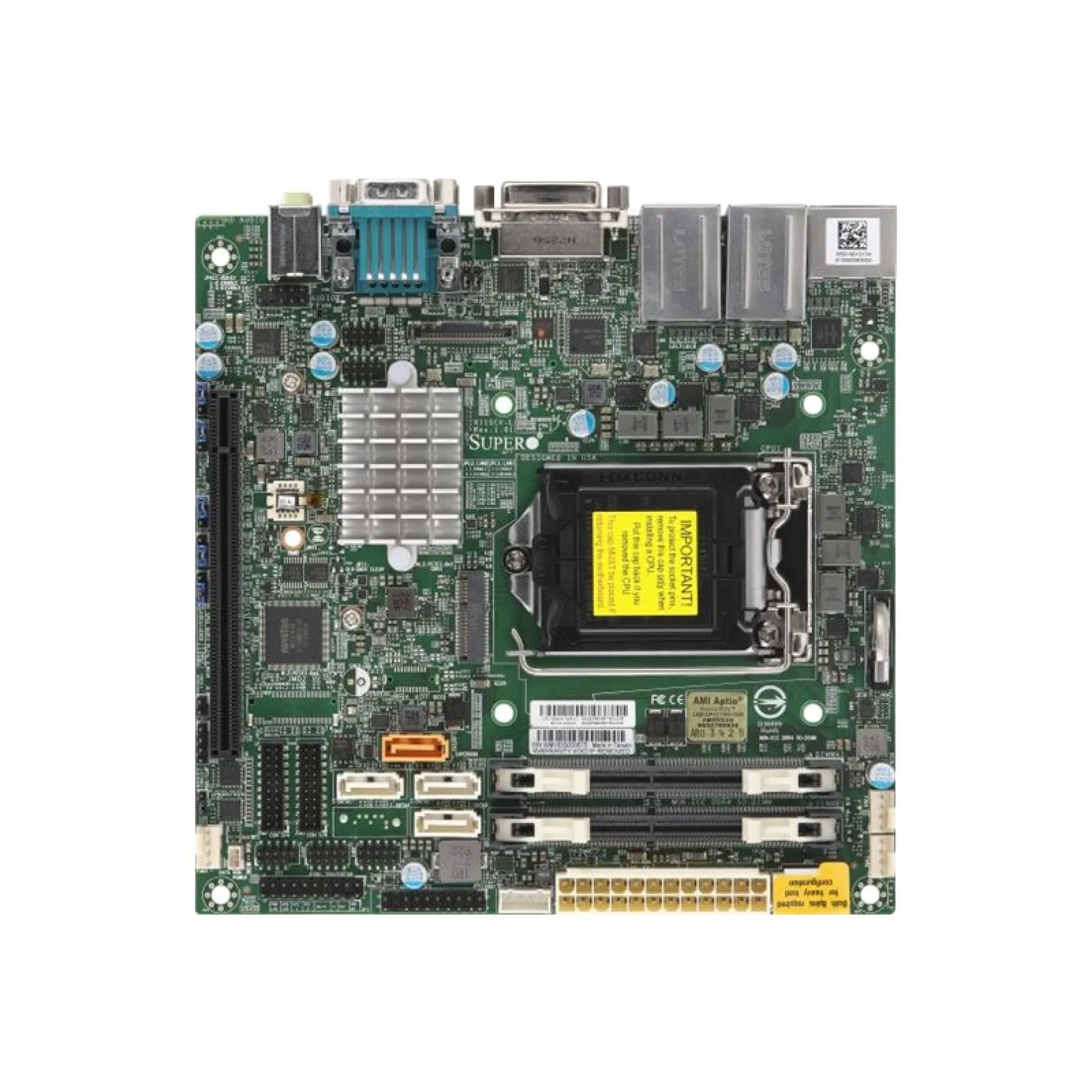

MBD-X11SCV-L-O Supermicro Mini-ITX Single H4 (LGA 1151) 2 SO-DIMM Slots Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X11SCV-L-O and save cash:

Quantity	Unit price
To 9	€259.00
To 19	€247.00 €259.00 (4.63% saved)
To 49	€242.00 €259.00 (6.56% saved)
From 50	€234.00 €259.00 (9.65% saved)

Product line:

X11

See all Motherboards

See other Supermicro products

€259.00

Out of stock

Not available

Happyware Article Number:

SH8M1510-416450

Manufacturer Number:

MBD-X11SCV-L-O

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X11SCV-L-O

Compact Mini-ITX Server Motherboard architecture with Intel LGA1151 platform using the MBD-X11SCV-L-O

The MBD-X11SCV-L-O is a Supermicro Mini-ITX motherboard built for space-constrained edge and embedded deployments that still require enterprise-grade I/O discipline. It leverages the Intel LGA1151 ecosystem (Core, Pentium, Celeron) in the 65W class, enabling cost-controlled compute nodes with deterministic thermals and long-life component planning.

With dual-channel DDR4 SO-DIMM memory support up to 32GB, the MBD-X11SCV-L-O targets lightweight virtualisation, appliance services, and control-plane workloads where predictable latency matters more than raw capacity. Expansion is centred on a full-height, full-length PCIe Gen3 x16 slot (x16 electrical) for NICs, capture cards, accelerator-adjacent interfaces, or high-throughput storage adapters. Storage connectivity is streamlined via 4x SATA 6Gb/s for OS mirroring and local data tiers, complemented by an M.2 2230 E-Key socket for WLAN/BT modules in remote or mobile installations. Integrated display outputs (HDMI 2.0a, DisplayPort 1.2, DVI-D, eDP via CPU iGPU) allow the same platform to function as a compute node or a graphics-enabled endpoint.

Why Choose the MBD-X11SCV-L-O?

The MBD-X11SCV-L-O is optimised for density-to-function in compact enclosures where you need PCIe Gen3 bandwidth, dual Intel 1GbE LAN, and reliable SATA storage without the overhead of a dedicated BMC. This architecture scales cleanly across fleets of identical edge nodes, supporting standardised images, predictable service windows, and consistent I/O mapping for appliances and kiosks.

Supermicro engineering focuses on validated platform integration, conservative firmware design with AMI UEFI, and board-level safeguards such as watchdog support and TPM header/chip options to align with modern deployment and security baselines.

Key Applications:

Edge compute nodes
Embedded control systems
Office/SMB appliance servers
Digital signage endpoints
Network and security gateways

At Happyware - Server Hardware you benefit from non-binding offers tailored to your MBD-X11SCV-L-O rollout requirements and the option to extend warranty coverage up to 6 years for long-lived edge and appliance deployments.

Technical details of MBD-X11SCV-L-O

CPU Socket:

H4 (LGA 1151)

Onboard Memory:

RAID Support:

CPU Manufacturer:

Intel

CPU Supported Type:

Pentium Celeron Core

Form Factor:

Mini-ITX

Chipset:

Intel H310

RAM Maximum Capacity:

32GB

Max RAM Frequency :

2666MHz

RAM Slots:

2 SO-DIMM DDR4

RAM Channels:

Dual-Channel

PCIe Slots:

1 PCIe 3.0 x16

M.2 Slots:

1 PCIe Gen 2 M.2 2230 E-Key

Network Ports:

1 RJ45 1 Gbps

ECC Support:

Non-ECC

Onboard Network:

Ethernet

Performance Class:

Low-End

Onboard CPU:

RAID Support:

Onboard Graphic:

Yes

Video Output:

1x HDMI 2.0a 1x DVI-D 1x eDP (Embedded DisplayPort) 1x DisplayPort 1.2

USB Ports:

4x USB 2.0 Type-A 6x USB 3.2 Gen 2 Type-A 2x USB 3.2 Gen 2 Type-C

Other Ports:

2x COM Ports

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Wi-Fi Support:

None

Bluetooth integrated:

None

Onboard Audio Chipset:

Realtek ALC888

Embedded:

GPIO Pins:

Card Reader:

How long is the Warranty and how you can get technical support for MBD-X11SCV-L-O

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
