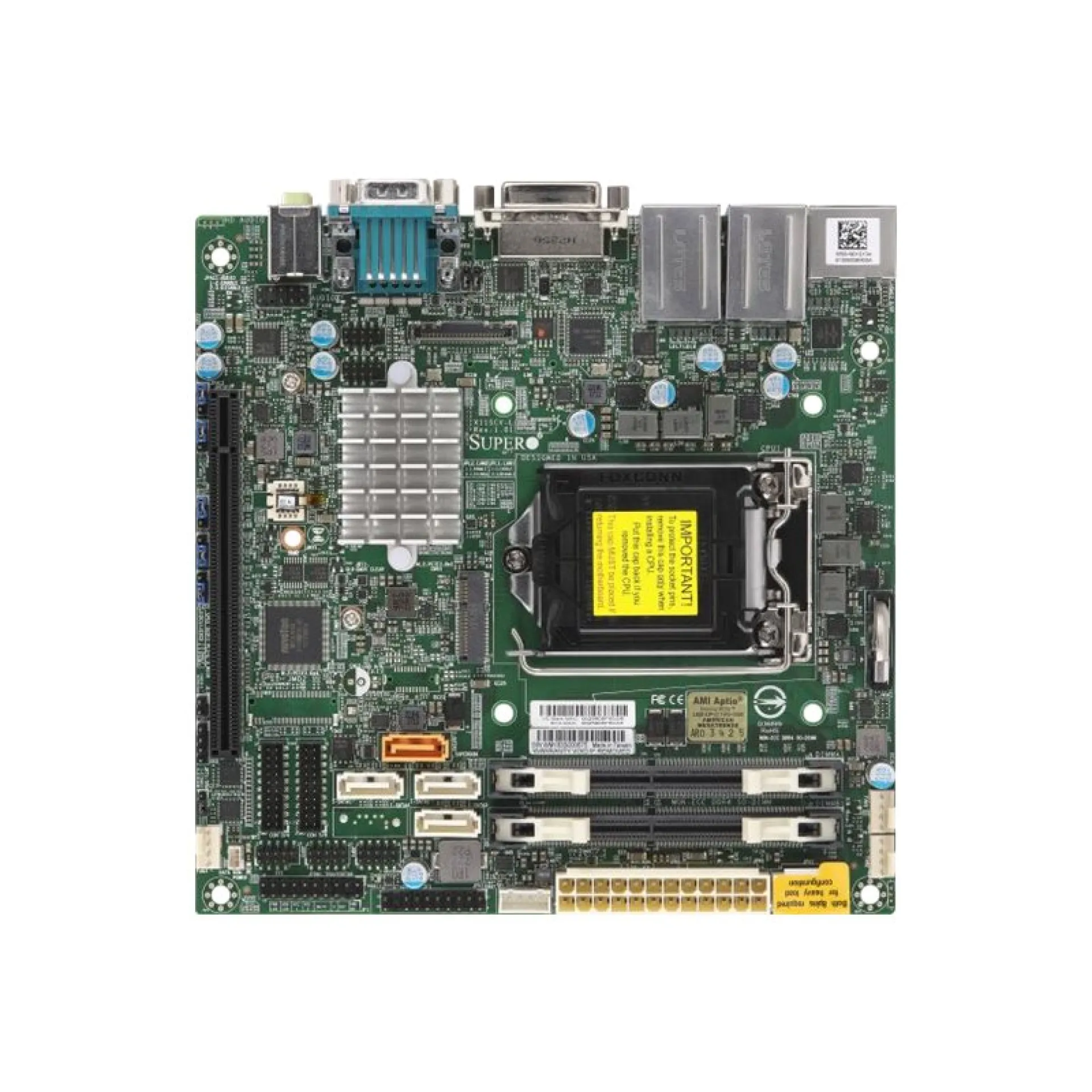

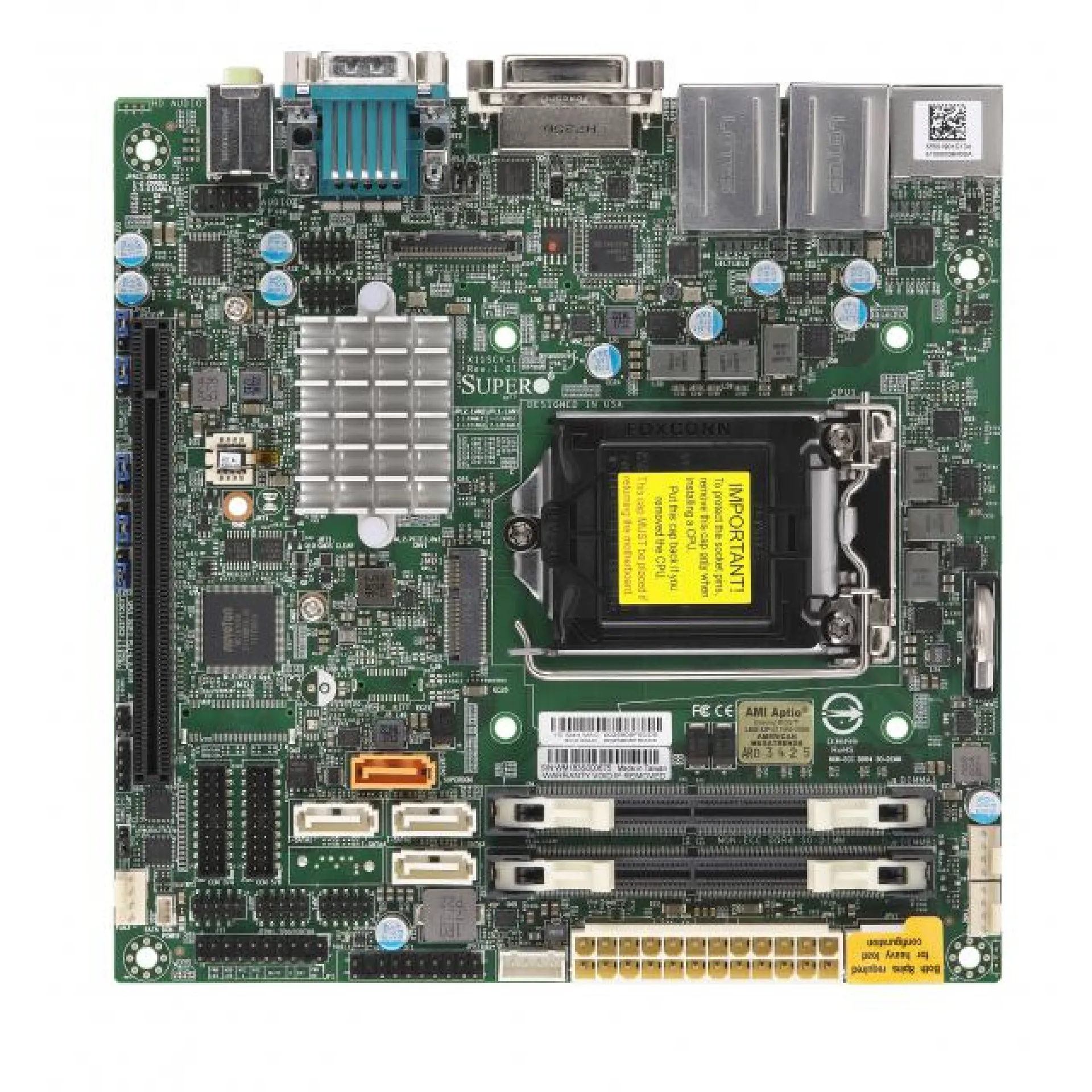

MBD-X11SCV-L-B Supermicro Mini-ITX Single H4 (LGA 1151) 2 SO-DIMM Slots Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X11SCV-L-B and save cash:

Quantity	Unit price
To 9	€262.00
To 19	€249.00 €262.00 (4.96% saved)
To 49	€244.00 €262.00 (6.87% saved)
From 50	€236.00 €262.00 (9.92% saved)

Product line:

X11

See other Supermicro products

€262.00

Out of stock

Not available

Happyware Article Number:

SH9M1718-705020

Manufacturer Number:

MBD-X11SCV-L-B

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X11SCV-L-B

High-Density Mini-ITX Server Motherboard Platform featuring PCIe Gen3 Expansion with the MBD-X11SCV-L-B

The MBD-X11SCV-L-B is a compact Supermicro Mini-ITX motherboard engineered for edge, embedded, and branch deployments that require an Intel LGA1151 platform with deterministic I/O. It supports Intel Core, Pentium, and Celeron processors in the 65W CPU TDP class, enabling efficient compute for security gateways, industrial controllers, and lightweight services where thermal and power envelopes are constrained.

For memory, the MBD-X11SCV-L-B implements dual-channel DDR4 SO-DIMM with 2 slots, enabling up to 32GB non-ECC capacity to sustain multiple services, packet inspection, or local application stacks without oversized footprints. Expansion is centered on a PCIe Gen3 x16 slot with full-height, full-length mechanical support, aligning the board with GPU-mechanical cards, high-throughput NICs, or specialized accelerators when chassis design permits. Storage architecture combines 4x SATA III 6Gb/s ports for OS and local datasets with an additional PCIe Gen3 storage interface for latency-sensitive media or compact NVMe-style designs, keeping bandwidth balanced against platform cost and integration complexity.

Why Choose the MBD-X11SCV-L-B?

The MBD-X11SCV-L-B delivers a strong density-to-performance profile by concentrating CPU, memory, network, and expansion into a Mini-ITX footprint suited to standardized short-depth enclosures. With dual Intel 1GbE controllers and enterprise-oriented firmware features, the MBD-X11SCV-L-B supports repeatable rollouts across remote sites, labs, and embedded fleets where predictable interoperability and straightforward serviceability matter.

Supermicro designs platforms with a focus on long lifecycle availability, validation for continuous operation, and practical manageability aligned with modern data centre and edge standards, giving the MBD-X11SCV-L-B a dependable foundation for integrators who prioritize stability over excess complexity.

Key Applications:

Firewall and UTM appliances
Industrial control and automation
Digital signage and kiosk systems
Compact lab and development platforms
Branch office lightweight servers

At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment scope for the MBD-X11SCV-L-B and can secure an extended warranty up to 6 years to protect long-life edge and branch installations.

Technical details of MBD-X11SCV-L-B

CPU Socket: H4 (LGA 1151)

Onboard Memory: No

RAID Support: No

CPU Manufacturer: Intel

CPU Supported Type: Pentium, Celeron, Core

Form Factor: Mini-ITX

Chipset: Intel H310

RAM Maximum Capacity: 32GB

Max RAM Frequency : 2666MHz

RAM Slots: 2 SO-DIMM DDR4

RAM Channels: Dual-Channel

PCIe Slots: 1 PCIe 3.0 x16

M.2 Slots: 1 PCIe 2.0 M.2 2230 E-Key

Network Ports: 1 RJ45 1 Gbps

ECC Support: Non-ECC

Onboard Network: Ethernet

Performance Class: Enterprise-Class

Onboard CPU: No

RAID Support: No

Onboard Graphic: Yes

Video Output: 1x DisplayPort 1.2, 1x DVI-D, 1x HDMI 2.0a

USB Ports: 2x USB 3.2 Gen 1 Type-A, 2x USB 3.2 Gen 1 Type-C, 4x USB 2.0 Type-A

Other Ports: 6x COM Ports

Trusted Platform Module (TPM): Yes

BIOS: AMI UEFI

Wi-Fi Support: None

Onboard Audio Chipset: Realtek ALC888S

Embedded: No

GPIO Pins: 0

Card Reader: No

How long is the Warranty and how you can get technical support for MBD-X11SCV-L-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
