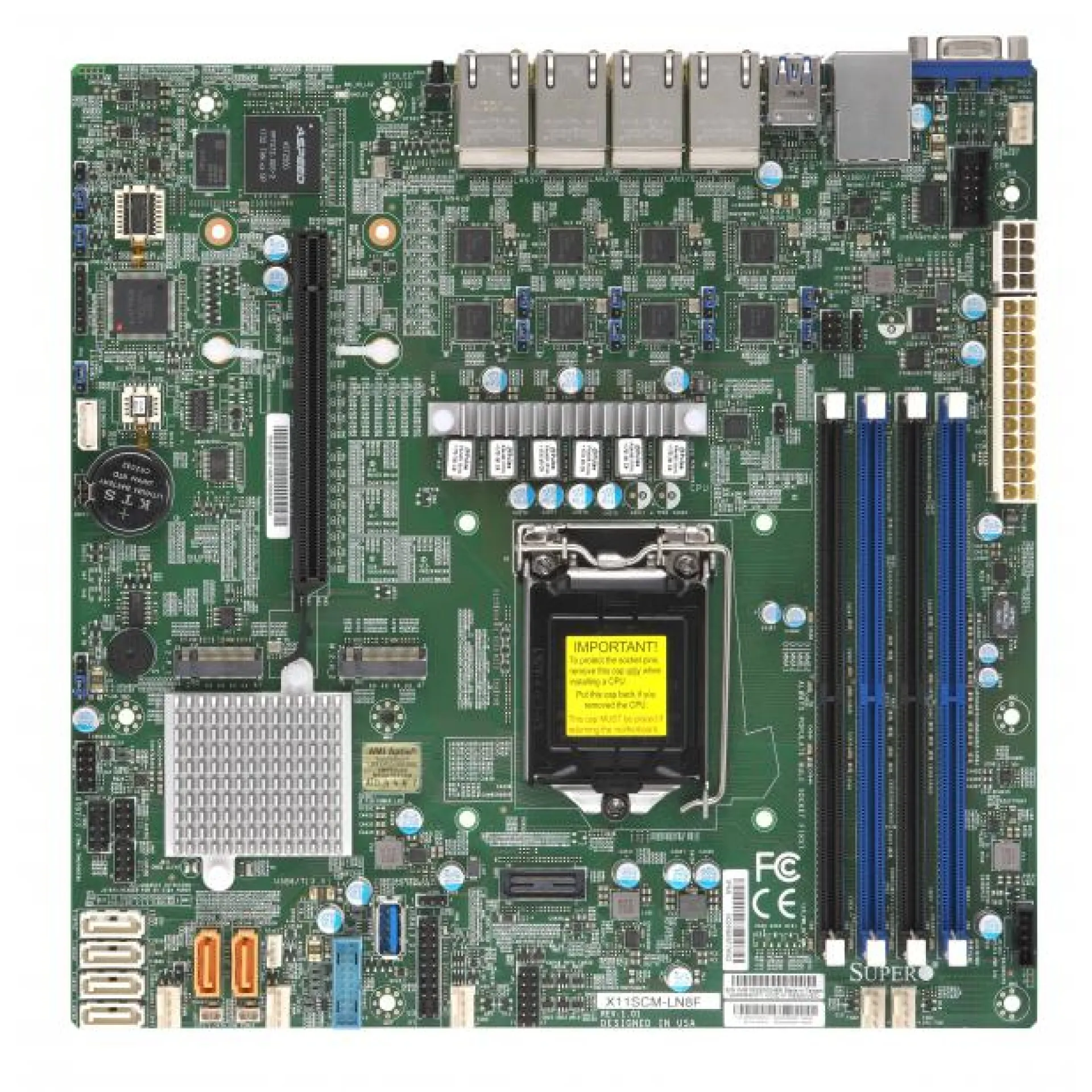

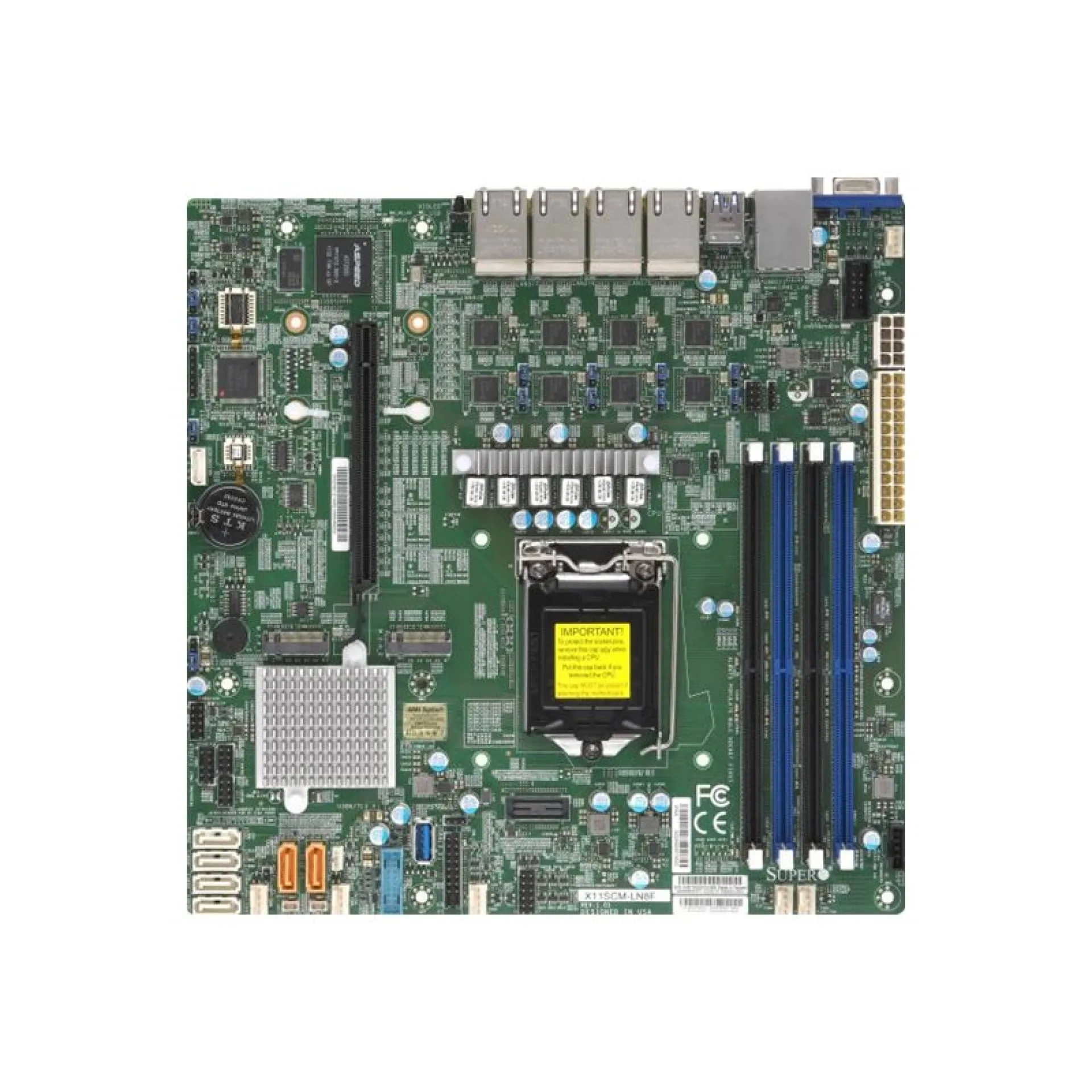

MBD-X11SCM-LN8F-B Supermicro Micro-ATX Single H4 (LGA 1151) 4 DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X11SCM-LN8F-B and save cash:

Quantity	Unit price
To 9	€373.00
To 19	€355.00 €373.00 (4.83% saved)
To 49	€348.00 €373.00 (6.7% saved)
From 50	€336.00 €373.00 (9.92% saved)

Product line:

X11

See all GPU Compatible Motherboard

See other Supermicro products

€373.00

Out of stock

Not available

Happyware Article Number:

SH7M9392-156616

Manufacturer Number:

MBD-X11SCM-LN8F-B

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X11SCM-LN8F-B

High-Density Micro-ATX Server Motherboard with 8x 1GbE and Remote Management using the MBD-X11SCM-LN8F-B

The MBD-X11SCM-LN8F-B is a Micro-ATX server motherboard engineered for compact edge and branch deployments where multi-port networking and out-of-band control are mandatory. Built on the Intel C246 platform with 1x LGA1151 socket for Intel Xeon E and compatible Core-class processors, it enables predictable single-socket performance for network services, small virtualization hosts, and security appliances without oversizing power and cooling.

Memory architecture on the MBD-X11SCM-LN8F-B supports up to 4x DDR4 DIMM with ECC capability and up to 128GB capacity, aligning the platform with reliability requirements for directory services, monitoring stacks, and VM consolidation. PCIe 3.0 connectivity is focused and deterministic, providing a full-bandwidth PCIe 3.0 x16 slot for acceleration, high-speed NICs, or storage HBAs. For storage, 6x SATA III ports plus 2x M.2 (PCIe 3.0 x4, with one slot also supporting SATA) allow tiered boot and cache designs while preserving bay count for capacity.

Why Choose the MBD-X11SCM-LN8F-B?

The MBD-X11SCM-LN8F-B delivers a strong density-to-function ratio by combining 8x Intel I210-AT 1GbE ports with IPMI/BMC management in a Micro-ATX footprint, reducing the need for add-in NICs and simplifying appliance layouts. This architecture scales cleanly from single-purpose network gateways to multi-service edge nodes, while TPM support and UEFI BIOS help align builds with enterprise security and lifecycle governance.

Supermicro designs platforms around stable server chipsets, validated components, and serviceable layouts that fit modern data centre operational models. With integrated ASPEED AST2500 management, the MBD-X11SCM-LN8F-B supports remote provisioning and troubleshooting workflows that reduce onsite intervention for distributed environments.

Key Applications:

Firewall and router appliances
Multi-port 1GbE security gateways
Edge virtualization hosts
SMB infrastructure services
Monitoring and logging nodes

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment goals for the MBD-X11SCM-LN8F-B, and an extended warranty of up to 6 years to protect long-lived edge and appliance rollouts.

Technical details of MBD-X11SCM-LN8F-B

CPU Socket: H4 (LGA 1151)

Onboard Memory: No

RAID Support: Yes

CPU Manufacturer: Intel

CPU Supported Type: Xeon E, Pentium, Celeron, Core

Form Factor: Micro-ATX

Chipset: Intel C246

RAM Maximum Capacity: 128GB

Max RAM Frequency : 2666MHz

RAM Slots: 4 DIMM DDR4

PCIe Slots: 1 PCIe 3.0 x16

M.2 Slots: 1 PCIe 3.0 x4 M.2 2280, M.2 22110 M-Key, 1 PCIe 3.0 x4/SATA M.2 2280, M.2 22110 M-Key

Network Ports: 8 RJ45 1 Gbps

ECC Support: ECC

Onboard Network: Ethernet

Suitability: Server

Onboard CPU: No

RAID Support: Yes

Onboard Graphic: Yes

Video Output: 1x VGA

USB Ports: 4x USB 2.0, 5x USB 3.0

Trusted Platform Module (TPM): Yes

BIOS: 256MB UEFI

Wi-Fi Support: None

Onboard Audio Chipset: No

Embedded: No

GPIO Pins: 0

Card Reader: No

How long is the Warranty and how you can get technical support for MBD-X11SCM-LN8F-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
