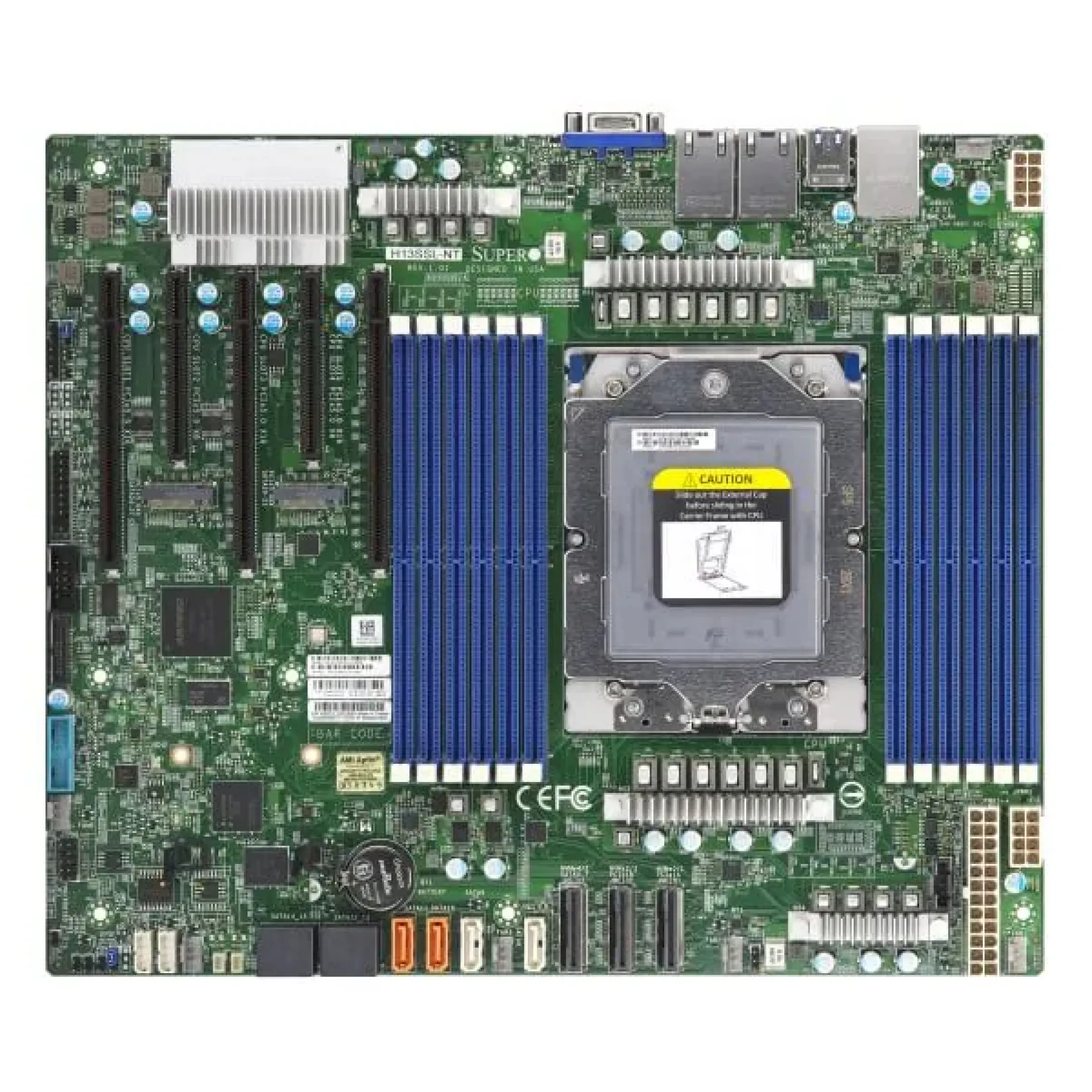

MBD-H13SSL-NT-O Supermicro ATX Single SP5 (LGA 6096) 12 DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-H13SSL-NT-O and save cash:

Quantity	Unit price
To 4	€710.00
To 9	€689.00 €710.00 (2.96% saved)
To 19	€675.00 €710.00 (4.93% saved)
From 20	€661.00 €710.00 (6.9% saved)

Product line:

H13 Series

See all ECC RAM Supported Motherboard

See other Supermicro products

€710.00

In stock

Happyware Article Number:

SH1M8910-513364

Manufacturer Number:

MBD-H13SSL-NT-O

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-H13SSL-NT-O

High-Performance ATX Server Motherboard featuring AMD EPYC SP5 and PCIe 5.0 expansion with the MBD-H13SSL-NT-O

The MBD-H13SSL-NT-O is an ATX server motherboard for single-socket AMD EPYC 9004/8004 series processors on the SP5 (LGA6096) platform, engineered for balanced compute, memory bandwidth, and I/O in modern enterprise racks. With support for up to 400W CPU TDP and 12 DDR5 ECC RDIMM slots, it targets dense virtualization hosts and scale-up application nodes that require predictable latency and strong RAS characteristics.

To keep accelerators, high-speed NICs, and storage adapters fed, the MBD-H13SSL-NT-O provides a PCIe 5.0 expansion topology with 3 x16 slots (x16 electrical) plus 2 x8 slots (x8 electrical), enabling high-lane-count configurations without oversubscription-driven bottlenecks. Storage architecture combines 8 SATA III ports for capacity tiers with 2 M.2 (PCIe 5.0 x4 NVMe or SATA) for boot or cache, alongside SuperDOM support and MCIO connectivity for flexible front-bay designs. Integrated dual 10GbE RJ45 and dedicated IPMI deliver straightforward network integration and out-of-band control.

Why Choose the MBD-H13SSL-NT-O?

The MBD-H13SSL-NT-O is optimized for enterprises that need a single-socket platform with a strong density-to-performance profile: high DDR5 capacity headroom up to 3TB, ample PCIe 5.0 lanes for adapter-rich builds, and deterministic management for standardized deployments. It scales cleanly from general-purpose compute to memory-centric nodes, reducing platform variance across clusters.

Supermicro designs the H13 family with a data center engineering mindset, emphasizing validated component interoperability, long-life platform support, and serviceability aligned with contemporary rack, power, and remote management standards.

Key Applications:

Virtualization and VDI hosts
Enterprise application servers
In-memory databases
Analytics and scale-up memory nodes
High-speed networking and storage gateway platforms

At Happyware - Server Hardware you benefit from non-binding offers tailored to MBD-H13SSL-NT-O based builds and rollout quantities, and can secure an extended warranty up to 6 years to match enterprise refresh cycles and operational risk policies.

Technical details of MBD-H13SSL-NT-O

CPU Socket:

SP5 (LGA 6096)

Onboard Memory:

RAID Support:

CPU Manufacturer:

AMD

CPU Supported Type:

EPYC

Form Factor:

ATX

Chipset:

System-on-Chip (SoC)

RAM Maximum Capacity:

3072GB

Max RAM Frequency :

6000MHz

RAM Slots:

12 DIMM DDR5

PCIe Slots:

2 PCIe 5.0 x8 3 PCIe 5.0 x16

M.2 Slots:

2 NVME/PCIe 5.0 x4/SATA M.2 22110, M.2 2280 M-Key

Network Ports:

2 RJ45 10 Gbps

ECC Support:

ECC

Onboard Network:

Ethernet

Suitability:

Server

Onboard CPU:

RAID Support:

Onboard Graphic:

Yes

Video Output:

1x VGA

USB Ports:

2x USB 3.0 4x USB 3.0

Other Ports:

1x COM Port 1x TPM Header 2x SuperDOM (Disk on Module) ports

Trusted Platform Module (TPM):

Yes

BIOS:

AMI 32MB SPI Flash EEPROM

Wi-Fi Support:

None

Onboard Audio Chipset:

Embedded:

Card Reader:

How long is the Warranty and how you can get technical support for MBD-H13SSL-NT-O

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
