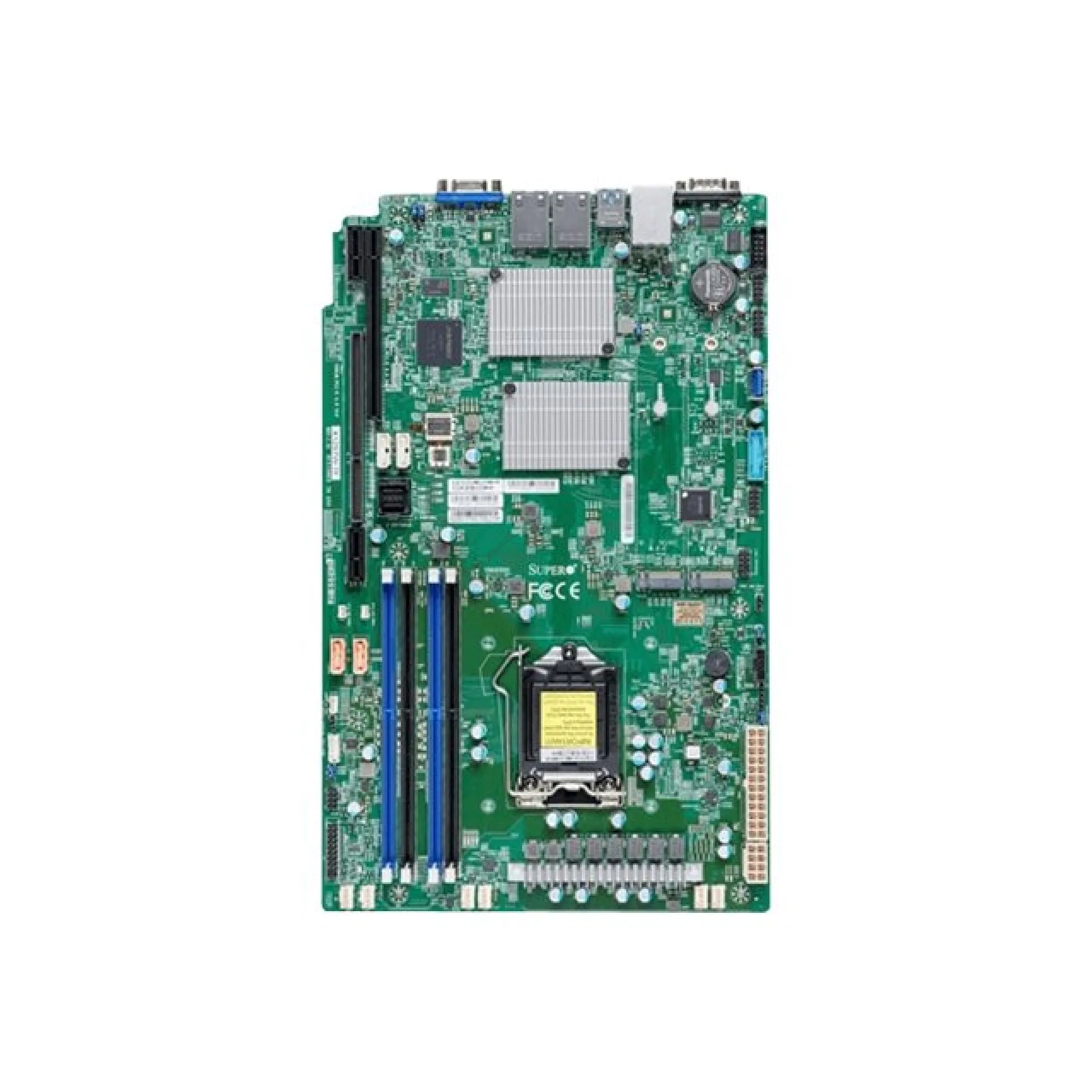

MBD-X12STW-TF-B Supermicro Proprietary WIO Single H5 (LGA 1200) 4 DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X12STW-TF-B and save cash:

Quantity	Unit price
To 9	€457.81
To 19	€438.17 €457.81 (4.29% saved)
To 49	€428.97 €457.81 (6.3% saved)
From 50	€415.27 €457.81 (9.29% saved)

Product line:

X13

See all GPU Compatible Motherboard

See other Supermicro products

€457.81

Out of stock

Happyware Article Number:

SH1M8693-168472

Manufacturer Number:

MBD-X12STW-TF-B

Brand:

Supermicro

Are you a reseller?

Do you have questions about this product MBD-X12STW-TF-B?

Our team of server experts will be happy to help you to ensure you purchase the right product.

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X12STW-TF-B

High-Density WIO Server Motherboard featuring Intel Xeon E compute and dual 10GbE with the MBD-X12STW-TF-B

The MBD-X12STW-TF-B is a single-socket Supermicro WIO/proprietary server motherboard designed for compact edge and branch platforms that require predictable Intel LGA1200 performance, integrated 10GbE, and efficient SATA-heavy storage layouts. Built on the Intel C256 chipset, it aligns well with appliance-style deployments where a 95W-class CPU envelope, remote management, and consistent I/O behavior are more important than maximum socket count.

With 4 DDR4 ECC UDIMM slots supporting up to 128GB at up to 3200 MT/s, the MBD-X12STW-TF-B delivers a balanced memory architecture for virtualization, security gateways, and mixed services without the power and cost profile of RDIMM platforms. PCIe Gen4 expansion is addressed through a x16 slot for high-throughput NICs or accelerators, while an additional PCIe Gen3 slot supports secondary I/O. Storage design prioritizes operational simplicity: 8 SATA III ports plus SATA DOM headers for embedded boot, complemented by 2 M.2 sockets including one PCIe 4.0 x4 option for fast OS or cache tiers.

Why Choose the MBD-X12STW-TF-B?

The MBD-X12STW-TF-B provides an enterprise-ready density-to-performance ratio for small-footprint servers by combining dual 10GbE (Intel X550-AT2), flexible PCIe expansion, and SATA-rich connectivity in a WIO form factor. The architecture scales cleanly across standardized edge nodes, enables consistent remote operations via dedicated management LAN, and supports resilient configurations through TPM support and RAID capabilities.

Supermicro engineering emphasizes platform longevity, validated component interoperability, and management-first design. The integrated ASPEED AST2600 BMC with IPMI helps align the MBD-X12STW-TF-B with modern data center standards for out-of-band access, monitoring, and lifecycle control.

Key Applications:

Edge and branch compute nodes
Virtualization and network appliances
Storage and backup micro-servers
Security gateway platforms
Remote managed infrastructure pods

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your MBD-X12STW-TF-B deployment requirements and the option to extend the warranty up to 6 years to secure long-term operation in distributed enterprise environments.

Technical details of MBD-X12STW-TF-B

CPU Socket:

H5 (LGA 1200)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Xeon E Pentium

Form Factor:

Proprietary WIO

Chipset:

C256

RAM Maximum Capacity:

128GB

Max RAM Frequency :

3200MHz

RAM Slots:

4 DIMM DDR4

PCIe Slots:

1 PCIe 3.0 x8 1 PCIe 4.0 x16

Storage Ports:

8 SATA III (6Gb/s)

M.2 Slots:

1 PCIe 3.0 x4 M.2 22110, M.2 2280 M-Key 1 PCIe 4.0 x4 M.2 22110, M.2 2280 M-Key

Network Ports:

2 RJ45 10 Gbps

Onboard Network:

Ethernet

Suitability:

Server

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

x1 VGA 0

USB Ports:

x4 USB 2.0 header 0 x1 USB 3.2 Gen 2 Type-A 0 x6 rear 0 x2 USB 3.2 Gen 1 ports rear 0 x2 USB 3.2 Gen 1 Header header 0

Trusted Platform Module (TPM):

Yes

BIOS:

256MB UEFI

Wi-Fi Support:

None

Onboard Audio Chipset:

Embedded:

Card Reader:

How long is the Warranty and how you can get technical support for MBD-X12STW-TF-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
