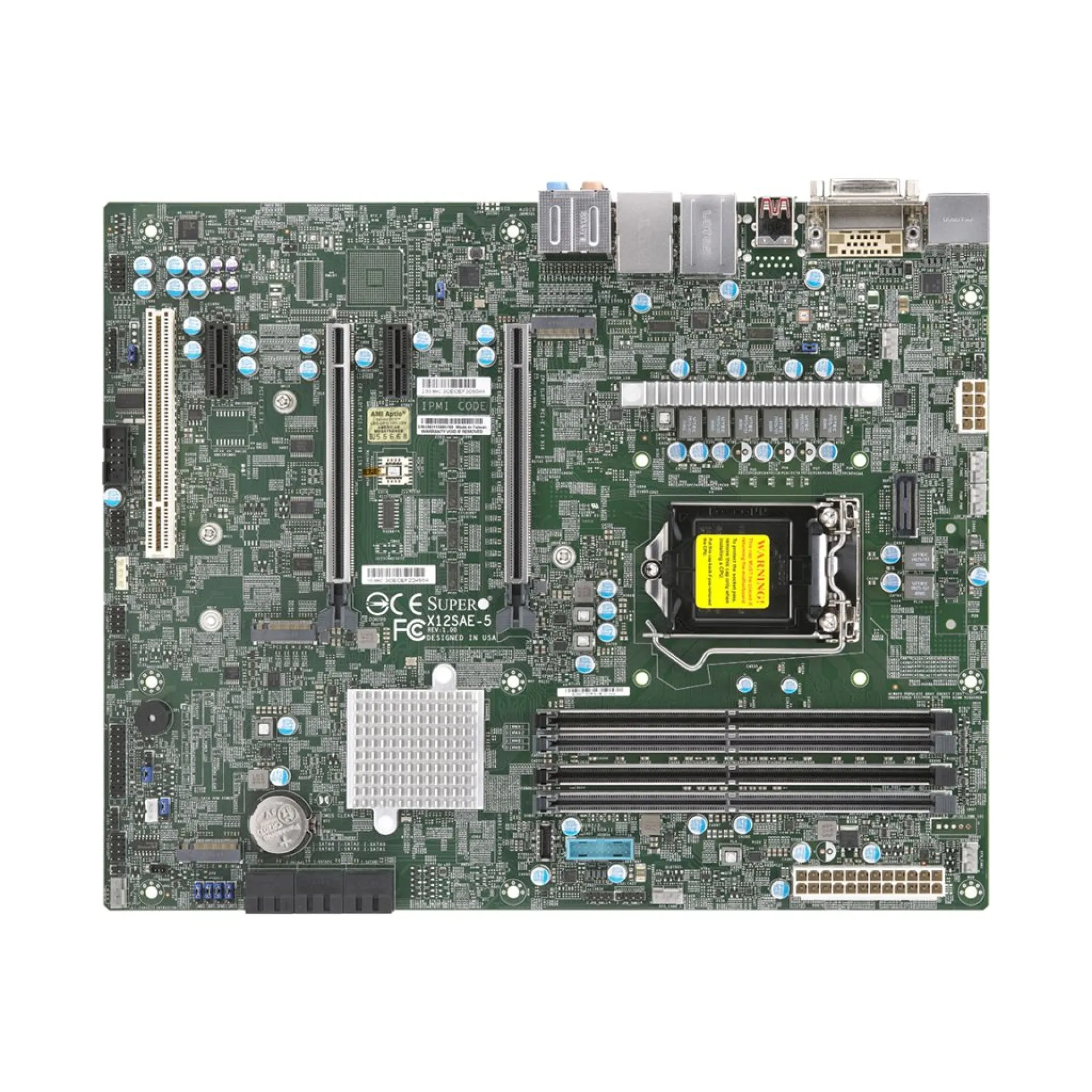

MBD-X12SAE-5-B Supermicro ATX Single H5 (LGA 1200) 4 DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X12SAE-5-B and save cash:

Quantity	Unit price
To 9	€405.08
To 19	€387.70 €405.08 (4.29% saved)
To 49	€379.60 €405.08 (6.29% saved)
From 50	€367.40 €405.08 (9.3% saved)

Product line:

X13

See all GPU Compatible Motherboard

See other Supermicro products

€405.08

Out of stock

Happyware Article Number:

SH3M7816-763426

Manufacturer Number:

MBD-X12SAE-5-B

Brand:

Supermicro

Are you a reseller?

Do you have questions about this product MBD-X12SAE-5-B?

Our team of server experts will be happy to help you to ensure you purchase the right product.

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X12SAE-5-B

High-Performance ATX Server/Workstation Motherboard featuring Intel W580 PCIe 4.0 expansion with the MBD-X12SAE-5-B

MBD-X12SAE-5-B is an ATX platform built on the Intel W580 chipset for LGA1200 processors, supporting Intel Core i5/i7/i9 and Xeon W up to 125W TDP for stable edge and workstation deployments. Its 4-slot DDR4 memory architecture scales to 128GB with ECC or non-ECC support, enabling predictable behavior for directory services, small-scale virtualisation, and engineering workloads where memory integrity and deterministic latency matter.

For I/O-heavy designs, MBD-X12SAE-5-B exposes PCIe 4.0 bandwidth through 2 x16 slots for GPUs, high-speed NICs, or storage HBAs, while PCIe 3.0 x1 slots cover auxiliary controllers. Storage is optimised for mixed tiers: 6 SATA III ports with RAID 0/1/5/10 provide cost-efficient capacity, and 3 onboard M.2 sockets (including 1 PCIe 4.0 x4) enable fast NVMe scratch or boot arrays for appliance-style builds. Dual LAN (2.5GbE plus 1GbE) supports segmentation and service separation without additional adapters, while TPM support and AMI UEFI BIOS align with enterprise security baselines.

Why Choose the MBD-X12SAE-5-B?

MBD-X12SAE-5-B delivers a balanced density-to-performance profile for branch servers, compact infrastructure nodes, and workstation-class systems where PCIe 4.0 expansion and flexible storage topology are required on a standard ATX footprint. It is designed for scalable configuration—CPU, memory, NVMe, and add-in cards—without forcing proprietary form factors, supporting consistent rollouts and straightforward lifecycle management.

Supermicro engineers platforms with a focus on component validation, long-term availability, and compatibility with modern data centre operational standards, enabling reliable integration into controlled change processes and repeatable builds.

Key Applications:

Edge/branch AD and DNS servers
Small-scale virtualisation hosts
SMB infrastructure consolidation
CAD/EDA workstations
Firewall and NAS appliances

At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment plan for the MBD-X12SAE-5-B, and can extend the warranty up to 6 years to protect long-term infrastructure investments.

Technical details of MBD-X12SAE-5-B

CPU Socket:

H5 (LGA 1200)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Core i9 Core i7 Core i5 Xeon W

Form Factor:

ATX

Chipset:

W580

RAM Maximum Capacity:

128GB

Max RAM Frequency :

3200MHz

RAM Slots:

4 DIMM DDR4

PCIe Slots:

2 PCIe 3.0 x1 2 PCIe 4.0 x16

Storage Ports:

6 SATA III (6Gb/s)

M.2 Slots:

1 PCIe 4.0 x4 M.2 2280, M.2 22110 M-Key 2 PCIe 3.0 x4 M.2 2280, M.2 22110 M-Key

Network Ports:

1 RJ45 1 Gbps 1 RJ45 2.5 Gbps

Onboard Network:

Ethernet

Suitability:

Server

Onboard CPU:

RAID Support:

Yes

Video Output:

x1 DVI-D 0 x1 HDMI 2.0b 0 x1 DisplayPort 1.4a 0

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Wi-Fi Support:

None

Embedded:

Card Reader:

How long is the Warranty and how you can get technical support for MBD-X12SAE-5-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
