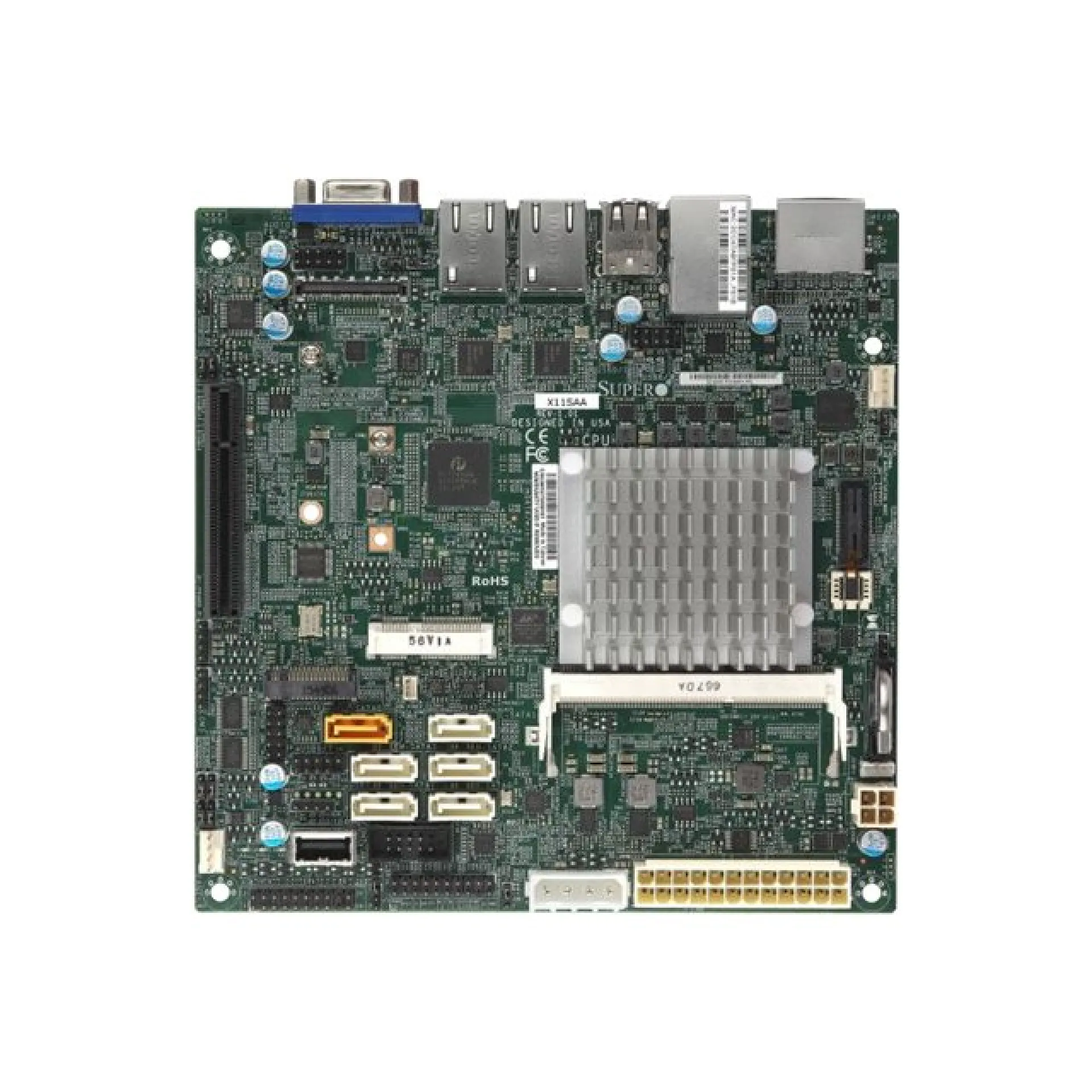

MBD-X11SAA-B Supermicro Mini-ITX Single FCBGA1296 1 SO-DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X11SAA-B and save cash:

Quantity	Unit price
To 9	€290.00
To 19	€276.00 €290.00 (4.83% saved)
To 49	€270.00 €290.00 (6.9% saved)
From 50	€262.00 €290.00 (9.66% saved)

Product line:

X11

See all Embedded Motherboard

See other Supermicro products

€290.00

Out of stock

Not available

Happyware Article Number:

SH3M3630-461743

Manufacturer Number:

MBD-X11SAA-B

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X11SAA-B

High-Performance Mini-ITX Embedded Server Motherboard for low-power edge platforms with the MBD-X11SAA-B

The MBD-X11SAA-B is a compact Supermicro X11SAA SoC platform designed for embedded edge compute where predictable thermals, low power draw, and integrated graphics matter. With an onboard Intel SoC in an FCBGA package and Intel HD Graphics, the MBD-X11SAA-B supports kiosk, control, and appliance deployments that require display outputs without a discrete GPU, while keeping the system bill of materials and service surface minimal.

For memory, the MBD-X11SAA-B implements a single DDR3L SO-DIMM channel up to 8GB for deterministic footprint systems and lightweight services. Expansion is centered on PCIe 2.0, providing a PCIe slot (x2 electrical) plus Mini-PCIe with mSATA support to integrate NICs, wireless, or accelerator modules where space is constrained. Storage architecture is optimized for SATA-centric edge nodes: 6x SATA III ports for multi-disk arrays and an M.2 M-Key slot supporting PCIe 2.0 or SATA, enabling fast boot media or compact caching. Dual Intel I210-AT 1GbE interfaces deliver stable driver support and consistent throughput for routing, segmentation, and small-branch services.

Why Choose the MBD-X11SAA-B?

The MBD-X11SAA-B offers a strong density-to-performance ratio for Mini-ITX enclosures by combining CPU, graphics, storage connectivity, and dual enterprise-class Ethernet on a single board. It is well suited to standardized edge deployments where scalability comes from replicable nodes, while TPM support improves platform integrity for unattended installations.

Supermicro engineering focuses on platform longevity, controlled component selection, and firmware consistency aligned with modern data centre and edge standards. The design emphasizes reliable I/O, validated interoperability, and predictable integration for appliance builders and OEM-style rollouts.

Key Applications:

Edge compute microservices
Firewall and router appliances
Branch office infrastructure nodes
Compact NAS and backup targets
Digital signage and kiosk control

At Happyware - Server Hardware you benefit from non-binding offers tailored to MBD-X11SAA-B deployments and an extended warranty up to 6 years, supporting long lifecycle projects and predictable operational planning.

Technical details of MBD-X11SAA-B

CPU Socket:

FCBGA1296

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Pentium

Form Factor:

Mini-ITX

Chipset:

System-on-Chip (SoC)

RAM Maximum Capacity:

8GB

Max RAM Frequency :

1866MHz

RAM Slots:

1 SO-DIMM DDR3L

PCIe Slots:

1 PCIe 2.0 x8

M.2 Slots:

1 PCIe 2.0/SATA M.2 2280, M.2 2260 M-Key

Network Ports:

2 RJ45 1 Gbps

ECC Support:

Non-ECC

Onboard Network:

Ethernet

Suitability:

Server

Onboard CPU:

Yes

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

1x DisplayPort 1x HDMI 1x VGA

USB Ports:

5x USB 2.0 1x USB 2.0 Type-A

Other Ports:

2x COM Port 1x SuperDOM (Disk on Module) ports 1x TPM Header

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Wi-Fi Support:

None

Embedded:

Yes

Card Reader:

How long is the Warranty and how you can get technical support for MBD-X11SAA-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
