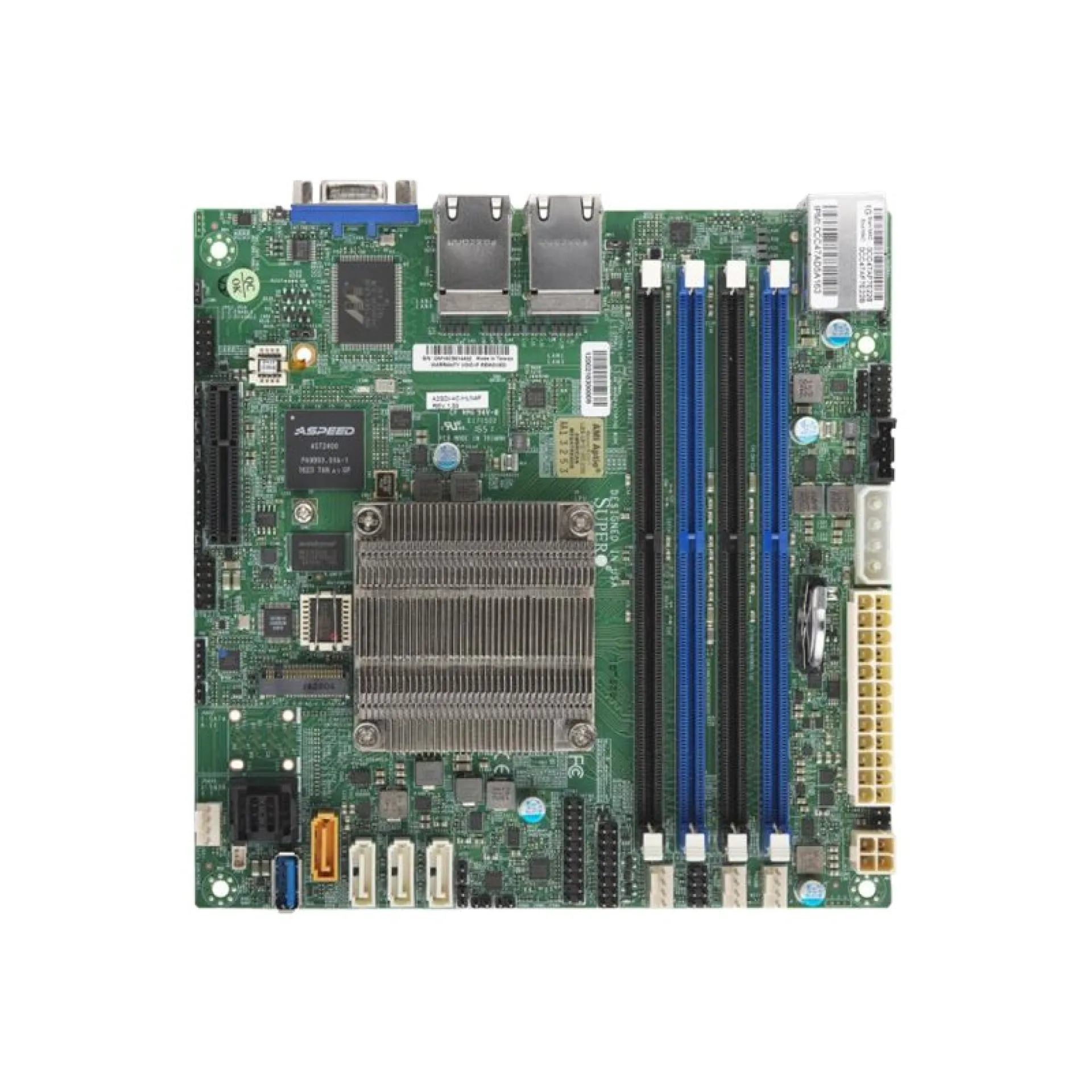

MBD-A2SDI-4C-HLN4F-O Supermicro Mini-ITX Single FCBGA1310 4 DIMM Slots Server Mainboard

Compact Mini-ITX Server Motherboard architecture for edge and storage appliances with the MBD-A2SDI-4C-HLN4F-O

The MBD-A2SDI-4C-HLN4F-O is a Mini-ITX server motherboard built around an onboard Intel Atom C3000 SoC, delivering a balanced compute profile for always-on services where power envelope and platform simplicity matter. With a 16W TDP CPU design, it supports dense, reliable deployments in constrained enclosures while maintaining enterprise server fundamentals such as remote management and ECC-capable memory operation.

Memory scalability is engineered through 4 DDR4 DIMM slots supporting up to 256GB, enabling higher cache and in-memory service capacity without moving to a larger platform. For I/O, the MBD-A2SDI-4C-HLN4F-O provides PCIe 3.0 expansion via a x4 electrical slot for NIC, accelerator, or storage controller integration, and a flexible M.2 (M-Key) interface supporting PCIe 3.0 x2 or SATA. Storage architecture is optimized for SATA-dense NAS and appliance builds with 8 SATA III 6Gb/s ports, aligning with cost-efficient HDD or SATA SSD pools. Integrated 4x 1GbE networking on the MBD-A2SDI-4C-HLN4F-O targets segmented service planes, edge routing, and multi-tenant appliance designs without external switch dependencies.

Why Choose the MBD-A2SDI-4C-HLN4F-O?

The MBD-A2SDI-4C-HLN4F-O is designed for high node density and predictable performance-per-watt, pairing low-power compute with practical I/O and storage connectivity. Its integrated IPMI/BMC management reduces on-site operational overhead, while TPM support strengthens secure provisioning in distributed or branch deployments. This platform scales cleanly from single-node appliances to fleet rollouts where consistency, remote lifecycle control, and service availability are critical.

Supermicro engineering prioritizes long-lifecycle server platforms with validated firmware, standards-based management, and board-level reliability suited to modern data center and edge racks. The MBD-A2SDI-4C-HLN4F-O reflects this approach by combining manageable infrastructure features with compact form factor integration.

Key Applications:

• Edge and embedded compute appliances
• Microserver and NAS nodes
• Branch and remote office services
• Security gateway and routing platforms
• Storage controller and backup targets

At Happyware - Server Hardware you benefit from 24/7 Customer Service to support fast integration and rollout planning for the MBD-A2SDI-4C-HLN4F-O, and you can request Non-Binding Offers tailored to your bill of materials and deployment volume.
