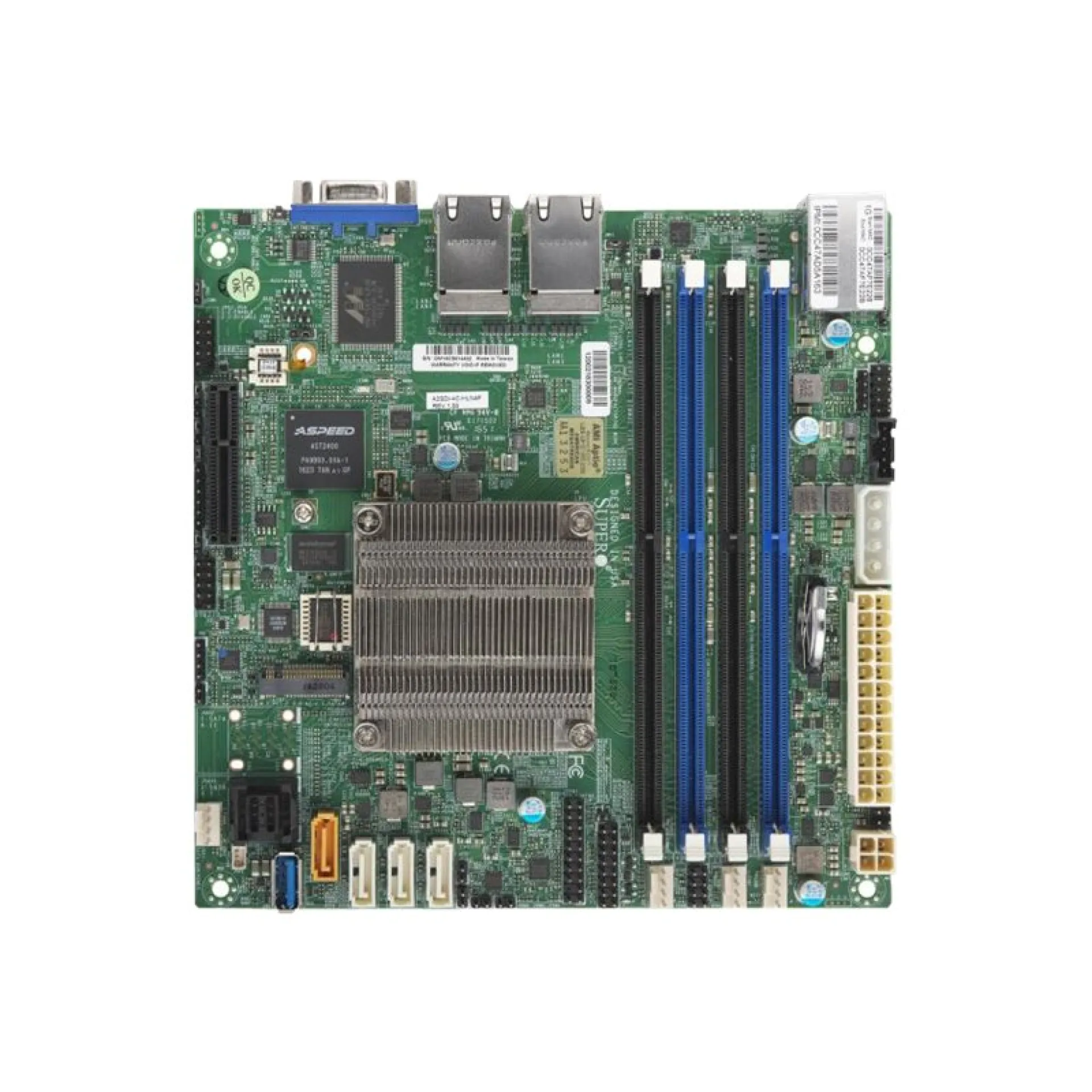

MBD-A2SDI-4C-HLN4F-B Supermicro Mini-ITX Single FCBGA1310 4 DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-A2SDI-4C-HLN4F-B and save cash:

Quantity	Unit price
To 9	€376.00
To 19	€358.00 €376.00 (4.79% saved)
To 49	€350.00 €376.00 (6.91% saved)
From 50	€339.00 €376.00 (9.84% saved)

See all Single CPU (UP) Motherboards

See other Supermicro products

€376.00

Out of stock

Not available

Happyware Article Number:

SH8M2941-189943

Manufacturer Number:

MBD-A2SDI-4C-HLN4F-B

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-A2SDI-4C-HLN4F-B

High-Density Mini-ITX Server Motherboard architecture for edge and microserver deployments with the MBD-A2SDI-4C-HLN4F-B

The MBD-A2SDI-4C-HLN4F-B is a Mini-ITX server motherboard engineered around an onboard Intel Atom C3000 SoC, enabling compact systems that prioritize deterministic performance per watt for branch, edge, and embedded infrastructure. With a 16W platform TDP and integrated 4x 1GbE networking, it supports consolidated network and service roles without external NIC complexity, while ECC-capable DDR4 memory provides predictable behavior for always-on workloads.

The MBD-A2SDI-4C-HLN4F-B balances I/O density with a controlled PCIe 3.0 lane budget: a PCIe 3.0 x4 slot (BIOS-configurable) and an M.2 M-Key interface supporting PCIe 3.0 x2 or SATA enable flexible boot and cache tiers. Storage connectivity is optimized for small-footprint NAS and appliance builds through 8x SATA III 6Gb/s ports, with platform lane sharing designed to align expansion choices to the intended storage-versus-add-in profile. Integrated IPMI/BMC management with ASPEED AST2400 provides out-of-band control suitable for unattended sites.

Why Choose the MBD-A2SDI-4C-HLN4F-B?

The MBD-A2SDI-4C-HLN4F-B delivers enterprise-grade manageability and I/O density in a Mini-ITX form factor, enabling high node counts per rack or per branch cabinet while maintaining straightforward power and thermal envelopes. Its architecture supports scalable standardization for remote sites, with consistent platform behavior across microserver fleets and clear constraints for predictable capacity planning.

Supermicro designs this platform with an emphasis on data center-aligned reliability, long-life component selection, and firmware/management integration that supports standardized provisioning. The result is an embedded-ready server motherboard that fits modern remote operations models using UEFI-based deployment and secure module support.

Key Applications:

Edge and branch microservers
Firewall and routing appliances
Low-power NAS and storage gateways
Remote-managed infrastructure services
Lightweight virtualization hosts

At Happyware - Server Hardware you benefit from non-binding offers tailored to your MBD-A2SDI-4C-HLN4F-B deployment plan and an extended warranty of up to 6 years to secure long-lived edge and appliance rollouts.

Technical details of MBD-A2SDI-4C-HLN4F-B

CPU Socket:

FCBGA1310

Onboard Memory:

RAID Support:

CPU Manufacturer:

Intel

CPU Supported Type:

Atom

Form Factor:

Mini-ITX

Chipset:

System-on-Chip (SoC)

RAM Maximum Capacity:

256GB

Max RAM Frequency :

2400MHz

RAM Slots:

4 DIMM DDR4

PCIe Slots:

1 PCIe 3.0 x4

M.2 Slots:

1 PCIe 3.0 x2/SATA M.2 2280, M.2 2242 M-Key

Network Ports:

4 RJ45 1 Gbps

ECC Support:

ECC Non-ECC

Onboard Network:

Ethernet

Suitability:

Server

Onboard CPU:

Yes

RAID Support:

Onboard Graphic:

Yes

Video Output:

1x VGA

USB Ports:

2x USB 2.0 1x USB 3.0 Type-A

Other Ports:

1x SuperDOM (Disk on Module) ports 1x COM Port 1x TPM Header

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Wi-Fi Support:

None

Onboard Audio Chipset:

Embedded:

Card Reader:

How long is the Warranty and how you can get technical support for MBD-A2SDI-4C-HLN4F-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
