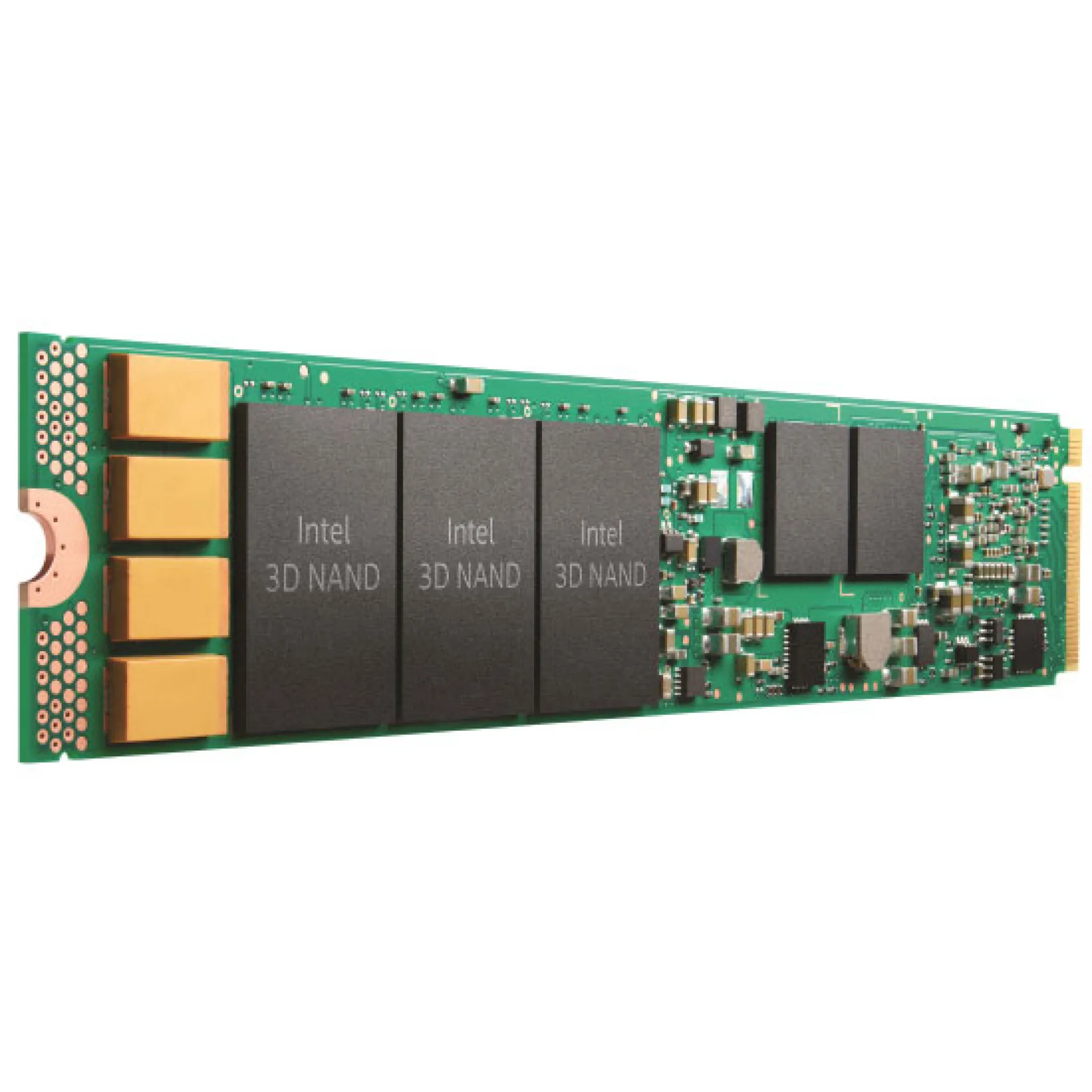

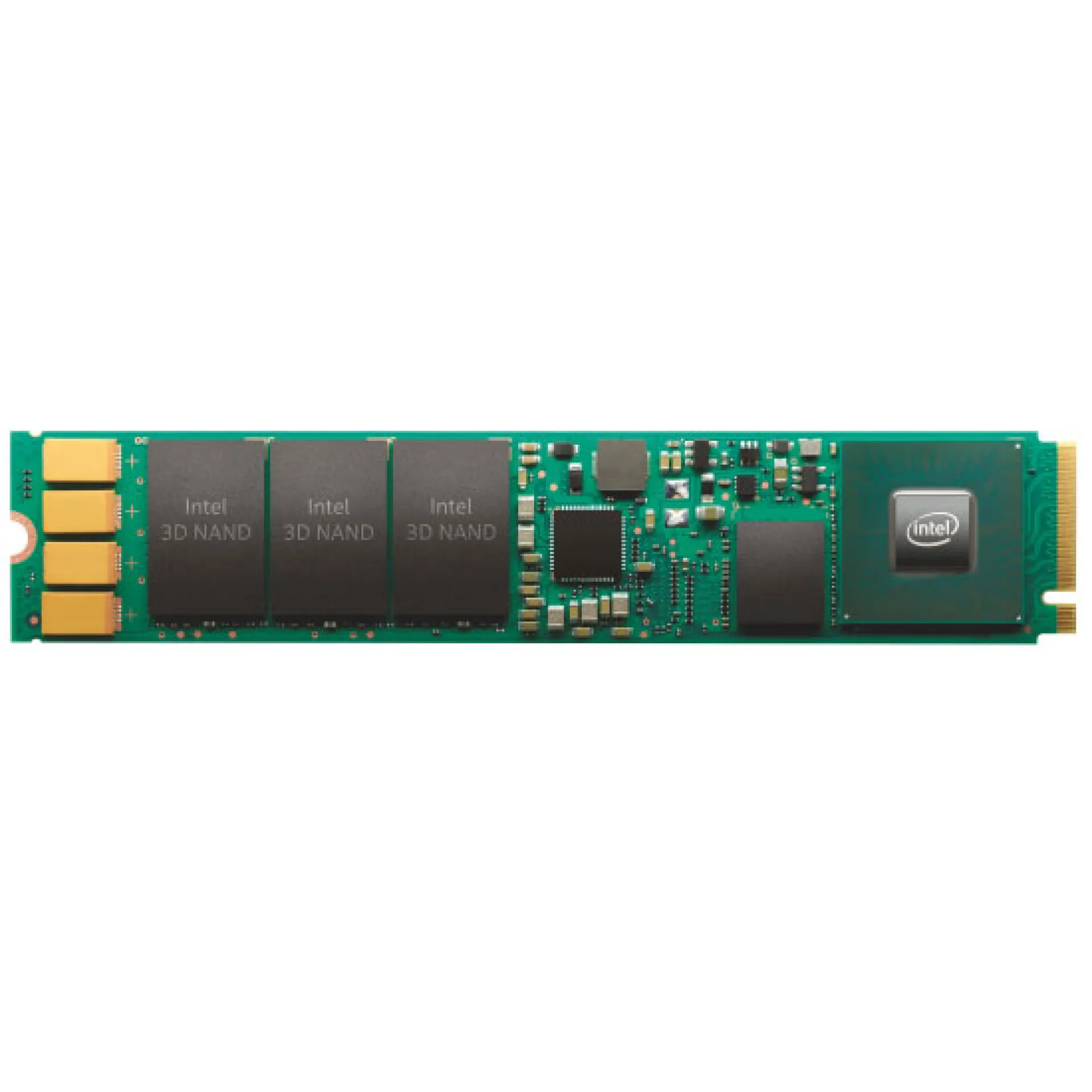

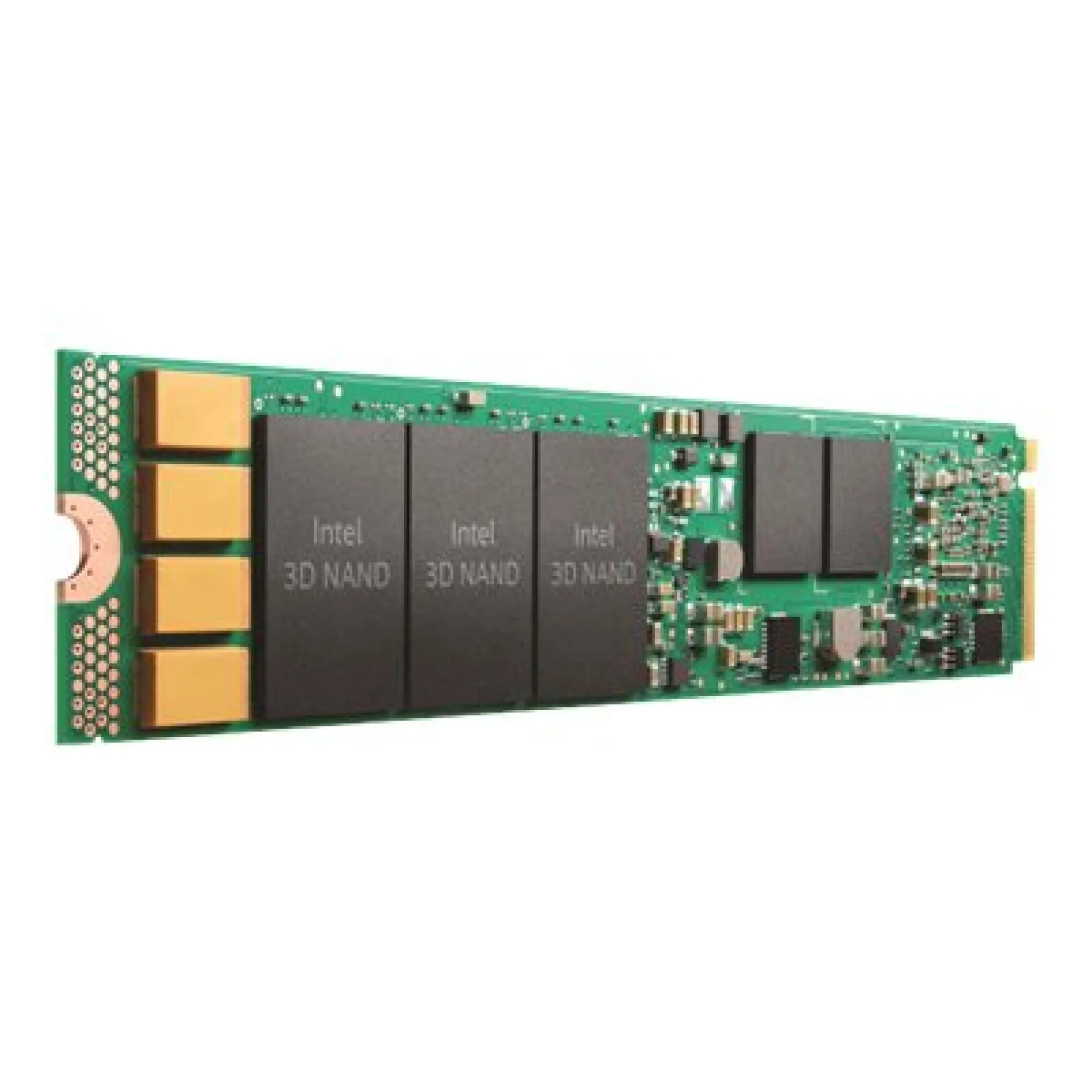

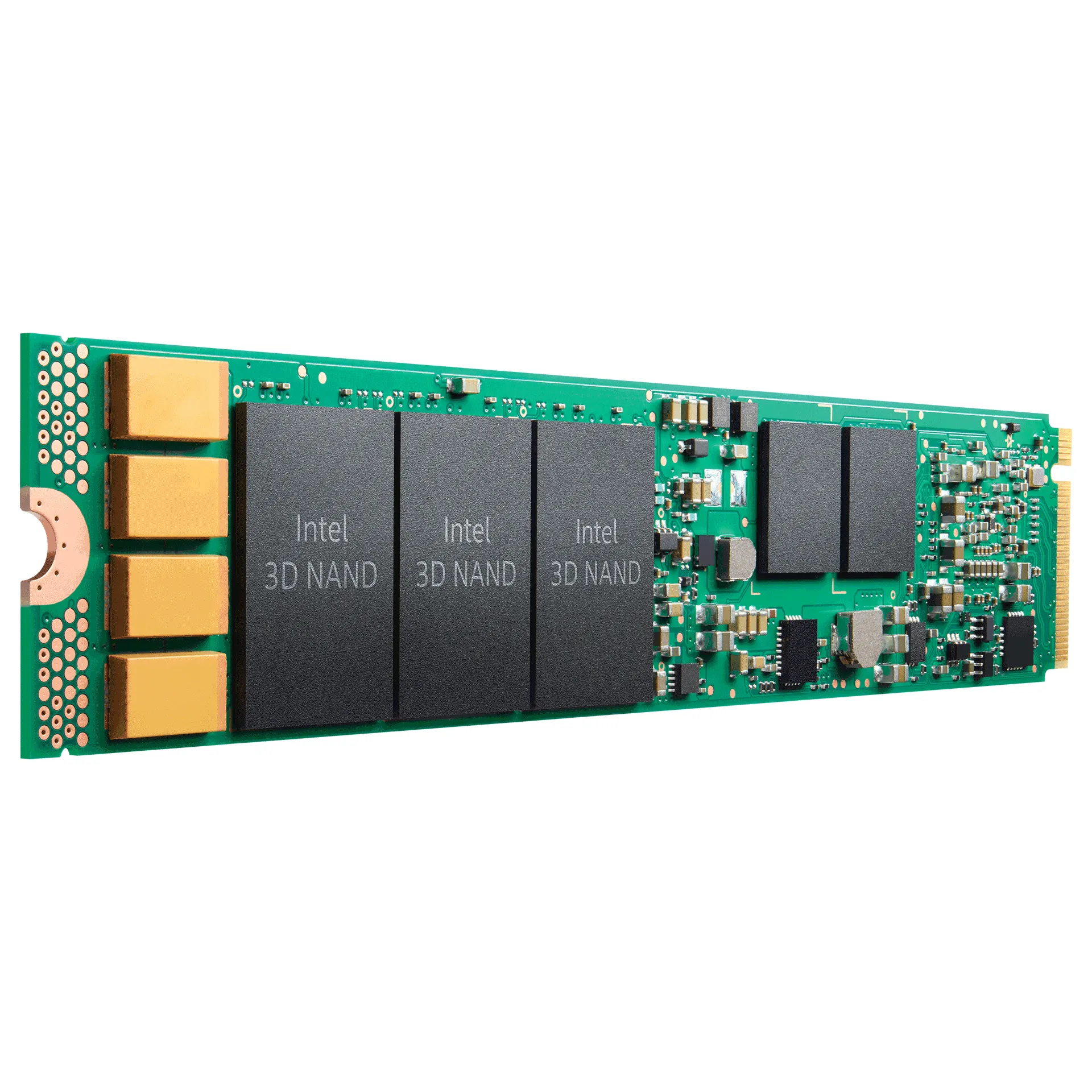

SSDPELKX020T801 Intel DC P4000 2048GB PCIe 3.0 M.2 22110 Consumer SSD

High-Performance M.2 22110 NVMe Datacenter SSD for Read-Optimised Boot and Cache Tiers with the SSDPELKX020T801

The SSDPELKX020T801 is an Intel Datacenter SSD based on the DC P4000 Series, designed for PCIe Gen3 x4 NVMe connectivity in an M.2 22110 (M-Key) form factor where density and serviceability must coexist in modern server platforms. It aligns with CPU generations that expose PCIe Gen3 lanes for dedicated OS, hypervisor, and node-local cache placement without consuming hot-swap bays, while still delivering predictable latency characteristics for read-centric tiers.

Using TLC NAND with a read-optimised endurance profile, the SSDPELKX020T801 supports architectures that separate boot/media duties from high-write data planes. Sequential throughput up to 2000 MB/s read and 1430 MB/s write, plus random 4K performance up to 295K/36K IOPS, enables fast image loads, responsive metadata access, and efficient content staging. With integrated Power Loss Protection, end-to-end data protection, and thermal telemetry, the SSDPELKX020T801 fits into controlled data centre operating envelopes and reduces operational risk when deployed as an internal system drive.

Why Choose the SSDPELKX020T801?

The SSDPELKX020T801 provides a pragmatic density-to-performance balance for servers that need an internal NVMe boot or cache device with enterprise safeguards. Its PCIe Gen3 x4 interface scales across common platform backplanes, while 0.53 DWPD endurance and 1950 TBW support long-lived read-heavy service roles. Security features such as 256-bit AES self-encrypting drive capability help standardise compliance across fleet deployments using the SSDPELKX020T801.

Intel engineers the P4000 family to meet data centre reliability expectations, combining hardware encryption, power-fail resilience, and continuous monitoring for consistent operation. The SSDPELKX020T801 is built to integrate cleanly with standard NVMe management and modern provisioning workflows.

Key Applications:

• Server boot and hypervisor images
• Node-local cache for distributed systems
• Read-heavy web and content delivery tiers
• VDI read-optimised storage

At Happyware - Server Hardware you benefit from non-binding offers tailored to your platform and deployment volume for the SSDPELKX020T801, and can extend the warranty up to 6 years to strengthen lifecycle planning for fleet rollouts.
