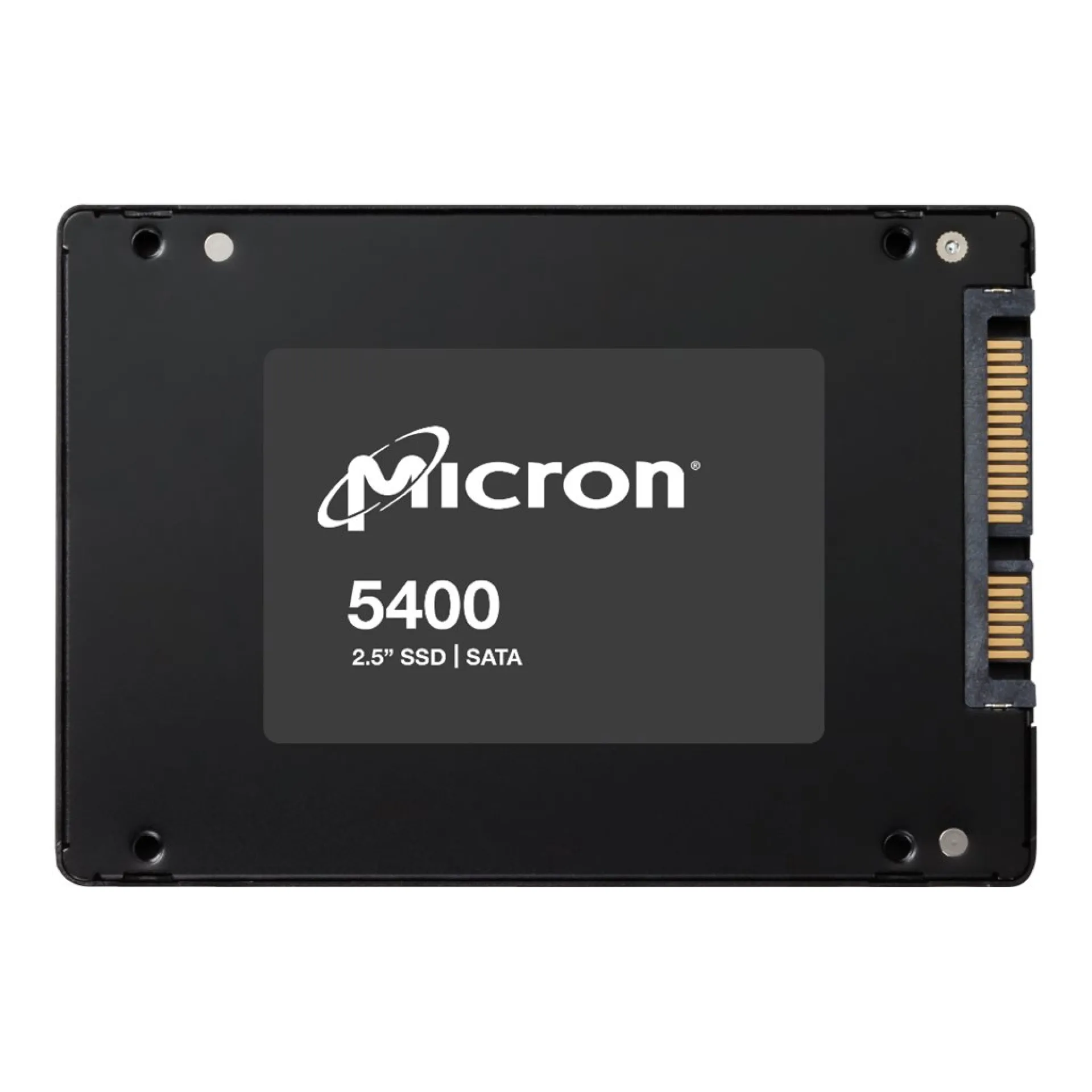

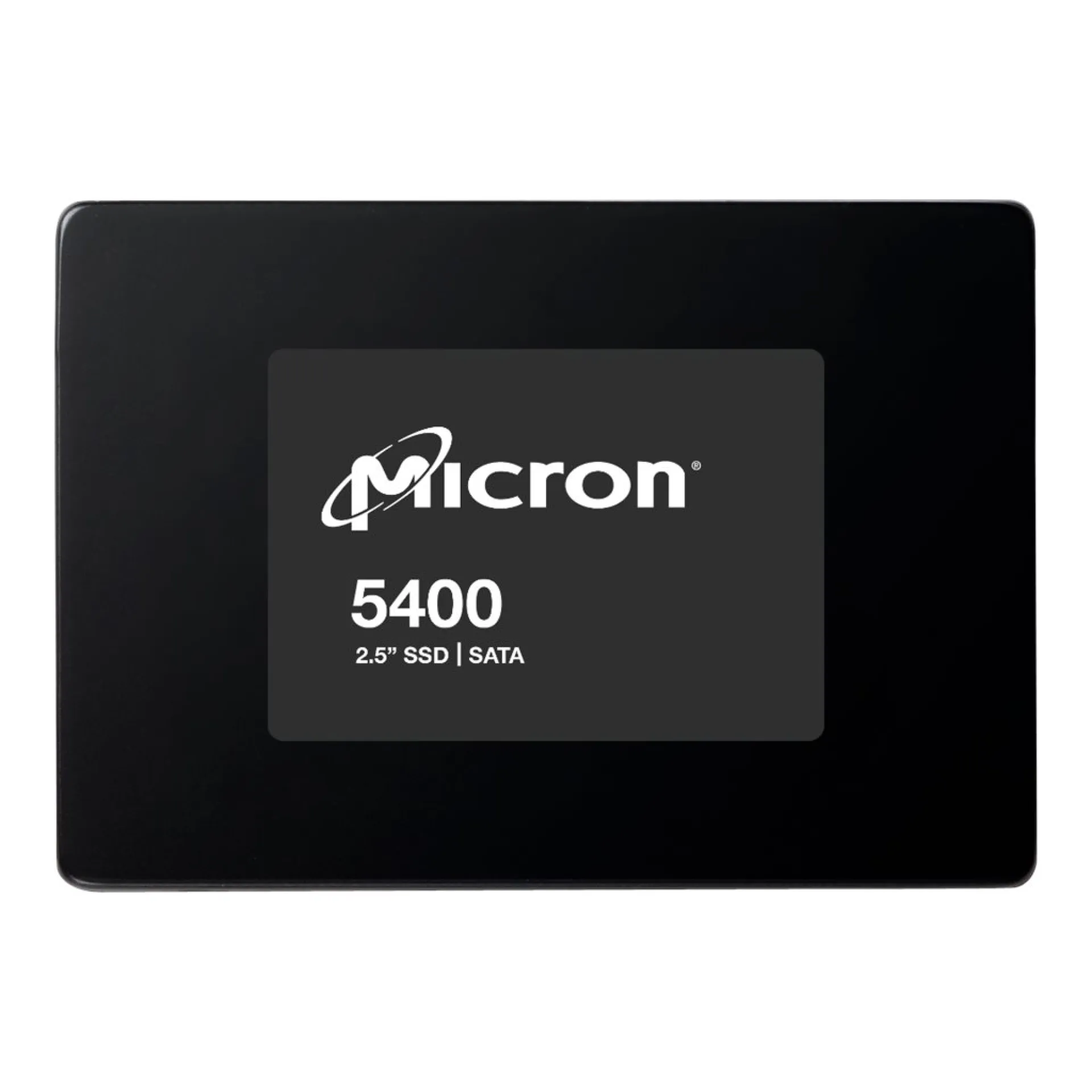

MTFDDAK960TGA-1BC1ZABYYR Micron 5400 PRO 960GB SATA 2.5" Server SSD

*Picture may not be exactly the same as the product

Get extra volume discount for MTFDDAK960TGA-1BC1ZABYYR and save cash:

Quantity	Unit price
To 4	€1,535.00
To 9	€1,489.00 €1,535.00 (3% saved)
To 19	€1,459.00 €1,535.00 (4.95% saved)
From 20	€1,428.00 €1,535.00 (6.97% saved)

Known as:

Micron Technology, Inc.

Product line:

5400 PRO

See all SATA SSDs

See other Micron products

€1,535.00

Out of stock

Not available

Happyware Article Number:

SH924680-130708

Manufacturer Number:

MTFDDAK960TGA-1BC1ZABYYR

Brand:

Micron

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MTFDDAK960TGA-1BC1ZABYYR

High-Performance 2.5in Enterprise SATA SSD featuring read-intensive endurance with the MTFDDAK960TGA-1BC1ZABYYR

The MTFDDAK960TGA-1BC1ZABYYR is a 960GB 2.5in SATA datacenter SSD engineered for enterprise boot/OS and read-heavy tiers where consistent latency matters more than peak interface bandwidth. In CPU-dense rack servers and edge appliances, it complements modern multi-core platforms by delivering predictable storage response for OS images, hypervisor partitions, and frequently accessed datasets without consuming PCIe lanes reserved for NVMe accelerators or high-speed networking.

Built on 176-layer 3D NAND TLC, the MTFDDAK960TGA-1BC1ZABYYR aligns endurance and performance for sustained read-intensive operation, supporting 1.5 DWPD over 5 years and 2628 TBW. SATA integration simplifies hot-swap backplanes and standard RAID/HBA designs, while sequential throughput up to 540 MB/s read and 520 MB/s write and 4K performance up to 95K/33K IOPS fit VM hosting, web tiers, and application caches. Architectural safeguards such as Power Loss Protection, Data Path Protection, and RAIN help preserve data integrity under unexpected power events and in high-uptime environments.

Why Choose the MTFDDAK960TGA-1BC1ZABYYR?

The MTFDDAK960TGA-1BC1ZABYYR provides a balanced density-to-performance profile for servers that must standardize on 2.5in SATA while meeting enterprise reliability and security requirements. It scales cleanly across fleets as a uniform boot device or read-intensive storage layer, minimizing operational variance through consistent endurance behavior, adaptive thermal monitoring, and a 3,000,000-hour MTBF target.

Micron designs enterprise SSDs around controlled NAND qualification, robust firmware validation, and datacenter-grade protection mechanisms, aligning the MTFDDAK960TGA-1BC1ZABYYR with modern availability expectations and common compliance frameworks through AES-256 support with TCG Opal and TCG Enterprise capabilities.

Key Applications:

Enterprise boot and OS volumes
Read-intensive VM hosting
Web and application front-end tiers
Edge and branch infrastructure

At Happyware - Server Hardware you benefit from 24/7 Customer Service to support rapid deployment planning for the MTFDDAK960TGA-1BC1ZABYYR and from Non-Binding Offers that let you standardize quantities and delivery schedules across server builds without procurement friction.

Technical details of MTFDDAK960TGA-1BC1ZABYYR

Capacity: 960GB

Form Factor: 2.5"

Interface: SATA

Speed Reading: 540MB/s

Speed Writing: 520MB/s

Total Bytes Written (TBW): 2628TB

Drive Writes Per Day (DWPD): 1.5000000000

Suitability: Server

Encryption: Yes

Mean Time Between Failures (MTBF): 3000000

IOPS 4K Reading: 95K

IOPS 4K Writing: 33K

Special features: End-to-End Data Protection, Read Intensive, 176-layer NAND, Hot Plug, RAID Support, Adaptive thermal monitoring, Power Loss Protection (PLP)

Power Consumption Operation: 3.9W

Certificates: AES-256, TCG Enterprise, TCG Opal

Recording Process: TLC

Height: 7mm

How long is the Warranty and how you can get technical support for MTFDDAK960TGA-1BC1ZABYYR

Warranty:	36 months (part)
RMA Url:	https://www.micron.com/sales-support/sales/returns-and-warranties
Description:	Standard RMA processing requires an item to be returned first. No Advanced replacement as an option.
