90SB0AC0-M0UAY0

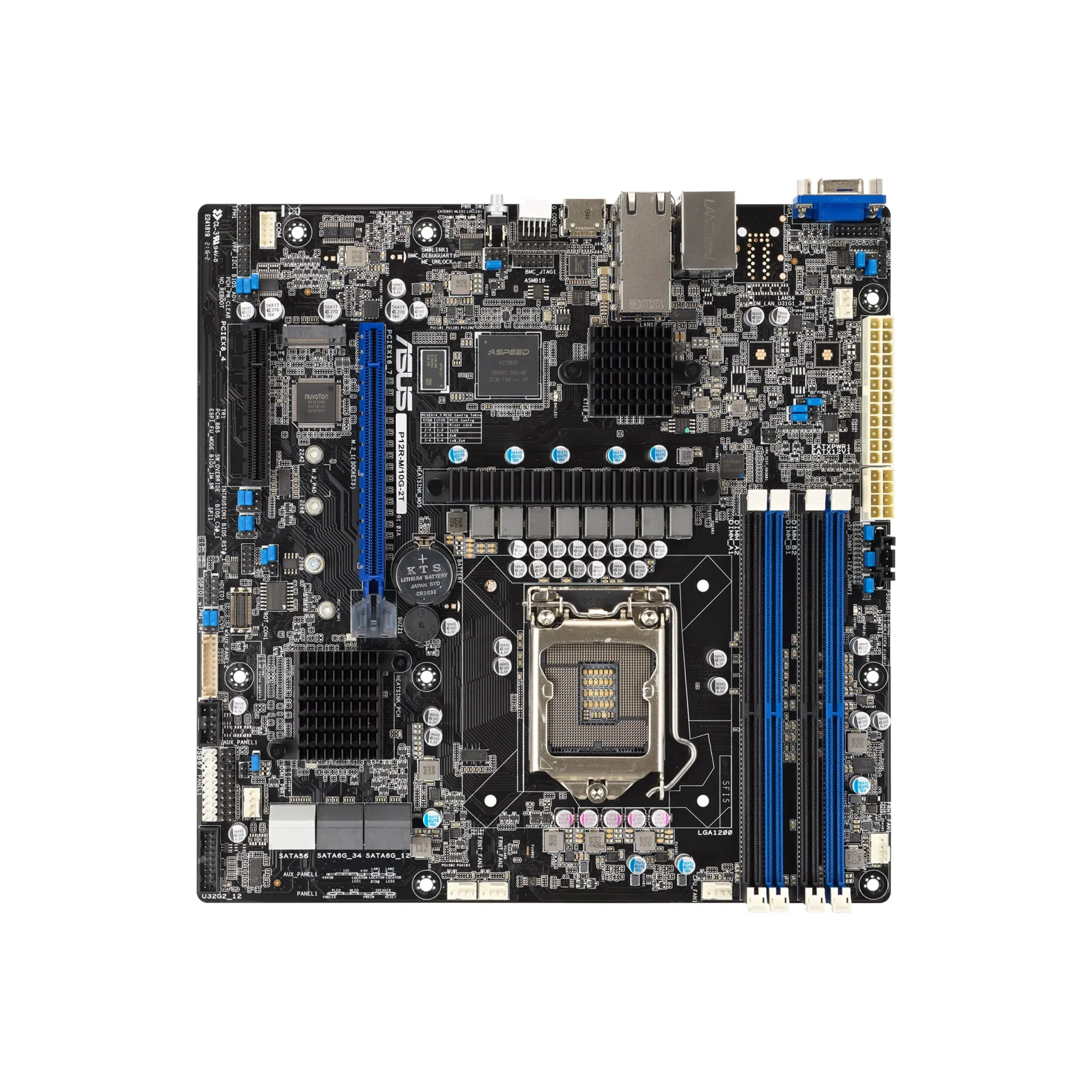

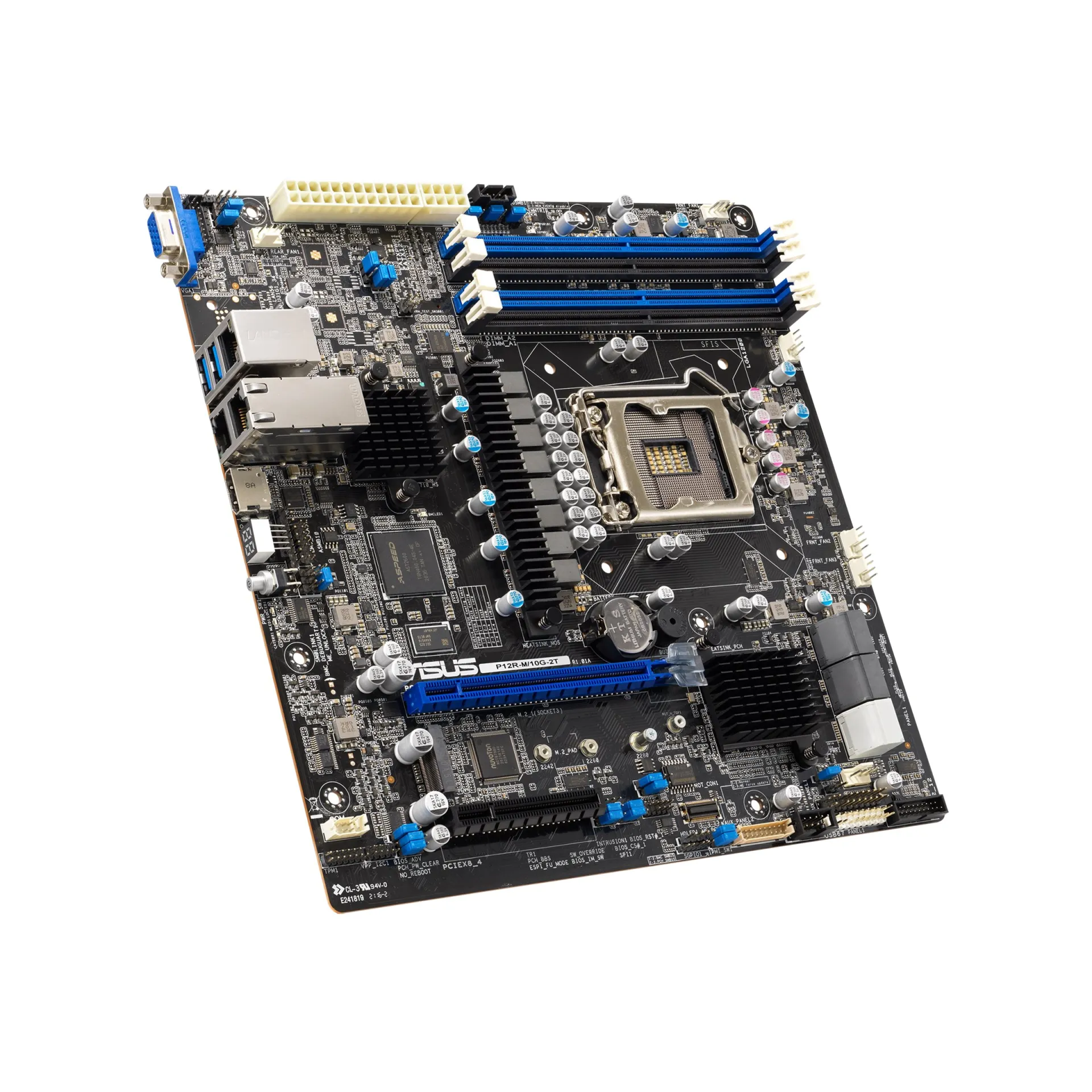

Micro-ATX Server Motherboard for edge infrastructure and dual 10GbE networking with the 90SB0AC0-M0UAY0

The 90SB0AC0-M0UAY0 is a Micro-ATX server motherboard built on the Intel C252 platform, targeting compact edge and SMB deployments that require reliable Xeon E or Pentium compute with enterprise manageability. A single LGA1200 socket provides a balanced CPU foundation for virtualization hosts, infrastructure services, and security appliances where predictable latency and platform stability are more critical than multi-socket scale.

For memory architecture, the 90SB0AC0-M0UAY0 uses 4 DDR4 DIMM slots in dual-channel configuration, supporting ECC and non-ECC up to 128GB at up to 3200MT/s to match mixed workload profiles and improve resilience for always-on services. PCIe 4.0 expansion enables modern NICs, accelerators, or HBA integration via a x16 slot and a second physical x8 slot (x4 electrical), while storage is optimized for SATA-centric nodes with 6 SATA III ports plus an M.2 PCIe 3.0 x4 slot suited for NVMe boot or cache. Dual 10GbE RJ45 via Intel X710-AT2 and a dedicated management port help separate data-plane traffic from out-of-band control.

Why Choose the 90SB0AC0-M0UAY0?

The 90SB0AC0-M0UAY0 delivers a high density-to-performance ratio by combining compact Micro-ATX mechanicals with PCIe 4.0 expansion and integrated dual 10GbE copper, reducing external adapters and cabling complexity. It scales cleanly from single-purpose network appliances to consolidated edge servers, with RAID and TPM support enabling standardized deployment, secure provisioning, and consistent lifecycle management across sites.

ASUS engineering focuses on sustained reliability for continuous operation, with server-grade validation, clear serviceability, and alignment to modern data centre requirements such as remote management, secure hardware roots, and predictable I/O behaviour under load.

Key Applications:

Edge virtualization host
Firewall, router, or UTM appliance
SMB infrastructure services
10GbE storage/backup node
Remote branch compute platform

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment requirements for the 90SB0AC0-M0UAY0, and the option to extend the warranty up to 6 years to protect long-lived edge and infrastructure installations.

Technical details of 90SB0AC0-M0UAY0

CPU Socket: H5 (LGA 1200)

Onboard Memory: No

RAID Support: Yes

CPU Manufacturer: Intel

CPU Supported Type: Xeon E, Pentium

Form Factor: Micro-ATX

Chipset: Intel C252

RAM Maximum Capacity: 128GB

Max RAM Frequency : 3200MHz

RAM Slots: 4 DIMM DDR4

RAM Channels: Dual-Channel

PCIe Slots: 1 PCIe 4.0 x8, 1 PCIe 4.0 x16

M.2 Slots: 1 PCIe 3.0 x4 M.2 2280, M.2 2260, M.2 2242 M-Key

Network Ports: 2 RJ45 10 Gbps

ECC Support: ECC, Non-ECC

Onboard Network: Ethernet

Onboard CPU: No

RAID Support: Yes

Onboard Graphic: Yes

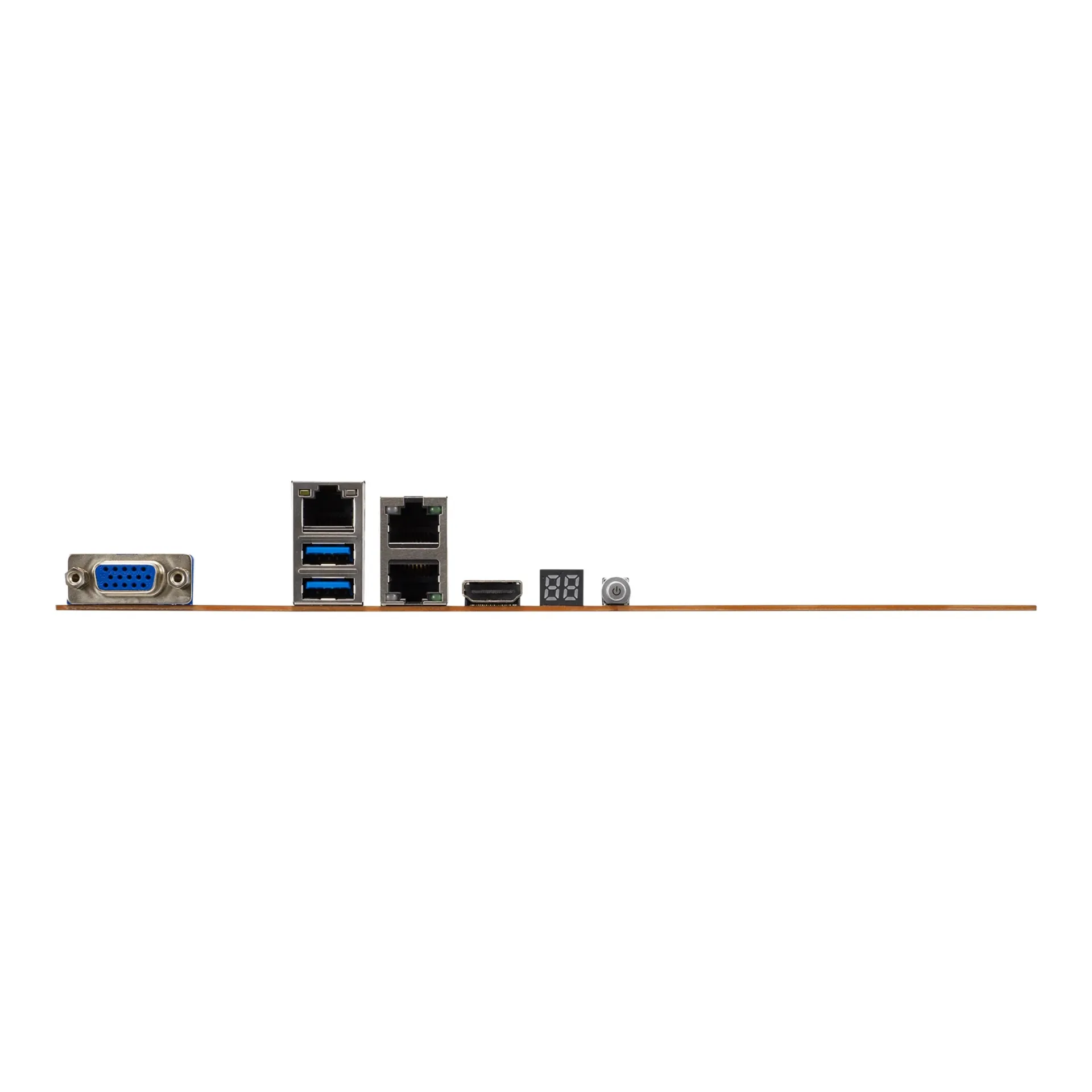

Video Output: 1x HDMI, 1x VGA

USB Ports: 2x USB 2.0 header, 2x USB 3.2 Gen 1 Header, 2x USB 3.2 Gen 2 Type-A

Other Ports: 1x management, 2x RJ-45 LAN Port

Trusted Platform Module (TPM): Yes

Wi-Fi Support: None

Card Reader: No

How long is the Warranty and how you can get technical support for 90SB0AC0-M0UAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
