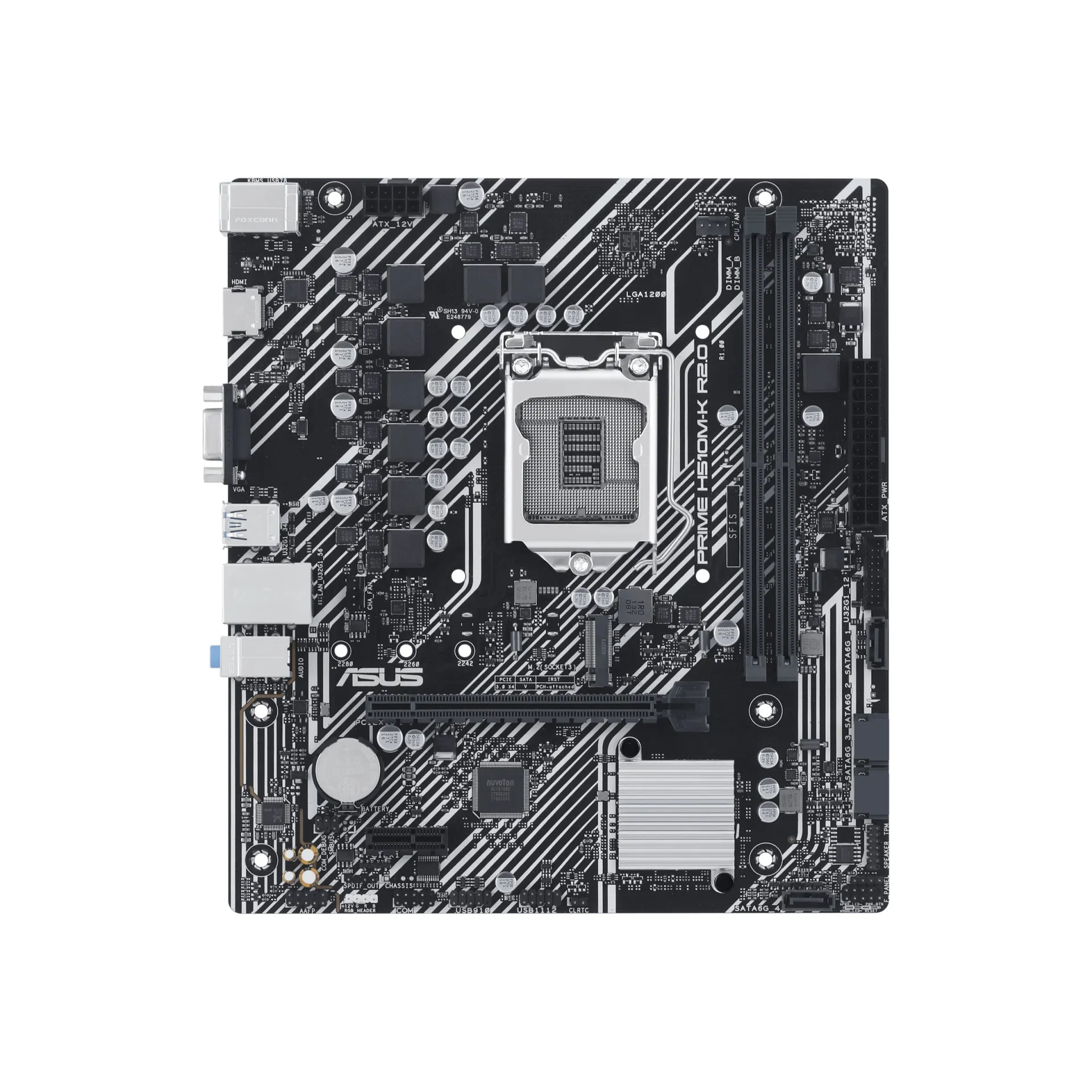

90MB1E80-M0EAY0 ASUS Micro-ATX Single H5 (LGA 1200) 2 DIMM Slots Desktop Mainboard

*Picture may not be exactly the same as the product

Product version:

R2.0

Product line:

Prime

See all ASUS

See other ASUS products

This product is currently not priced. Request a personalized quote now.

Out of stock

Happyware Article Number:

SH0M6599-334058

Manufacturer Number:

90MB1E80-M0EAY0

Brand:

ASUS

Are you a reseller?

Do you have questions about this product 90MB1E80-M0EAY0?

Our team of server experts will be happy to help you to ensure you purchase the right product.

Description Technical details Warranty & Technical Support Reviews Bulk Deals

90MB1E80-M0EAY0

High-Performance Micro-ATX Intel LGA1200 Motherboard enabling efficient endpoint and edge builds with the 90MB1E80-M0EAY0

The 90MB1E80-M0EAY0 is an ASUS Prime Micro-ATX platform designed for Intel LGA1200 processors, aligning well with cost-controlled enterprise endpoints, branch appliances, and light-duty infrastructure nodes where predictable I/O and stable platform lifecycle matter. With dual-channel DDR4 3200 across 2 DIMM slots, the memory architecture targets balanced office VDI endpoints, point systems, and compact edge compute where 64GB non-ECC capacity supports virtualization-light or containerized services without overprovisioning.

For expansion, the 90MB1E80-M0EAY0 combines a primary PCIe 4.0 x16 slot for bandwidth-sensitive add-ins and a PCIe 3.0 x1 slot for low-profile controllers, enabling flexible configurations such as NIC upgrades, capture/serial cards, or additional storage HBAs. Storage is architected around 4x SATA III ports for SATA arrays plus an M.2 M-Key slot supporting PCIe 3.0 x4 or SATA, allowing an NVMe boot volume while keeping SATA lanes available for mirrored or parity-protected sets. Integrated 1GbE and TPM support reinforce standard enterprise baseline requirements where IPMI/BMC is not needed.

Why Choose the 90MB1E80-M0EAY0?

The 90MB1E80-M0EAY0 delivers a practical density-to-performance ratio for Micro-ATX enclosures, with enough PCIe and storage flexibility to standardize builds across office fleets and branch sites. It scales cleanly from basic desktops to small edge appliances by combining predictable DDR4 behavior, RAID support, and straightforward serviceability within common ATX-compatible workflows.

ASUS engineering emphasizes electrical stability, validated component selection, and firmware maturity aligned with modern data centre and enterprise deployment standards, supporting repeatable imaging, controlled change management, and long-term operational consistency.

Key Applications:

General office and SMB desktop endpoints
Branch and edge gateway appliances
Light NAS and SATA-based storage nodes
Serial console and basic I/O expansion builds
NVMe boot + SATA data tier configurations

At Happyware - Server Hardware you benefit from 24/7 Customer Service to support time-sensitive rollout and replacement needs for 90MB1E80-M0EAY0-based fleets, and you can request Non-Binding Offers to align quantities and configurations precisely with your deployment standard.

Technical details of 90MB1E80-M0EAY0

CPU Socket:

H5 (LGA 1200)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Pentium Celeron Core

Form Factor:

Micro-ATX

Chipset:

Intel H470

RAM Maximum Capacity:

64GB

Max RAM Frequency :

3200MHz

RAM Slots:

2 DIMM DDR4

RAM Channels:

Dual-Channel

PCIe Slots:

1 PCIe 3.0 x1 1 PCIe 4.0 x16

M.2 Slots:

1 PCIe 3.0 x4/SATA M.2 2280, M.2 2260, M.2 2242 M-Key

Network Ports:

1 RJ45 1 Gbps

ECC Support:

Non-ECC

Onboard Network:

Ethernet

Suitability:

Desktop

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

1x HDMI 2.0b 1x VGA

USB Ports:

4x USB 3.2 Gen 1 Type-A 2x USB 2.0 2x USB 3.2 Gen 1 ports 4x USB 2.0

Other Ports:

1x Serial Port

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Wi-Fi Support:

None

Bluetooth integrated:

None

Onboard Audio Chipset:

Realtek ALC897

Embedded:

Card Reader:

How long is the Warranty and how you can get technical support for 90MB1E80-M0EAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
