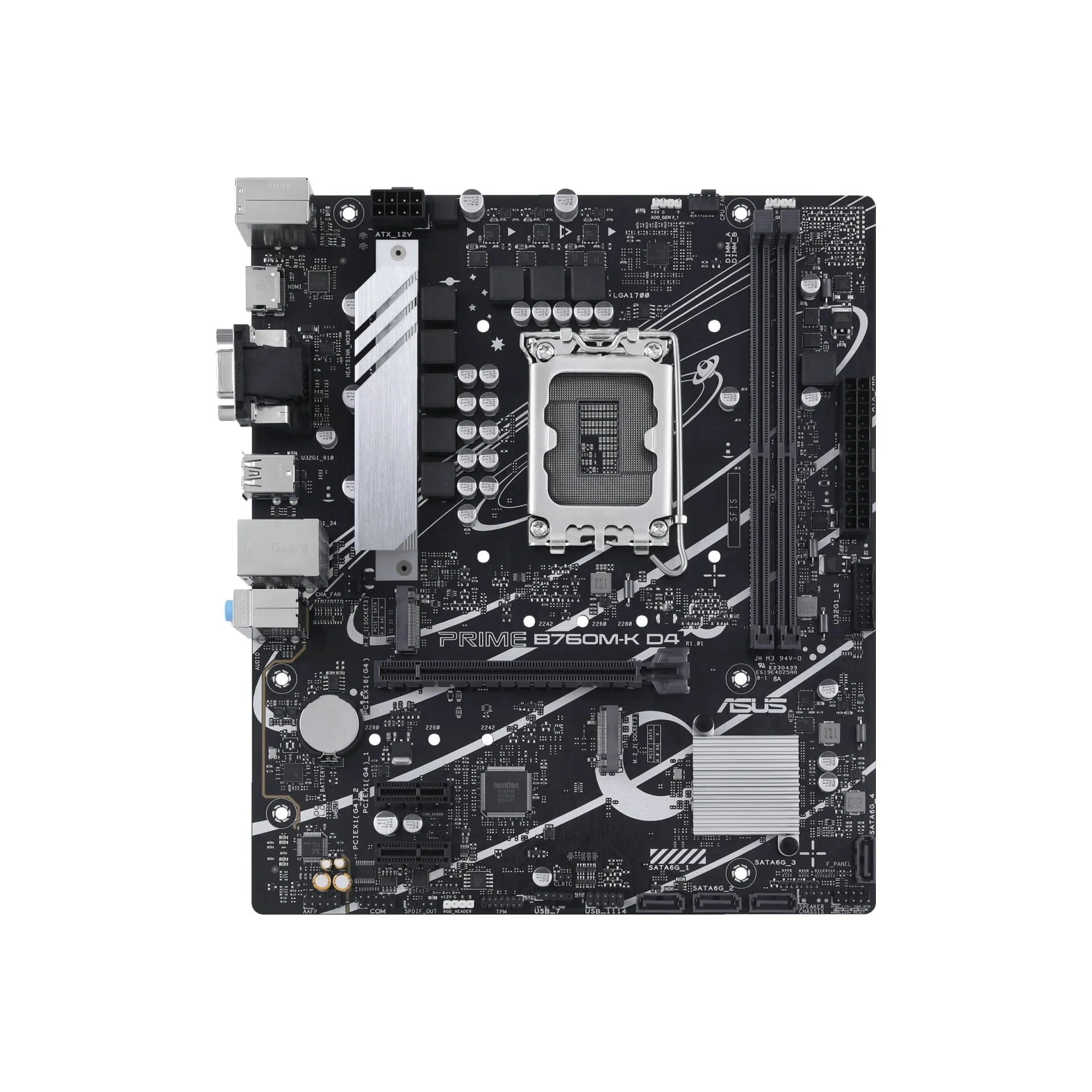

90MB1DS0-M0EAY0 ASUS Micro-ATX Single V (LGA 1700) 2 DIMM Slots Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for 90MB1DS0-M0EAY0 and save cash:

Quantity	Unit price
To 19	€151.00
To 49	€139.00 €151.00 (7.95% saved)
To 99	€129.00 €151.00 (14.57% saved)
From 100	€121.00 €151.00 (19.87% saved)

Product line:

Prime

See all ASUS

See other ASUS products

€151.00

In stock

Happyware Article Number:

SH5M3669-476852

Manufacturer Number:

90MB1DS0-M0EAY0

Brand:

ASUS

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

90MB1DS0-M0EAY0

Micro-ATX Intel LGA1700 Platform Motherboard featuring PCIe 4.0 NVMe and 2.5GbE with the 90MB1DS0-M0EAY0

The 90MB1DS0-M0EAY0 is a Micro-ATX ASUS Prime B760M-K D4 motherboard designed around the Intel B760 chipset and LGA1700 socket, enabling 12th/13th Gen class Intel Core, Pentium Gold, and Celeron processors for compact enterprise desktops and edge appliances. Its dual-channel DDR4 architecture with 2 DIMM slots supports up to 64GB, providing predictable memory behavior for office productivity, general compute, and light workstation pipelines where cost-controlled capacity planning matters.

For I/O and expansion, the 90MB1DS0-M0EAY0 exposes PCIe 4.0 connectivity through a full-height x16 slot for accelerators or high-throughput NICs, plus 2 PCIe 4.0 x1 slots for additional interfaces. Storage is architected with 2 PCIe 4.0 M.2 sockets for NVMe boot and fast scratch tiers, complemented by 4 SATA 6Gb/s ports for bulk capacity. Integrated 2.5GbE supports higher edge-to-core data movement, while HDMI and VGA outputs allow flexible deployment with iGPU-equipped CPUs for KVM-less console access.

Why Choose the 90MB1DS0-M0EAY0?

The 90MB1DS0-M0EAY0 prioritizes practical density-to-performance for SMB and entry enterprise rollouts by combining PCIe 4.0 NVMe throughput, multi-slot expandability, and 2.5GbE in a Micro-ATX footprint. It fits standardized desktop chassis and compact appliance enclosures, enabling scalable builds where UEFI BIOS control, chipset RAID capabilities, and optional TPM header support help align systems with internal security and lifecycle policies.

ASUS engineering focuses on platform stability and predictable firmware behavior, delivering a board that integrates cleanly with modern data centre and distributed IT standards for imaging, provisioning, and ongoing maintenance. The 90MB1DS0-M0EAY0 supports consistent component qualification practices for repeatable deployments across fleets.

Key Applications:

SMB desktop standardization
Office productivity endpoints
Light development and test systems
Entry workstation builds
Edge gateway and appliance platforms

At Happyware - Server Hardware you benefit from non-binding offers tailored to your bill of materials for the 90MB1DS0-M0EAY0, plus bulk order discounts to support cost-controlled rollouts across departments or branch locations.

Technical details of 90MB1DS0-M0EAY0

CPU Socket:

V (LGA 1700)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Pentium Gold Celeron Core

Form Factor:

Micro-ATX

Chipset:

Intel B760

RAM Maximum Capacity:

64GB

Max RAM Frequency :

5333MHz

RAM Slots:

2 DIMM DDR4

RAM Channels:

Dual-Channel

PCIe Slots:

1 PCIe 4.0 x16 2 PCIe 4.0 x1

M.2 Slots:

2 PCIe 4.0 M.2 2280/2260/2242 M-Key

Network Ports:

1 RJ45 2.5 Gbps

ECC Support:

Non-ECC

Onboard Network:

Ethernet

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

1x HDMI 1x VGA

USB Ports:

4x USB 3.2 Gen 1 Type-A 2x USB 2.0 Type-A

Other Ports:

1x PS/2 Combo

Trusted Platform Module (TPM):

Optional

BIOS:

AMI UEFI

Wi-Fi Support:

None

Onboard Audio Chipset:

Realtek ALC897

Embedded:

Card Reader:

How long is the Warranty and how you can get technical support for 90MB1DS0-M0EAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
