90MB1DI0-M0EAY0

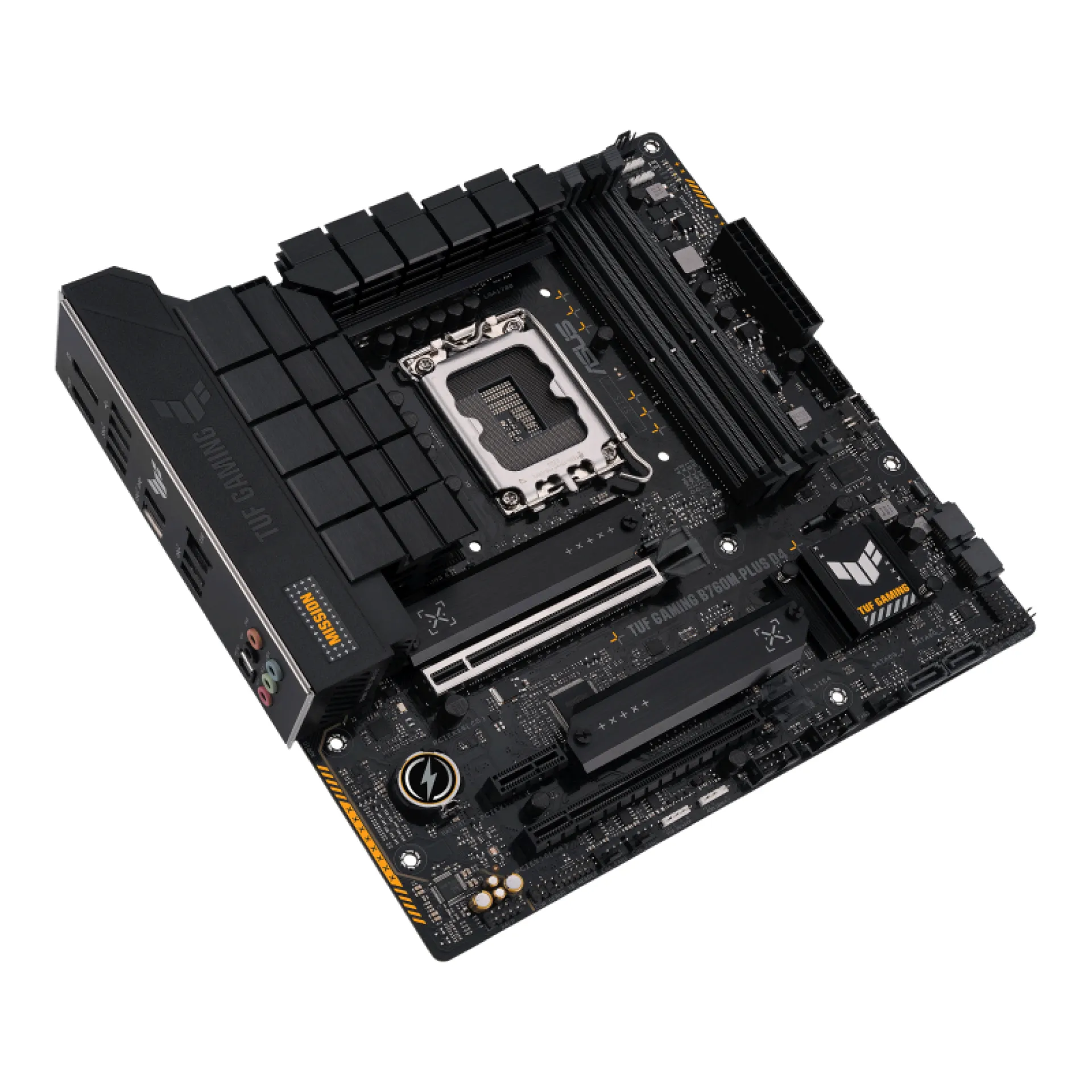

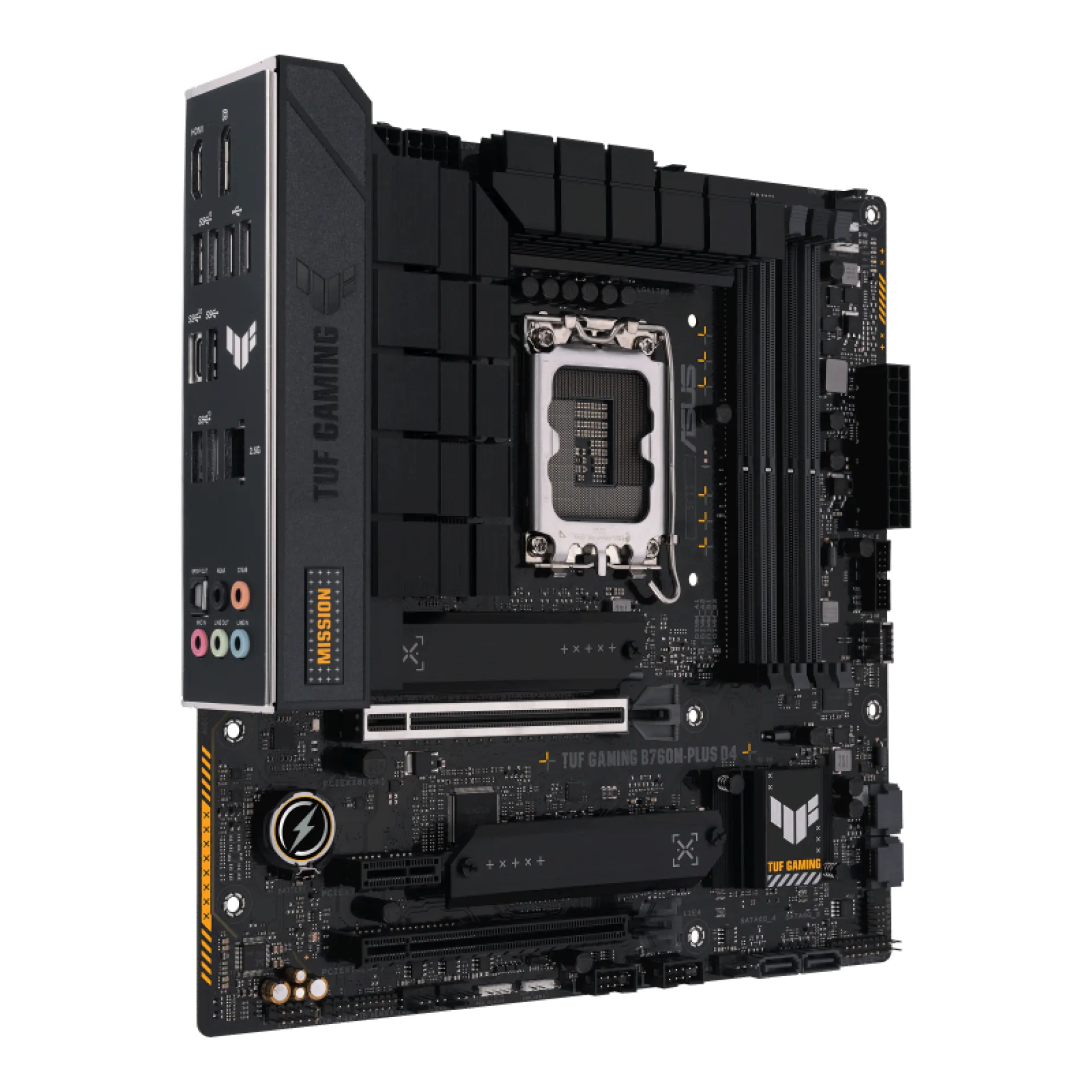

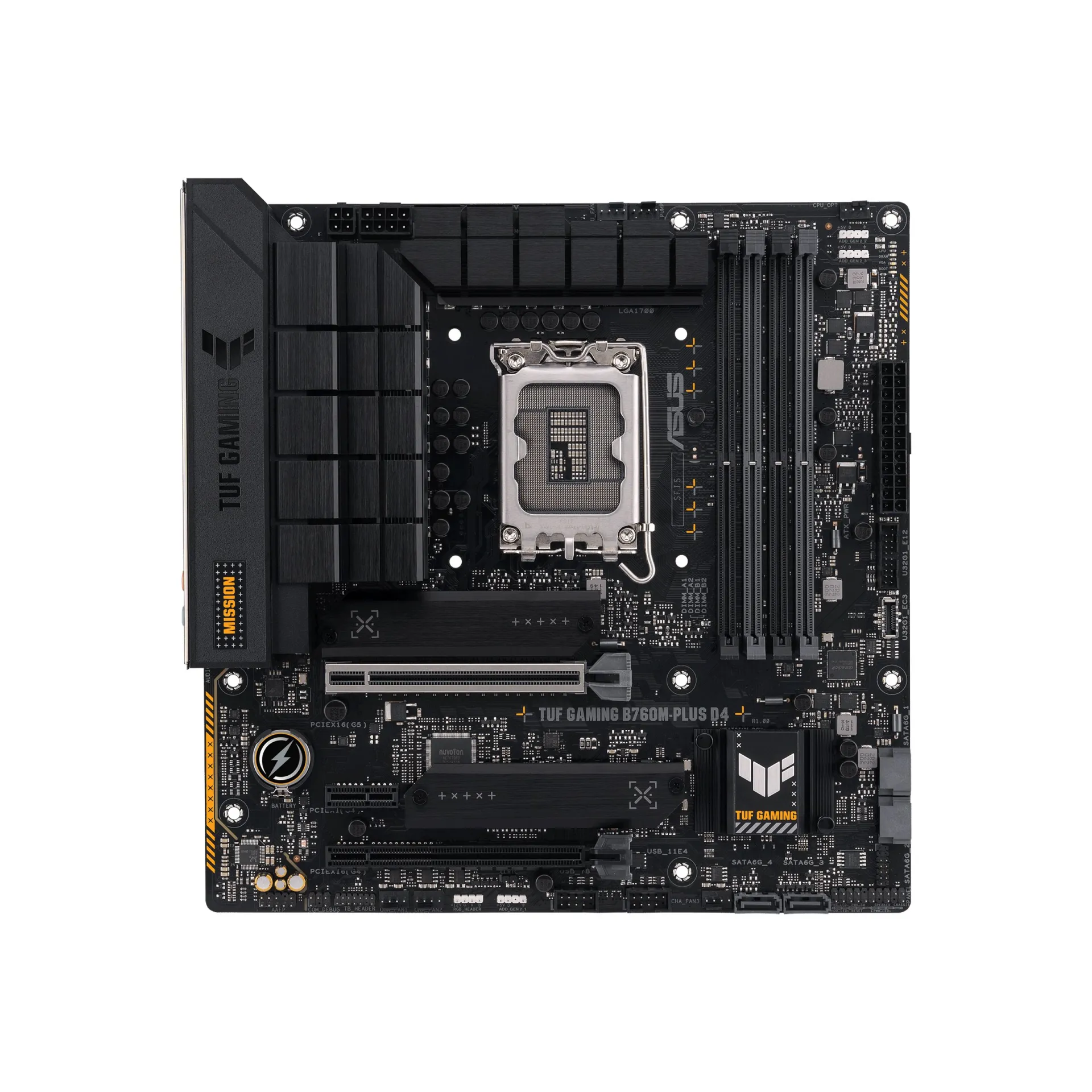

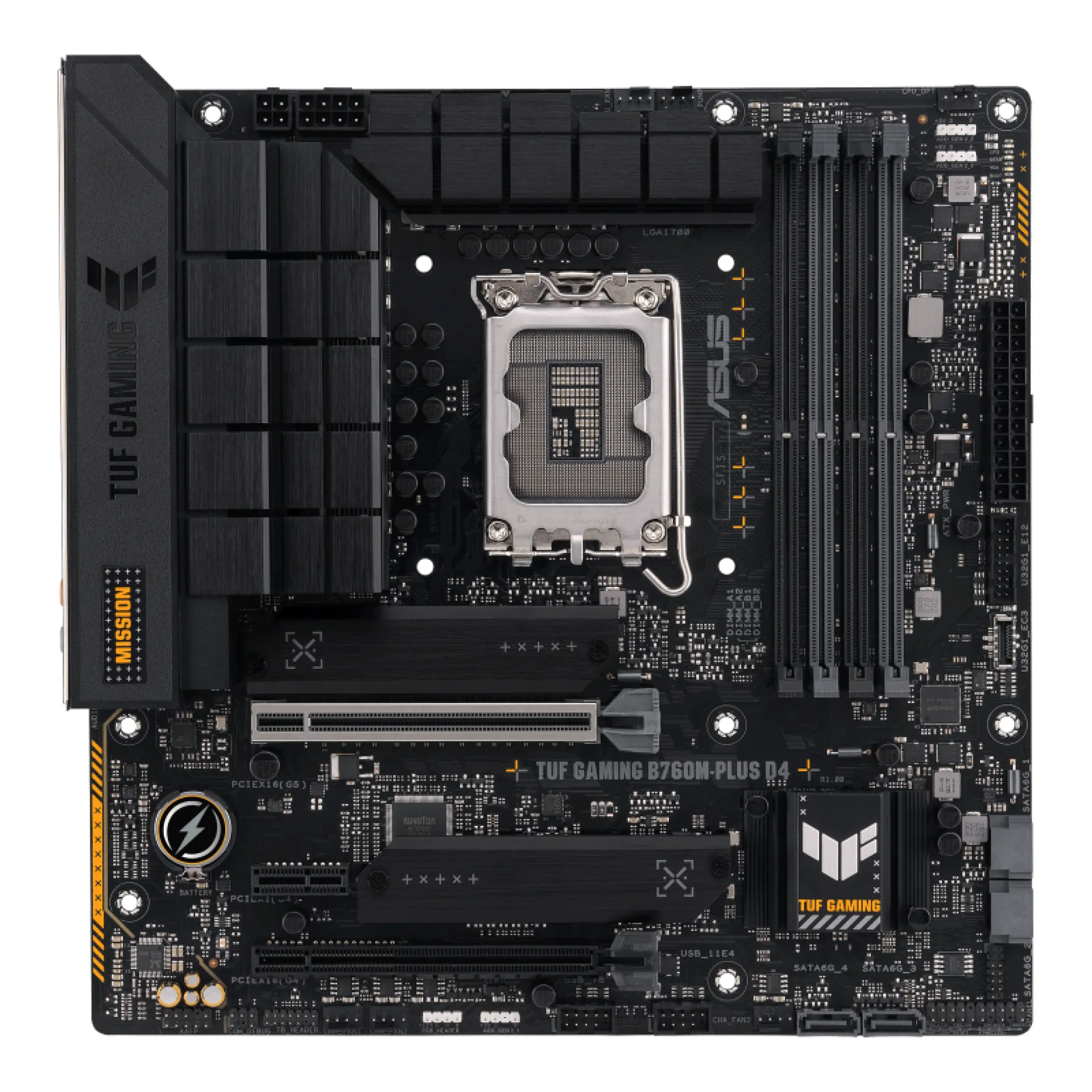

High-Performance Micro-ATX Intel LGA1700 Motherboard for SMB Edge Systems with the 90MB1DI0-M0EAY0

The 90MB1DI0-M0EAY0 is an ASUS Micro-ATX motherboard built on the Intel B760 chipset for LGA1700 processors, designed for compact business desktops, lab benches, and entry workstations where deterministic I/O and predictable thermals matter. It supports Intel Core i3/i5/i7/i9 class CPUs, enabling a balanced platform for office productivity, light content creation, and edge services that benefit from modern platform connectivity without workstation-class overhead.

With dual-channel DDR4 across 4 DIMM slots, the 90MB1DI0-M0EAY0 prioritises cost-efficient memory scaling up to 128GB for virtualization labs, developer toolchains, and multi-VM office loads. Expansion is oriented toward add-in acceleration and high-bandwidth networking: the primary PCIe 5.0 x16 slot provides a forward-looking path for GPUs or advanced NIC/HBA cards, complemented by additional PCIe 4.0 slots for secondary adapters. Storage architecture is tuned for mixed NVMe and SATA tiers, combining 2 PCIe 4.0 M.2 sockets with 4 SATA 6Gb/s ports and RAID support to separate OS, scratch, and bulk datasets. Integrated 2.5GbE helps remove network bottlenecks in small form factor edge deployments.

Why Choose the 90MB1DI0-M0EAY0?

The 90MB1DI0-M0EAY0 delivers a strong density-to-performance ratio for Micro-ATX enclosures by combining PCIe 5.0 expansion, PCIe 4.0 NVMe storage paths, and 2.5GbE in a manageable desktop platform. It scales cleanly from office endpoints to lab/dev nodes, providing reliable component selection and a straightforward UEFI BIOS approach for repeatable configuration and fleet consistency.

ASUS engineering focuses on durable power delivery and board-level robustness aligned with modern data centre and edge standards, supporting stable operation under sustained load profiles and frequent maintenance cycles typical of SMB IT and engineering labs.

Key Applications:

SMB edge compute nodes
Office and business desktops
Light content creation workstations
Lab and developer test systems
High-speed NIC/HBA add-in platforms

At Happyware - Server Hardware you benefit from non-binding offers tailored to your configuration goals for the 90MB1DI0-M0EAY0, plus extended warranty options up to 6 years to secure long service lifecycles in managed desktop and edge deployments.

Technical details of 90MB1DI0-M0EAY0

CPU Socket:

V (LGA 1700)

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Core i9 Core i7 Core i5 Core i3 Pentium Gold Celeron

Form Factor:

Micro-ATX

Chipset:

Intel B760

RAM Maximum Capacity:

128GB

Max RAM Frequency :

5333MHz

RAM Slots:

4 DIMM DDR4

RAM Channels:

Dual-Channel

PCIe Slots:

1 PCIe 4.0 x1 1 PCIe 4.0 x16 1 PCIe 5.0 x16

M.2 Slots:

2 PCIe 4.0 M.2 2242/2260/2280 M-Key

Network Ports:

1 RJ45 2.5 Gbps

ECC Support:

Non-ECC

Onboard Network:

Ethernet

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

1x DisplayPort 1x HDMI

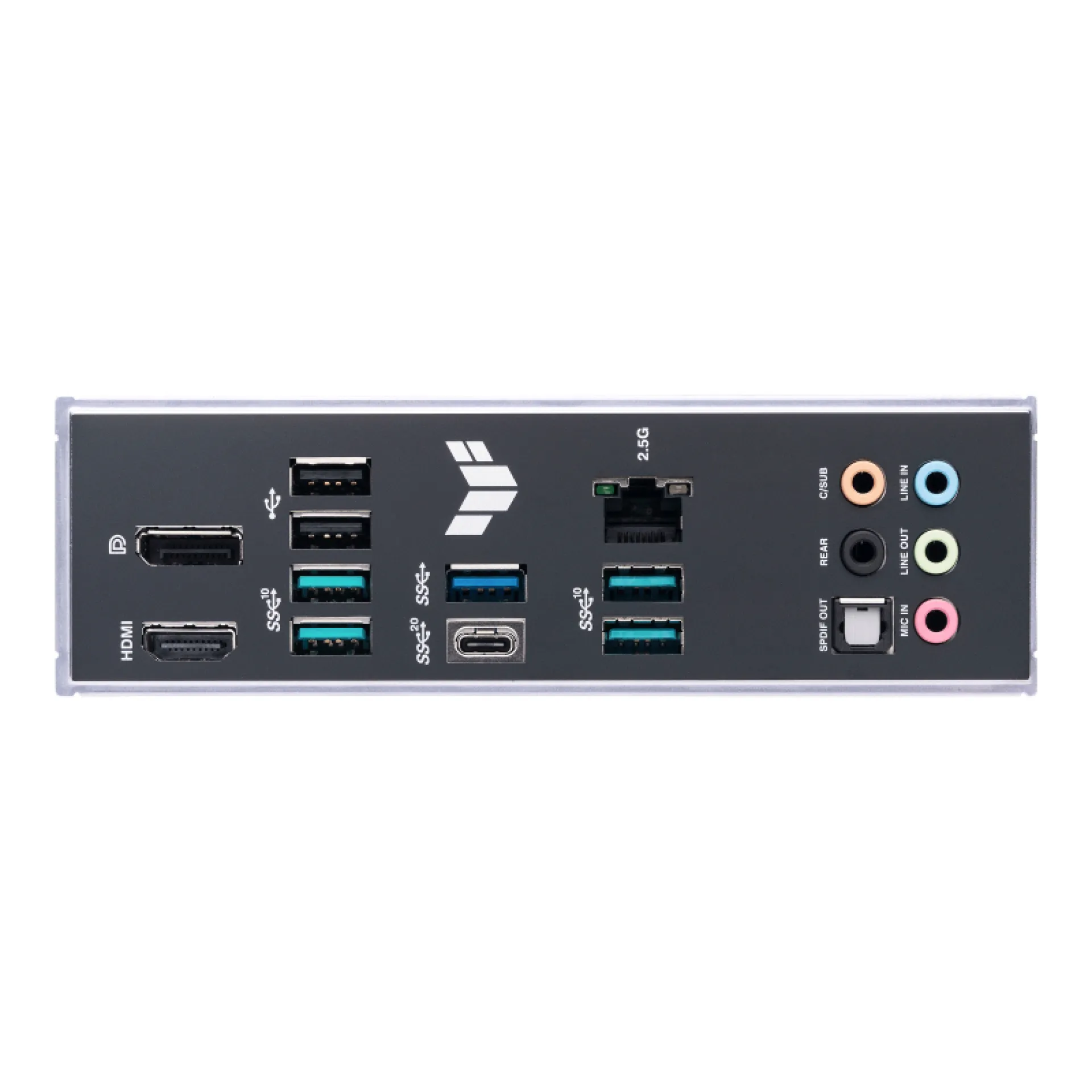

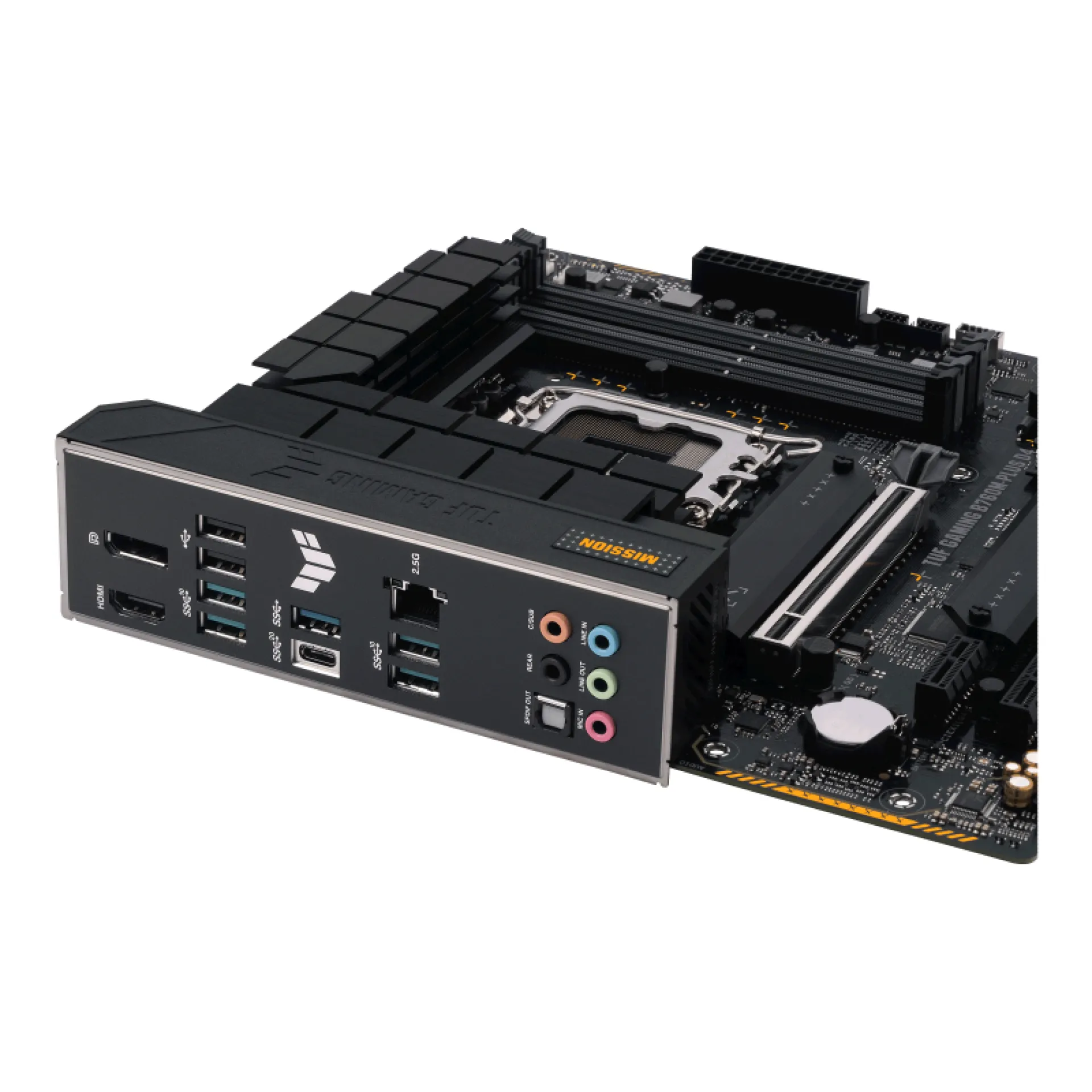

USB Ports:

1x USB 3.2 Gen 1 Type-A 4x USB 3.2 Gen 2 Type-A 1x USB 3.2 Gen 2x2 Type-C 2x USB 2.0 Type-A

BIOS:

AMI UEFI

Wi-Fi Support:

None

Bluetooth integrated:

None

Embedded:

How long is the Warranty and how you can get technical support for 90MB1DI0-M0EAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
